Viewing all customer Discussions for:

26-083 Pivot Bar, 2-1/2"

Hello! I'm reaching out in hopes of determining the correct spring weight for a balance replacement. I'm working on a 28"x 44" Simonton window installed in 2011. I removed the spring and found no information regarding the weight or length - please see attached photos. Any information you could ... (cont.)

customers pivot shoes broke on both windows upper and lower and cant find parts for them, can you tell me which parts will work to fix this issue. Thanks in advance

Looking for replacement window stays or balances for my simonton windows. Looks similar to some you have listed on your site but I wanted to try this for more assurance

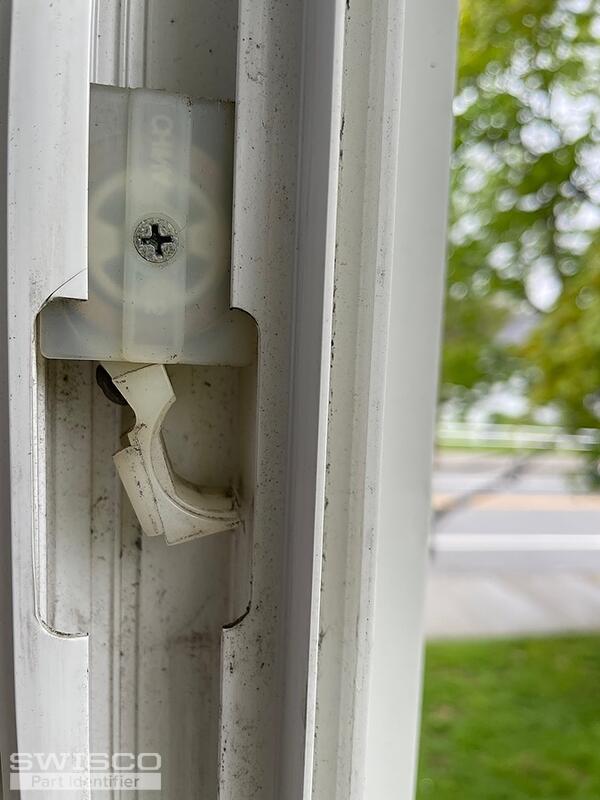

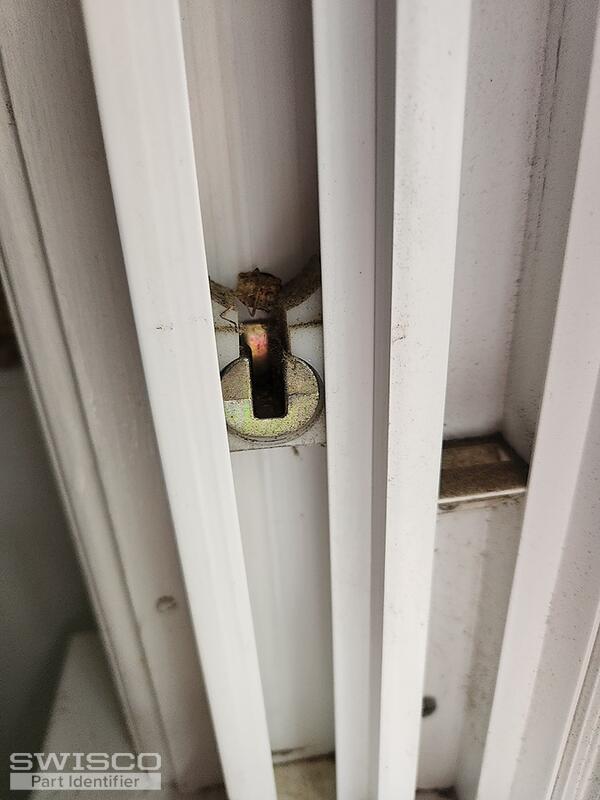

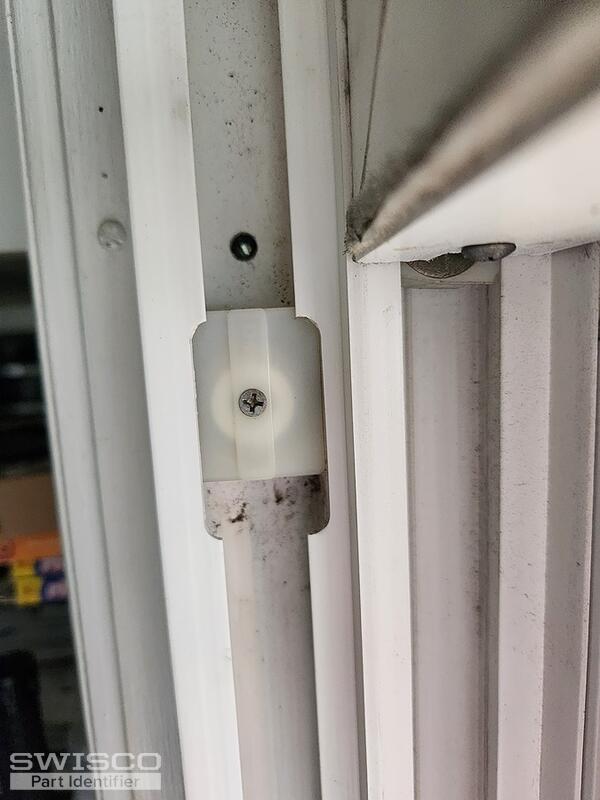

Two of my vinyl windows have what seems to be broken pivots. As you can see in one of my windows the metal keepers are just laying in the bottom of the side trough and the plastic housing which holds it is broken into pieces. It would be great if you can identify what replacement items are needed. ... (cont.)

Please identify the part in the photo and advise of cost. If available, prefer stainless.Thanks,Jim

Attached picture shows the front and back of our old pivot shoe that is 3/4" deep x 1-1/4" wide x 2-1/4 high. It is an obsolete Unique Balance part number: Shoe 720D, Cam 165 x 390. The picture also shows our coil spring balance. When I called, it was suggested that I send this photo for evaluation ... (cont.)

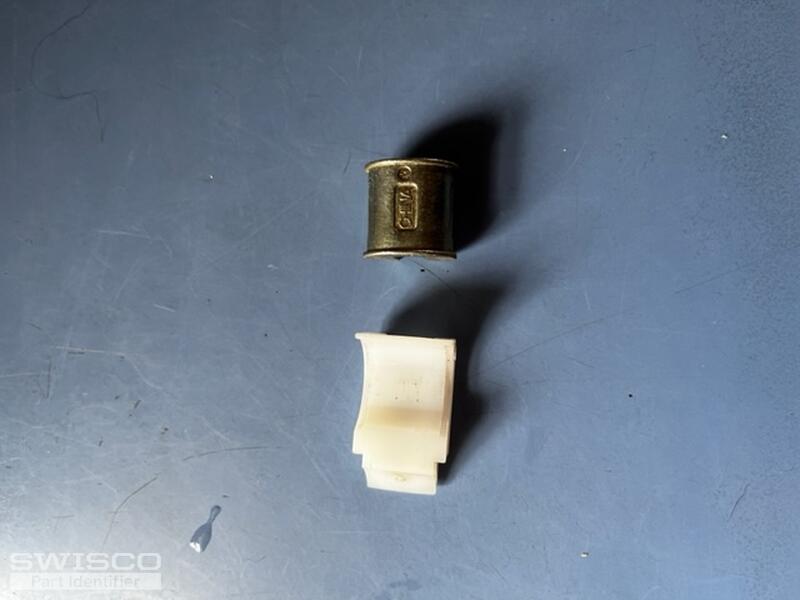

We are looking to find replacements for the pieces shown below as directed by customer service. The white plastic piece is broken in half. The other half is stuck in the window frame. I will need three sets please.

Home Depot's windows purchased in approximately 2002. Cannot get window to stay in the mechanism that raises and lowers window. The metal bars appear bent but I do not know if that is by design.

I need both right and left coil balances for a set of 4 identical windows. Window tag included. I also need a single tilt latch. Any help would be greatly appreciated. I am quite capable of replacing just need the correct parts.

Hi, Went to clean my double hung Simonton windows and realized that all my balance assemblies in all windows are broke. 21 windows. The plastic piece that holds the metal pin connector cracked in half. I'll be fixing one at a time. For the first window, I'll need 4 total assemblies. The coil is 3/4 ... (cont.)

Hi, I need 2 balances matching these in the photo. Need 2 shoes and 2 of the pins that sit in the shoe. Only marking I see is 409 j on the metal band. On pin it says 0552 and 16. Thanks

Hello Swisco, I will be ordering American Craftsman parts for my windows and door slider 6' can You tell me the correct slidder wheels forthe 6' American Craftsman Slidders? I will be ordering also American Craftsman Double hung parts Pivot pins, Coil Balance Springs 16.7lbs window weight and Ti ... (cont.)

coil balance & pivot bar parts

I have 4 windows that have broken balance springs. Will need replacement parts. If you have any installation guides or videos that would be helpful. Replacing both sides so will need 8 total

I need to replace the window balances. One is broken and obviously the window will not stay open. The window is a Simonton 33.75x60.5" double hung. I'm trying to figure out what balance will work for this window. They were installed in 2010.

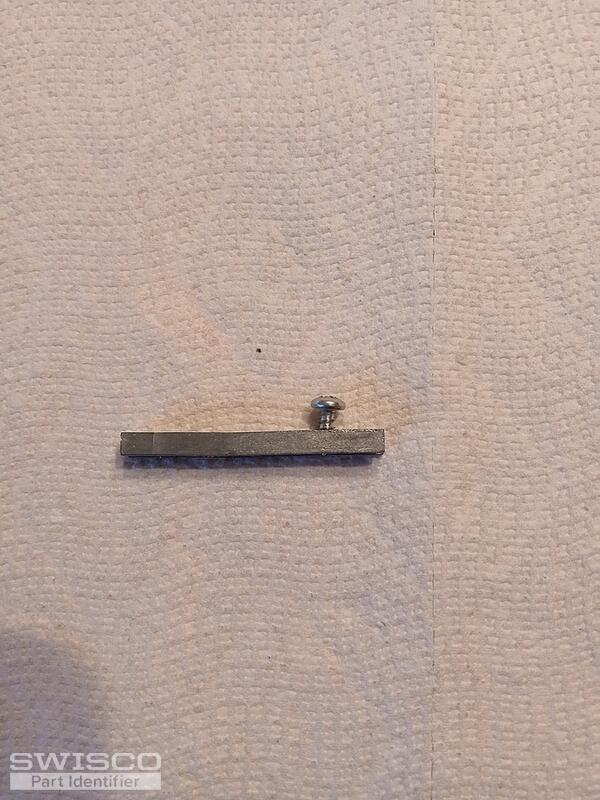

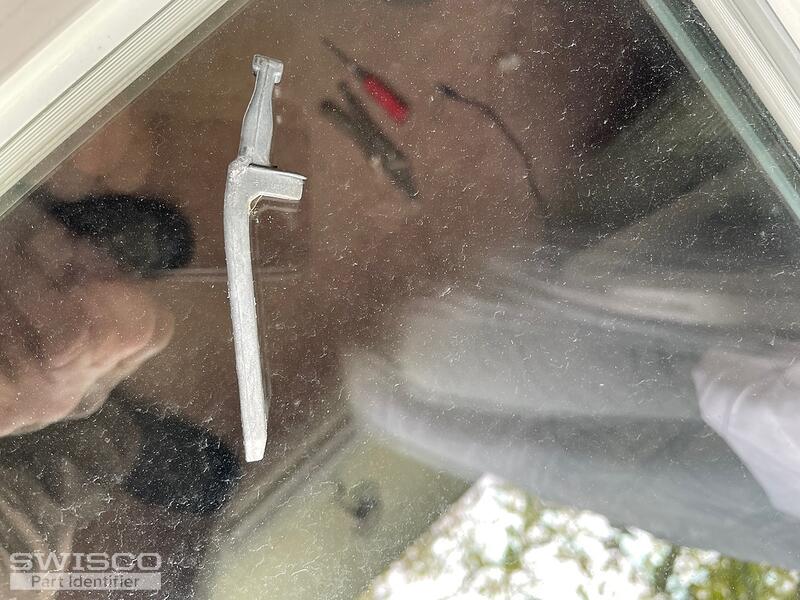

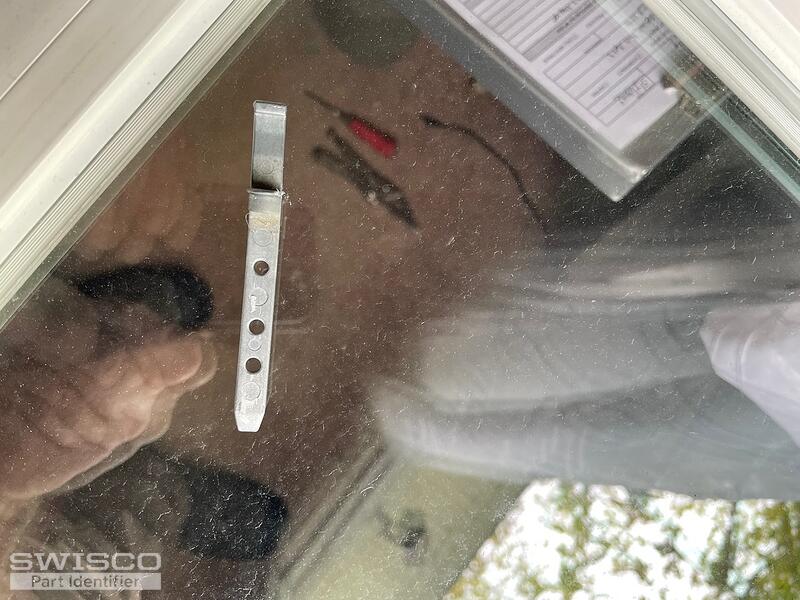

The picture is of my old sash pivot bar it is 2 5/8 long 5/16 wide u shape 3 holes one closest to pivot shoe is 5/8/inch next one is 5/8 back from there last one is 1 3/8 from first hole. Pivot shoe looks to be a 15-087 and stamped on spring is 15v then a different type of 6 on it also. Pivot shoe n ... (cont.)

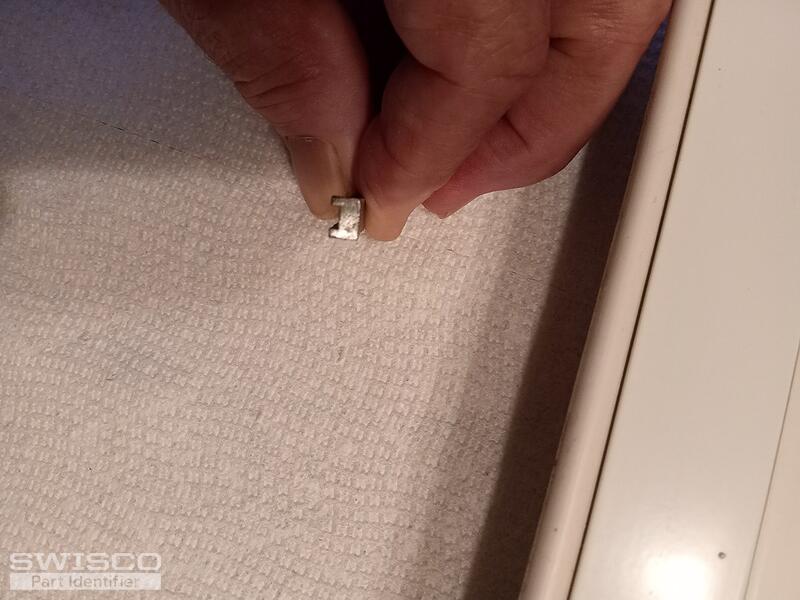

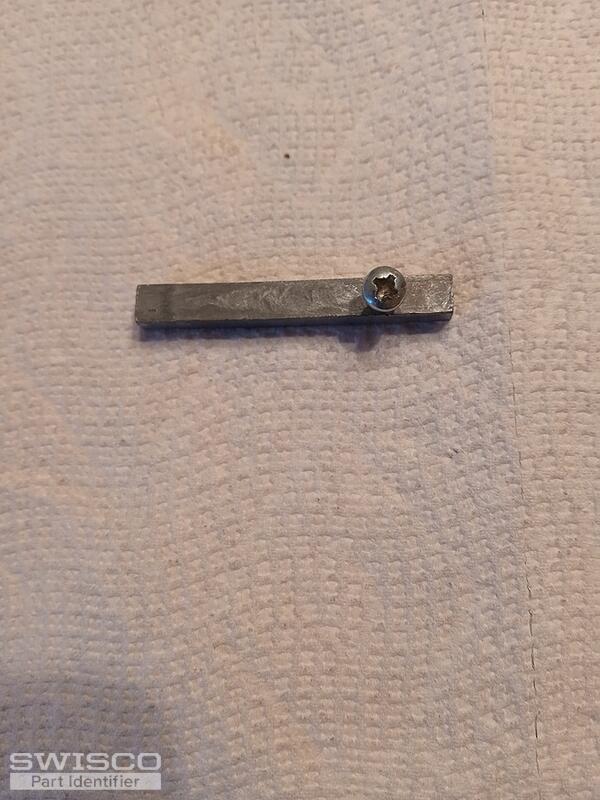

2 inch long 5/16 wide 3/16 high (not rounded has a flat top)

I am looking for Pivot shoes for 2 Simonton double hung windows purchased in 2005 and 2006. Window #1 Identification Q0507 0643233300010000 50881 55DHWI31 2006 Window #2 Identification 06169126030001 50880 55DHWI28 2005 I recently purchased 2 Shoe Item#15-192. These did not fit the window ... (cont.)

The tilted part of the window is all vinyl weighs approximately 20 pounds. The right hand top tilt latch is damaged. The Pivot bars were both rusted out they are 3"long. The pivot shoe was measure at 2" in length,1¼"wide, and ½" thick. The spiral Balance rod was measured at 3/8wide and 34" long. It ... (cont.)

appears to be a single coil where the spring snapped. sash is 12.8 lbs, i want to replace both springs, not just the broken one. I cannot find any numbers or even a manufacturer/model number anywhere on the window itself. the vinyl track has no cutouts for spring replacement (though i found a YT wh ... (cont.)
