Viewing all customer Discussions for:

36-004-10 10" Stainless Steel 2 Bar Hinge Set

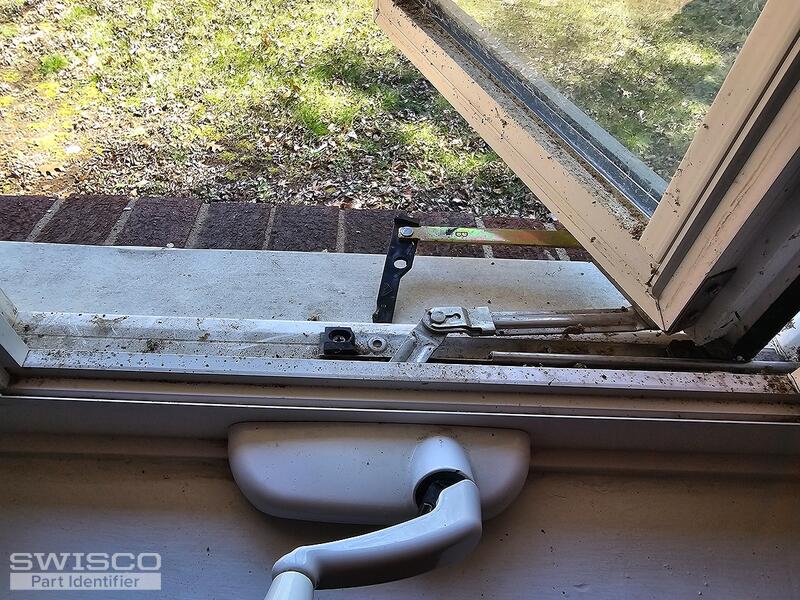

Grayco window will allow me to crank out window but not crank it back in. there also appears to be a broken piece of black plastic that keeps window in track seen in image 8993. I think the sticker says k501305-01 grayco 09-3294B then size 27 5/8 by 53 1/4 bar10822 egress. Hard to read sticker ... (cont.)

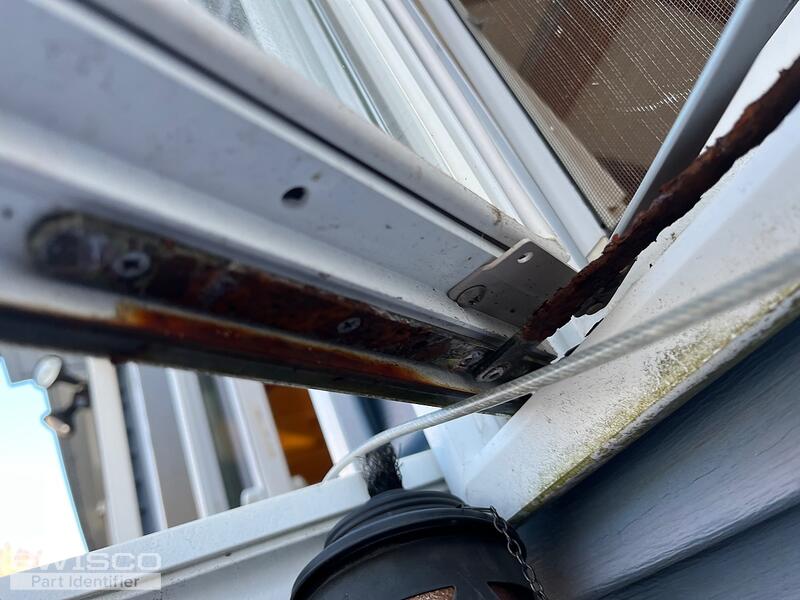

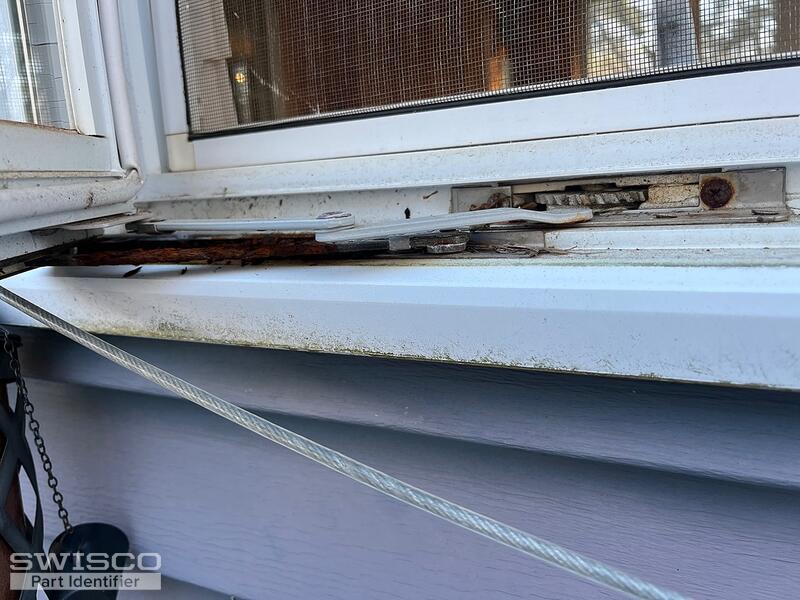

Here are some pictures of my windows, they are roughly 25 years old. There are a few that do not work, parts have broken or rusted. I want to work on replacing parts so windows will work. The upper and lower tracks are roughly 10 inches. The width of picture ending in 354 is roughly 5.25 inches. The ... (cont.)

The window was installed in 1998, not sure if the manufacturer was Patriot? The label is from the window. It still works, but has significant rust.

I have this track that is similar to your 11 3/8 entrygard track. Except mine is 13 3/8 long. The holes are 4 inches apart. The end holes are 3/8 from the ends. Do you have one of this size?

Hello, I have ordered parts but keep realizing that I am still missing parts. This time it's the one with the red dot. It basically supports the window when opened. I hope this helps

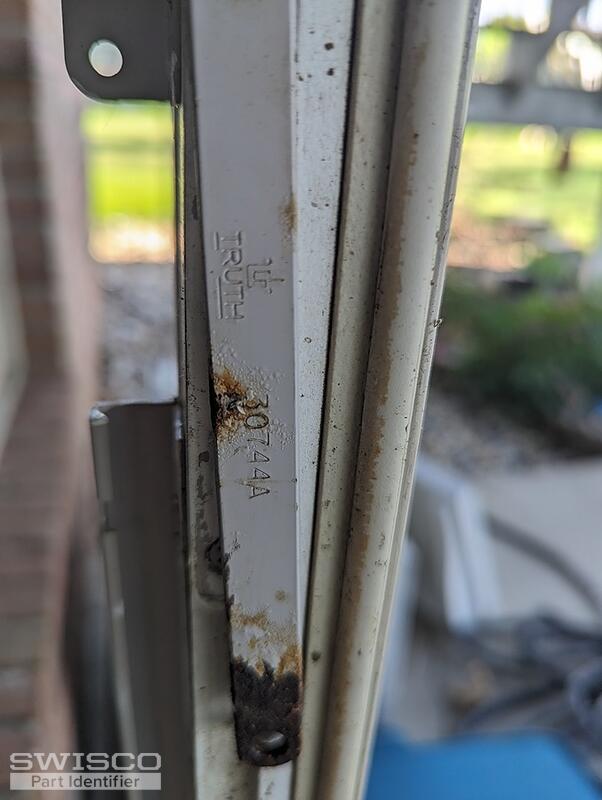

truth 30744

More Pics enclosed Of the other casement window/hinge/crank /lock assembly Need parts identification etc..10" 2 bar hinge?stainless?.. crank assembly w handles

Attaches to the bottom corner of casement window and this part glides along when opens. I need this and the bar that attaches. Pics show bad windows and good window. Thank you

rail is 10 " and the screw holes match up with the part number you have listed as Product Code: 36-004-10 but the arm is 5-7/8" long rather than 5-1/4" and is attached in a different location.

Hi I'm looking for replacement hinges for my basement window the markings on the hinges is Interlock 12c-is23 HI

I have a truth casement window that is not closing tight.. the bar guide breaks because the window is so out of alignment. How do you adjust? It's the 31850 system.

Side mount control arm right side

I need 2 arms like this a left and a right

I need a right & a left of this part.

Need to replace the broken track trailer on a Harvey Ind. Casement window

Need approximately 20 of these... hoping to get an upgrade from the OEM parts if available, stainless steel would be good.

Markings ROTO Interlock world patents Made in New Zealand Design pending

Hi, I would really appreciate your help figuring this out. These are located at Carolina beach (1.5 blocks off the ocean) and have garnered some serious failure. We jsut bought the place a few months ago and pretty much all four windows need new hardware (top and bottom hardware.) I found some old ... (cont.)

Attached are 2 photos of the the bottom hinge of my window (inside and outside views). The window has 2 panes and is approximately 34' x 34" casement. The #31858 Truth is stamped on the hinge assembly. The base plate is 12" long for both the bottom and top hinges. I note that 10" appears to be more ... (cont.)

To whom it may concern, Can you help to identify a replacement of the bar hinge in the photos? The bar hinge in the photos (left window) is good but the opposite one (right window) bar hinge is broken and needs to be replaced. Thanks in advance! D
