Viewing all customer Discussions for:

15-045 Pivot Shoe, 3/8" Thick

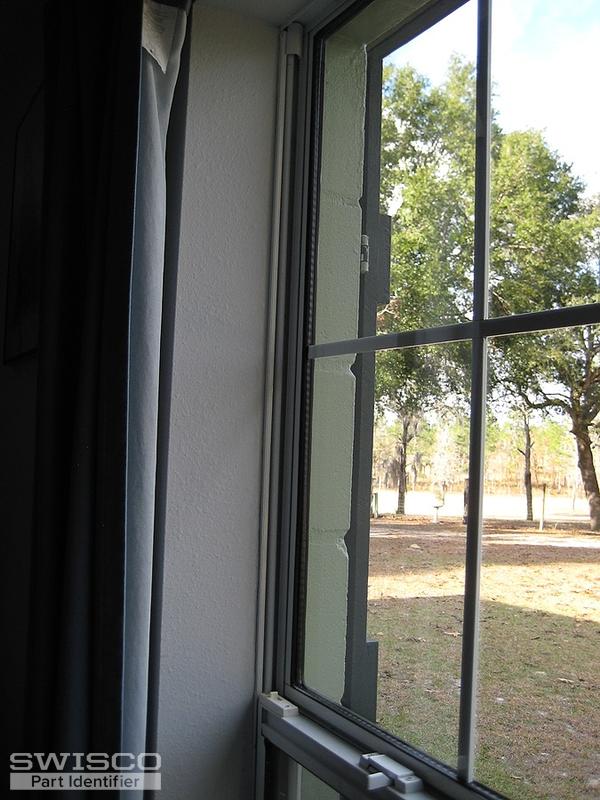

Hello. I am looking to replace all of the parts on this window that serve to operate it. The window is a tilting one but as you can see both the top release tabs and the pivot bar are broken. I am looking to identify all of the parts I need to basically replace everything that is attached to the win ... (cont.)

I removed the lower sash on one of my windows to have the broken glass replaced. I noticed there are missing plastic (or nylon) pieces (shown in the picture of another like/same sash). A metal rectangular piece attached to the bottom of the sash at each corner fits into the missing piece. ... (cont.)

I have taken photos of the parts I need. Please look over the pics and let me know the right parts to order. I also need a tool to wind the spring. The springs are 25 inches long ad the tips are Red in color with one pin through the end. Some of them have two pins. I need springs , latches and slid ... (cont.)

29"/3/4 spiral balance Pivot shoe Window stop ?

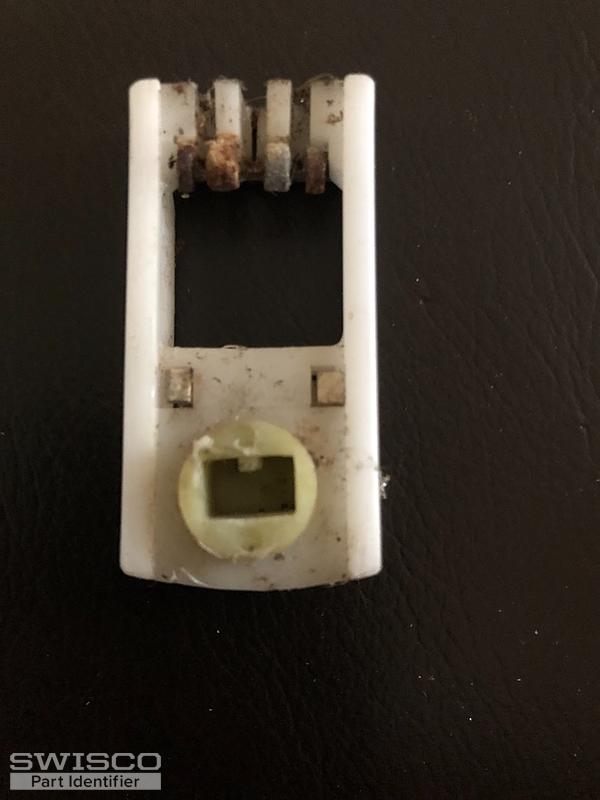

I have a broken pivot shoe which has a black cam meas. 1 15/16 x 3/8 x 15/16. Would I use pn 15-045? And can I test a spiral balance to see if is still good. On the side with the broken pivot shoe the tip is recessed inside the tube. The spiral balance is 30"x 5/8". Should I replace both spiral bal ... (cont.)

Only tag I can find series 875/876/877/878 I need the balances for both sides the length from bottom pin to top is 25"and would you have the pins for the bottom. Thank you

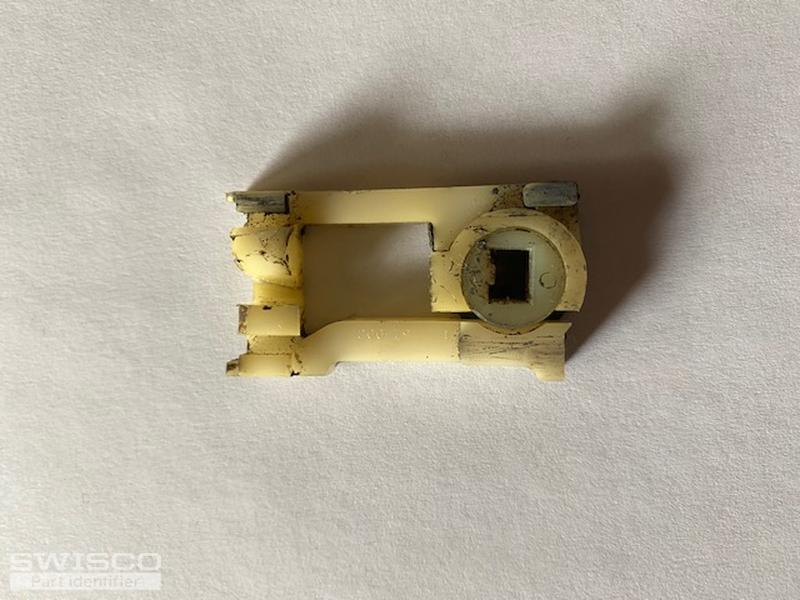

The measurements for this shoe are 1-7/8" long. 15/16" wide and 3/8' thick. Comes from a late 1970's single hung tilt window with spiral balance. Is there a similar replacement item? Thanks.

Hi guys, Well I ordered the 900 series balance system and pivot shoes Product Code: 15-134 swico. The problem now is, everything fits , except the cam hole, it's to small, the pivot bar is a little bit bigger so it won't fit in. So what are my options? New pivot bars? Or new pivot shoes?Best regards ... (cont.)

These are 29 inch long spiral but they have yellow tips. I need 28 of these and 28 shoes

I need to replace this part one one window, but I don't know he correct size to order.

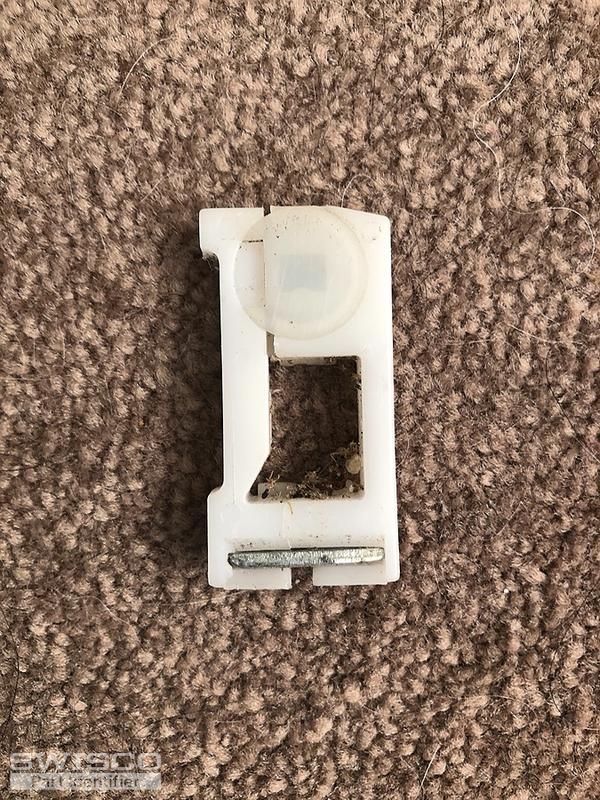

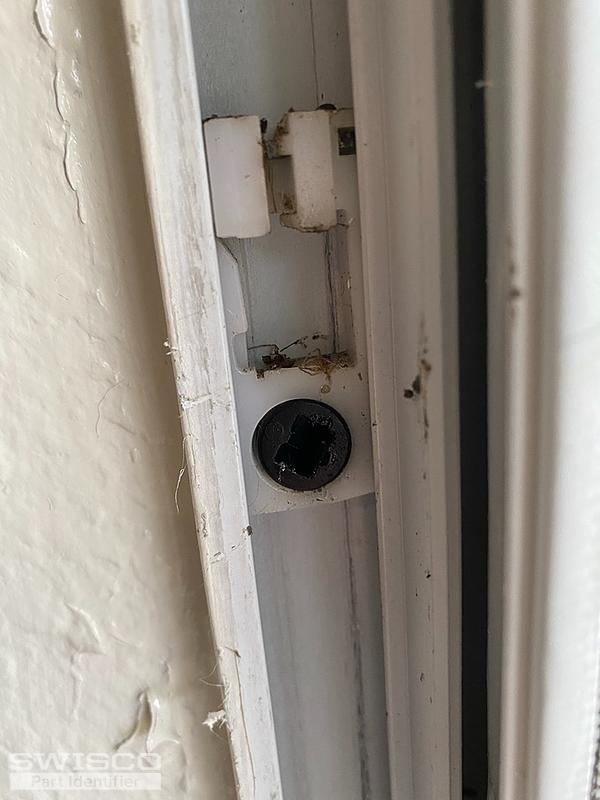

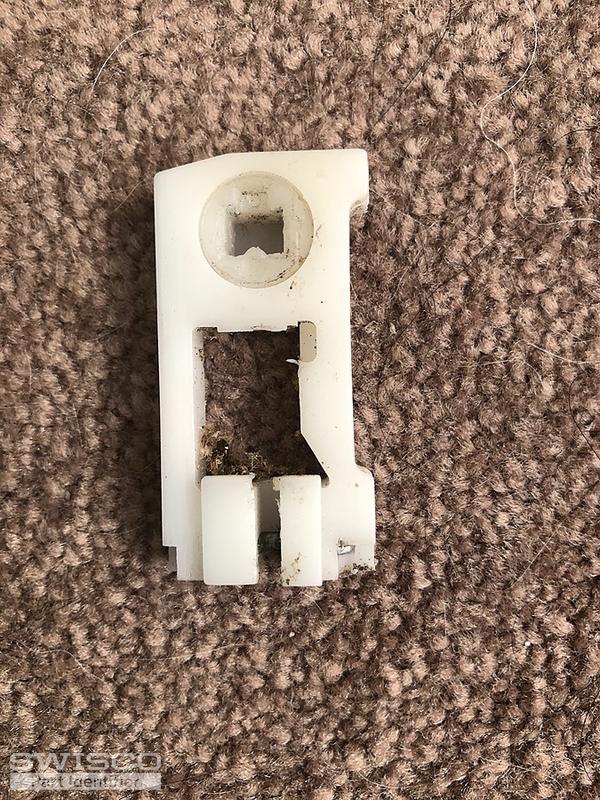

I have some spiral balances which consist of two different lengths everything else is the same they are 25 and 29 inches in length and 3/8 inches in diameter. The other white piece is 1inch in width, 1 7/8 inches in length and 3/8 inches thick. Also I'm attaching a picture of the screw that holds th ... (cont.)

15-045, 15-134, 15-218 may fit or I can make them fit, but what are compatible Pivot bar that goes with them ? Old measurement is 3/8" thick, 1" width, flexible height (can work with 2"). Preferring side mount, alternatively which shoe can work with 26-402. Thanks,

Plastic piece is 1.75 " high Spiral Channel is 1 " wide

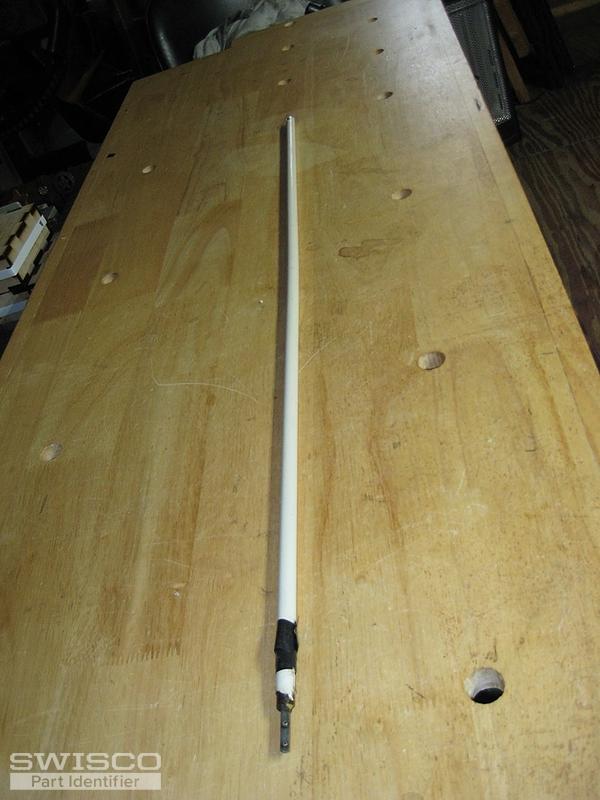

Attached are some pictures for a window I need help on parts. They are for a spiral balance and the metal rod is 29 inches in length and 3/8 inches in diameter. The bracket that the spiral balance fasteners to is 1 inch wide, 1 3/4 inches long and 3/8 inches thick. The locking mechanism is 2 3/4 inc ... (cont.)

I need help with which parts to buy? I have double hung vinyl tilt in (lower tilt only) windows. My channel is 29" long black tip and pivot shoe is 1 7/8 X 3/8 X 1". Please see attached pictures

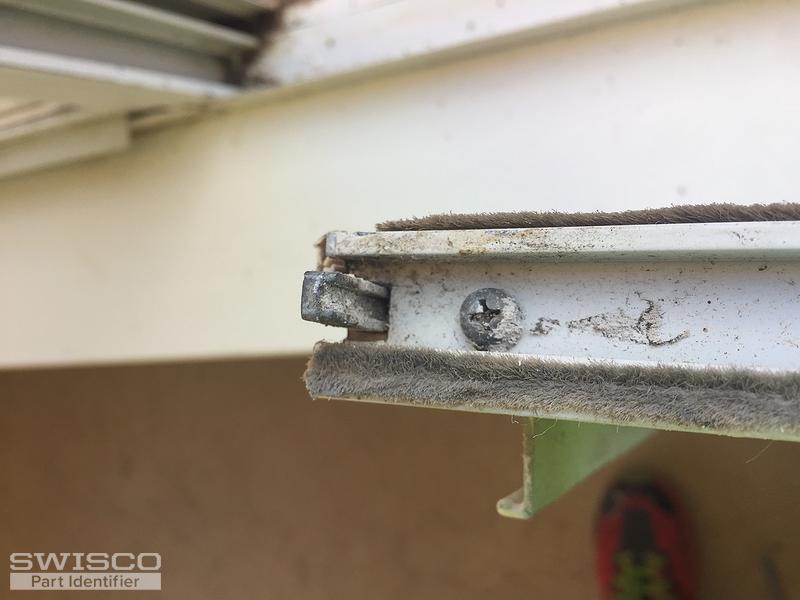

This is the tab that fiits into pivot shoe , shoe is 15-045

one photo of screen needing replacement; do you sell screens. two photos of bottom of window of apparent plastic weather strip held in place by screws--do you sell these?

I have 10 windows, 8 are 3x5 ft I need pivot shoes and spiral tubes which are 29 3/4" long with yellow plastic insert. Richard

25-year old home; many original windows of various sizes and configurations - 17 of which are all single, tilt-sash, lower openings - 12 of these, various sizes, are marked "Better Bilt" (BB). The other 5, have no manufacturer markings - possibly BB of a different early-1990's model, dubbed the "Unk ... (cont.)

I am replacing spiral balances and stops. I have to weigh the window first to low the correct color coded balance, however I'm unsure of whic replacement stops to order. Thank you for your help.
