Viewing all customer Discussions for:

75-006 Spiral Balance Charging Tool for Tilt Windows

I am looking to purchase replacement window parts for our condominium. Pivot Lock Shoe Black Cam 16H98, 1-1/4 x ¾Tilt Balance ToolCaldwell Balances Attached is a sketch showing the sizes of various windows. Also provided are photographs.

I think these are 3/8 inch 34 inch white tipped series 900 spiral balances for my tilt window. The part the screw went through on the top is made of plastic and they started to break (with a very loud bang) shortly after we bought the house. My question is this: My current balances are encased in a ... (cont.)

Hi could you please tell me what size # pivot shoe I would need by these pictures and how much they would be . Thank you Jim

Not sure what they are. sometime around 1998

looks like 3/8 in balancer, so 900 series. note length is 28 1/2. what size should I use? Not sure if shoe is 1/2 or 17/32, but I don't see any pivot shoes listed in either size that are listed as compatible with 900 series. What should I use?

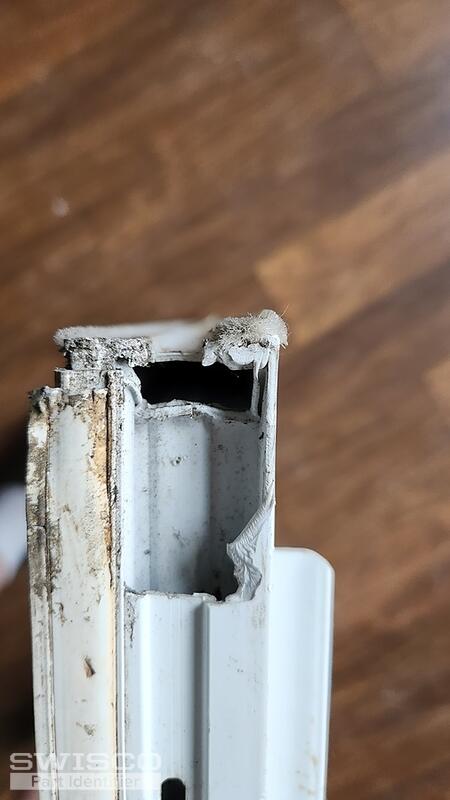

After talking to one of your representatives, I have taken the following pictures to show you what the window looks like now with what I believe is the broken part. Is there a replacement part that I can receive from Swissco that would help me correct the issue and have an operating window? Thank y ... (cont.)

I believe I need the 15-045 pivot shoe 3/8" thick and the 29" Series S600 5/8" diameter spiral tilt window balance. Please correct me if I am wrong.

I have removed the spiral balance springs from my Alcoa tilt windows. I have 6 windows (identicle) that I need to replace the spiral balance springs. I weighed the window sash and it weighs about 15lbs. The balance in them are 34 1/4 inches long. They have black tips. Do I get the red tip or black t ... (cont.)

While replacing the pivot bars (#26-040) we noticed we also need to replace our pivot shoes. We believe the measurements of the pivot shoe are 2" High, 5/8" deep and 1 1/4" wide, though it was difficult to take accurate measurements while the shoe was still in track. What replacement shoe do y ... (cont.)

I have a broken slide block that the lower side of the window connects to. The block is approximately 1"x2". How do I get the new block in the channel? The window says 1994 on it. model 200x

Hey guys! I purchased a home that was built in 2002. All the windows are very heavy to open or will not stay up. As much as I would love to replace them I feel that I would get better bang for my buck rebuilding them with quality parts. What do I need to repair them?

No markings found on windows. These were installed about 19 years ago and are vinyl tilt out ones.

Hellow I need replacement 28" Full Tilt Spiral Balances for 3 windows (approximately 36 x 60) See photos attached. Numbers on existing ones I found (pulled one side from each window) are as follows: J5B 1 HSA 0 FT A 0 Don't know if above characters are zeros or letter O's Please enlarge image ... (cont.)

Hello! Please help me find this item. (2? height)

Window is about 15 - 20 years old. I need two of these if possible.

The windows use a 3/8 spiral balance 24in long with blue tips,and a sash weight of 15lbs, The pivot shoe measurements is 2" tall 1-1/4" wide and 9/16" thick, which matches the description of part# 15-121, however i read a post stating that part would not work with the 900 series spiral balance. My q ... (cont.)

I purchased and received this item. Question about installation. I replaced units but they do not hold up the window. do I have to do something special to "charge" the balance. I purchased the charging tool? Not sure how to proceed. Bob

I have purchased a condo that has double hung vinyl tilt windows. I do not know the brand or age of windows, my guess is more than 20 yrs old. None of the windows operate with ease and one is missing the locking device and the shoe is broken. Obviously the shoe and locking device need to be replaced ... (cont.)

I am trying to find the part to replace on my tilt window saw. The part I think is bad is both the pivot shoe nd the pivot bar attached to the sash. I don't have the manufactures name or model number as this home is about 25 years old and the windows are original. I have attached a picture of the ... (cont.)

Hello. Do you have a shoe to fit this balance? Thank you Roy
