Viewing all customer Discussions for:

17-056 Tilt Pivot

No markings on the pins

I'm in need of replacing broken cam pivots so that I can restore my Loewen windows back to proper operation. The only thing close that you have on your site is the 26-150 but I'm not 100% sure whether they will work the same, as there are obvious differences in the cam section being wedge shaped ins ... (cont.)

Hi, I have 1989 Semco windows. I think the tilt pivots are 17-056. The part the pivots engage with are broken. Also don't know how to get them out. Thank you, Frederick

We are trying to location Cam pivots for a Lincoln window size 5/8" wide by 1 3/16"

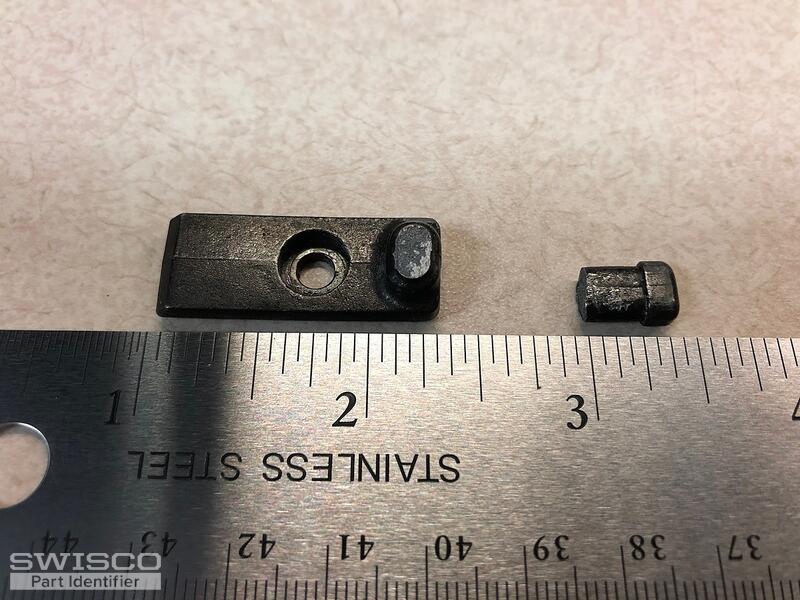

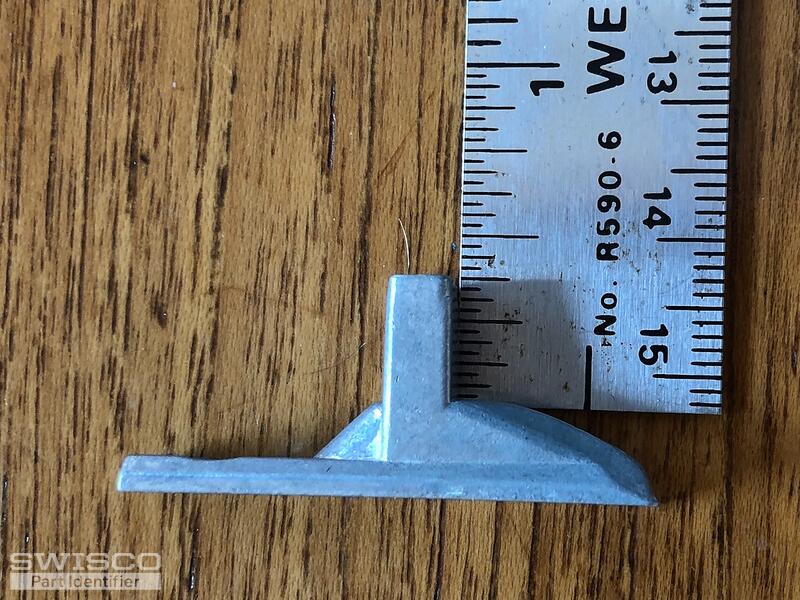

This is a cast metal pivot bar that attaches flat to the side of each window section at the bottom, of course to turn the clutch lock. It is 1 1/2 in long and 5/16" wide. the post extrudes from the base 1/2" and is rectangular in shape and is 5/16" wide and 3/16" top to bottom. There is a hole th ... (cont.)

Can't seem to find part numbers 15-109 and 17-092 on your site. Are they still available and/or do you have replacements ? Thanks!

T-lock balance shoe is 1 1/4" wide and 1/4" thick.

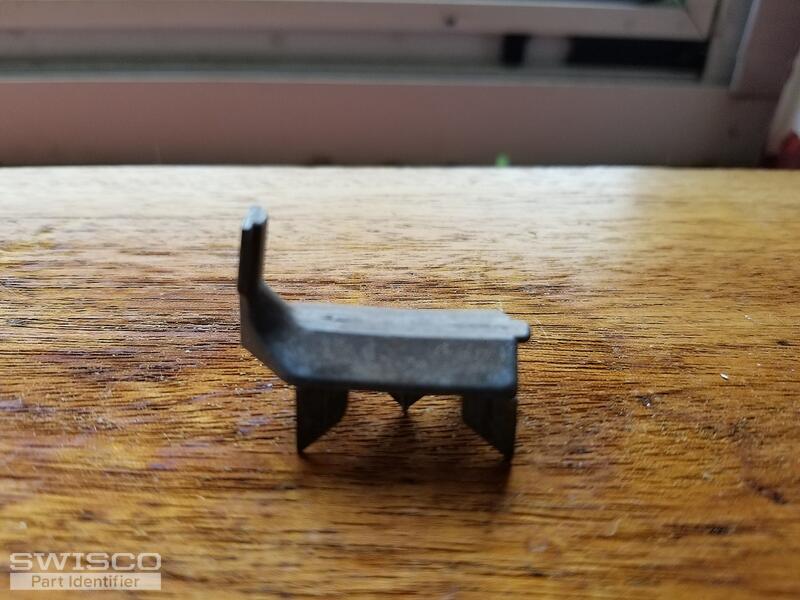

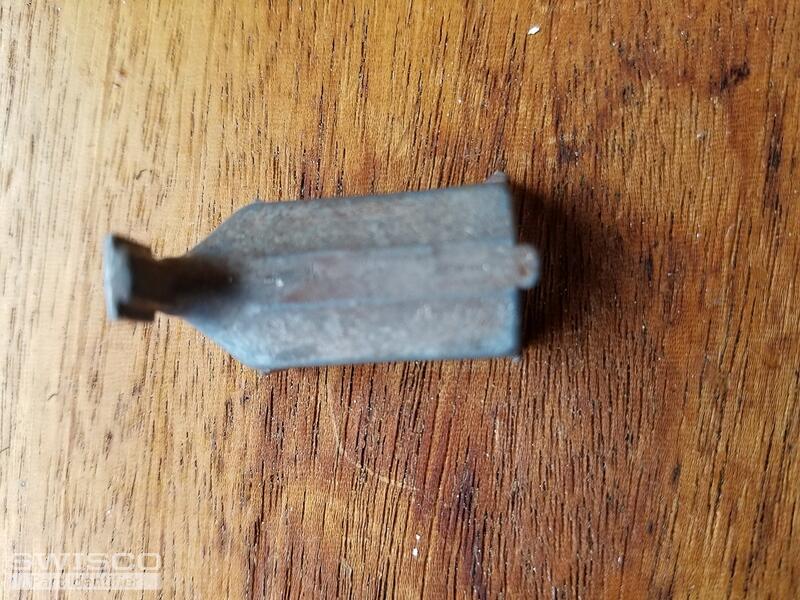

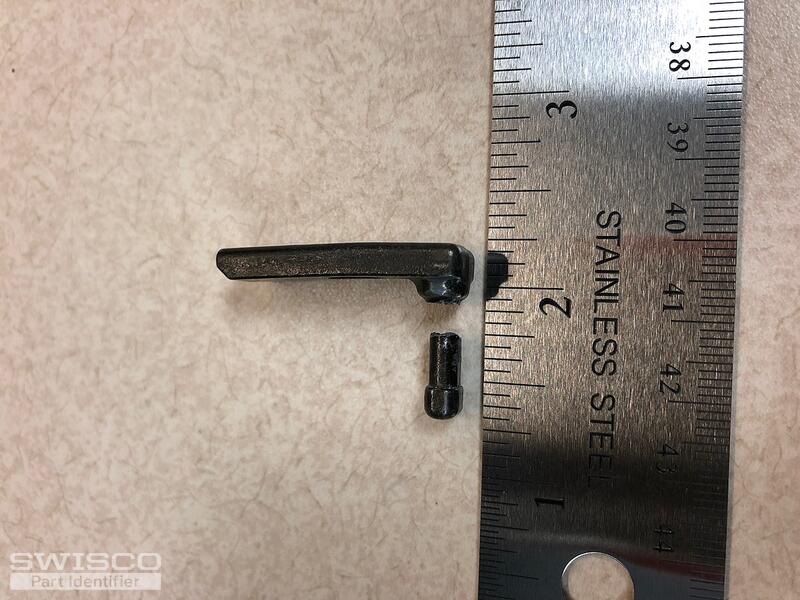

I need a replacement set (2) of tilt pins for a double hung semco window (1992). They are about 1 1/2" long and look like the attached photos. I've looked through your replacement parts page and found some that were close but not exact. Can you help me?Thank you

I am looking for a replacement part. Not sure the age of the window or make.

I will need 20 units.

These are off of MW Dual windows. They are pounded in the dash, put a comparable screw in would work as well.Brandon

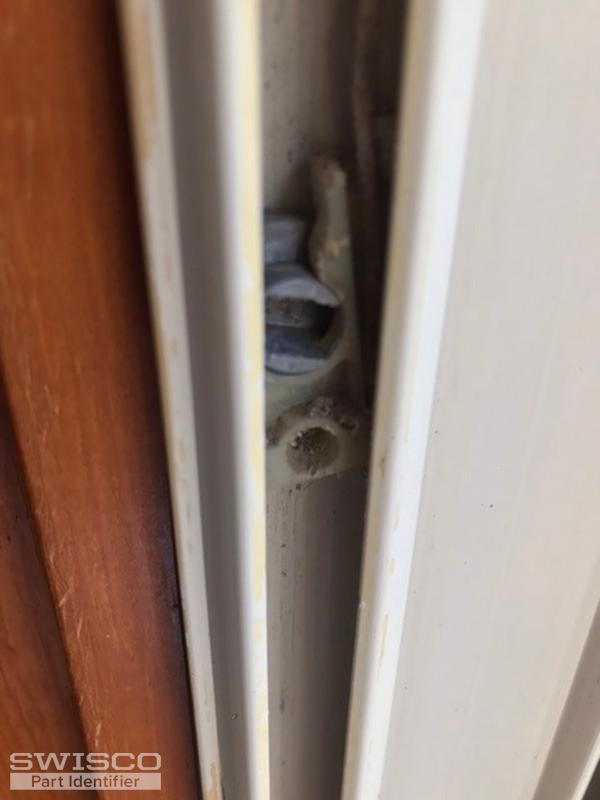

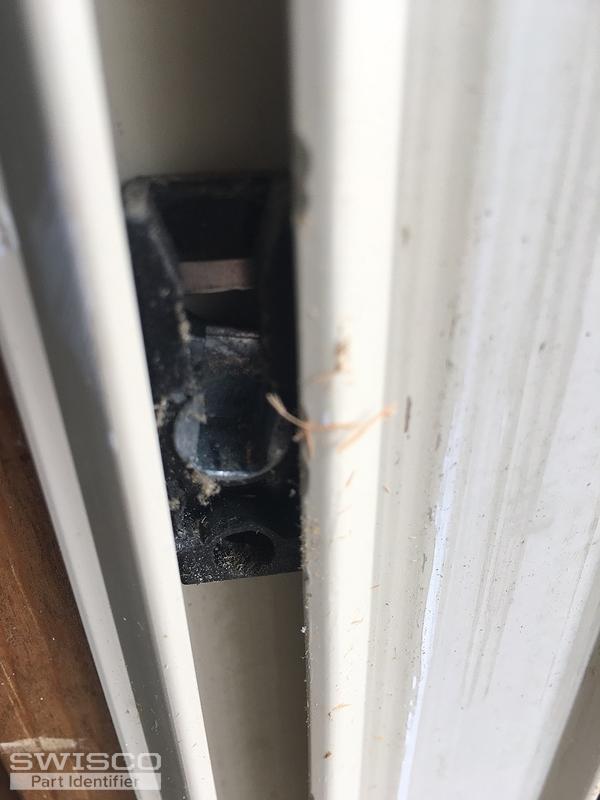

the cam lugs attached to the window slides are broken and don't turn the locking cams to activate the tension strings.

Dear Sirs, I am trying to replace 2 Tilt Pivot Pins for a late 1980's Weathershield Tilt Wood Window. I believe the original part number was 979198.Any help you could give would be greatly appreciated.Nigel L

Just purchased this house and these window pivots are breaking in half or off when opening or removing window. The material the pivots are made of it's almost like it's breaking down..

The Windows are weather shield made in 1988.They are double hung.

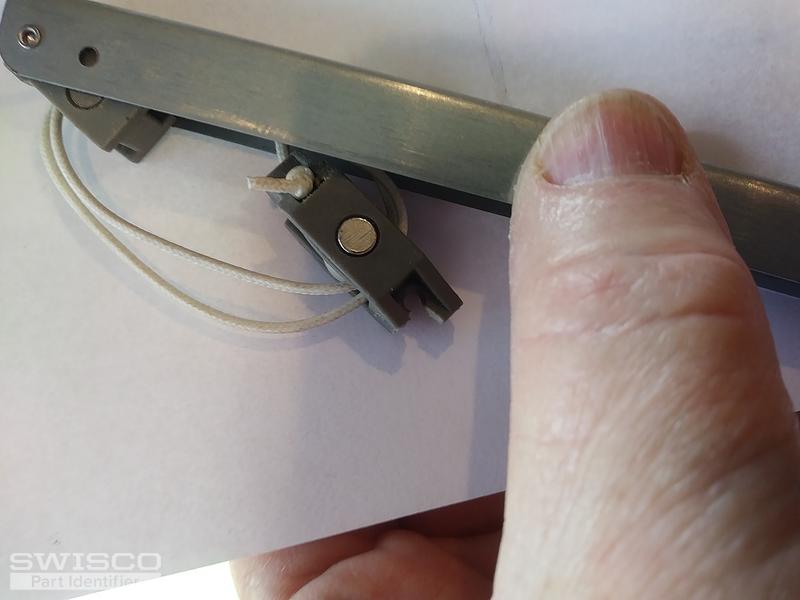

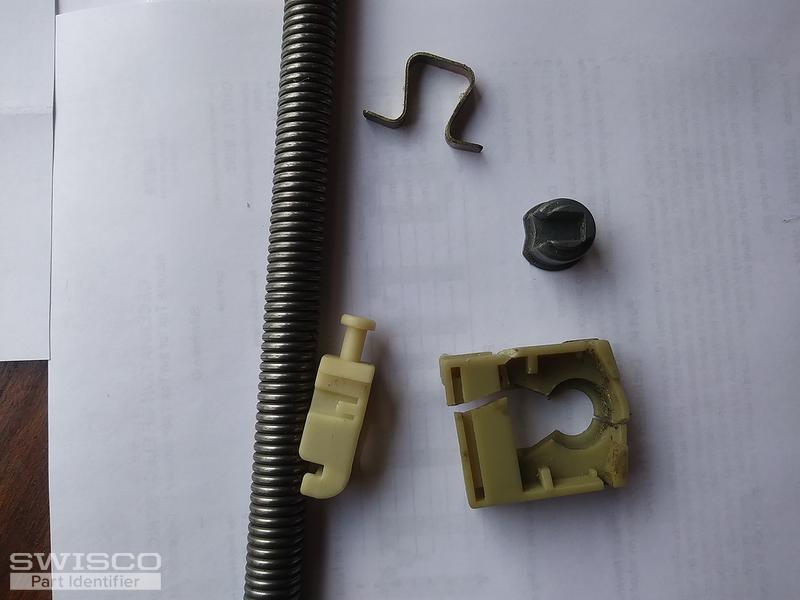

Broken shoe (need to replace) and broken cable....can't see, this is to the upper back window

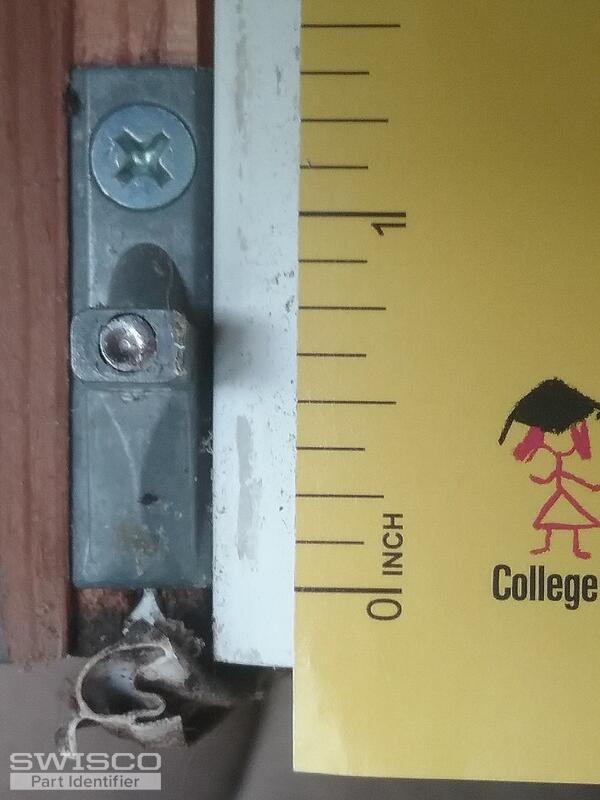

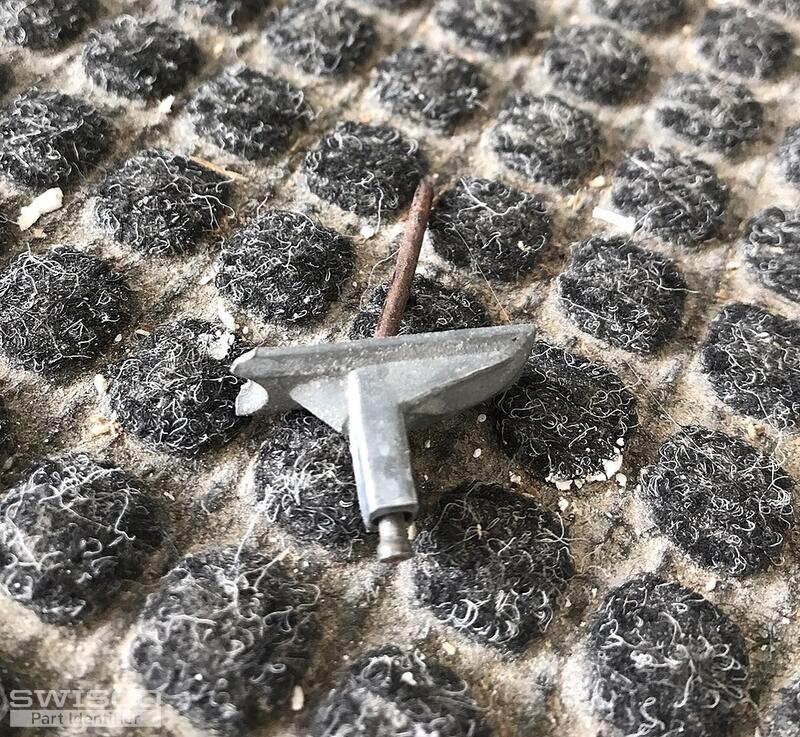

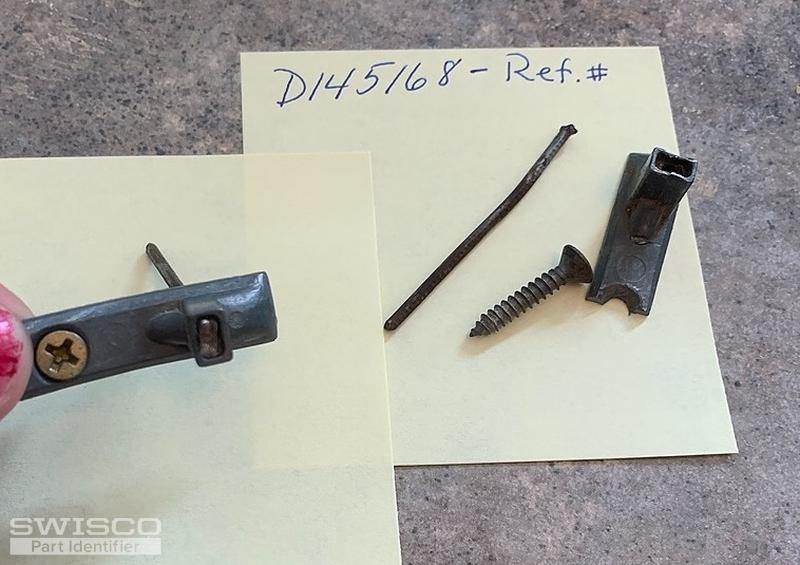

1 screw and 1 nail mounting (nail in pivot shaft)about 1-1/2" longabout 3/8" wideabout 7/8" tall (pivot stick out)

We are looking for these window parts (sash pivot):

I believe I have a single hole pivot pin part 979198 The windows are labeled jim

looking for 7/8" high x 5/8" x1/4". do you sell this size
