Viewing all customer Discussions for:

S152-4 4 lb Series 152 Coil Balance

Good afternoon, I have Arcor double hung windows that have some broken parts and I noticed that on your website someone else was asking you about Arcor replacement parts. I called your Customer Service number and was told to email you some pictures of the parts The first picture is a close up of ... (cont.)

See photo

Photos show identification info on uppper & lower window frames

Looks to me like the spring is broken. Those two coils should be connected right? I dont see any marking indicating what strength the springs are. The window pictures are a different window that is operating.

Hi, I am attaching pictures of window sashes assembly, notice the metal pin on each corner of the window sashes has a round metal head, which requires wider opening on the pivot shoe metal brake slide-in notch? The window sash weigh 8.4 lb. Please let me know what type of coil balances I should bu ... (cont.)

hello i have a boot and copper colored mental stri that are broke. Any suggestions and instruction for repair woul be great

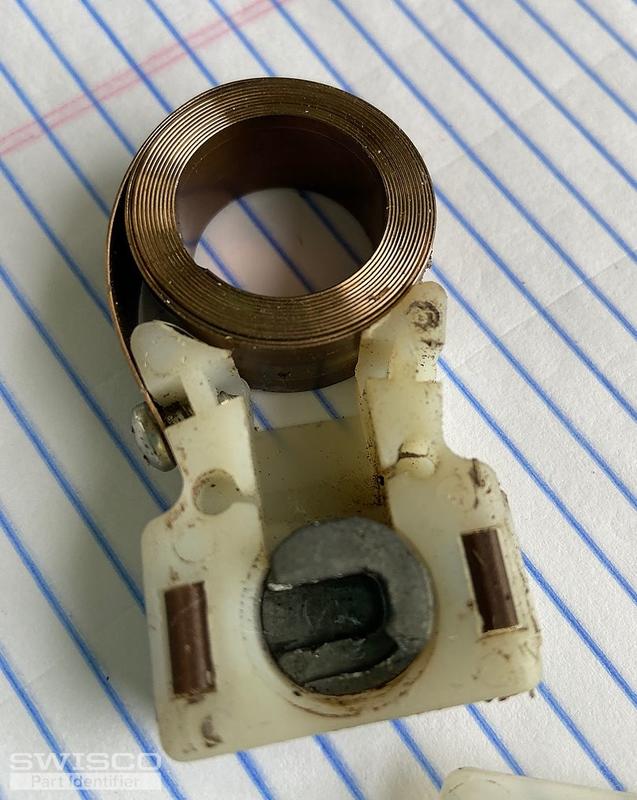

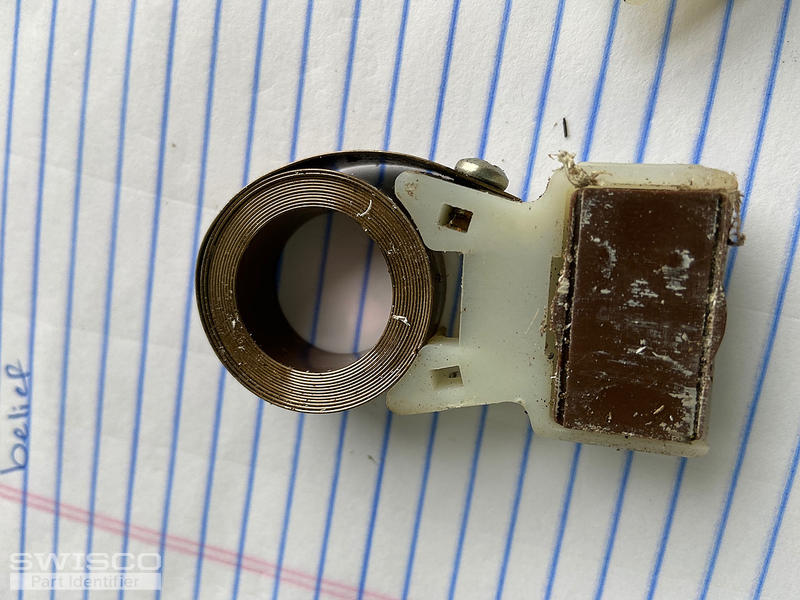

Hi Swisco expert, I have a small single hung window in the bathroom with the coil balance system. These are the parts I took out. There is a coil attached to the assembly on top and a coil attached to the shoe at the bottom. Not sure if they were one coil broken into 2. There is no marking on the ... (cont.)

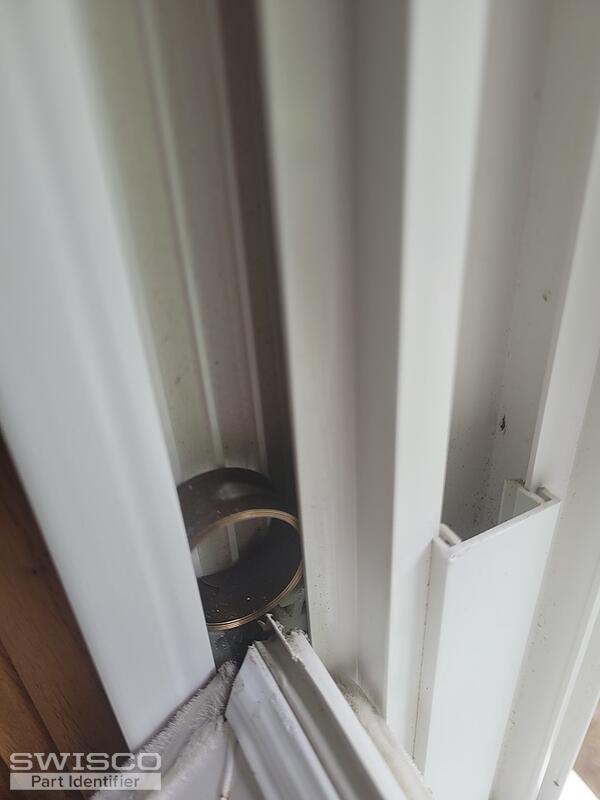

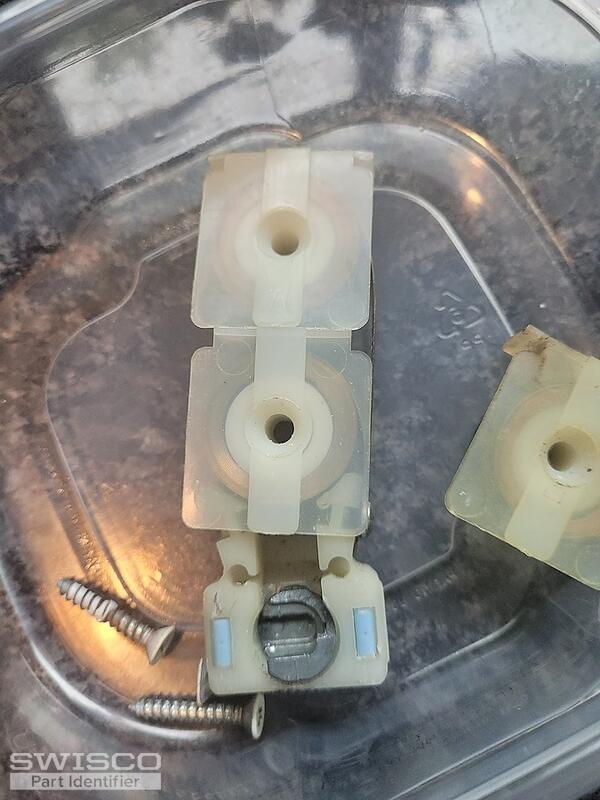

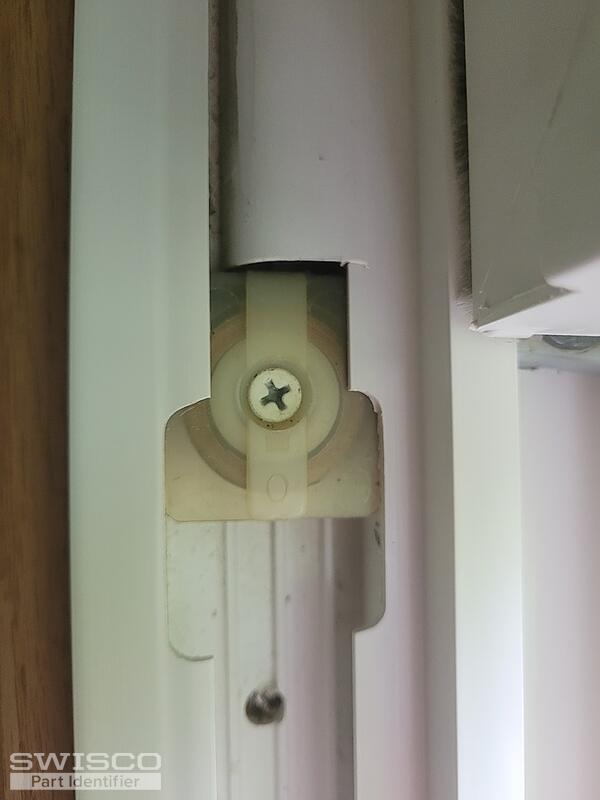

I would like some help finding these parts. I have a window that won't stay up at all with a double coil system. Half of system is still attached to the pivot shoe. Please see pics. Also I have a broken shoe on another window that I removed with double coil, pic attached for that also. The coil ... (cont.)

sash pivot has a 2 on it

These windows are replacement windows in a rental unit that have been beat hard! We can't find replacement coil balances anywhere and none of the windows have manufacturers info on them.

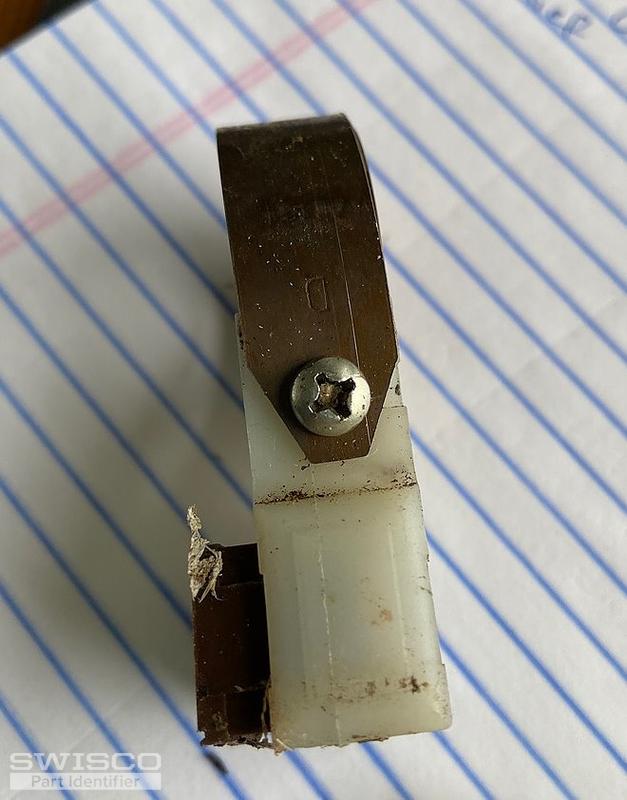

Hi guys. I'm looking for coil balances. Usually there is number stamp on coil. In my case there is letter D. Is there anyway to find out what correct number should I get ? Thanks Naz

Hello, my name is Marko and I need assistance in Purchasing the right coil balances. The ones I have, both of the top coils are broken on the side. The stamp on the coil are "D". The window weight is 12 pounds. I have included several pictures. Thank you.

I have two 17 1/4 x 71 3/8 double hung windows where many of the coil balances have broken. Each window has two single coils for one sash and two double coils for the second sash.For the single coils, there is a stamp that appears to have "5K" on them. For the double coils, one spring has a "4K" and ... (cont.)

Hi, I need 5 coil balances, 5 pivot shoes, 5 standard supports and 5 pivot pins. I am sending photos but couldn't locate any numbers. Thank you

No markings or numbers

Need 2 of these.

I cannot find the weight on the coil, the only stamp for this window is D I also need the cover for the track once I cut it to remove the shoe I have multiple windows to repair, and one window needs a new tilt lock (sending other pics in a separate post) thanks! Katie

I need 2 left balances and 2 right balances and 2 pivot bars. Each balancers have a 5 lb coil on the top and a 4 lb coil on the bottom.

Need two single coil balances and two pivot bars.

I need replacement parts shown in above photo. This is the slider that allows you to remove the window from the frame when the window is in the horizontal position. When in the vertical position it retains the window. The data in the subject area is from the sticker on the window frame. ... (cont.)
