Viewing all customer Discussions for:

15-087 Coil Housing Pivot

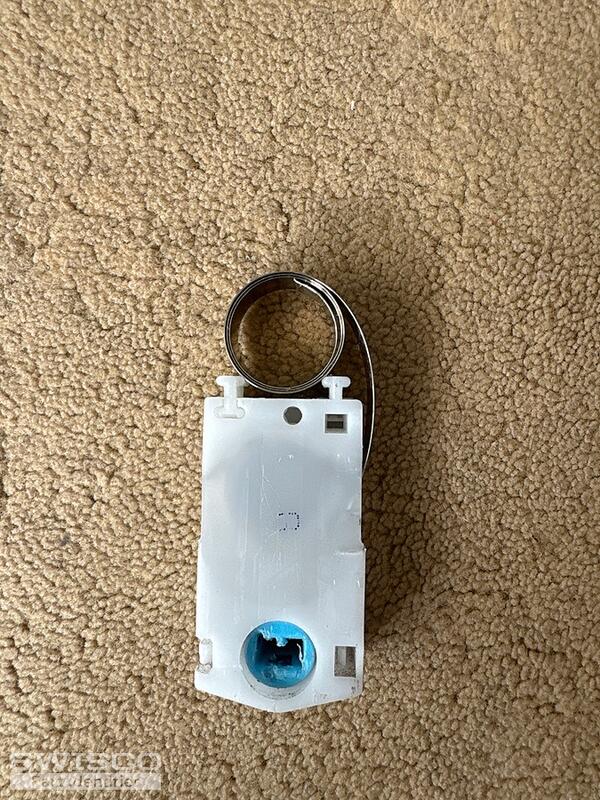

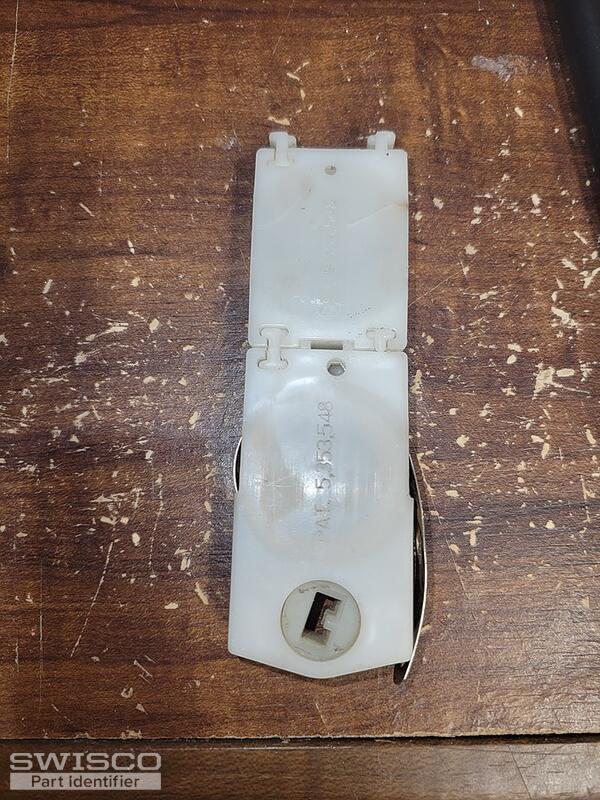

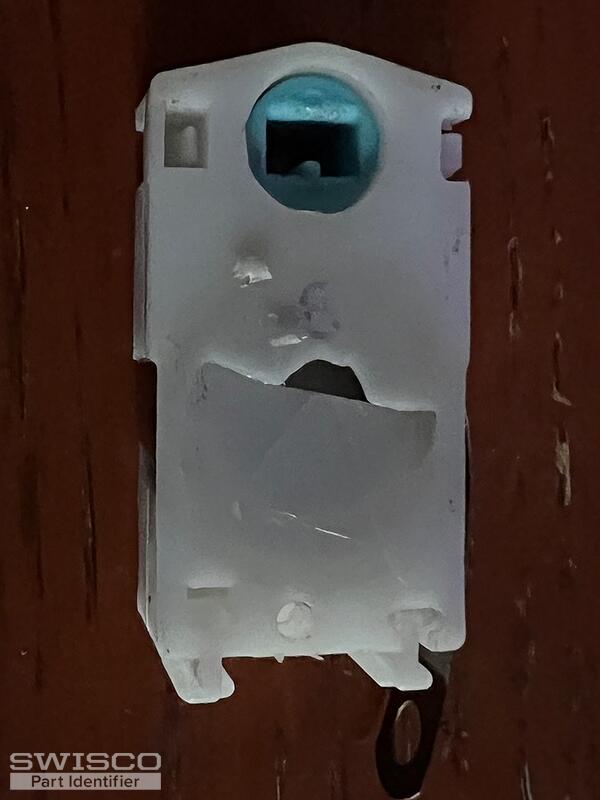

Both, the bottom and top Have patent number 5353548 Stamped on them. The coil itself, Has either a nine or six Stamped on it.

Need part

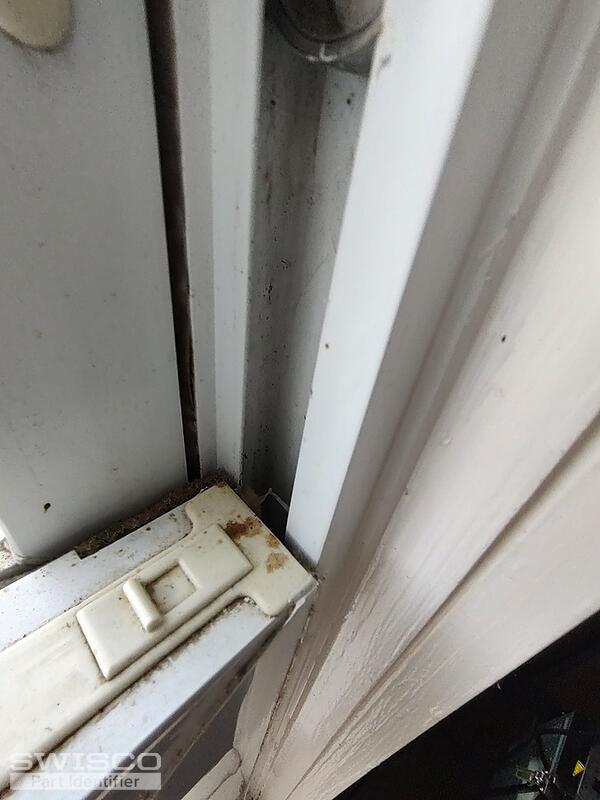

I am looking for a window pivot lock as seen in the pic. I searched your website and can't find one that matches. This is on a Reynolds window. When I attempt to pivot the window, the pivot bar bends and it pops out of the window pivot. Thanks!

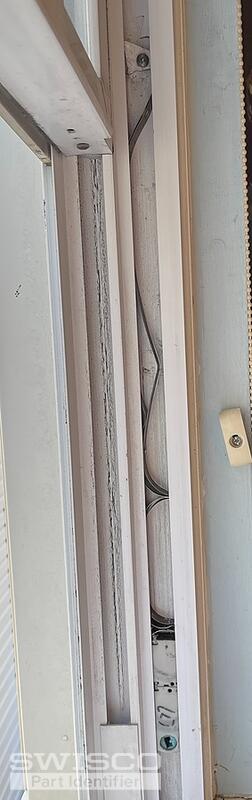

Hi, I am in Japan, and one of a window in my house have been very hard to open for a while. I removed coils which were broken. They seem to be Double coil balance (Series 210 Roller-Tilt Balance). Please check some photos I attached. I am thinking if they could exchange to1/2" Coil Double Suppor ... (cont.)

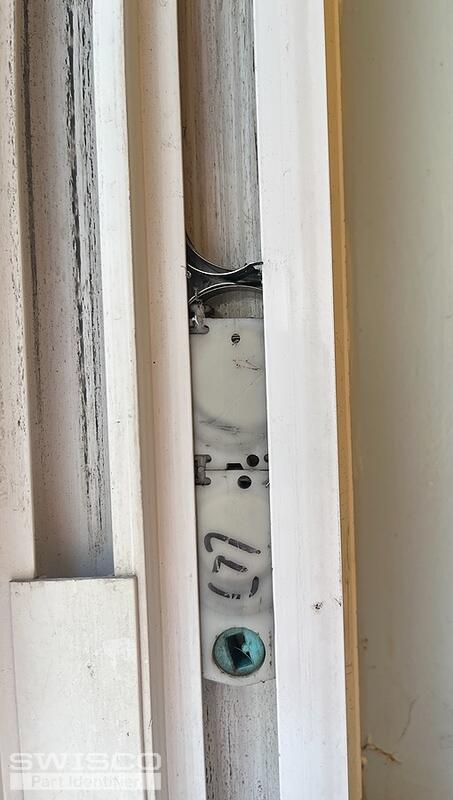

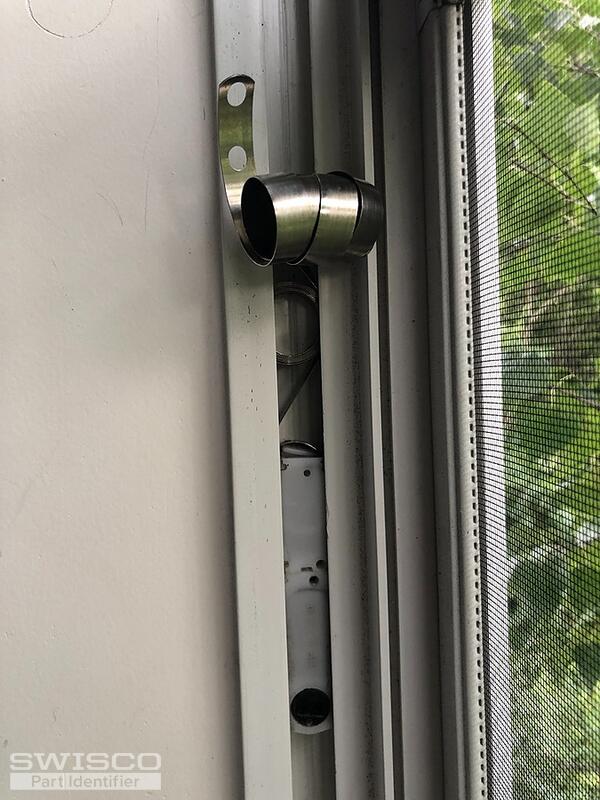

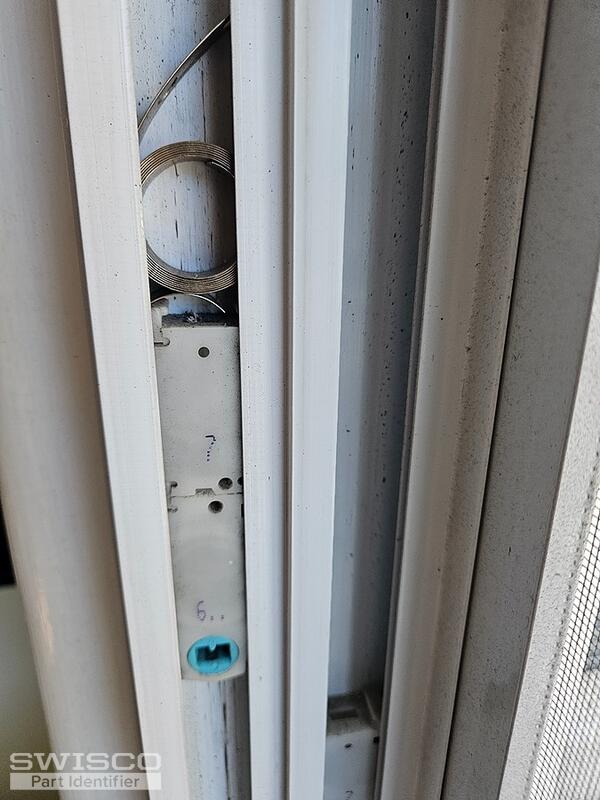

I need to replace my window coil. The window is 21 lbs. The coil housing has the number 7 written on it and the coil currently installed is 1/2" wide. Which coil balance would I need to purchase in order to fix my window?

Hoping you could let me know what the replacement parts numbers would be for this photo

lower spring stenciled 29U. Upper spring 132W.--Greg

Attached is two photos let me know if you have window balance for my window. Thank you

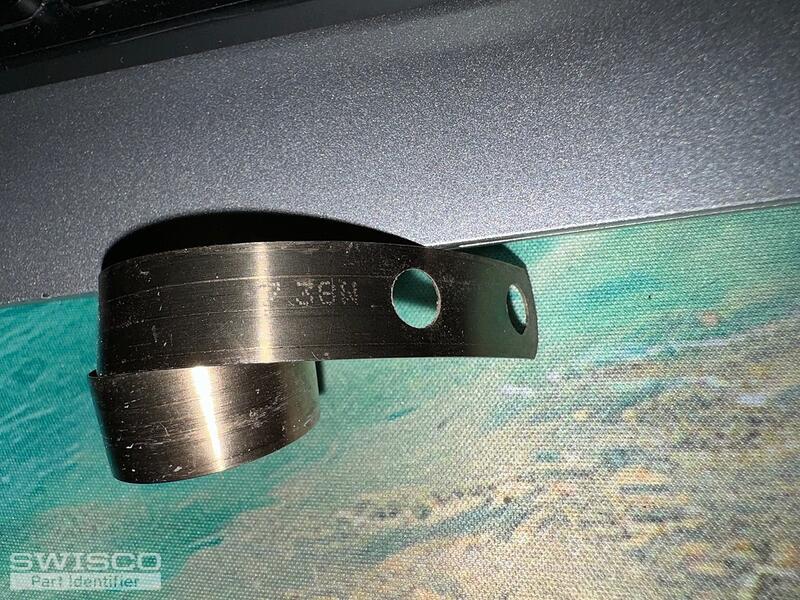

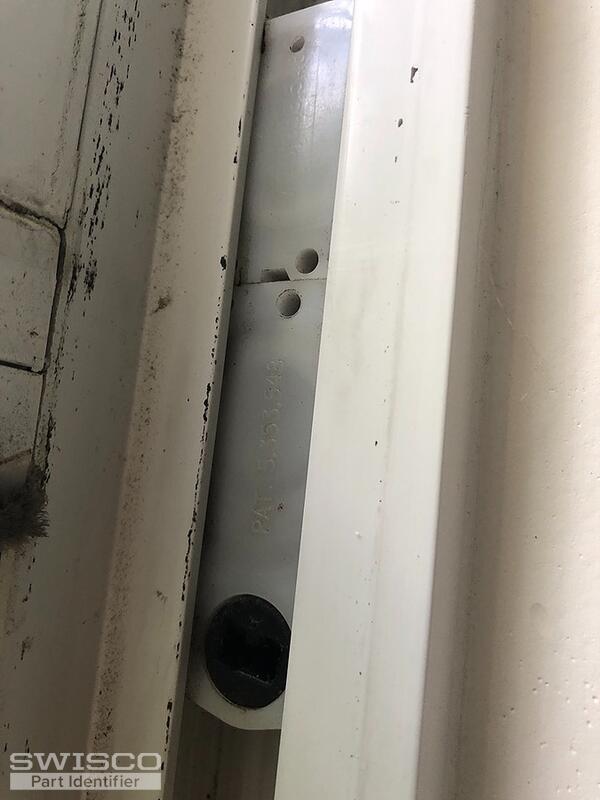

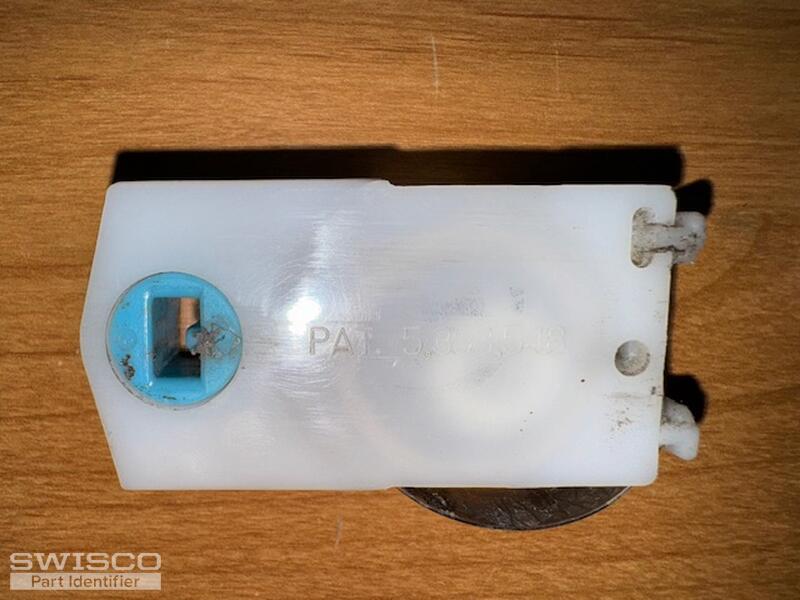

Hi,I have few Coil balances are broken and would like to see anything matching your parts, the # is showing '7 38W' but the tile balance not sure, only see pieces (pic attached).I took out the pivot balance shoes and found the part # PAT. 5,353,548, please help me to find the correct part # from you ... (cont.)

I want to order Series 180 Coil Balance, but not sure how much lb should it be. Could you suggest? Thanks

A good you tube video guided me - I could use some help identifying the parts I need for these windows. Many thanks. MB

I'm looking for the part number for: 1) the coil tape balance 2) the coil housing pivot. 3) tilt latch I also am looking to find out what's the weight of each sash or to find out the stamped weight of each coil tape to know which weight to order within the specific part number. The weight may be d ... (cont.)

I need to replace the coil spring balances in my American Craftsman ( Home Depot) windows from 9/2002. I measured the width and best I can read is they are .530" in width. They are 7 pound springs. What would be the best fit balances? Thanks George

Hi I don't know what parts these are so I can order them. Thank you

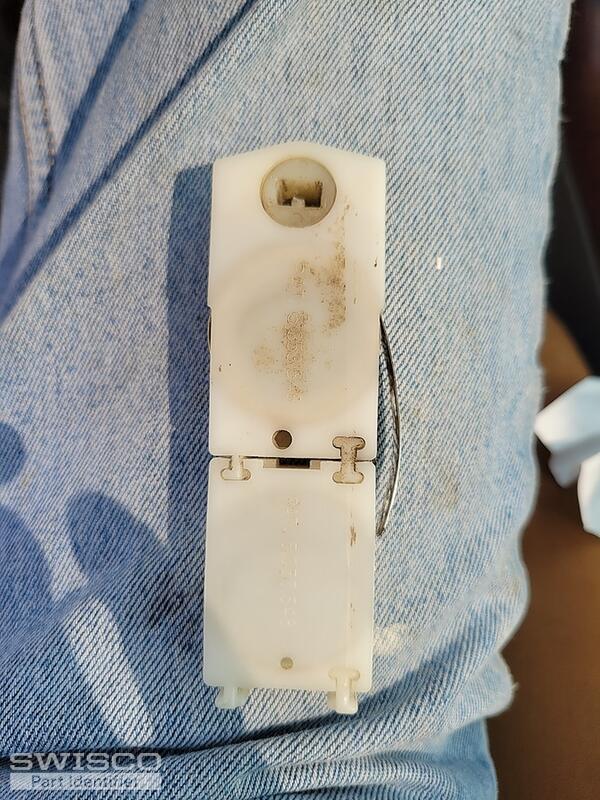

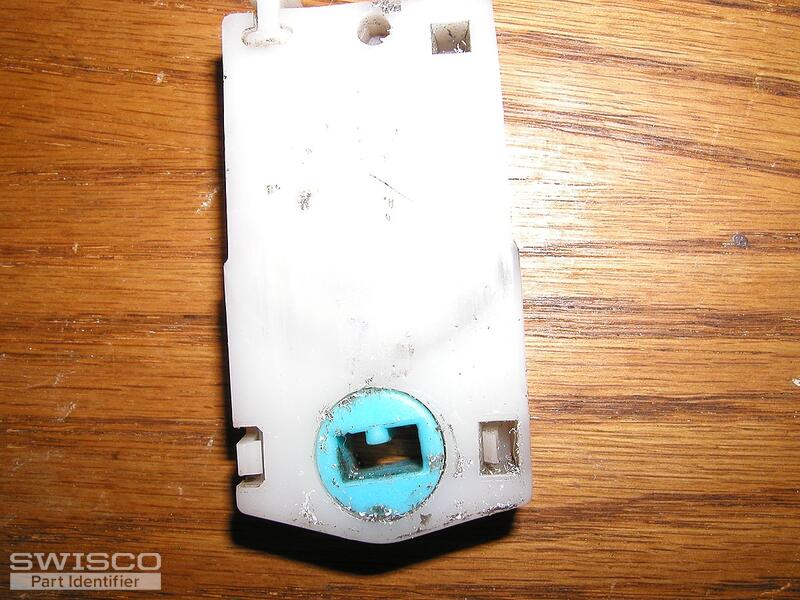

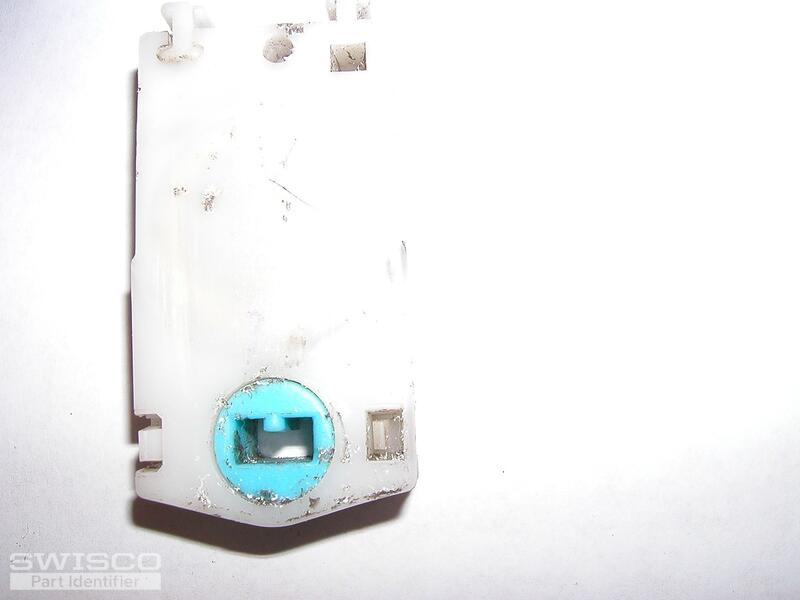

The coil balance spring on one side of the window separated from the pivot shoe. The Window was purchased from Homedepot about 9 years ago. It looks to be an American Craftsman 50 series window. There is a number 9 on the pivot shoe as shown in the uploaded pictures. (1) Do you have the replacement ... (cont.)

Could you please assist in identifying replacement springs for this window? Are the attached pictures enough to determine the required part? The window has a top and bottom pane. The pane is approximately 34.25" high. Do you have any videos on how to replace these springs? These springs are ins ... (cont.)

Sorry, but it has no numbers on it at all. Thanks for your help.

Need right balancer for Silverline 8002344228. Thank you!

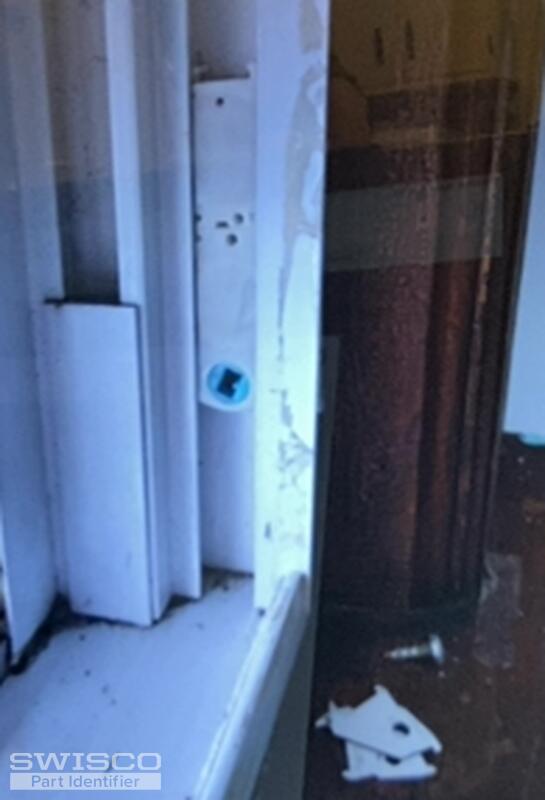

We are trying to fix this window which does not go up & down. you can slide it up but then some strong object or sturdy glass bottle has to be used to prop it up. Not sure what the part is called - maybe a pivot bar receiver? that's what the Home Depot employee told us. The photo shows the part in t ... (cont.)

Window roller-tilt
