Viewing all customer Discussions for:

15-087 Coil Housing Pivot

Hi, I need to replace this part; I need your help to identify the part number.

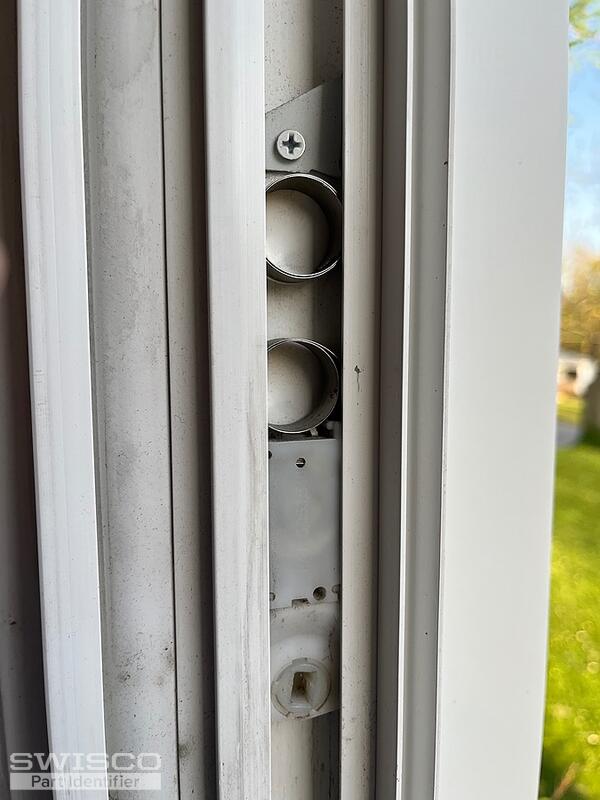

Need to replace balance shoe and pivot bar for top dash. Also need screws for the pivot bar since the originals were rusted fast and had to be destroyed to get pivot bars removed. Thank you. Kym

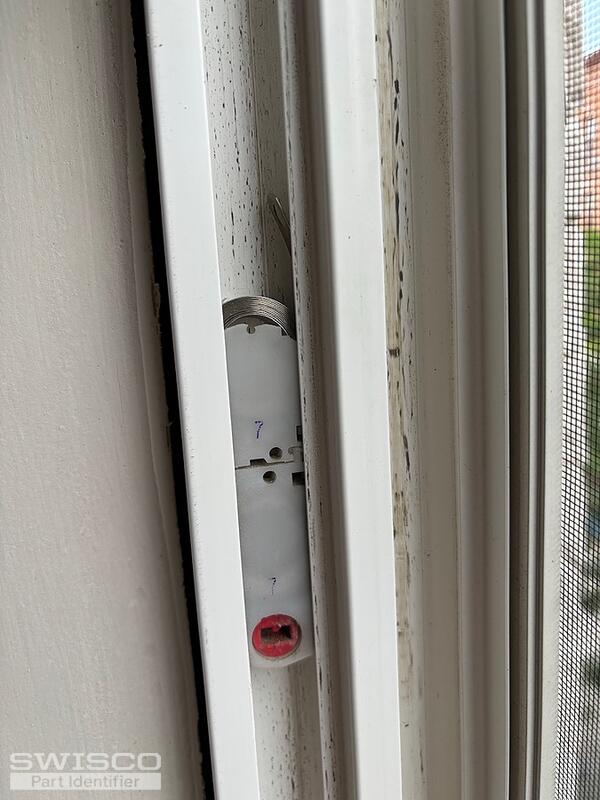

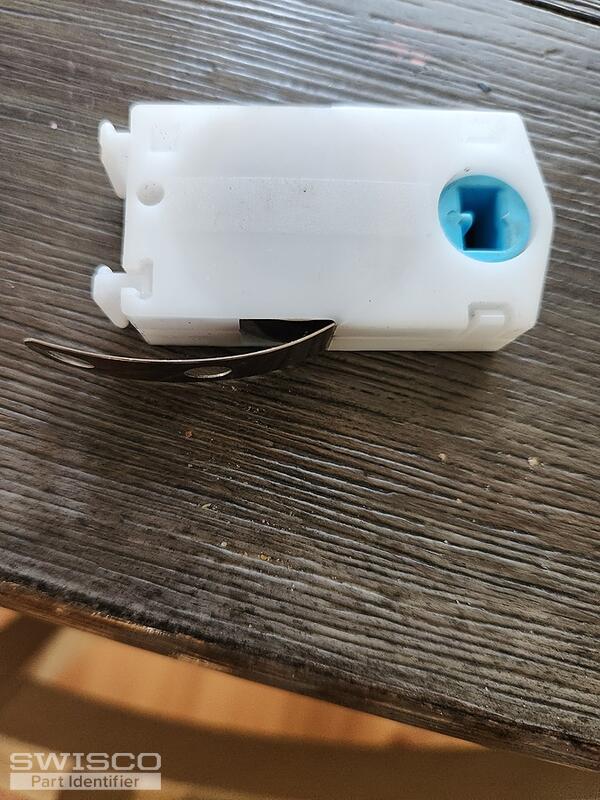

I have 4 coil balancers that went bad I want to make sure I have the right parts. Looks like it's stamped 7 on it. It is 2 7/16 tall 1 3/16 wide and 1/2 thick

Vinyl Double hung Gorell window is heavy to lift due to coil springs let loose from the bottom. Clips broke? How do you hook the spring to the coil housing? Do you start at the bottom or the top? Where does spring get hooked on the bottom? Which way should spring face? Can you show me pictures of h ... (cont.)

will the s161 balance be a good replacement for this caldwell coil balance? i located that part number in my subject lin from another online sell windows hardware direct, however they are out of stock.

Looking parts and video of how to install

Series 31 Balance

I need coils for both sides of this window and one matching shoe

Need replacement left and right jamb sash shoes for Silverline 8500 window

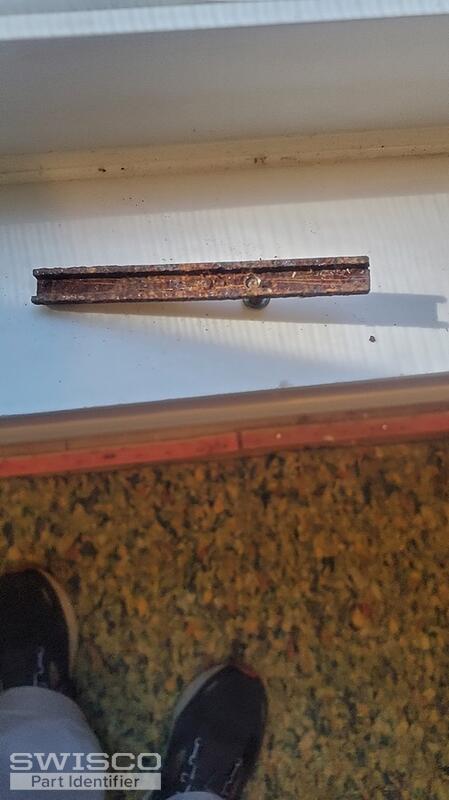

The part that is needed is to replace two broken lower pivot bars - the pic I sent is a broken bar that I taped but is broken between the two mounting holes I took two more pictures one of the shoe from the broken window and one from a shoe with a window with intact pivot bars. Hopefully this h ... (cont.)

Window spring

Can you help me identify this tape balance?

I think it is on the right side from view of exterior

Hello. my window was installed in 1998 & does not have a cutout in the window track. How do I remove that entire assembly? Do I cut the track? With what tool? That would be CHOPPY. Which spring should I purchase? Do I need the entire assembly? Please help. Thank you. Ali .(just in case) ... (cont.)

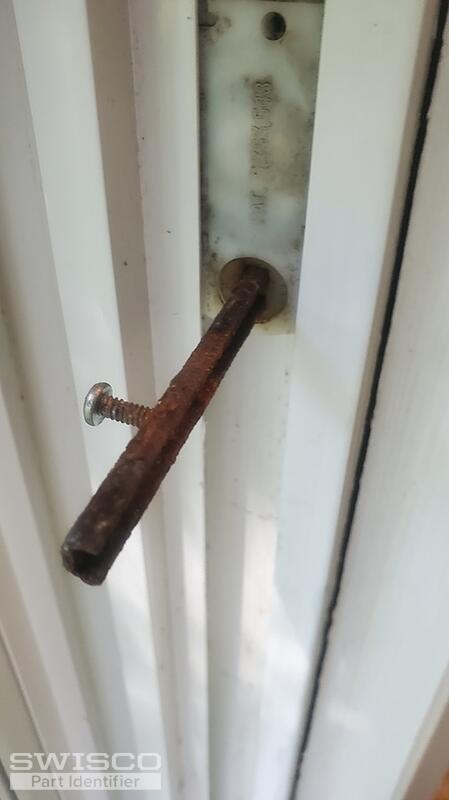

I earlier found, in your Q/A, a post from 2011 that describes our same problem, but cannot reference it this evening. Problem is with the lower sash, 25"Hx31"W, approx. 15lbs, tilt-out. Photo 4 shows broken coil and shoe. Photo 3 shows screw that won't come out, obstructing track to the top where t ... (cont.)

I am looking for the correct coil balance for two of my Traci windows. Coil is 1/2 inch wide. Window weight 10 pounds.

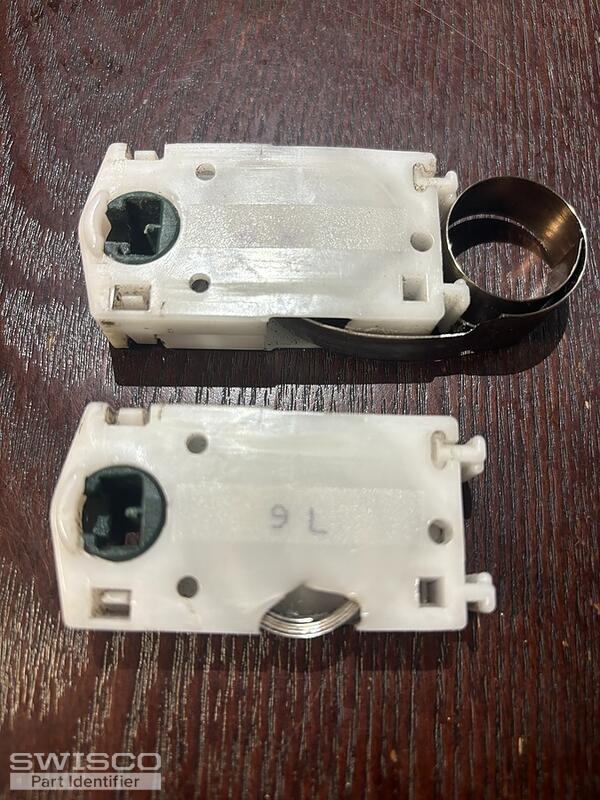

Both, the bottom and top Have patent number 5353548 Stamped on them. The coil itself, Has either a nine or six Stamped on it.

I am looking for a window pivot lock as seen in the pic. I searched your website and can't find one that matches. This is on a Reynolds window. When I attempt to pivot the window, the pivot bar bends and it pops out of the window pivot. Thanks!

Hi, I am in Japan, and one of a window in my house have been very hard to open for a while. I removed coils which were broken. They seem to be Double coil balance (Series 210 Roller-Tilt Balance). Please check some photos I attached. I am thinking if they could exchange to1/2" Coil Double Suppor ... (cont.)

I need to replace my window coil. The window is 21 lbs. The coil housing has the number 7 written on it and the coil currently installed is 1/2" wide. Which coil balance would I need to purchase in order to fix my window?
