Viewing all customer Discussions for:

15-179 Pivot Lock Shoe, 9/16" Thick

Jeld wen impact window pivot lock shoe

Tilt Markings 08 102 22B

Looking for 1" wide pivot shoes for old spiral balance tilt in windows. No manufacturer on any of the windows. Please help

I'm looking for these particular window sash feet and the tilt locks as well. The feet appeared to be nailed or riveted in place.

I am having trouble identifying this part.

I need to purchase 8 pivot shoes, 12 balances (C29) and 6 pivot bars for American Craftsman single hung windows that were installed 1998. Hopefully from the attached picture you can identify the correct parts I need for these windows. Feel free to contact me should you need additional pictures or ha ... (cont.)

Most of the spiral balances in my house in South Carolina are broken at the top, which looks to be made of plastic rather than metal. I am very familiar with old spiral balances installed on house built in the '40's and refurbished most of the ones in my house that had wooden double hung windows. ... (cont.)

This is what the window sits in. Not sure the name. These are hurricane windows that come in for easy cleaning

1 inch wide 1 5/8 tall 9/16 thick Keith

Hi I'm looking for replacement balances for my double hung tilt in vinyl windows. Height on the inside of window is 59".

Good morning can you please help me find the correct pivot lock on your website or maybe option B.Thanks Tibor

Im looking for a pivot shoe lock 1/2 thick 1 inch wide

only marking is a patent # 4.610.108 size: 2" x 1 1/4" x 1/2". Looks closest to 15-179 but has a screw hole. I have ten windows that need new parts. Thanks.

Hi, I recently ordered the window pivot lock shoe #15-179 : Pivot Lock Shoe, 9/16" Thick. It seems to be the correct size for my window however I cannot fit the pin in the slot. Is it easier to try to find another pivot lock shoe to fit the pin that is very similar to #26-352 with a round head. Or t ... (cont.)

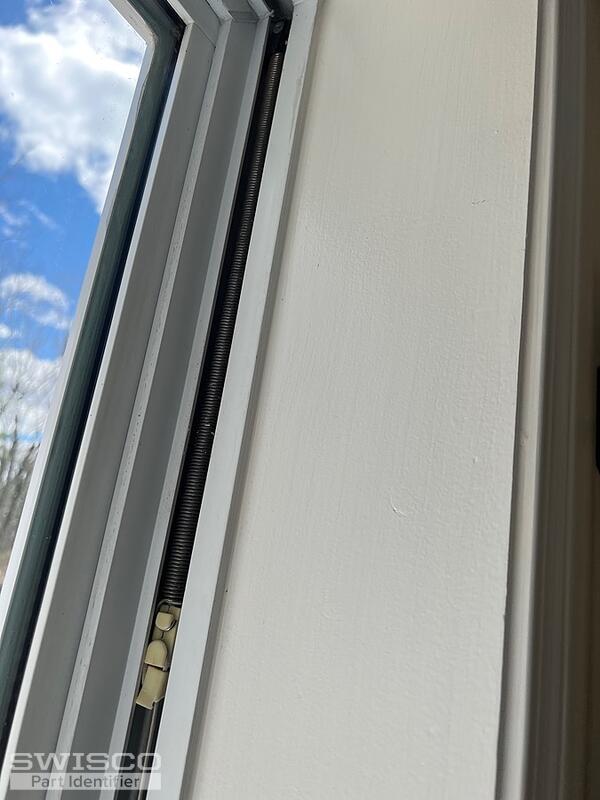

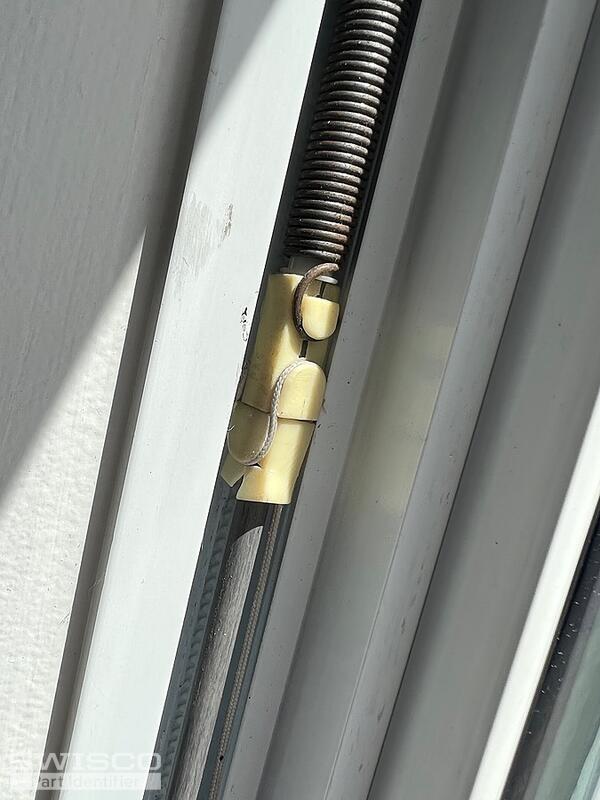

Replaced spring but they are to weak and the window does not stay open.

I have a small tilt window (Jeld-Wen, I think) which never has worked easily. I measure the spring as 3/8" x 17", yellow color code. Sash weighs ~20 Lb. One of the shoes seems damaged and may be jamming (shoe is relatively small, ~1" wide, ~2" high and ~1/2" thick). I have tried adjusting tension ... (cont.)

Part is 1" wide 2" High 9/16 Deep (outside frame only without rotating piece)

Hoping the pictures attached are enough to verify that I have selected the correct replacement part. Your part 15-176 appears to be the closest match. It measures 1/8" less in overall height. I don't have measurements for the width and thickness. Any advice would be appreciated Adam ... (cont.)

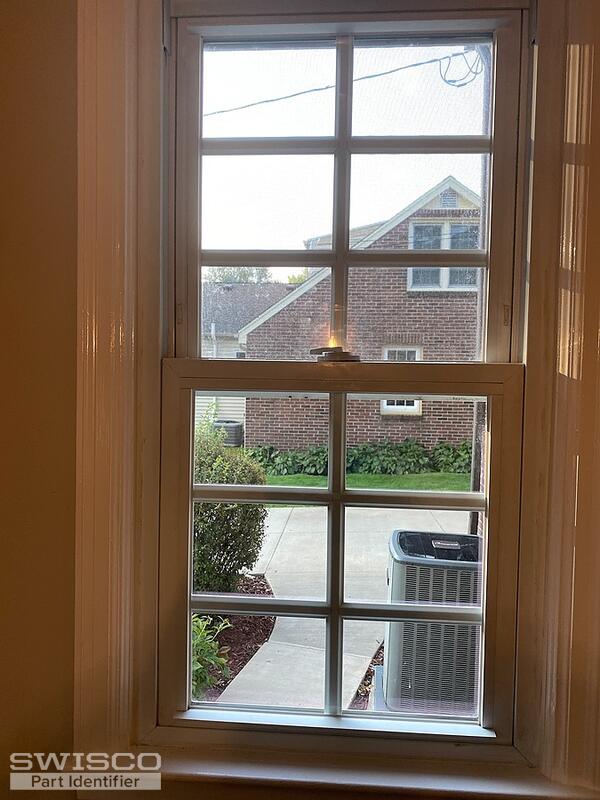

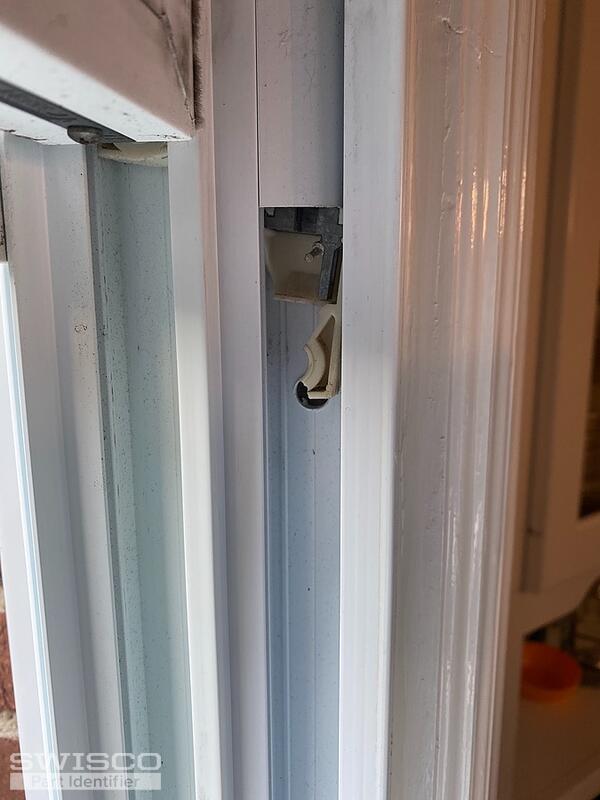

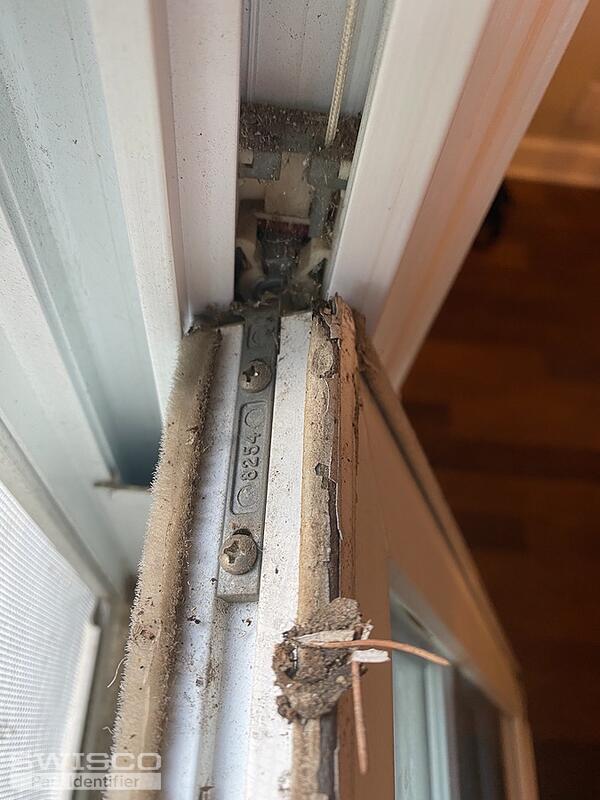

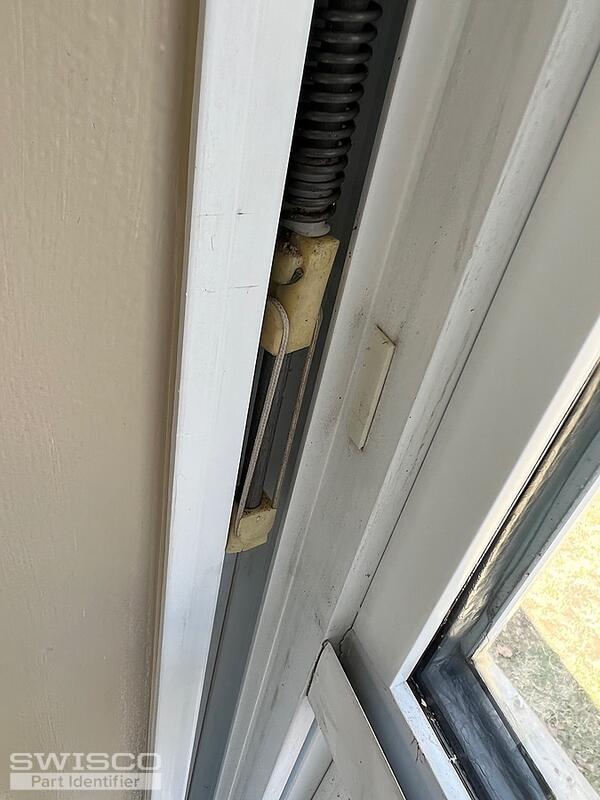

The pieces on both sides of this window pictured are broken. They are inside the frame and have a rope system that keeps it from sliding down when you put it up. Are these pics good enough? If not how do I take them bout to get a better picture or some numbers to potentially identify it. Thank you f ... (cont.)

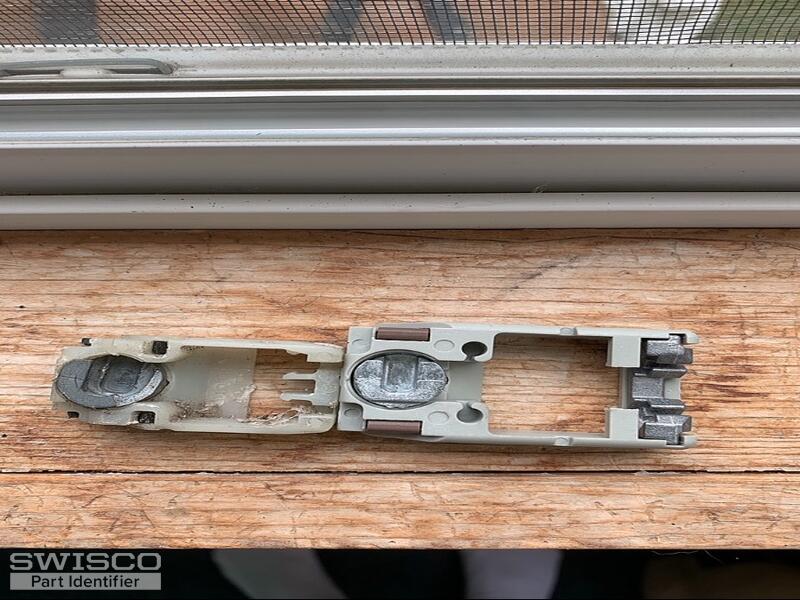

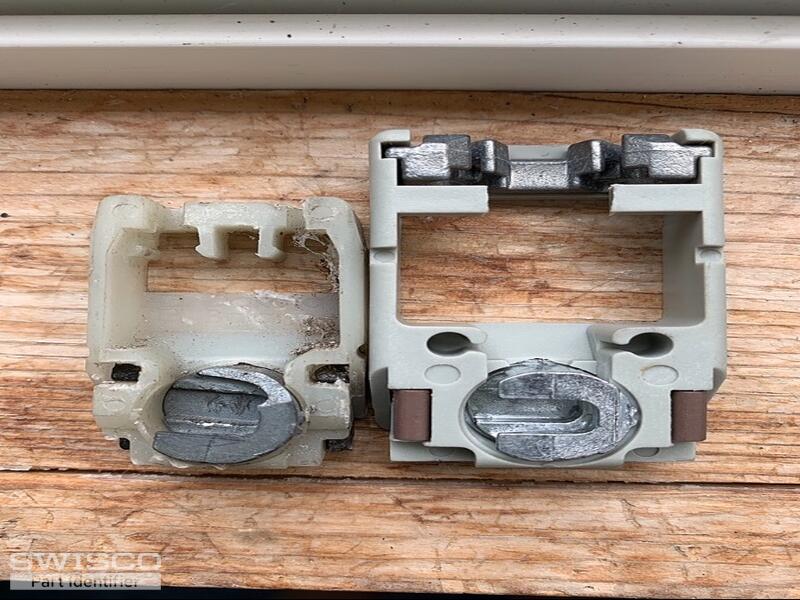

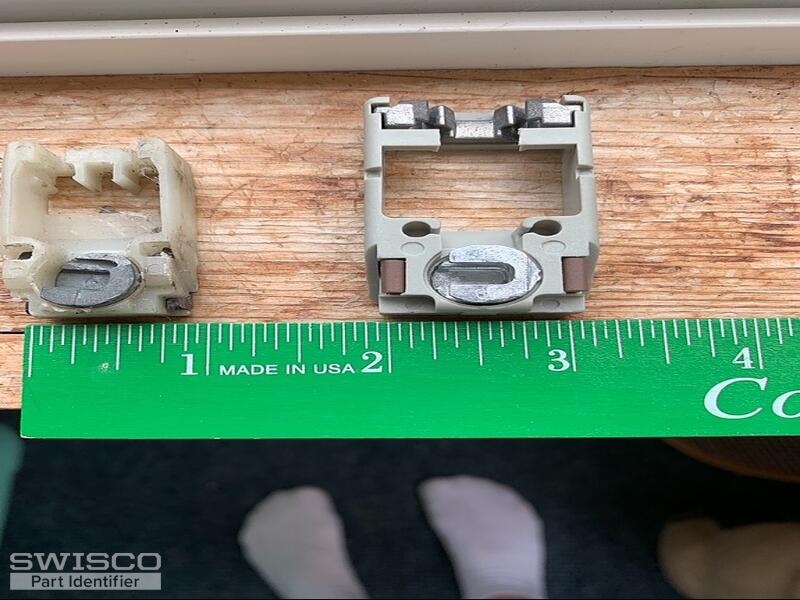

Hi, I have been in conversation with Bob. He has been most helpful. The channel parts are perfect. Thank you.. However, the pivot lock brake shoe are not quite right. They are too big. I am attaching photos with our old part on the left and the nice new too large one on the right. I have also ... (cont.)
