Viewing all customer Discussions for:

15-188 Pivot Lock Shoe, 1/2" Thick, Blue Brake

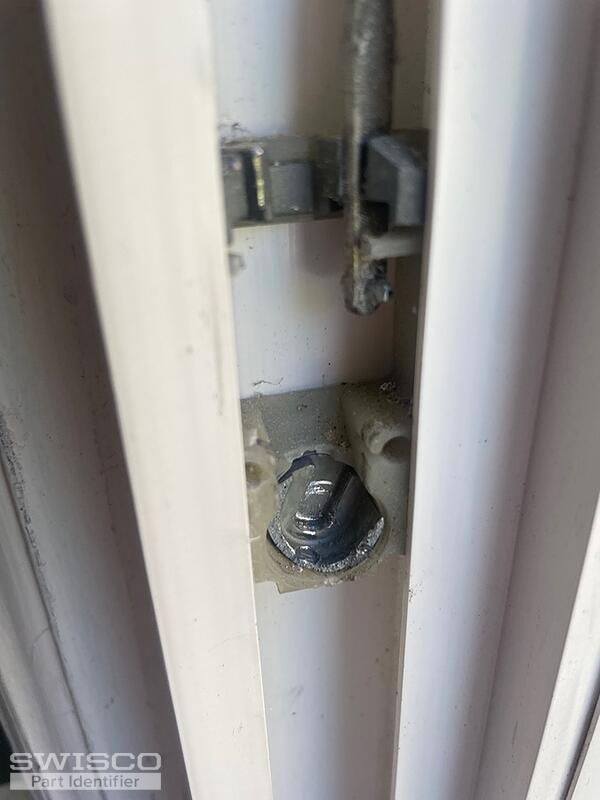

I have a window with both pivot points that are broken/shattered into multiple pieces. This is a picture from a sister window. The piece appears to be made out of metal that connects to the spiral ballast and holds/houses a pot metal pivot point. The pot metal is what broke.

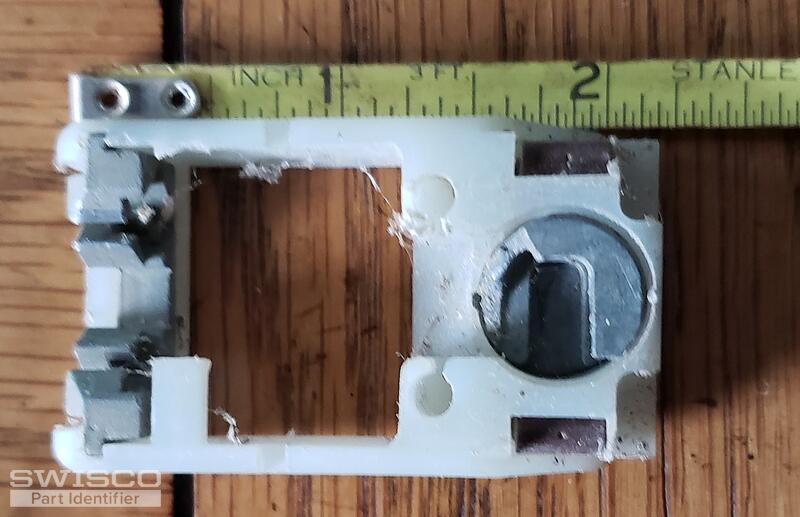

This shoe measures 2 x1/14 x 1/2. It has a heavy cord attached to it . I will attach a photo. Thank you .John

Here are photos of a broken pivot shoe and the part that goes into it. I would like to buy a replacement picot shoe.Thanks!

The top of this part is where the end of the spiral balance is hooker and the bottom of this part is where the window attaches.

Hello. I have Integra Windows from Sugarcreek Industries that are approx 20 years old. I do not have the specific model of the windows. I have multiple windows in which the pivot shoe has broken. I can't determine what the replacement is. Can you help identify which one I need. It appears to b ... (cont.)

Need pivot shoes for pretty much every window in our house. And multiple tilt latches for the lower window.

I don't have the exact measurements yet, but I'll be getting them soon. I'm not sure what type of balance this is. Thank you!

Sorry this is the only pic I have. This series is from around 96. MANUFACTURER STIPULATES CONFORMANCE TO NAME: SEASONSHIELD ANSI/AMA 101/1S.2-97 SPEC: H-R50 SERIES: 5100SH PVC #NCTL210-2299-3 ENTRY RESISTANT

Cannot ID brand of windows. Purchased house July 2021 parts are missing and/or falling apart. 10 windows various size. 1. 2 windows are missing 1 vent latch ea. 2. 1 window missing the part to turn and lock window. 3. All windows need weather stripping replaced. Some missing most are ripped and fall ... (cont.)

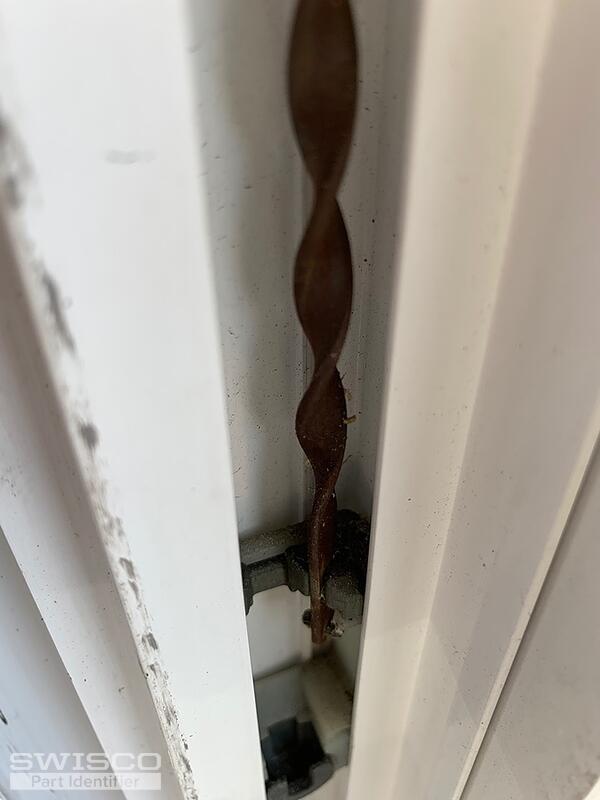

My windows have a vinyl tube around the balance and also a deterioted shoe due to being near the water and corrosion. I surmised I have the 400 spiral balance but can't identify the shoe that would would work to replace this. Any help would be appreciated and I will place my order. Thanks!! ... (cont.)

Hi, I need two window shoes for these windows, They would be the left side shoes when looking from the inside.

Hi, I am attaching a pic of a clip that broke. Which one would be a replacement? Thank you

Need help locating these parts on your web site

Hi. I am looking for a replacement pivot lock shoe for the spiral balances on my tilt window. The channel in which the shoe rides looks to be 1-1/4 inches wide and 9/16 inches dep. the windows were probably installed in the mid 1990's. I have been replacing the spiral balances in my windows and have ... (cont.)

I sent an email about a pivot lock shoe. Here's a pic. of it.

I have some broken window balance shoes. See attached photo. The metal part is broken that the window pin fits into. Do you have these parts? John

The sliding tilt mechanism that engages the pivot bar on my double hung windows are both broken off at the bottom and no longer engage the bars. The sashes are easily 3 ft each. Sorry I didn't measure them. Enclosed are poor pictures of the remaining assembly. I had tried to wire one up to work te ... (cont.)

Trying to fix my windows..I need to find the right part. These windows installed in 2007. The shoe is 3/4 in high and 7/8 in wide.

This pivot shoe is out of some older Alside windows. The pivot cam is broken on a few of our windows. Measurements agree with your p/n 15-178 except for the thickness. Yours is 17/32" thick while mine measures 0.542 which is slightly thinner in thickness. Will the 15-178 pivot show work? You have a ... (cont.)

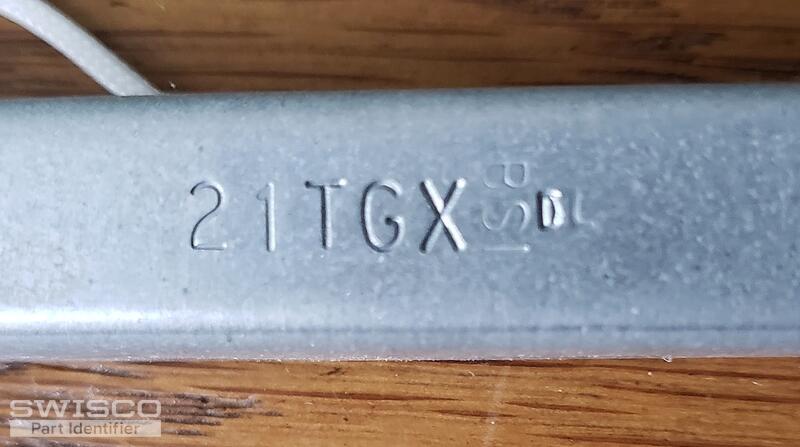

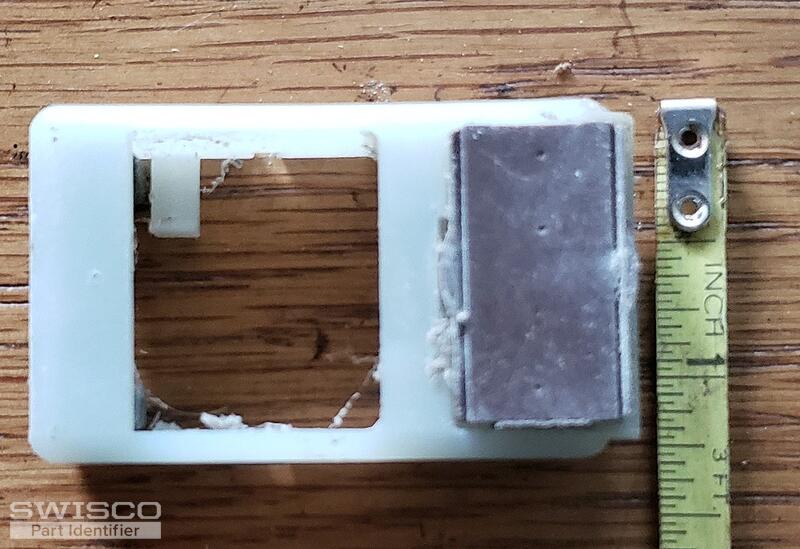

I have a vinyl window (sash weight 20.8 lbs) that has two broken balances and shoes. The balances are stamped 21TGX. The channel is 1/2"x1/2" with an overall length of 22" I'm looking for balances and shoes for these windows. Please let me know what other information is needed.
