Viewing all customer Discussions for:

39-348 Sill Mounted Awning Operator

Hi,I received a part from you that doesn't fit my system. I obviously ordered the wrong part.Here are some pictures of what I need. Hope you will be able to help me find the right part.Thank you,Yves

Can you help please ?

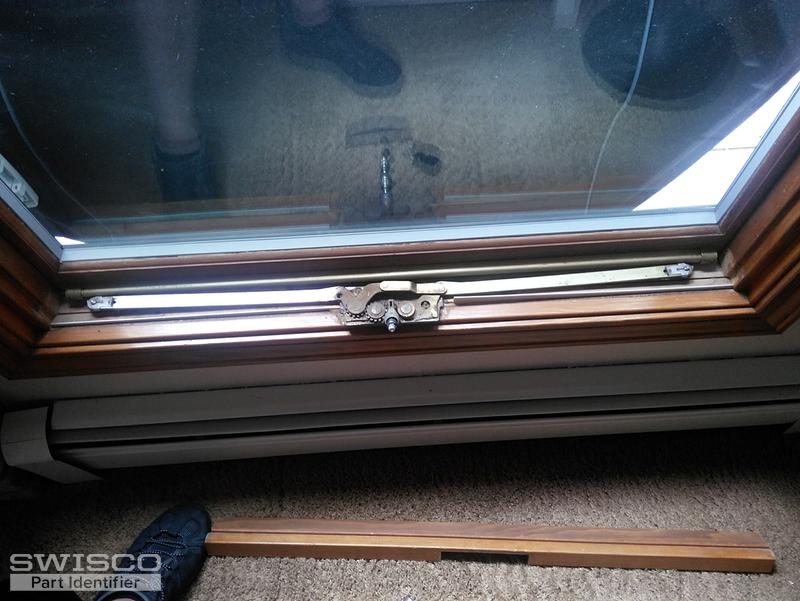

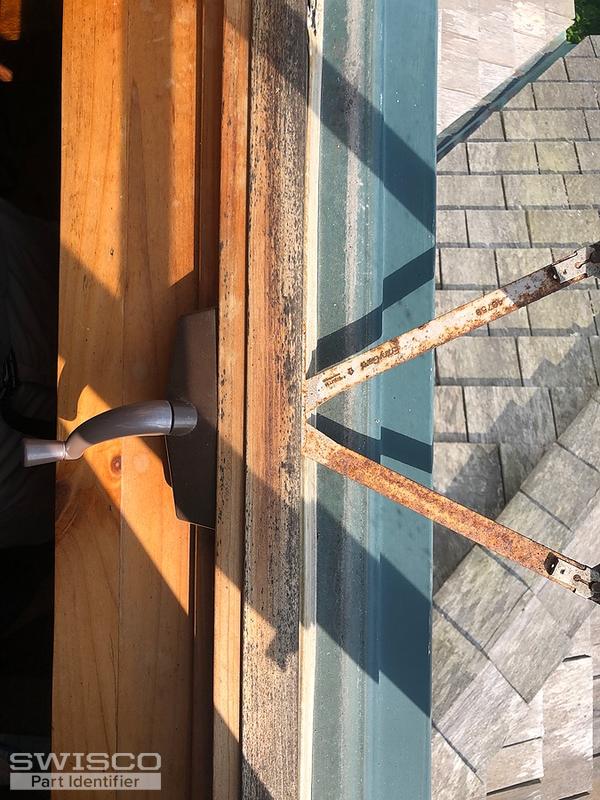

Truth part. Awning arm, 11", Track 25 7/8" without tabs, 26 7/8" with screw tabs. Current pivots at end of arms removable. Need long track. Other photo is of the window sash seal that imbeds into bottom sash that abuts the sill. Please advise on replacement parts. Thank you.

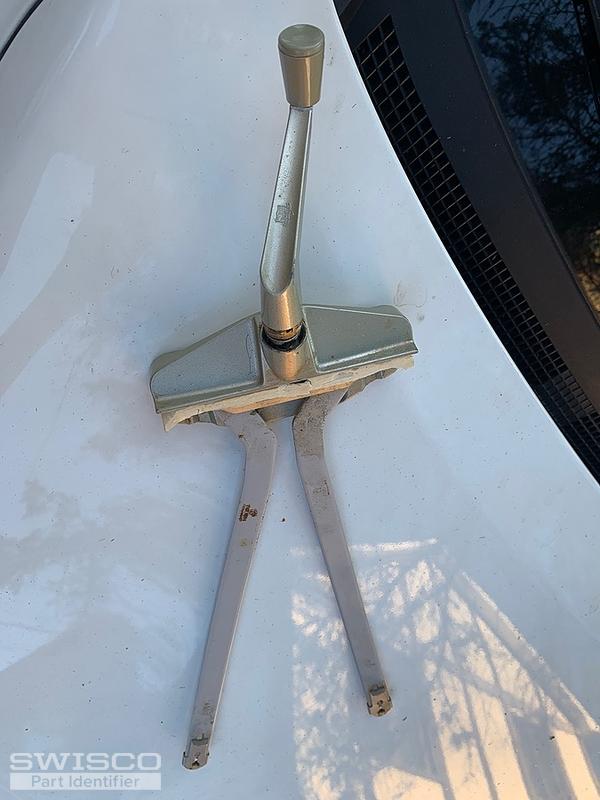

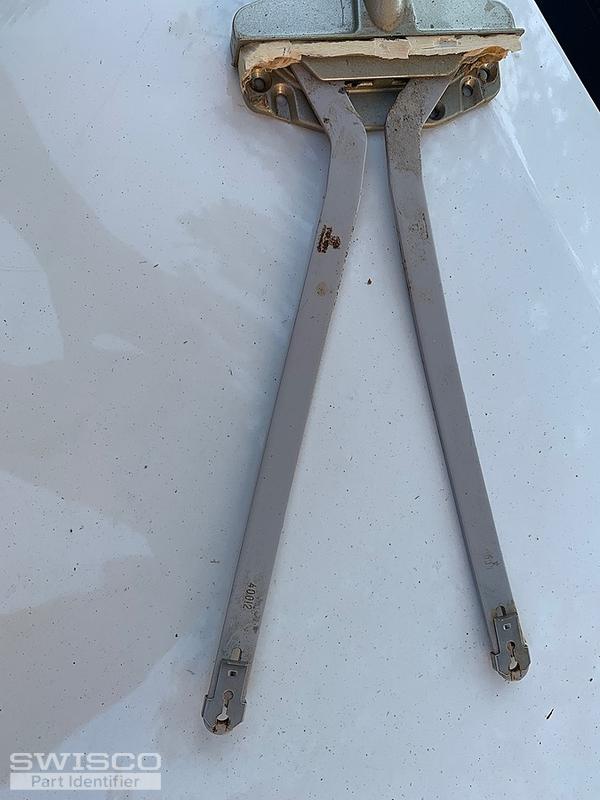

It is an anderson awning kitchen window the crank doesn't work and operator is bent. The awning window is 32x19 .

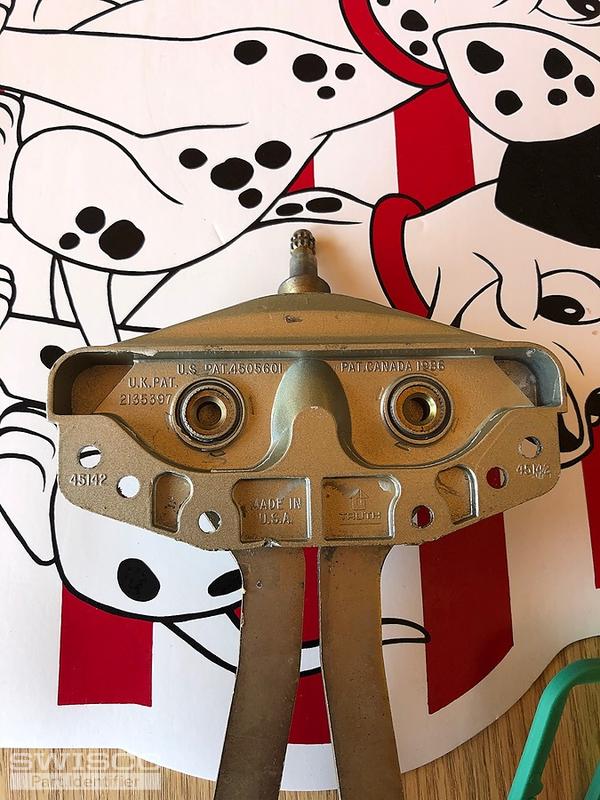

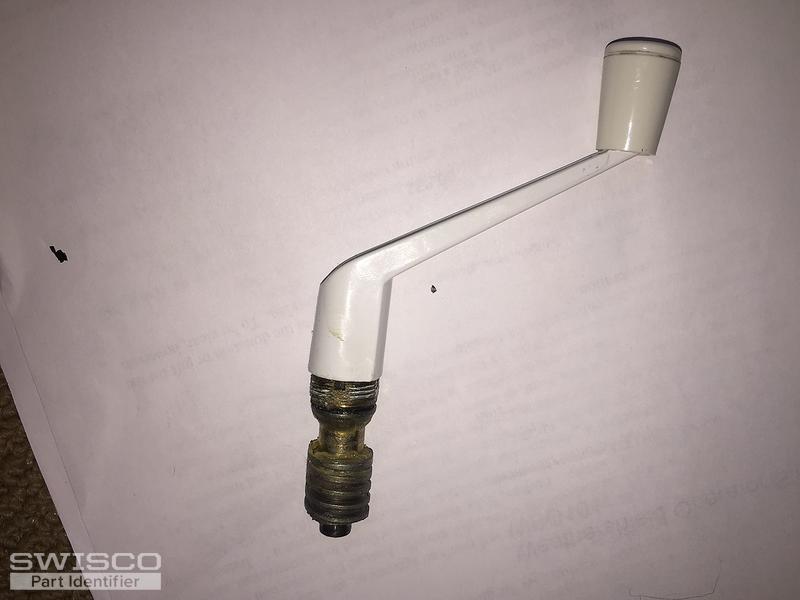

I am looking for a replacement crank Assembly for my window. Part number truth 45142, or a comparable part. I have attached a picture.

Need parts to replace

My windows currently extend about 12" Andersen Perma shield replacement extends 9 1/2" Can I order this 3 windows

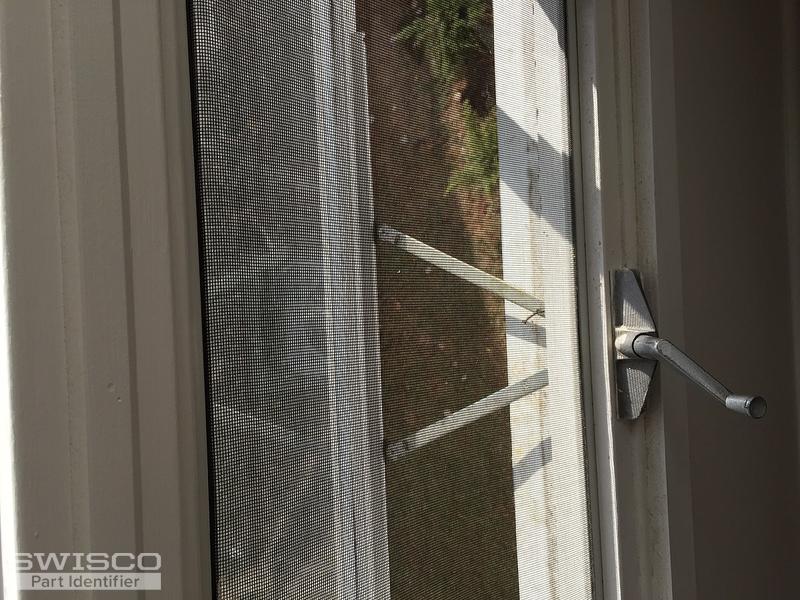

This is a 3' awning window I think I need to replace all the opening hardware the crank mounts to the sill Thanks Susan

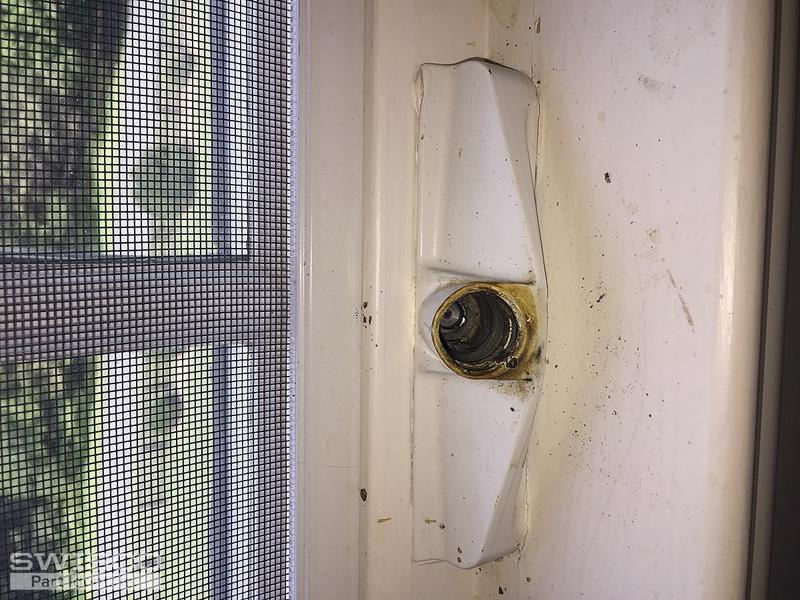

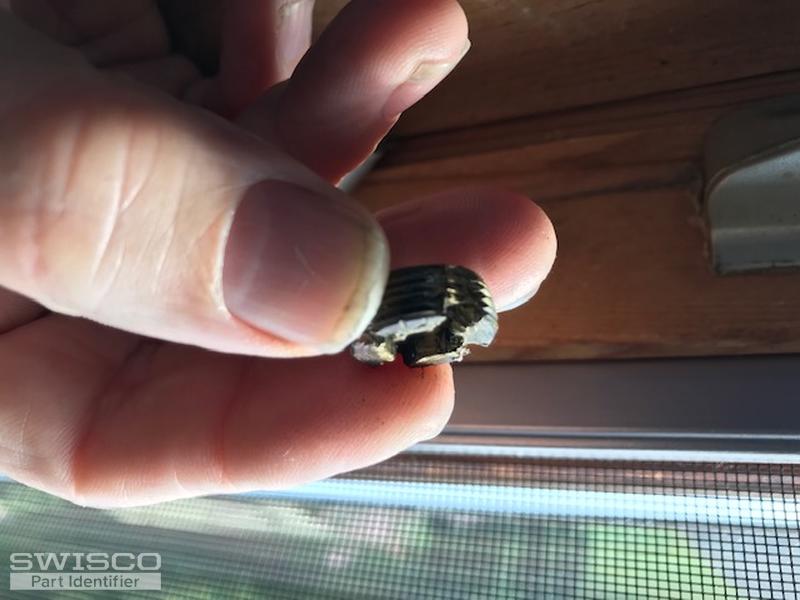

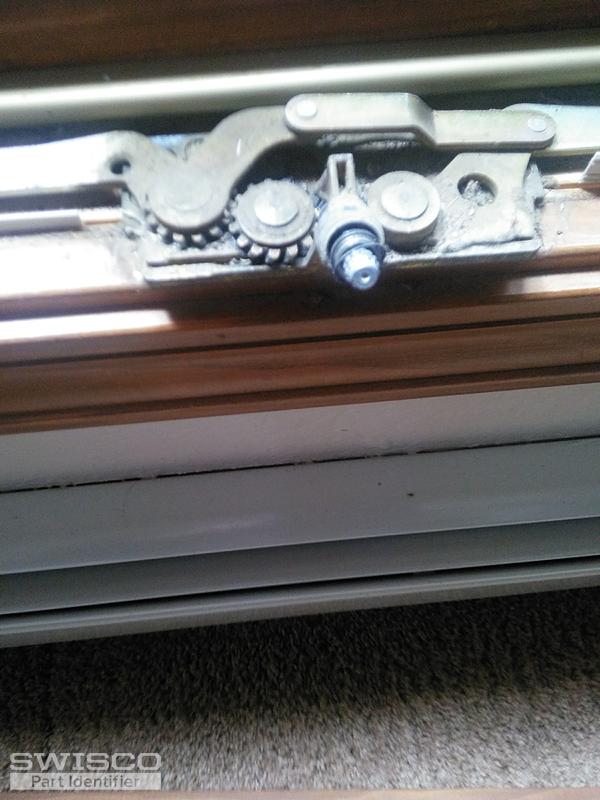

Trying to repair broken crank mechanism. Handle turns, but brass bushing appears to be stripped and does not provide resistance to open/close window. I don't see an allen nut socket which might secure this type of bushing). "Truth" stamped on one of the lever arms, "Window Shield" on the handle (wi ... (cont.)

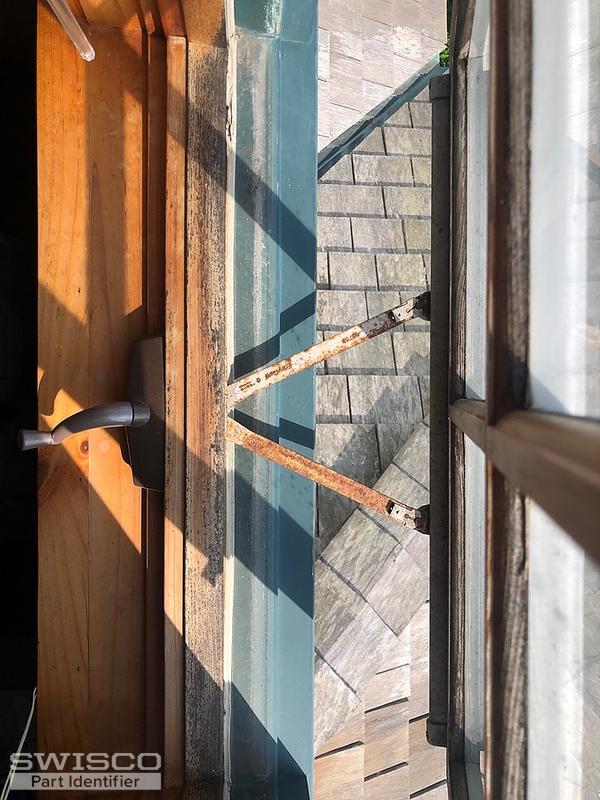

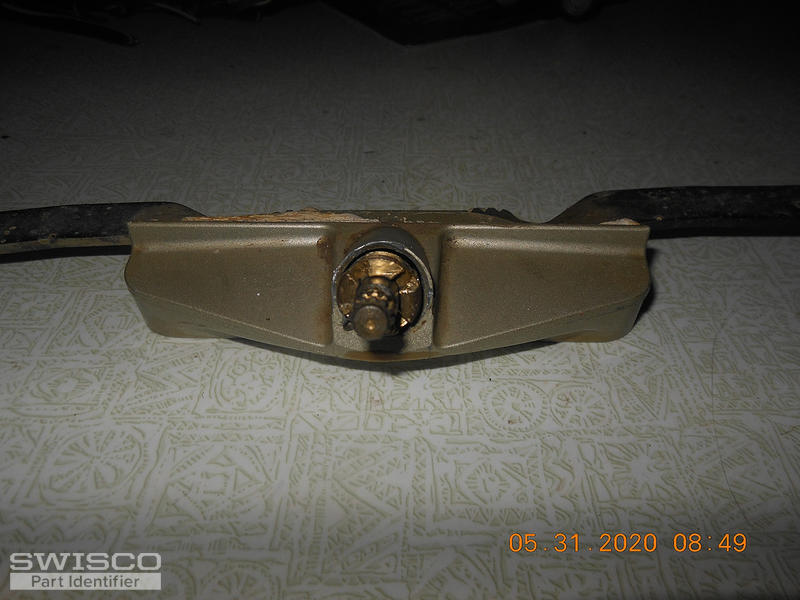

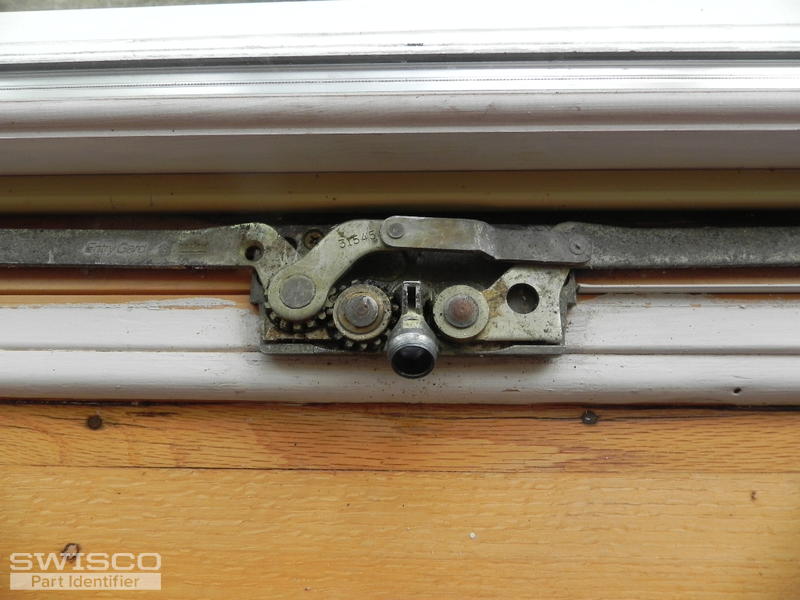

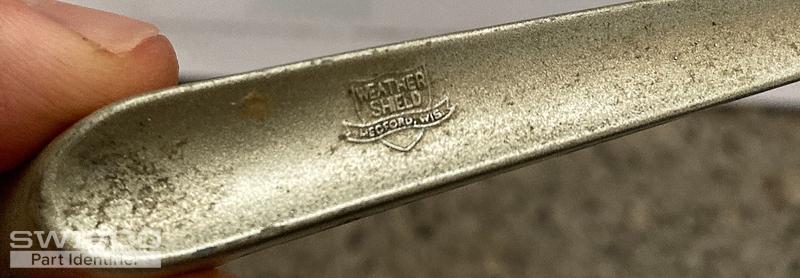

The internal mechanism is stripped, so the window will not open or close when you turn the crank. The crank says "Weather Shield" on it. The crank is located at the bottom of the window in the center. It has two arms that extend the base of the window outward using the single crank. ... (cont.)

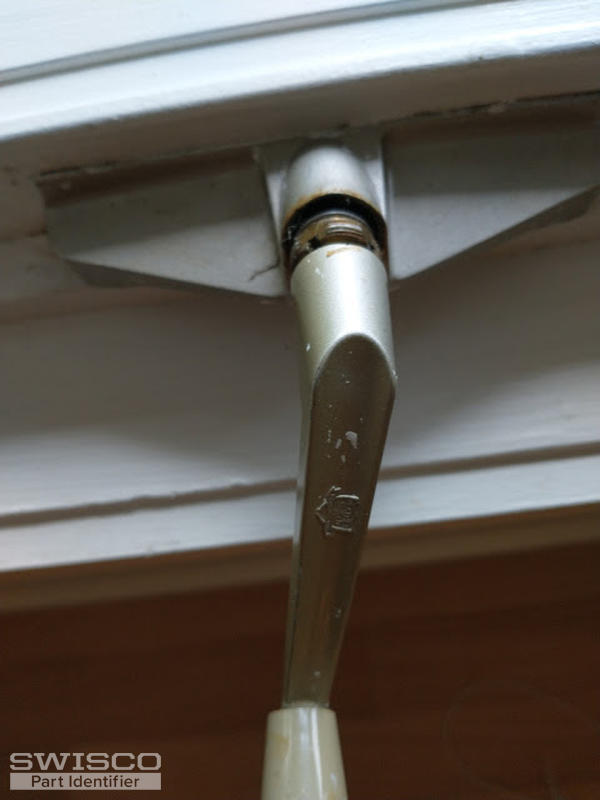

Crank arm works for both these windows. The handle bolt does not appear to be stripped. Not sure what the exposed component is called and where I need to replace it or push/tap it in. Just not sure how to properly do this on 23 year-old Truth windows. I can't seem to find a video or instructions tha ... (cont.)

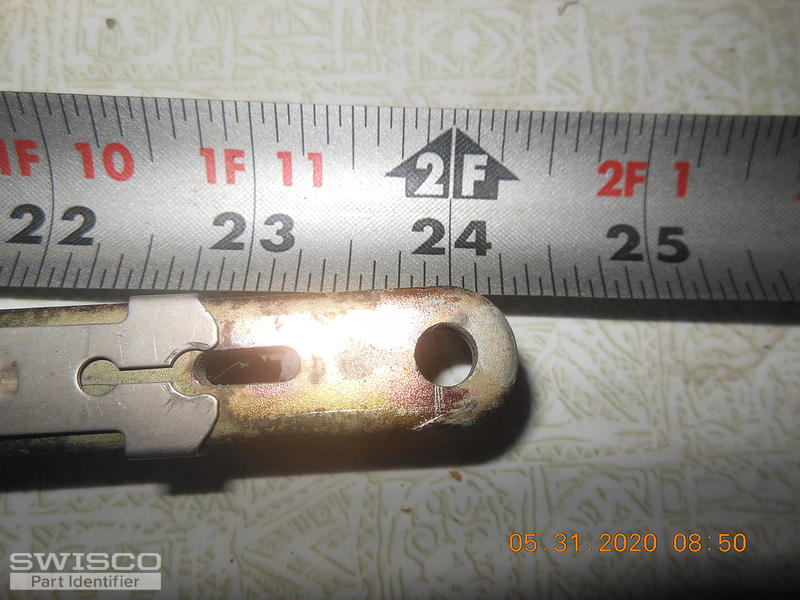

26 inch channel part Id part number?

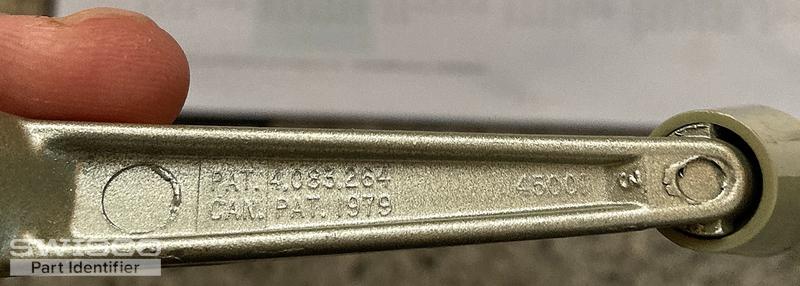

The only number i could find was on the side arm. 31704

Hello, I need a replacement. Hope you can help. Thank you, Gary

Looking for replacement for this awning operator.

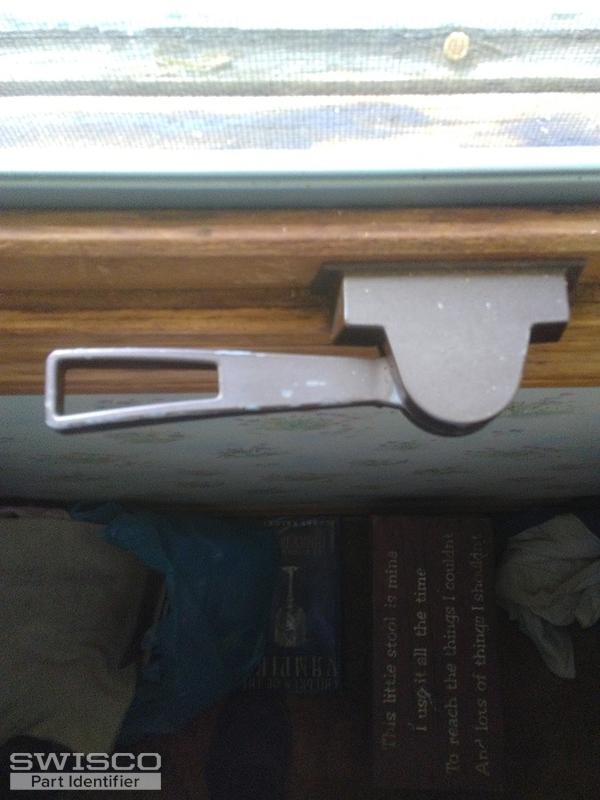

My window is inscribed with - 1 Window 10-69. There is nothing else on the glass or the hardware. I need to replace an opening handle like the one pictured above. The arms that open the window are 12" long. It is an awning style window, and the visible glass measures 3

The crank is 5 " long and screws directly down to the base frame of the window.

Hello! I saw a very helpful Swisco video about replacing this part. I have an awning window in my bathroom that will not close. When I would turn the crank, nothing would happen. It's difficult to determine what size dual arm crank I need to use. Also, when I took out the screen, I could see that ma ... (cont.)

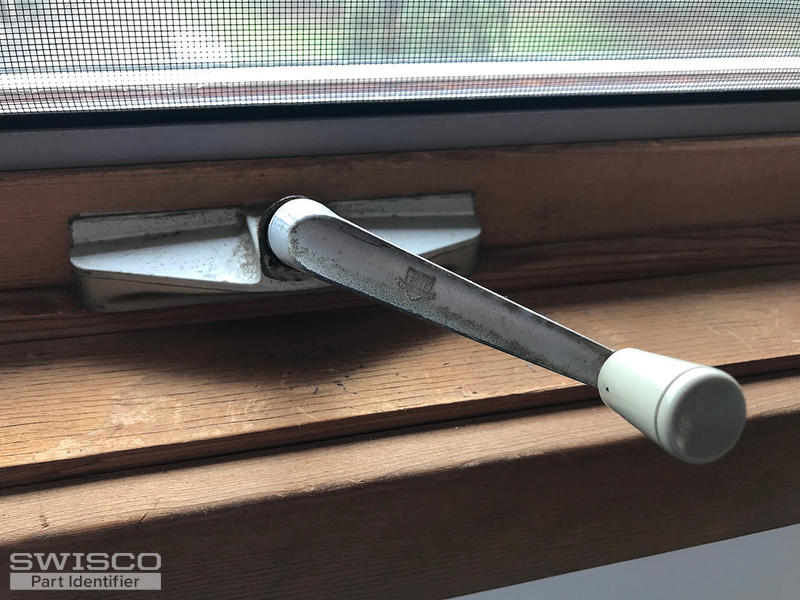

The house was built in 1994 with wooden Weathershield windows. The number on the metal inside window is: WS IGCC (R) CBA The window screen measures about 30"w x 29.5" h The crank housing (?) is about 5" wide. It looks like the handle mechanism is stripped. I've attached photos and hope you can te ... (cont.)

looking for metal clips that hold the shoe stud to the operator arm on a marvin awning made around 1998-2000
