Viewing all customer Discussions for:

26-316 Interlocking Pivot Bar

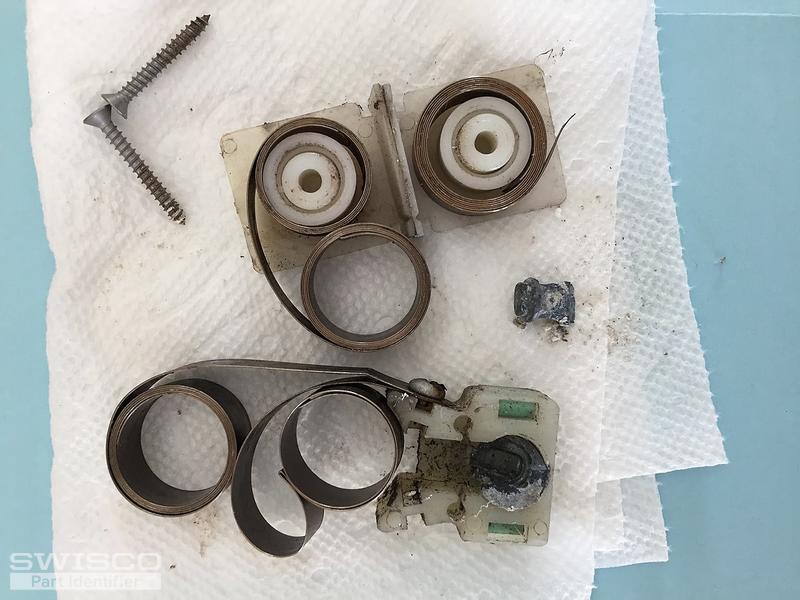

Need qty of 4 coil balance shoes. Item on the bottom of photo. Qty 4 pivot bar. ones marked needed. I need part identification. I disassembled the pivot shoe so they could see the components.

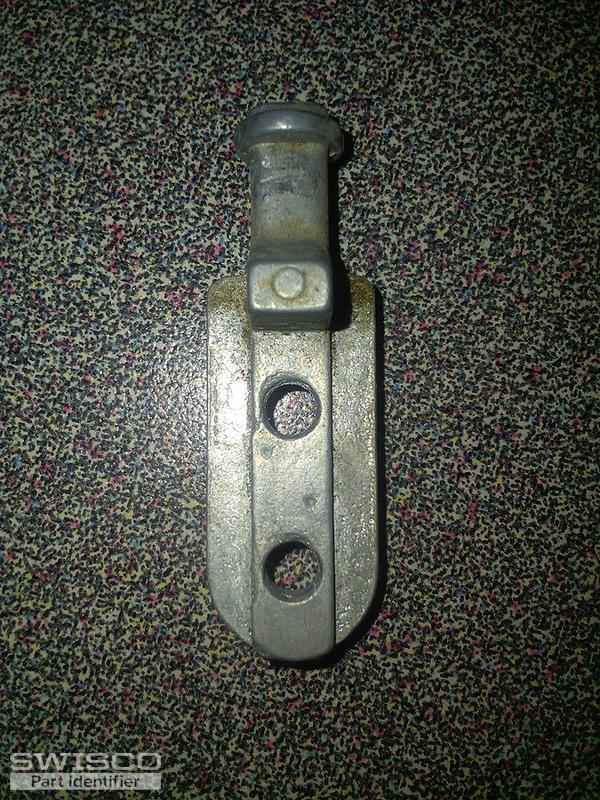

2" overall length. 5/8" wide (body) Screw holes 9/16" OC. Projects 13/16" from window. (butt of angle) Knob on end 3/8"+. (round) Rectangular part of projection -5/16" wide & 3/16" high. 9/32" edge of window to first hole.

Hi! I need to replace this pivot bar. This is the closest one I could find to match mine. Do you think it will work? Thank you!

Looking foran Andersen tandem sash (LH) that is 41" long point to point. The part # on the keeper says it is 135143 but your equal part online shows it at 29 1/2". I also included a photo that ahows 7=LH, 8=RH? Please help!

I can't find this pivot bar on your website please help.

Looking for part for sliding window

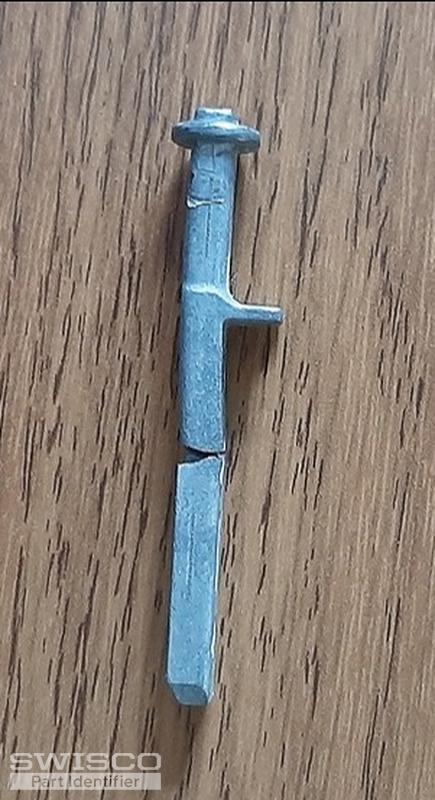

1 and 3/4 inch part that should look like a T but one side is broken off. Our window now cannot stay up. Where can I get this part? I cannot get a picture of it installed because it is inside the frame.

The bar that holds the window in while you tilt it out to clean it.

Hello. These windows are vinyl and the only name I can find on them is on the locks. "Alliance Window Systems"The smaller windows have only one coil.

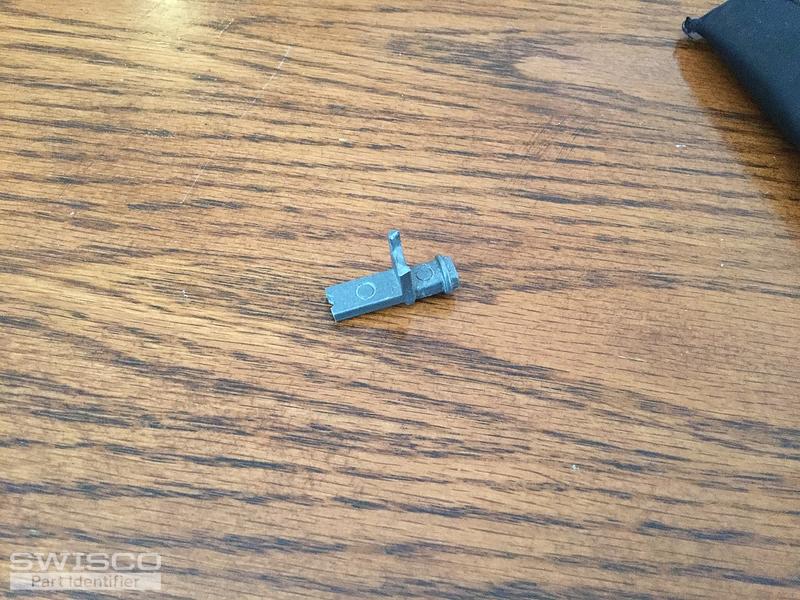

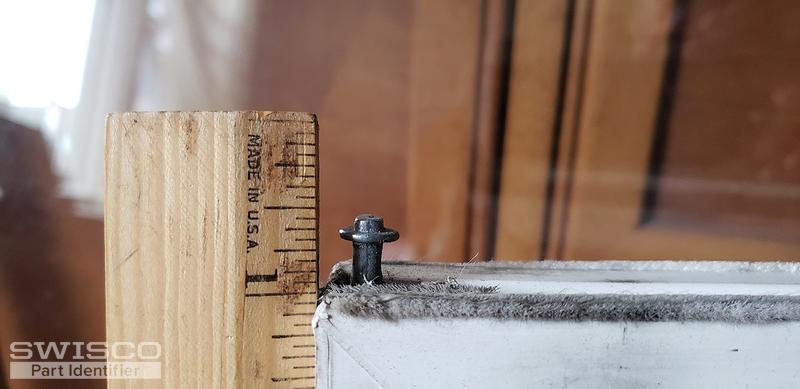

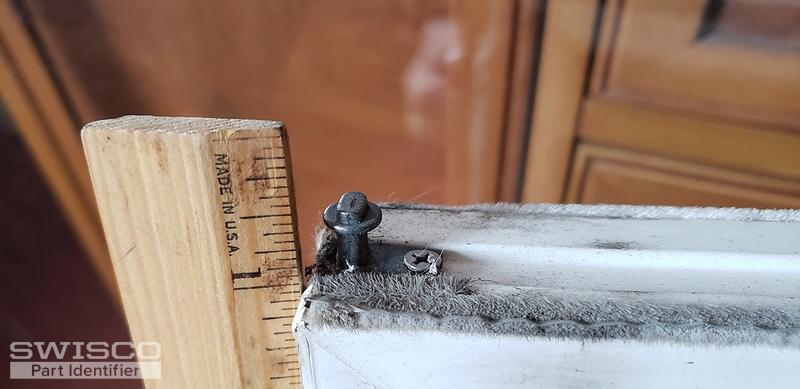

Can you assist me in identifying this particular pivot pin? Thank you in advance!!!

Hello. I am attempting to identify coil balances for my existing windows. They are double-hung tilt ins. Additionally, I would like to know if you have the 'pin' that is attached to the corner of the sash. Thank you for you assistance

1. double-wheel pulley (4813, 4812, 4800) that attaches to the spring (4803). Spring is fine 2. square bar (4813 and 4812)on bottom of the window that keeps bottom of window in the track and rotates the window-lift lock. broken at the hole where the screw holds in place. 3. window-lift lock (1/2 c ... (cont.)

VIWINCO replacement windows install in 2009. Pivot bar very small and cheap potmetal. Need 10 replacement pivot bar/pin. Hopefully better quality See pictures. Thanks for your help. Richard

Please help me to find correct pivot bar and pivot shoe (part no. 15-129 was little wider) for my S770 tilt window with plain balance 35C,35A,35B and 29C. I attached pictures and measurement of pivot bar here in this email .Earlier I sent you an email inquiry refrence no.7523124 Thanks, Vijay ... (cont.)

I'm looking to replace the entire balance, pivot bars and pivot shoes on two windows in my home. The window jamb does not have cut outs to easily remove the pivot shoes but I'm concerned the vinyl/plastic components to the jamb will snap if I attempt to use the jamb spreaders. Do you have any sugges ... (cont.)

I reside in upstate NY (Albany area). I'm a student landlord in Albany. In one of my units, I have vinyl replacement windows. But there seems to be zero, zilch, nothing, nada decals or etchings which would state the brand name of the window. I believe I'm in need of bottom sash balance clips. On ... (cont.)

Please review the attached photos of pivot pin. I place an order order for a 26-316, unfortunately it was not the right size. I wanted to know if there was another pivot pin that you will be able to recommend that would be a suitable replacement for what I have? Please let me know if you need any ... (cont.)

I believe it to be as pictured, my broken part meets the pictured dimensions. DHPB-51 thanks Kevin

I have Alliance 32" -72" Vinyl Windows I need the following parts. Thanks

Have you seen any such pivot bars? Vicki S
