Viewing all customer Discussions for:

15-228 Pivot Shoe, 17/32" Thick

Hello, I hope this finds you well. I am trying to fix my window and need two specific parts to do so. I need a coil, specifically the one shown in the attached photo, and a coil balance shoe as shown in the second photo. Please help direct me to identifying the right parts I can purchase from SWISCO ... (cont.)

I am pretty sure you have what I need, my pictures didn't turn out great, but the scan of the part number did. Both sides of the coils broke, so I need both plastic parts and coil springs for both sides. Can you confirm what I have and what I need to order. Again, I will need both left and right ... (cont.)

The balance measures 9/16×1-1/4 and looks like a single coil. It's for a single hung window. The bottom sash measures 28w x 23t. I took it apart and put it back together so they could continue to use it. I didn't think to weigh the window . Thank Tony

This is right side old coil top and bottom I need left and right assembly

Hey do you guys carry these or similar parts? I need a few coil balances and pivot shoes to match. The pivot shoe is 1 1/4" wide at the base. I think it says "6" on the coil itself but it could also be a "9". Haha of course.

I would like to if you have this coil balance in stock.

I need some help identifying which type if coil I need, to replace both of my broken coils. I think that Series 165 3 lbs is what I need, but wanted to double check. Markings: 35" P 5232208 #3.0

I am trying to buy parts for our America?s window we have several hundred of these windows in one building, I need the coil balance and some sash latches, the springs are double they measure 1/2 inch wide by 1 1/8 inch in diameter when coiled up, the travel of the window is 30 inches and there are 2 ... (cont.)

Hi, As you'll see on the photo, the bottom spring is broken. It reads: #9.0 35" P. The spring above reads #7.5 35" 5232208. I'm not sure which of your springs i.e. s159, s160 or s165 would be a replacement for the broken one. Or should I replace the entire balance? And while I'm at it, shou ... (cont.)

Hello.. I tried measuring the shoes for the window to see if I could get replacement parts. Ltheybdont come out however. Any suggestions? Any way of identifying the parts? Both sides are broken.

I need both parts I gave front and back views

Hello. I have two windows that do not stay open. Do not know what manufacturer. I removed the pivot shoes did not see any markings on it and am enclosing photos of it for sizing and I was trying to show where to coil attaches which is top side. Pics also of the balance coil. I removed both le ... (cont.)

Hello, I have Amcraft Grand Estate windows and one Of the coil balance springs has broken. I need To replace the spring, shoe, and spring cover. #90 35 is stamped on the spring. 801020 is on the cover. There are no markings on the shoe.

I have windows from BF Rich. I need to replace the Pivot Shoe. From the window label Code BFR Rating H-R55 Series Cabernet DH MST 3850 Pictures are attached. I think I need the 15-129 but would like your assistance in selecting right part.

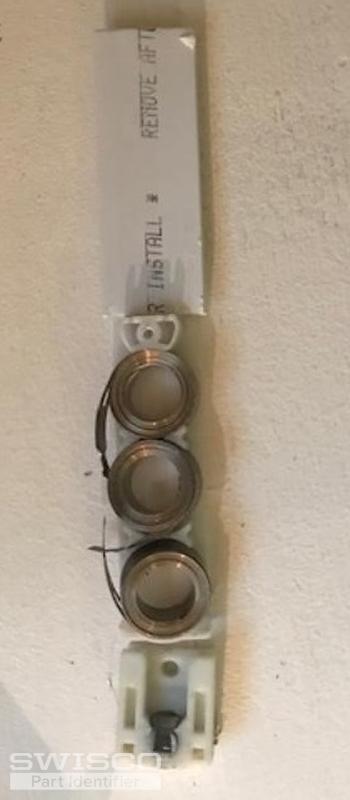

My single hung window (approx 40w x 66h) will not stay open and coil balances and one pivot shoe (broken) need replacing. Each side has two coils one numbered 6 and one 7. See attached photos. Do you have these parts? The left side has 2 coils at top and a coil further down...is this correct ins ... (cont.)

Looking for replacement parts for 3 windows One in kitchen with no balances and two double hung with 25" red tipped spiral balances

I have BF Rich Windows 013460 4098 DH VTCL LE 1 VTL240EW.I need Coil Balance Shoe W 1 1/4"x H 1 3/8" x 9/16" and Balance Spring (2 sets) for W 28.625 H 61.5 C 30.75 15 LBS(1 set) for W 28.625 H 37.25 c 18.62 10LBS Thank YouDale

Photo attached of the shoe and metal band attached to it that either broke or snapped out of place. Need to either get the part and replace or tutorial on how to fix without new part if possible. Thank you. Mary

I have BF Rich Cabernet window that I had replaced in December of 2011. The spring that connects to the right balance shoe needs replacing. I have attached a picture of the shoe and the other the piece the spring connects to. And can it be replaced or should I replace the connecting parts also? ... (cont.)

Hello,I need to replace these parts on my window.Please see attached photos and help me identify the part.There are 3 sets of numbers on one of the parts.PATENT #'S5.232.2085.365.6386.584.644 B2thanksMaria
