Viewing all customer Discussions for:

15-046 Pivot Shoe, 1/2" Thick

I have not removed the pivot shoe but it looks like a 15-015 without the screw to lock the spiral balance, based on the dimensions. The spiral balance is 42" but it has a blue end piece. It is 5/8" diameter. It seems red and black tips are only available on your website. Can you confirm the Parts ... (cont.)

I am trying pick out the proper shoe ..on tag under the window it says .double hung window 4000. Then it says 1/2 which I assume that the size of the pivot shoe

Identification please

My technician said that the shoe is missing approximately 1/2 and inch from the top. This is 1/2" thick 2 inches the long way without the broken piece and 1 1/4" wide.

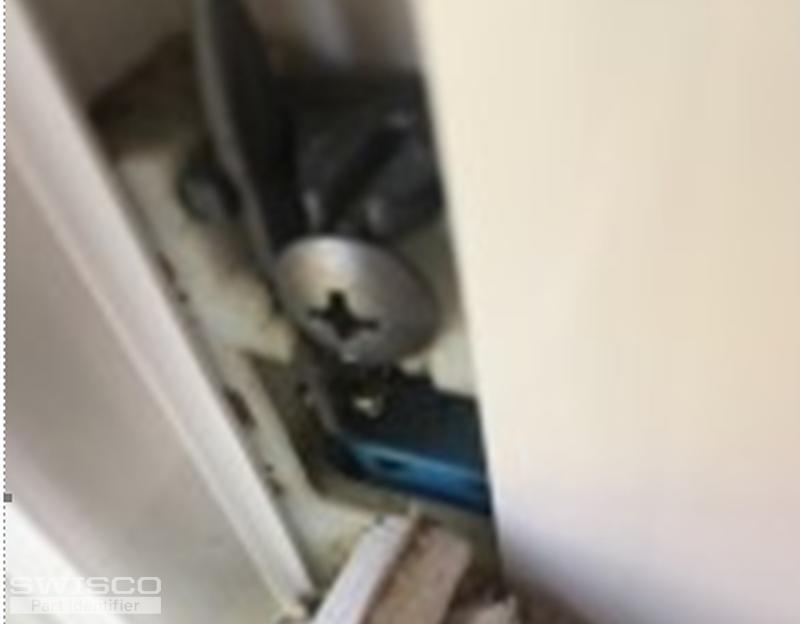

I need to replace the balance shoe on an 1800 Patriot series single hung spiral balance.

Looking for 12 of pictures .Atrium Windows

I have many windows that have broken spiral balances. I need the 29 inch spiral balance, pivot shoes, and outside 35 1/2 by 59 1/2 window screen. If I have to replace the sash too, please provide that number too. Thanks. I am a mechanically inclined person and I can perform this task. ... (cont.)

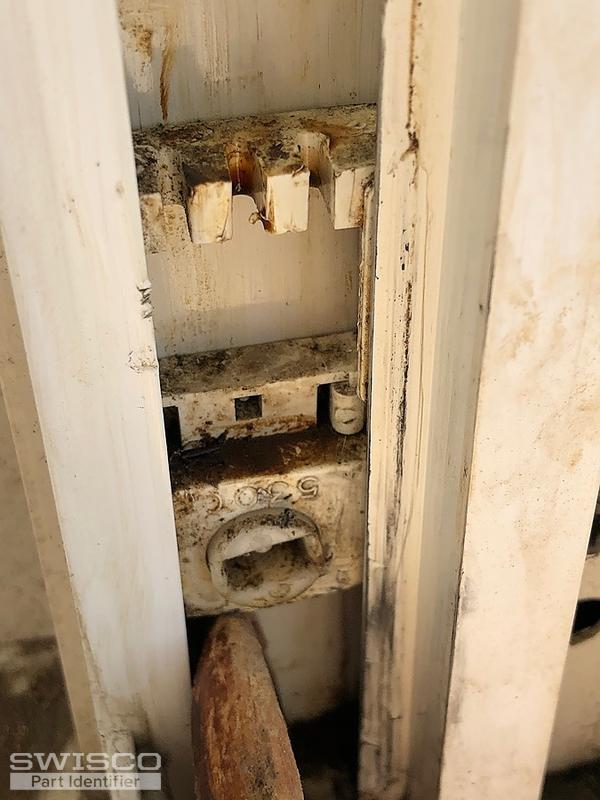

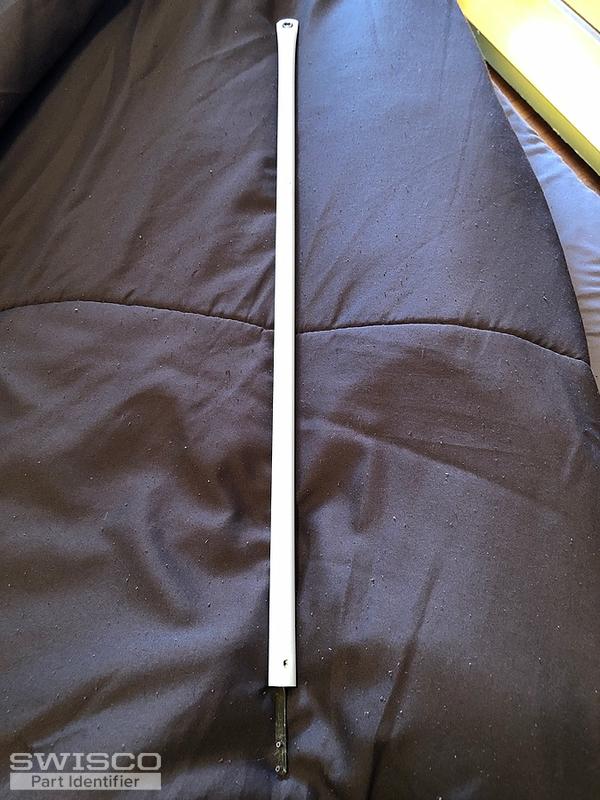

I have attached a photo of the parts that I need replaced for my tilt out window. The spiral balance has an outer plastic tube that measures 28" in length, 9/16" in diameter and has a blue tip. The locking shoe measures 2 1/8" tall, 1 1/4" wide and 1/2" deep. It has the number 530C as an identifi ... (cont.)

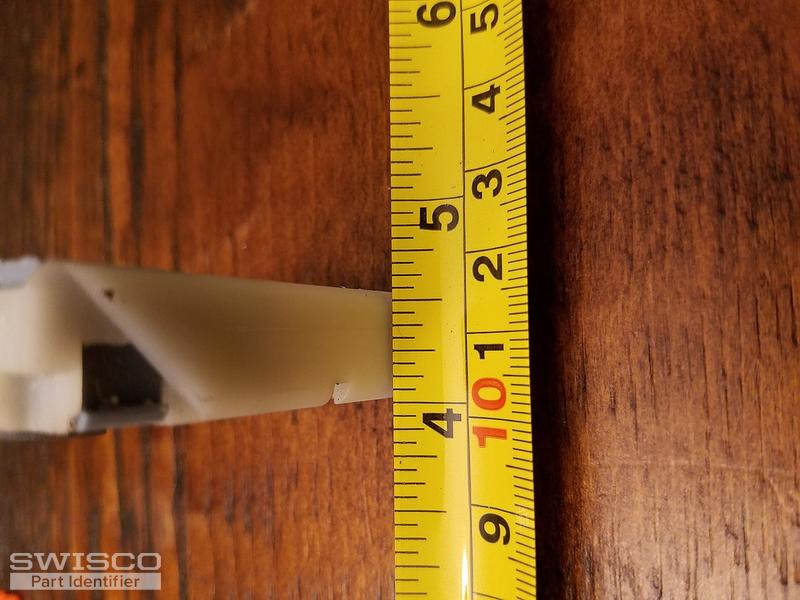

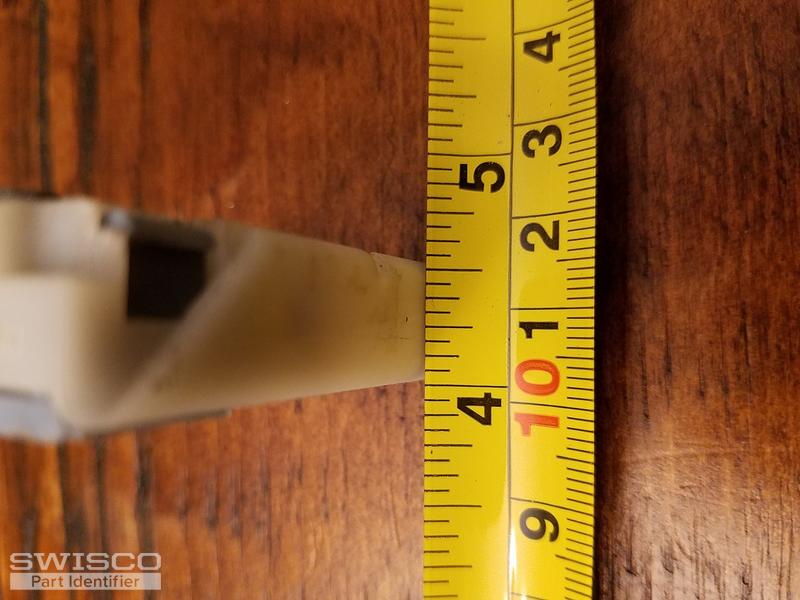

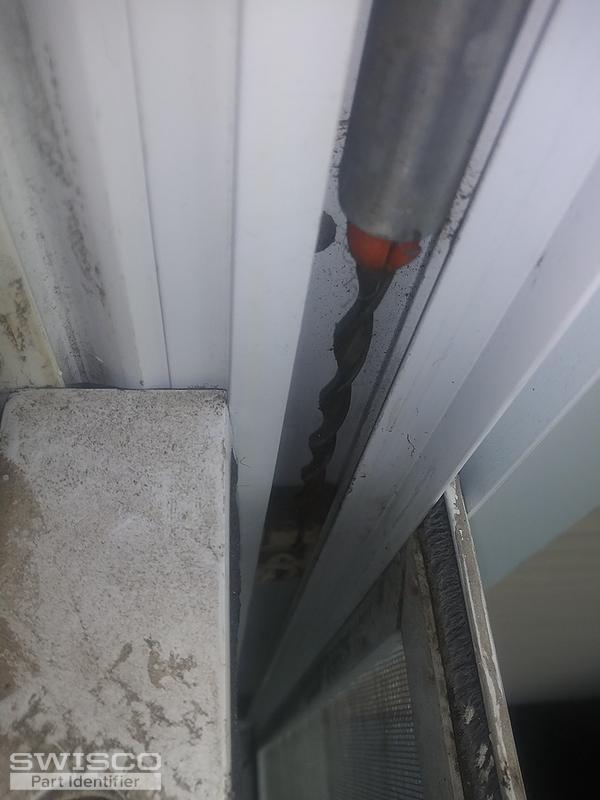

Spiral tube seems to be 9/16" with orange? tip (is that red?) 28" in length Pivot shoe measured 1/2" thick (so possibly part 15-015 at 17/32"?)

Please identify the size I need and tell me what I nee

It was a Home Depot replacement vinyl window and 2008 model 4000

Looking for Silverline/GU Split Arm Operator (Right Hand) and also the part for different window as sent in picture. Thanks ! Heard your finding parts for customers is fantastic

I would like to order two pivot shoes in blue color. Thank you

34 inch long and 3/8 wide. And 22 inch long and 3/8 wide The shoe is 2 inches tall 1-1/4 wide and 1/2 inch thick

Window sash weighs 16lbs and there is nothing on window or anything Thank You

I have a few windows with broken pivot shoes. They look like your product Code 15-046: PIVOT SHOE, 1/2" THICK Product Code: 15-046 Would you please provide me the exact measurement for the thickness and the width? My pivot shoe measurements are: Length: 2-1/16" (length does not need to be exact ... (cont.)

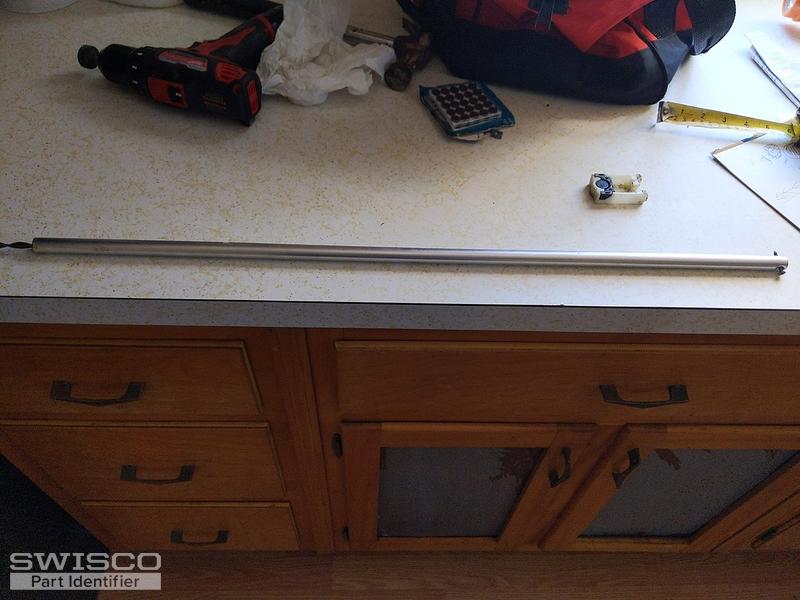

Good Morning. The first two photos are of a spiral balance from a double hung tilt out window. The second photo is the pivot block. I need 8 spiral balances and 8 pivot blocks. Can you help?

Is this the part number 15-046

I have the Acorn single hung aluminum window with spiral balance. Where and how does the sash attach to the pivot shoe? Your tutorial doesn't show this very well.

Looks like the spring wore out. Windows are fairly old about 15 to 20 years. Was wondering g if you have a replacement part.
