Viewing all customer Discussions for:

15-046 Pivot Shoe, 1/2" Thick

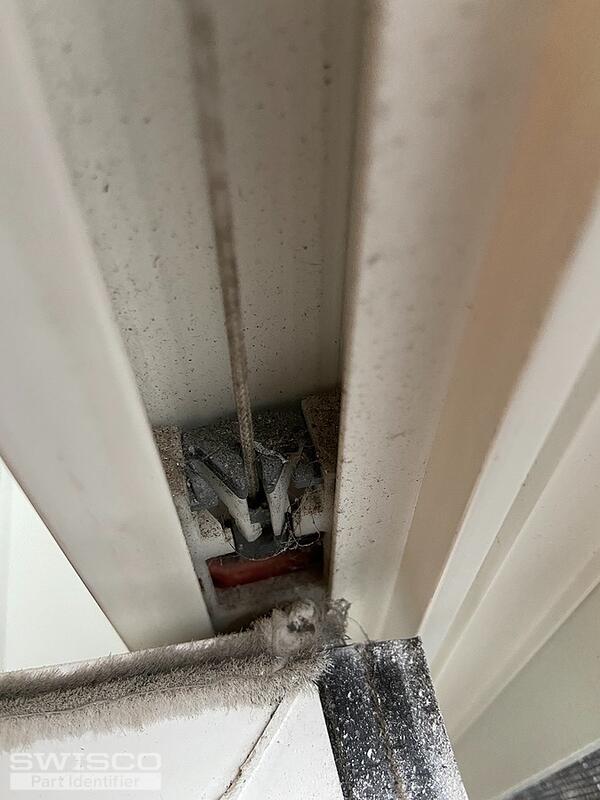

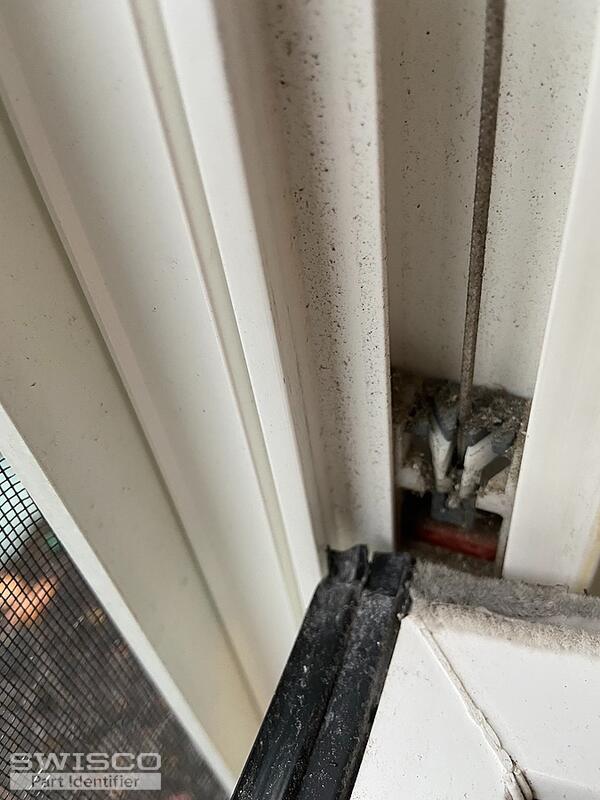

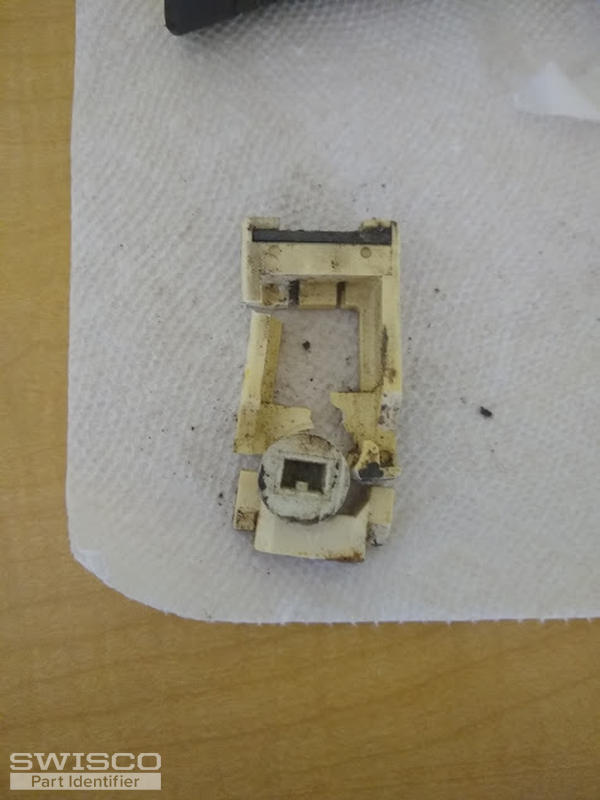

I'm trying to find replacement pivot shoes for these double sash tilt windows. In the photos, the bottom part broke off. I tried to use the 5/8" window spiral pivot shoes from TILT, but it seems like it's slightly too big due to two small channels on the front. 3/8" is too small. I don't ... (cont.)

I searched the internet and can't find these pivot shoe. They are all plastic. Windows were installed in 2001 when the house was built.

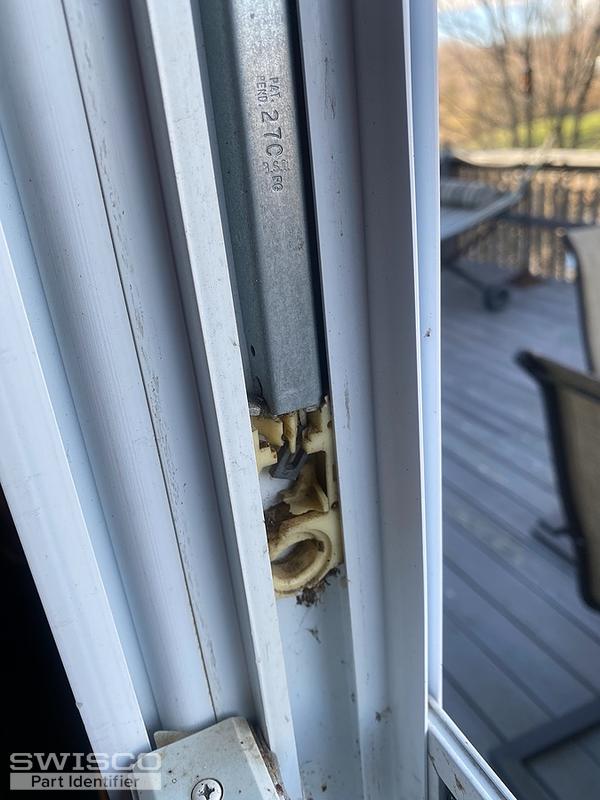

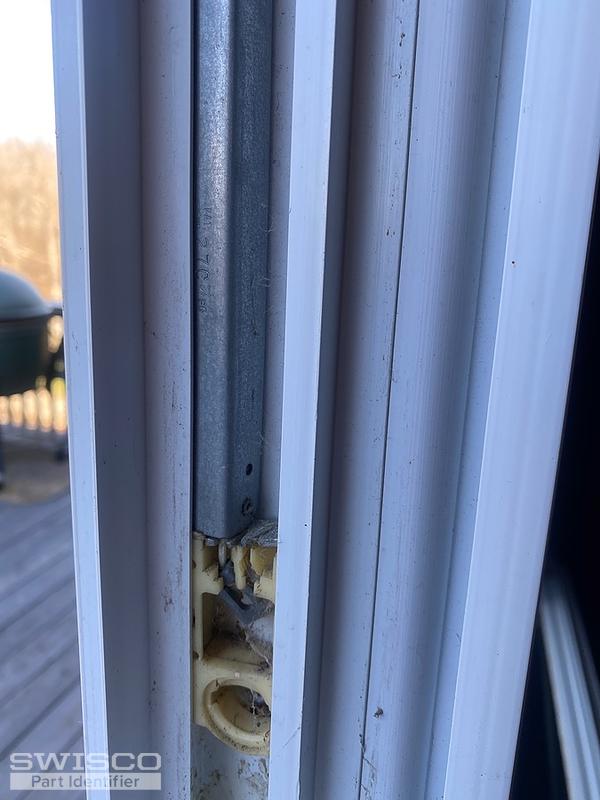

This bottom end , above nylon pin receiver, is broken Can I buy end, or entire assembly?Do u have assemblyPlease advise thanks Russ

I need to purchase two pivot pins for the top sash of a double hung window. I think the pin matches this one-flared pivot bar 2 1/2" 26-412. the original pin on one side broke off inside the pivot shoe and I don't know how to get it out of the shoe. Is there a replacement shoe that I can get for ... (cont.)

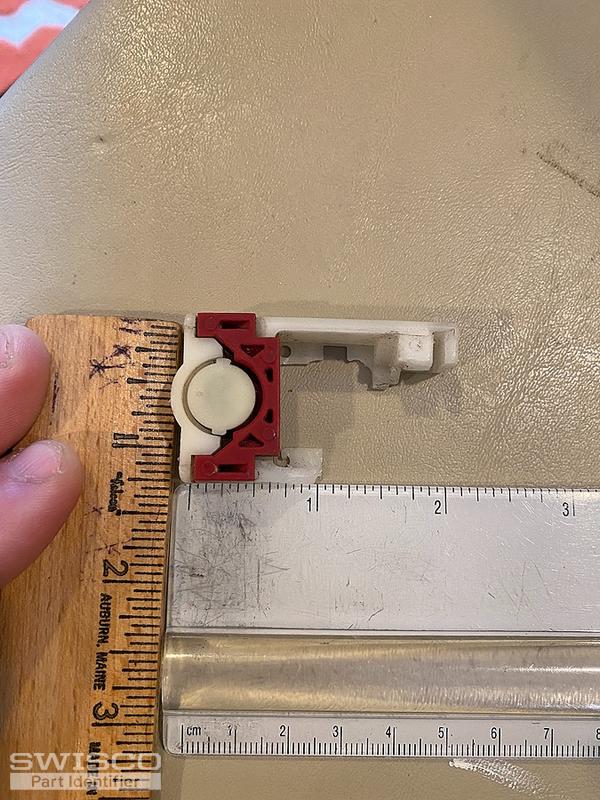

Make of windows unknown. Stamped 530C. The part is roughly 2.25" tall x 1.25" wide x .5" thick. Used with red tipped spiral balance rod. Residential windows.

I am looking for the part that holds the vertical rod. They are plastic and not very strong on a Cavco Window unit.

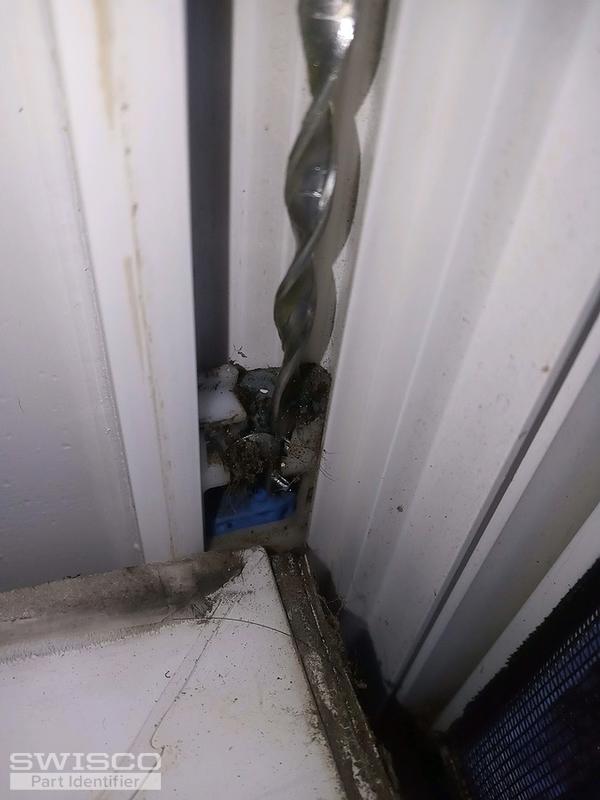

Hi, I purchased many of the "blue" window shoes to replace bad ones in my windows with success. Recently I took the old ones out in another one of my windows shown in the picture and replaced it with the new "blue" one. It fits but it seems a little snug. The old one measures 1 3/16" wide. I believ ... (cont.)

I've been fixing my tilt windows with your 15-046 pivot shoes. Last window top sash the pivot bar was broken. It looks to me like a flared pivot bar 2 1/2 inches. If I am correct will it fit the new shoes? Thanks

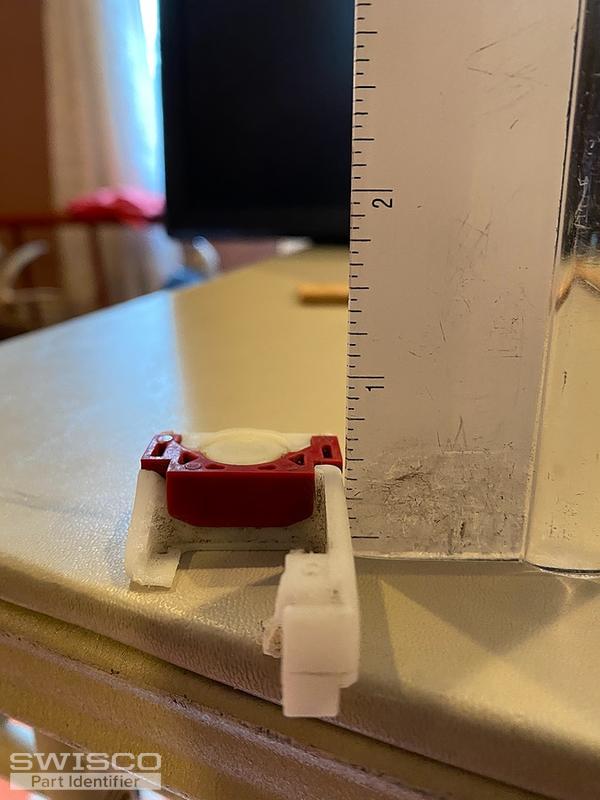

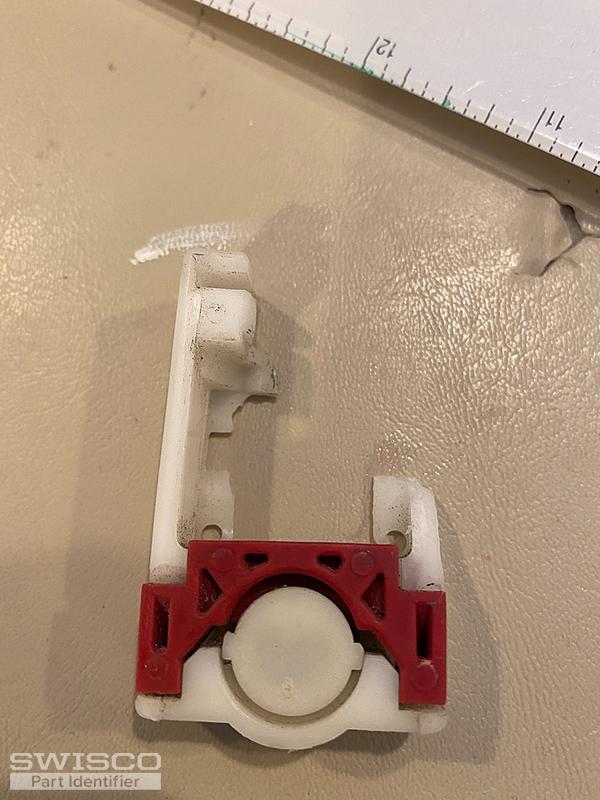

The assemblies to hold the cord are busted. The window is like a guilotine, however it can pivot on the busted hardware, but the cords are retracted. They can't seat in the busted hardware. There is a red tab at bottom, 2" tall, 1 1/4 with inside slide, thickness of hardware, just under 1/4 inch. ... (cont.)

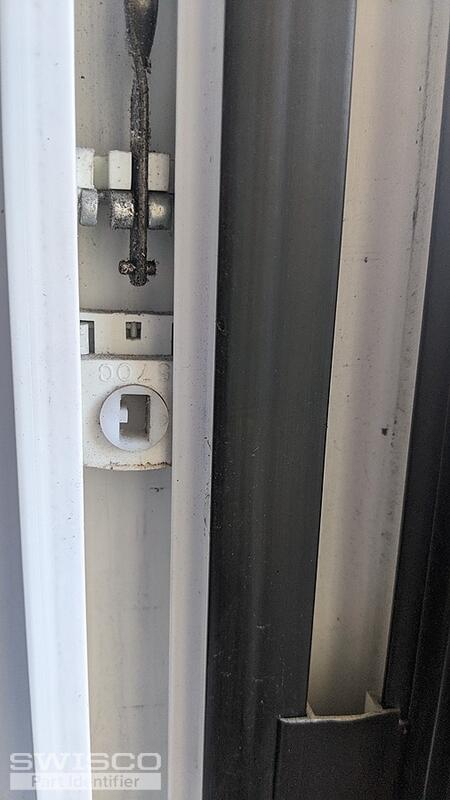

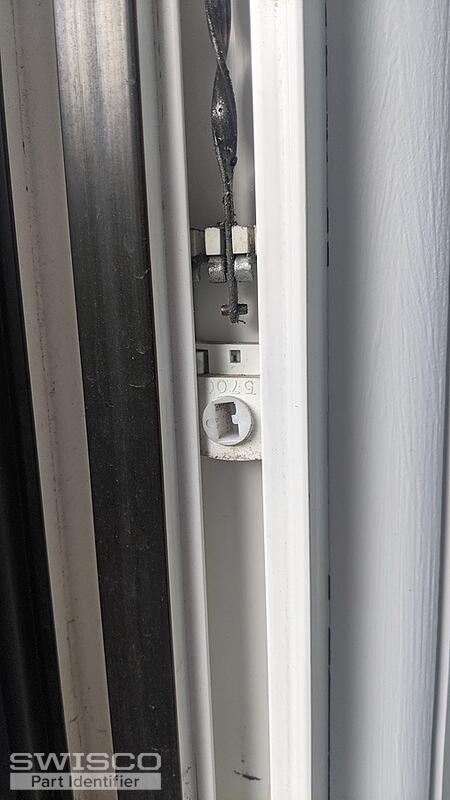

Hi. I'm looking for Pivot Lock Shoes. I see some number 5700. Please help me find this parts. Thank you.

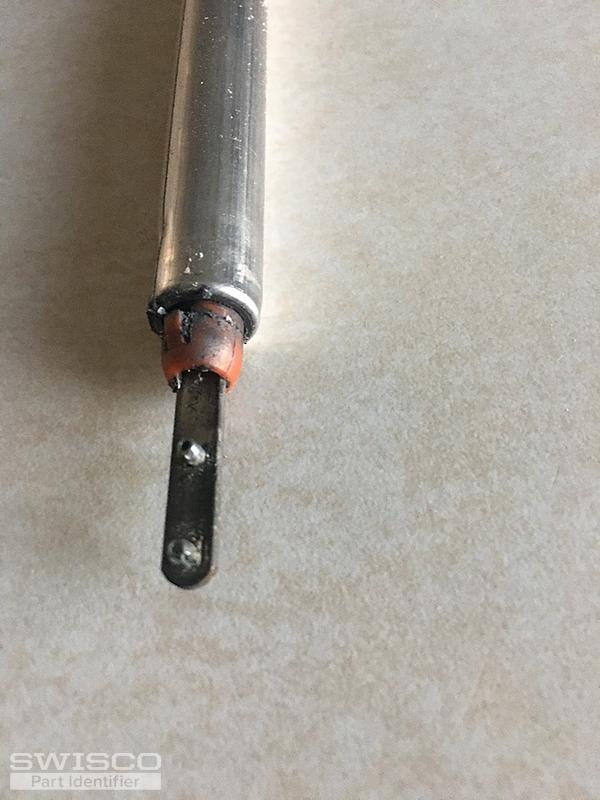

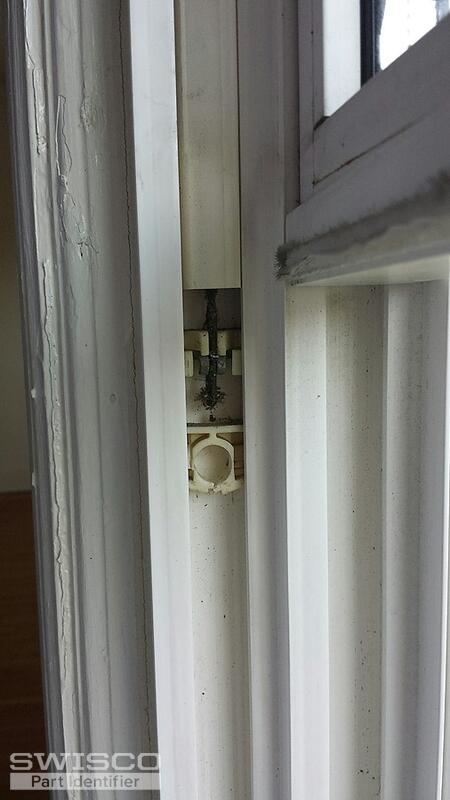

I'm looking for the replacement part for the Silverline vinyl tilt window. I've attached a picture of the working spiral balance and one that is broken. Can you please give me the correct part number this this.

Hello! I have a house full of Alside 0601 windows. Many of the spiral balances and shoes are shot. Could I have part numbers for blue tipped 5/8" width spiral balances that are 31", 25", 21", and 17 inch? Also, the shoes appear to be different on the right and left side of the window. The left has ... (cont.)

Not sure what this part is called. All of my windows have all lost the ability to stay put. I attached one that I could indentify was broken but I'm unable to name it. Part of the shoe?

I have more photos but can upload . Windows are Imperial Window. Two sizesName: Minh

13mm or 1/2 in shoe

Need jamb spreaders

May of 05 is able to be read on a faded sticker. Window size is 31 3/4 by 37 1/4. I don't see how you would get it in or out of the channel unless you make a keyway at the bottom

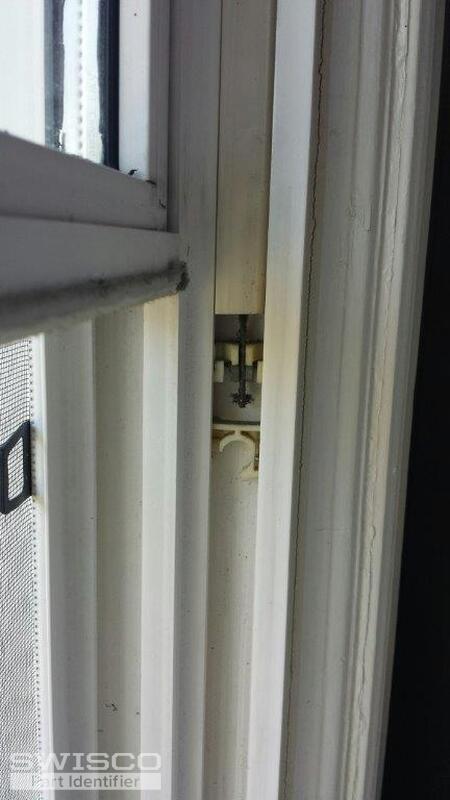

Hi, The part in the second picture is stuck at the bottom of the window track and won't slide up or down. I had to remove the bottom sash to take picture.

Need help identifying this window . As you can see where the bottom of the window goes into the pivot piece on the bottom of spring the plastic is broken. Also both plastic pins on top of the window are broken on the top of the lower sash . These pins retract when you slide the pins back . The sl ... (cont.)

Came of a Mastic brand double hung window Looking for 2 window shoes
