Viewing all customer Discussions for:

15-046 Pivot Shoe, 1/2" Thick

Hi, I need to replace a pivot shoe for an old American Craftsman Series 4000 double-hung window that was purchased at Home Depot. I've removed the shoe but, with only a tape measure, am having a difficult time determining the correct size. It looks like its 1/2" thick but may be 9/16". Also, I d ... (cont.)

I just bought a house, and there are several old champion double hung windows that need their spiral tilt balance and break system replaced. I am not sure what year they were installed, and there don't seem to be any product numbers on these parts that I removed. There are also foam inserts that h ... (cont.)

Can you please help me with finding and ordering part was not able to locate it

Piece is 1 1/4" wide. Channel is 1/2" deep. Entire piece is 5/8" thick. (The round part sticks up a bit more than the part that rides inside the channel. I don't know what brand the window is. I'm hoping either 15-047 or 15-046 will work. Your opinion? I might just order both as they're cheap, as lo ... (cont.)

I am not sure what this part is called, though it may be the pivot shoe. It holds the spiral balance rod at the bottom of the window track. The windows were installed in 1997 and most are still functioning well. I have about four that have a similar problem throughout the house.Thank you for your ... (cont.)

I already used 17/32"(part#15-015) but it was a little thick, that's why I ordered 1/2"(part#15-046). Am I right with this one or I am wrong again. Please help me with right part. Thanks.

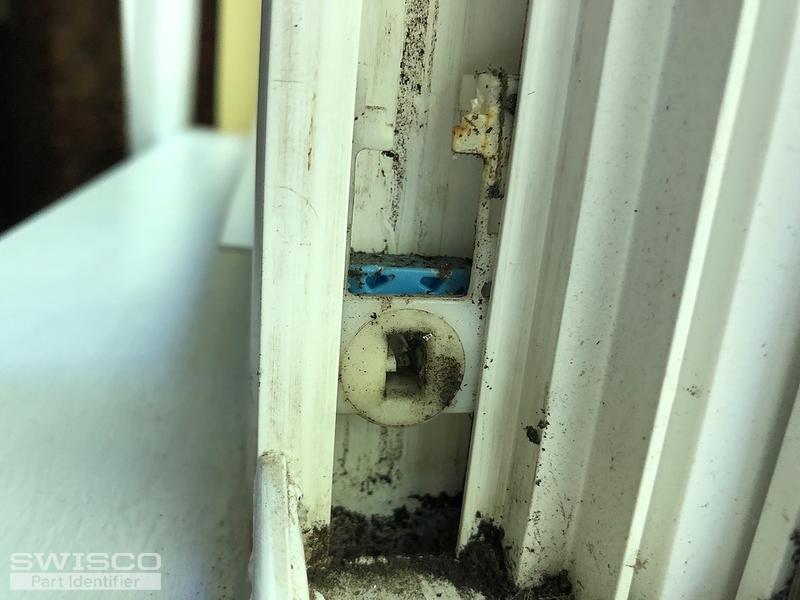

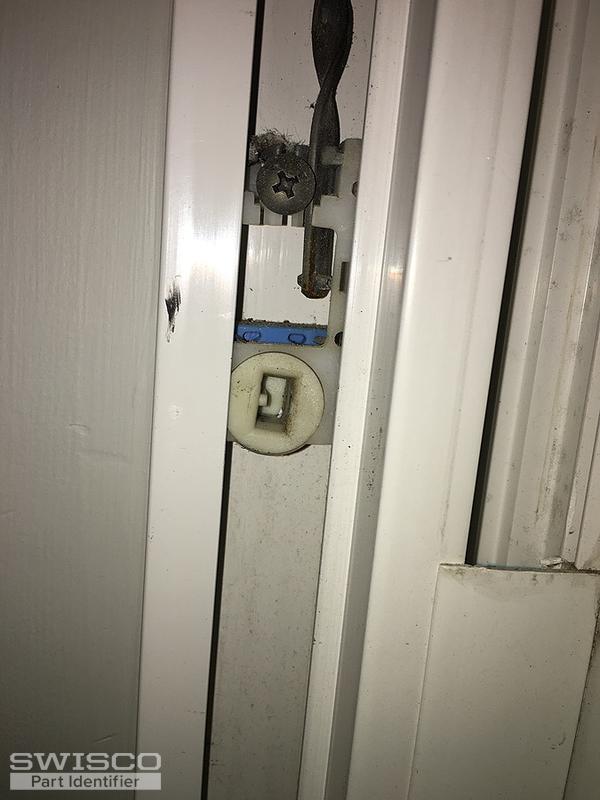

Hi, I need a new pivot lock shoe for an older Patriot double hung vinyl window , please see picture. I didn't want to disturb window so I didn't remove part. I am hoping you could match from picture

Had a window in bedroom fogging up and had glass company change out the glass. After the glass was changed the window would not stay up. The Techs said the balances looked good, but thought balance was getting weak or the new glass installed was heaver than the original. Could not find any markin ... (cont.)

Channel balance non-tilt: 28 windows = 56 of ea item MFG by: Seasonall Stamped: 29901 BSI 35; 29.5" long (the actual metal part) balance shoe: 1-1/4"x1-3/16"x1/2" no wings (may be 15-003?) balance top: 1-1/4"x1/2"x1/2" no wings (similar to 19-002 except has round groove) sash guide: 2"x 3/4" 1" to ... (cont.)

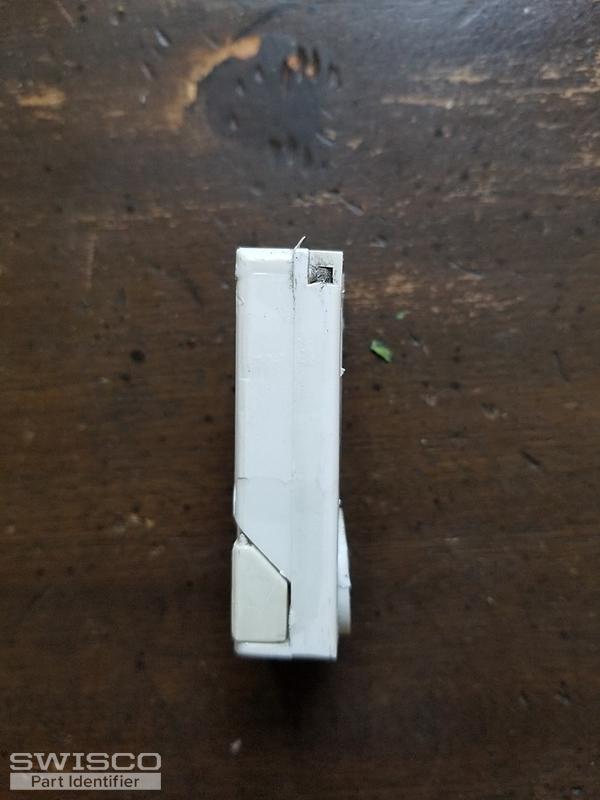

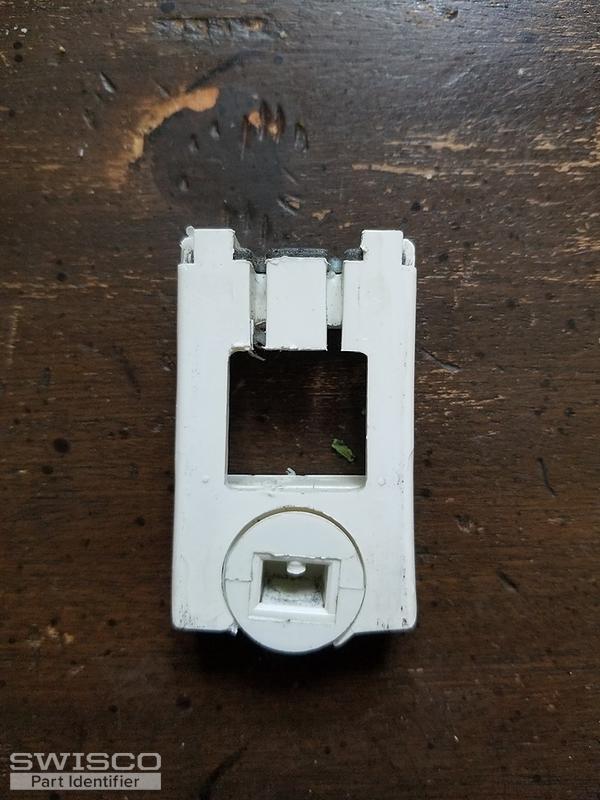

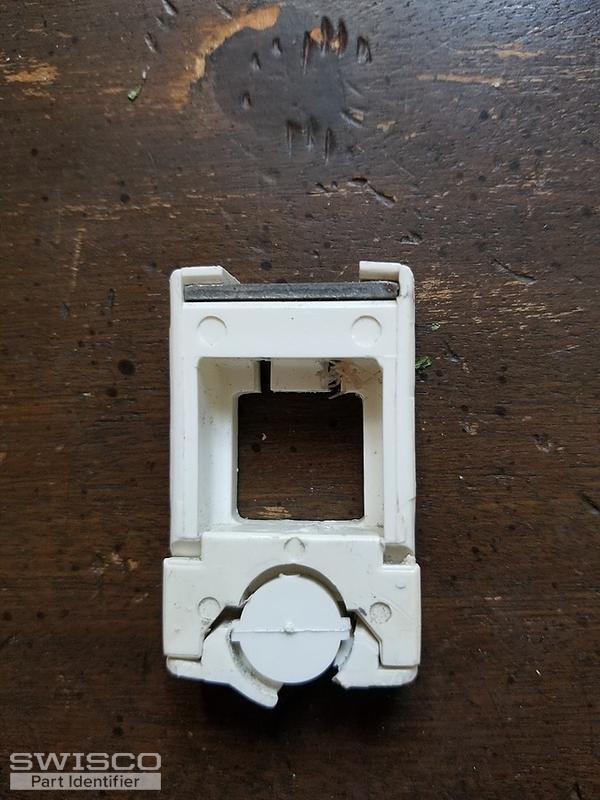

Hi, I was wondering if you could tell me what part I would need to replace a broken pivot shoe. Width is 1 4/16" length is 2" and it is 1/2" thick. Pictures above. We just ordered window clips from swisco they worked out great!! Thank you,Steven

Hi, im trying to replace the pivot shoes on my vertical sliding windows.The part that seems to be closest is the 1/2 inch thick blue brake pivot shoe.could you please tell me the part name or code for the arm that fits in the shoe.Could you also tell me the difference between the blue brake and the ... (cont.)

I read in your posts that the 590CSB pivot lock shoe has been discontinued and noticed your suggested replacements, however my shoe has a white cam versus the blue that were discussed and the depth of the shoe is 1/2", not the 5/8" that was mentioned before. I am considering the 15-046 pivot lock s ... (cont.)

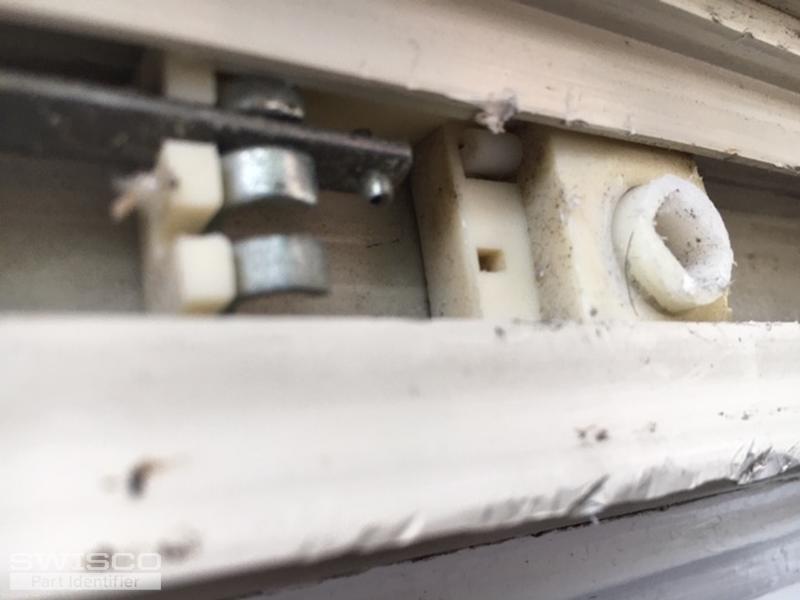

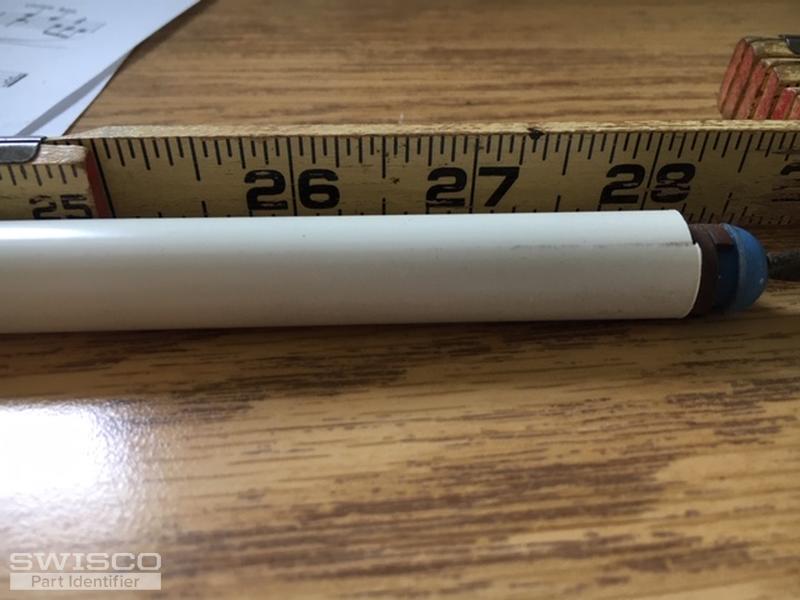

Found Pella name on window latch. I need parts one window has 28 inch tubes with plastic covers and blue ends. One window has 22 7/8 inch spring tubes with blue ends, I need shoes for these windows that appear to 1/2 inch X 1 1/2 X 2 1/8 and 4 axles. Can you help?

We have several Pella windows in our home that have balance problems. We need 4 balance tubes 28 inches long and 4 balance springs 22 7/8 inches long they all have blue tips. We also need 8 of the shoes that appear to be 1/2 inch deep. We also need an adjustment tool.Also we need someone to explain ... (cont.)

My measure on the spiral tube is 5/8 x 28 5/8. On the pivot shoe is 1 1/4 wide and 1/2 thick

The sizes are: 1/2" 1 1/4" 2"

I NEED 12 OF THESE WITH THE BALANCE ROD12 SPIRAL RED TIP 5/8 BALANCE

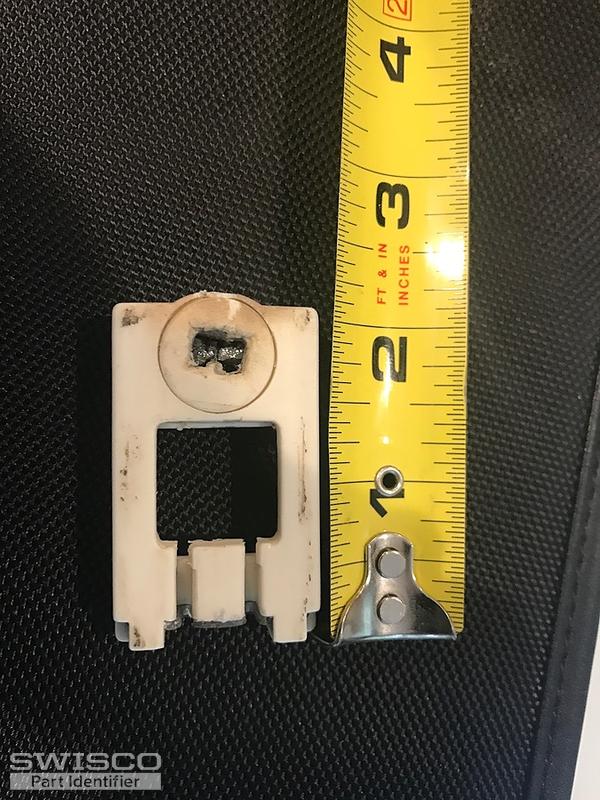

Dear Sir or Madame attached are three photos of the tilting piece for my window it is 2 inches tall, 1 1/4 inches wide and1/2 an inch deep. Please advise I would like to have these as soon as possible thank you

My older broken pivot shoes are different (see pic) but match dimensions on this 1/2inch one. I have the series 600 spiral balances. Just wondering if you think these will work about the same? Thanks.

looking for two parts, one is the plastic window slide inside sides of windows, second is metal piece on bottom of window. All windows were installed by Crystal windows in Queens.
