Viewing all customer Discussions for:

15-046 Pivot Shoe, 1/2" Thick

Found Pella name on window latch. I need parts one window has 28 inch tubes with plastic covers and blue ends. One window has 22 7/8 inch spring tubes with blue ends, I need shoes for these windows that appear to 1/2 inch X 1 1/2 X 2 1/8 and 4 axles. Can you help?

We have several Pella windows in our home that have balance problems. We need 4 balance tubes 28 inches long and 4 balance springs 22 7/8 inches long they all have blue tips. We also need 8 of the shoes that appear to be 1/2 inch deep. We also need an adjustment tool.Also we need someone to explain ... (cont.)

My measure on the spiral tube is 5/8 x 28 5/8. On the pivot shoe is 1 1/4 wide and 1/2 thick

The sizes are: 1/2" 1 1/4" 2"

I NEED 12 OF THESE WITH THE BALANCE ROD12 SPIRAL RED TIP 5/8 BALANCE

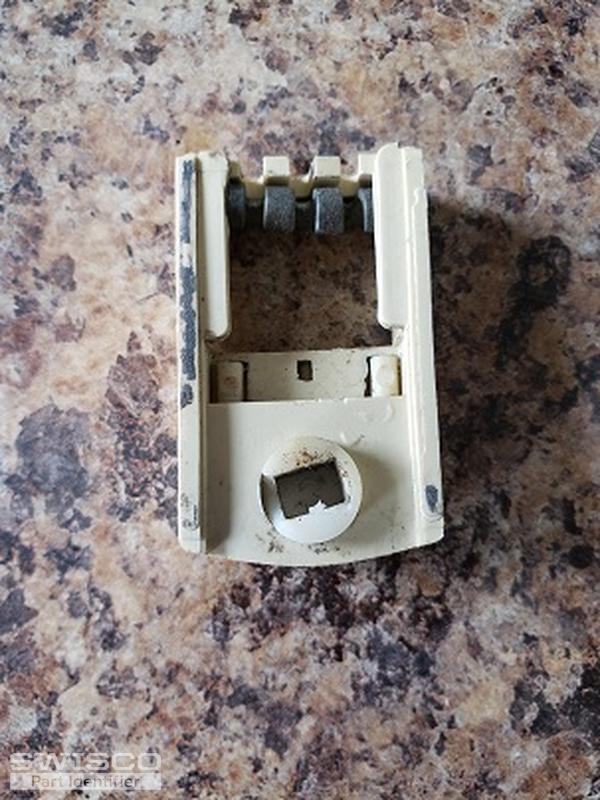

Dear Sir or Madame attached are three photos of the tilting piece for my window it is 2 inches tall, 1 1/4 inches wide and1/2 an inch deep. Please advise I would like to have these as soon as possible thank you

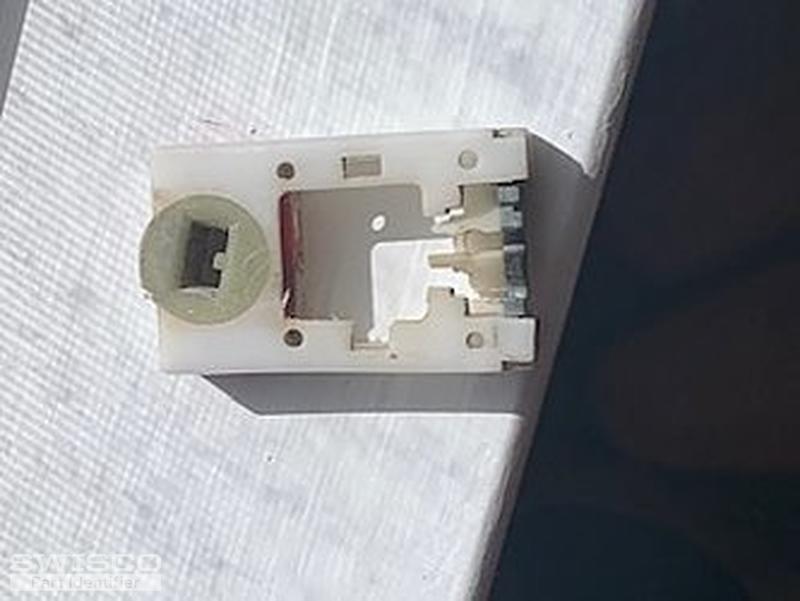

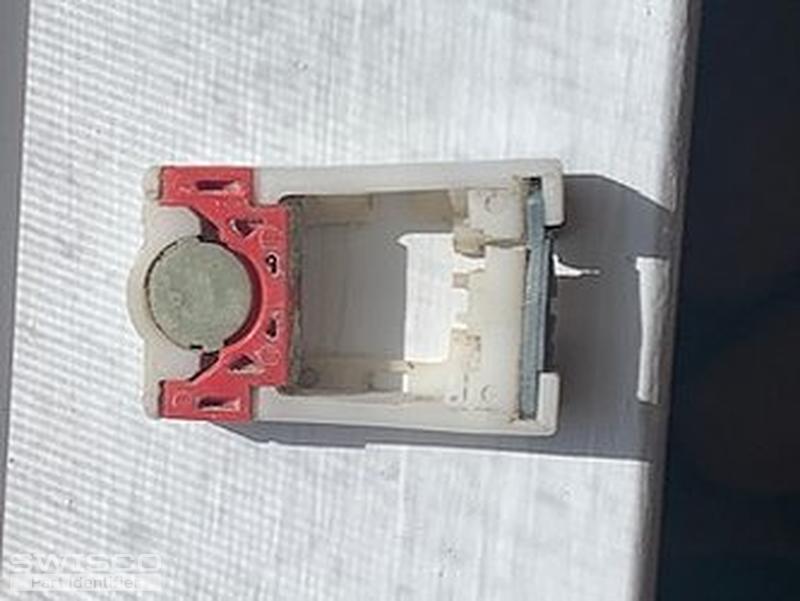

My older broken pivot shoes are different (see pic) but match dimensions on this 1/2inch one. I have the series 600 spiral balances. Just wondering if you think these will work about the same? Thanks.

looking for two parts, one is the plastic window slide inside sides of windows, second is metal piece on bottom of window. All windows were installed by Crystal windows in Queens.

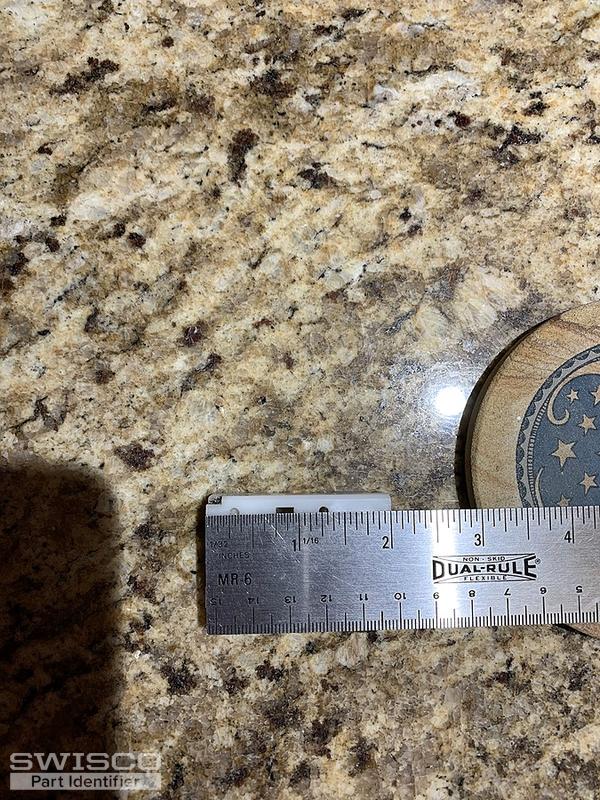

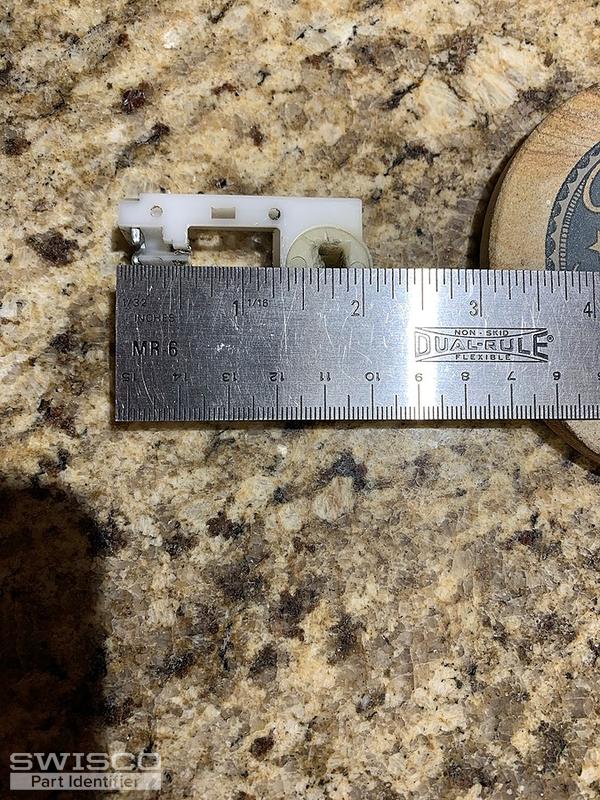

Let me know if you can identify this part. And how I can order a couple of them to repair my windows.The shoe is 1 1/4" wide, 2 1/8"long (at the longest point), and 17/32" thick.The diameter of the tube containing the spiral balance rod is 3/8".

Hello, i have original Patriot windows that are 22 years old. While doing some of this years window cleaning i found that on 2 of our windows had several things broken.Window lock mechanism on the right sideThe Pivot shoe mechanism was broken on the right side.I would also want quantity of (10) 70-1 ... (cont.)

Reading the other posts has been extremely helpful - thank you!We are moving into a apartment and found the windows have been quite abused. They are Champion double hung tilt metal frame windows. We already replaced a tilt latch on one window and then realized another was in need of repair. The pivo ... (cont.)

I've got a couple old vinyl windows that I can only guess are just warped or worn because the 2.5" pivot bar ( 26-083) just keeps popping out. I replaced every single pivot shoe and bar on one window, and within a few ups and downs one side or both pops out.. Both sashes have this problem. I wa ... (cont.)

HelloI have a Mastic window with both pivot bars broken off due to rust. I've tried to pull out the old rusted ones but metal just keeps breaking off more. Wondering if a longer pivot bar (with tip for going into shoe still in wall) could be put on the outside channel of the window rather than insi ... (cont.)

Hello - we ordered and installed new spiral balances S600-24 and 15-046. Once installed we realized that the bottom of the window was missing the piece to connect to the right side pivot shoe. Looking for this replacement part.

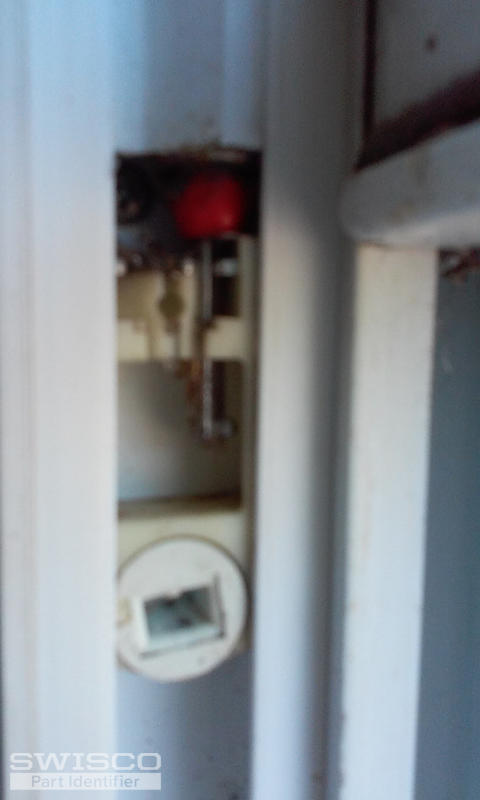

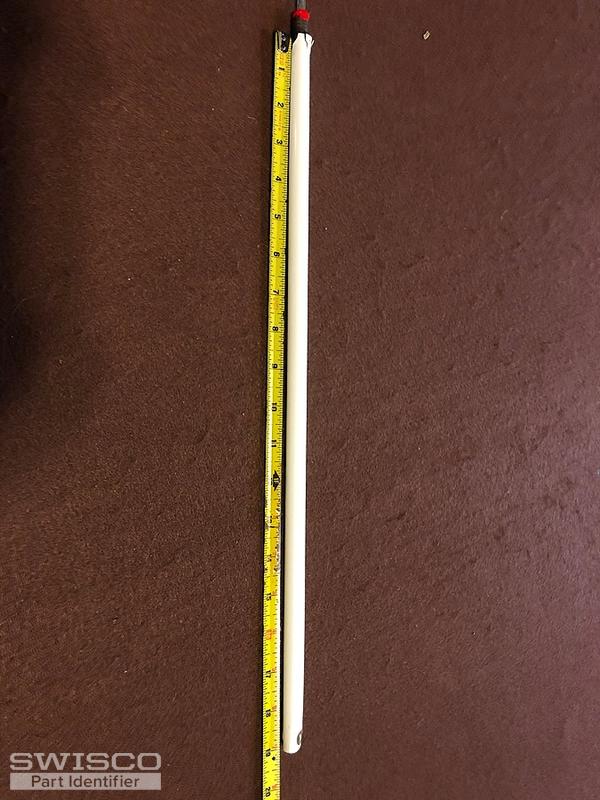

We have Swisco windows in our sun room and I need some parts.One of the spiral balance assemblies needs replaced. See photo 3911. It is only 19" longs with red tip.Also I would like to get the slide shoes. Can you identify and sell me 2 of each.Plus I need the charging tool. Please let me know.Thank ... (cont.)

The 3 broken pieces in the attached photos fell out of an American Craftsman/Silverline double hung vinyl window that was purchased from Home Depot in 1998. I believe it was a Series 1000 window. Just prior to the plastic pieces falling out on the sill, I was trying to open and close the lower windo ... (cont.)

left hand side rail lower sash coil balance shoe. dimensions 2.0" high, 1 1/4" width. Depth around .5". I don't know window brand.

The plastic guide on other side of window broken. This is the intact picture. Not sure how to remove broken piece.

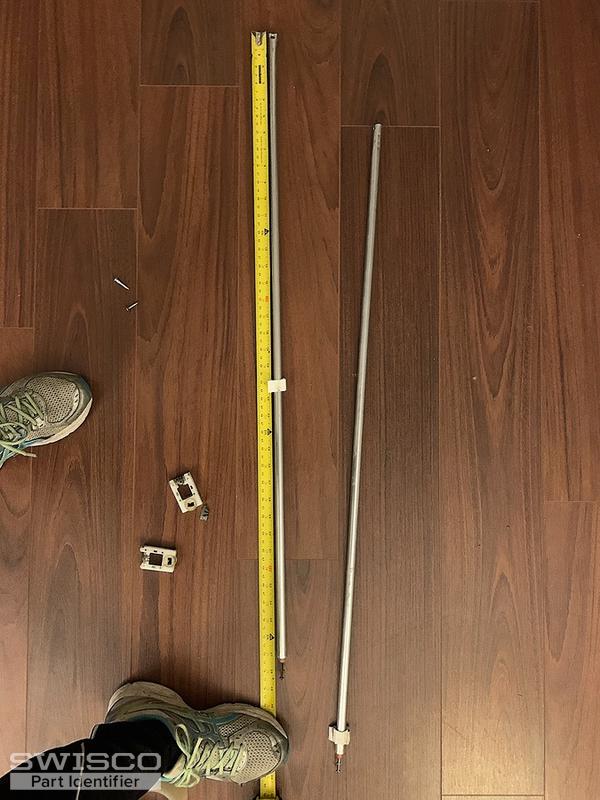

Hi, My father is installing 2 windows and somehow managed to misplace the spiral balances. I was hoping you could help me identify the right ones to use as a replacement. The fittings (on the photos) suggest a spiral balance with 4 rods at the end, similar to the ones on your website for the tilti ... (cont.)

Hello, New to us house. Double hung vinyl windows with no identifying name/brand. Several of the windows need this plastic part replaced that connect metal peg to spiral rod. I don't see any label/part numbers. I think it is 3/8 thick, and 2 1/8 long. The spiral rod is 1 7/8inch by 29inch. Any he ... (cont.)
