Viewing all customer Discussions for:

15-129 Pivot Shoe, 9/16" Thick

Windows installed new 2003. No identifying marks. If you need more photos let me know. Sorry photos uploaded side ways!If have parts, I have

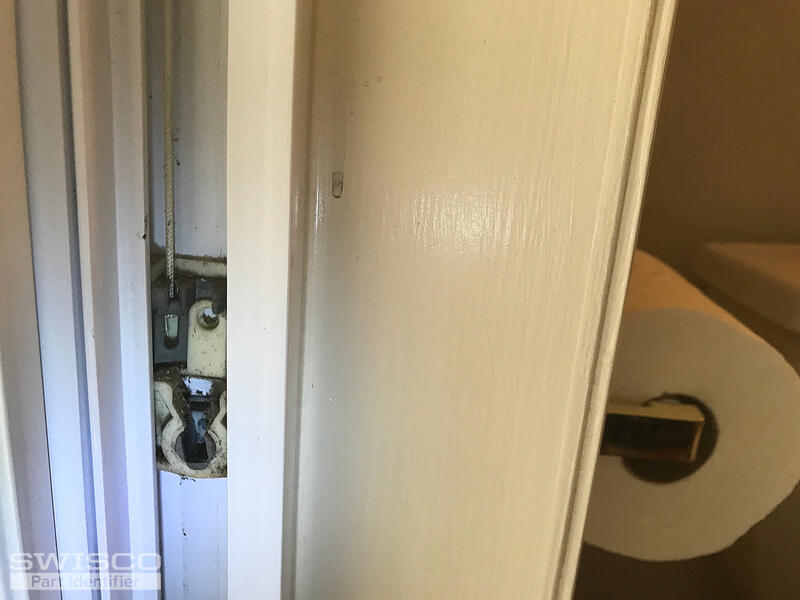

When put in tilt-in position, window falls out. The pictured devices on the sides of the frames , containing pulley strings, are at different heights now. Don't know how this happened. Not sure which parts are at fault. Hope window does not need to be replaced.

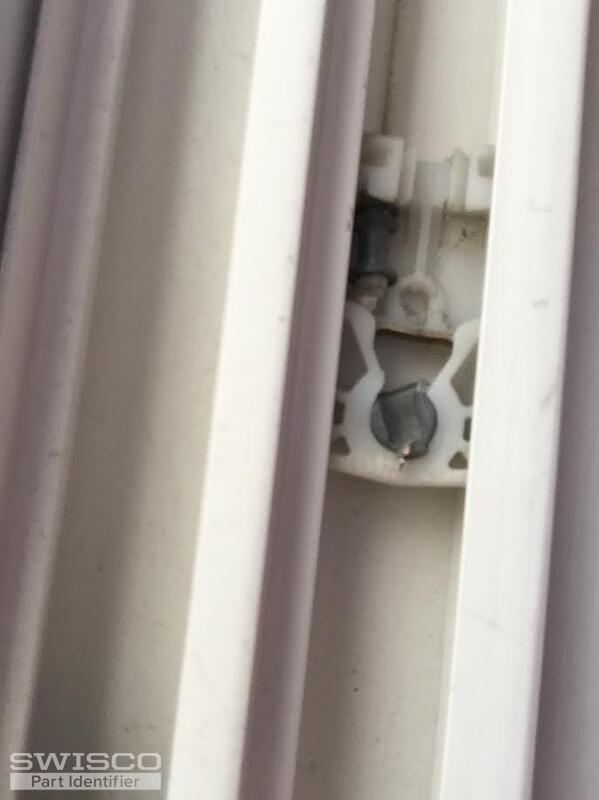

From the pictures, it appears 15-129 pivot shoe is correct, but to verify, mine is 9/16 thick x 15/16 wide x a bit over 1/3/4 long (top is broken off) Also the 26-310 pivot bar looks correct. These two parts are compatible? Thanks.

Do you have a replacement part?

Hi Can you help me to identify the replacement shoe? Will it be 15-188 or 15-135 or other? The size is 2"x 1/2" and 1 1/4". See the attached picture

windows were installed in 2009 face of pivot lock measures 1 1/4 inch. depth is 5/8 inch. Height is 2 1/8 inch.top metal plate that holds the spiral balance is not in this pivot lock. Could you tell me which pivot lock I need as I have to replace all windows. Thank You Stan McIlvee ... (cont.)

There is a metal spiral piece inside of a plastic sleeve about 1/2 inch in diameter. The part that attaches it to the window frame is plastic, too. It is almost 30 inches long.

I purchased Pivot Shoe, 9/16" Thick 15-129. However now the window will not shut enough to lock. Is there a shorter shoe you would recommend?

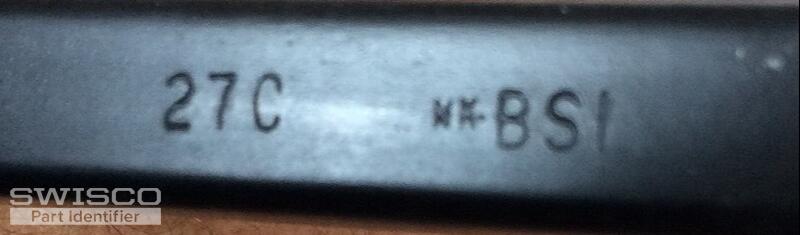

Looking to replace channel balance Length- 28 inches (metal frame only) I believe it's type 770. Markings are -0B. ???? DB 27-7. Also looking to replace the pivot shoe that is demolished ( photo attached) There is no cutaway to remove, so any suggestions on correct part and replacement process is ... (cont.)

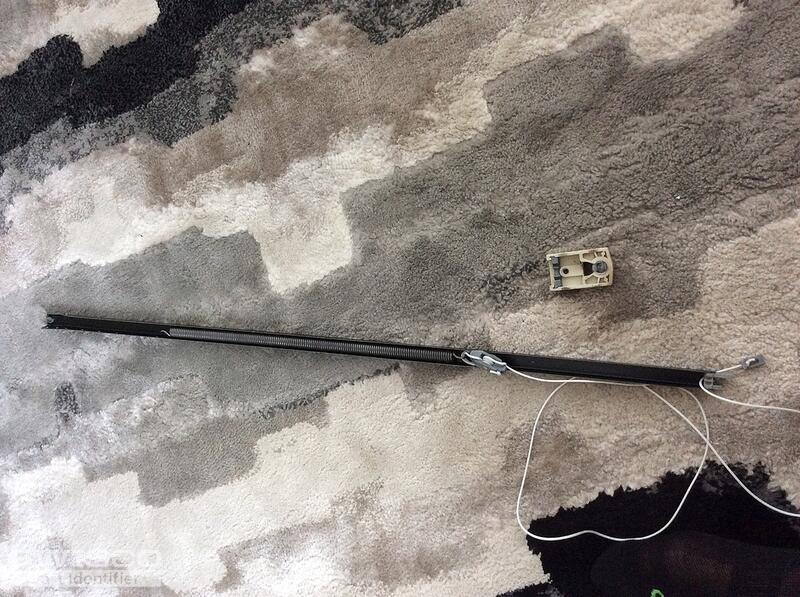

Balance is 35 inches long the window block is separate and connected by a string with a metal collet.

2 1/16" Tall 1" wide 9 1/16 - 5/8 thick this look like the same shoe for another window in my unit but one has 2 balances and the other has one. Can the same shoe work on both? What part do you recommend. thanks joe

Hello, I am trying to identify this window balance and pivot lock shoe. the balance is 1/2 x 9/16. I will need a lot of these parts so i want to make sure we order the proper stuff.

It's me again. How do I identify these balance SHOES? Also, do I really need that white spacer thing? (one pic shows it with correct alignment, other pic shows it jammed at an angle). Do they come with the shoe or do I order them separately? regards,Eric

I need to ID the parts needed in the attached photos. I need the pivot shoe, which is around .5" thick and the part that sits in the Pivot shoe. Thanks for your help.

I am looking to replace both the window balance and the tilt lock shoes that match up with these. The windows are a double pane, double hung vinyl window that could be the original windows from when the house was built in 1994. I don't know the history of them. This window measures 47" x 47" for the ... (cont.)

Can you find these cam over counter balanced ? Thank you, Dave

Broken assembly, foot appears to be fine. Just want to make sure I get the correct replacement part. If they are sold in the Columbus, Ohio area I would like to know. Otherwise I?d like to order one.

Part is 2 1/8 inches long and as close as I can measure 1 1/8 wide. Do you have replacement?

Hi I need some help my windows will not stay open I attached a photo of the parts I may also need the balance rod as mine is a spring can you tell what parts I need Thank you Ton

For a single hung tilt out window Car# 199-134 Model sh-500 vinyl single hung dp-60
