Viewing all customer Discussions for:

S160-05 5.5 lbs Series 160 Coil Balance

The windows were installed in October 2018 The first picture is the good balancer still installed the second is the one I took out. there is a 12 marked on the balance no markings on the springs. The lower window weighs 21.6 lbs. I hope you can help me find the right parts to repair the window. The ... (cont.)

I am working on a couple of Simonton windows with coil balances. one is a single coil stamped 5 and the other is a dual coil with the lower coil stamped 4 and the upper coil stamped 6.5. Which coil balances should I use?Thanks, Robert

Window is a double hung Pella window. G0318448582NFRC PEL - N - 108

Hello, I see the label on the windows as "Simonton Windows 2197733/09 35.5000 59.5000 PFSHWI F0355 31.5625 27.1875 Norandex, Inc./Allentown 6/05/98 24255". I need the following parts now and later some other parts: Pivot Shoe x 20 Coil Balance x 20 Tilt Latch (as seen in the picture) x 20 Best Re ... (cont.)

Coil 35"P 5232208 *5.0 Pivot Bar needed Coil Supports needed Qty - 2 Pair

Hi I have two windows I found needing new balance coils, tilt latches, and maybe even anchors and spiral pivot locks. I just need help finding which parts I should buy. Attached are the broken ones in the windows currently.

Dear Swisco,First: THANK YOU for your site. You've helped us immeasurably. Could you please identify the parts above so we can get our window working again? It's a Milgard, we think Tuscany V400, double sash. The lower sash doesn't move up and down. The dimensions of the lower sash are: 24.5 by 30.2 ... (cont.)

20 YO Simonton window. Part # 80102 # 6.5 35" P

Both constant force balance springs broke on my Jeld-Wen vinyl double hung window. I am getting NO support from Jeld-Wen. Attached are pics of the counter balance needed. The following marking appears on the outside of the counter balance housing 6.584.644 D/ The window sash weights 17 pounds an ... (cont.)

Hello, looking For replacement window balances and shoes. I cannot find the window make anywhere.

Just purchased this house and found this condition. Double hung window, 33WX30L, sash is 21.5lbs. The attached pics show 2 different mounting heights. I believe I need 2 S140-11 assemblies but where do I mount them? Also do I attach 1 coil to each side of the slide or just 1 side as shown. Lastly ... (cont.)

Have vinyl hayfield window assy. Double hung The lower window weight is 20.3 lbs I will attach photos let me know if ya can help me Thanks Bruce

Hello,I have a Pella window that is 32 x 38 that both left and right side coil balances went bad and I need to replace them asap. I needed help identifiying the parts for the actual window and I will provide a clear picture of each component of the coil balance for the window with clear imagery of t ... (cont.)

On the broken balance, I see Patent #'s 5.232.208 - 5.365.638 - 6.584.644. Pictures are from a similar window where the balance is working fine. Do you know what this part is?

Hello, I am trying to fix 2 different size Pella Windows and unable to find the correct size coil balances with the plastic stop hardware. Do you carry these items and if so can someone point me in the right direction? Thank you,

I don't have a stamp number on the casing. It is for a tilt window. I am trying to figure out which part to order.

Hello can you please tell me what size to order It has a number 5.5 35 inches . I hope this helps Thank you ??

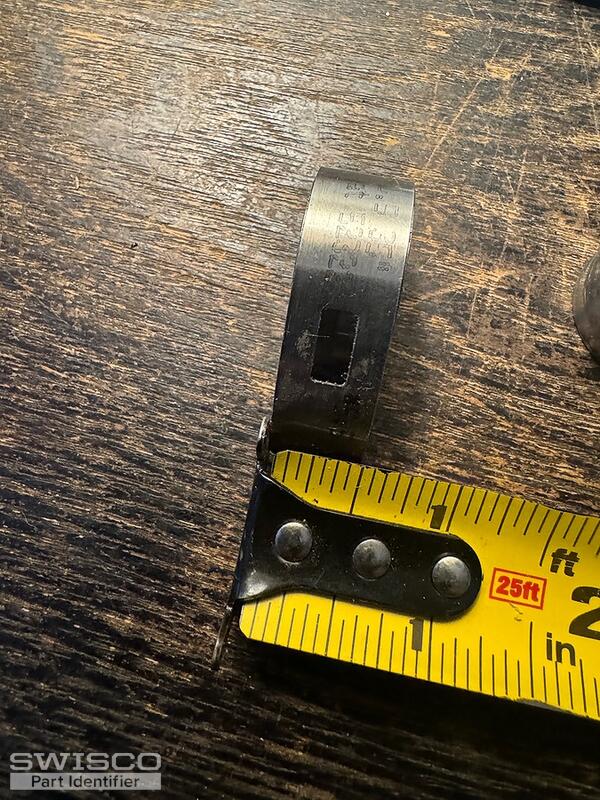

These coil balance springs are 1/2" wide. There are numbers denoting the weight and length (see pictures). I tried using #S160-05 and they were too short, although otherwise correct.The extended length needed is approx.53". It is for a tilt-in double hung with overall height of 58". I believe they a ... (cont.)

How do I tell how many pounds it is? It's 1/2" wide. The window measures 45" tall x 28" wide, thanks

A rep asked me how thick is my shoe. It's a little less than a half inch. Thickness is .530 and the width is 1.209 and the sash height is 18 in.These windows are only about 12 years old I don't know why these shoes broke. One broke then the other one, together.Thanks for your help ... (cont.)
