Viewing all customer Discussions for:

S160-05 5.5 lbs Series 160 Coil Balance

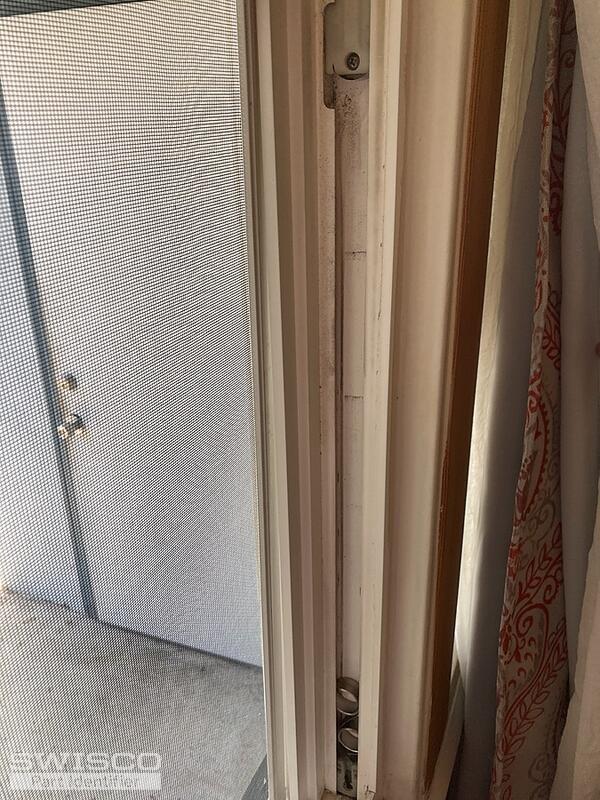

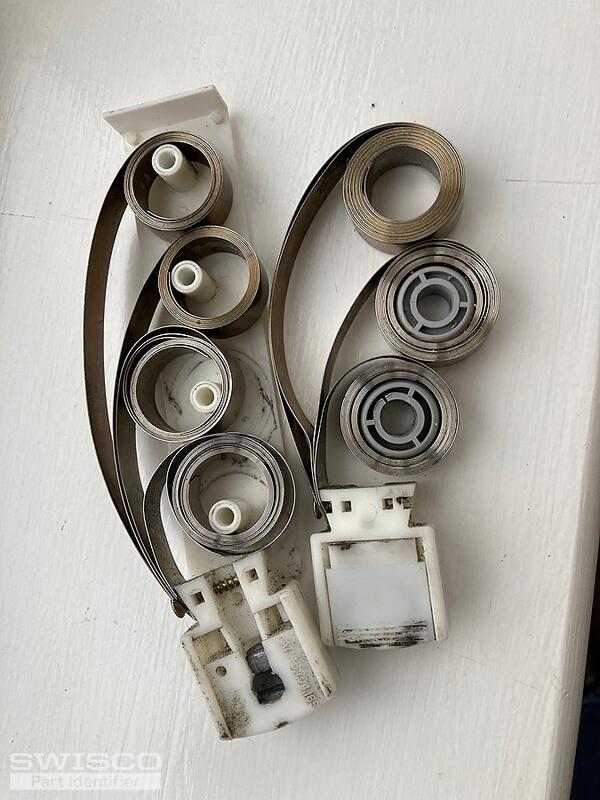

I would like to replace both sides of my entire window hardware. Window will not stay open. I uploaded pictures of what I currently have and want to replace. Notice the right side has two coils on the bottom. One has broken away from the piece. The space for the coils are approximately 1 1/2 inche ... (cont.)

In the coil you have the following:# 50 35" L8E1

Just wondering if you carry those parts showing in the pictures! The only part number it shows is PAT NO.5, 704, 165

Window spring

Hi.. Need info on this part if possible... if I can order some... thanks

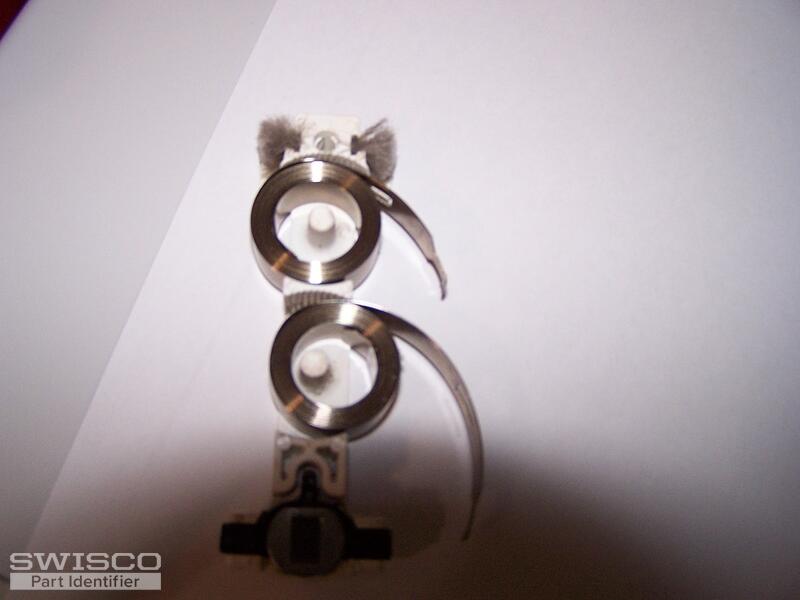

The coils are stamped 9, then 7, then 4 reading from the upper coil down to the bottom bent one. Somehow they just broke in the runner.

Hi, I'm needing to replace coil balances in a Simonton vinyl window (35.5 X 59.5). I can't see any markings or stamps on the parts because of corrosion. The window is 30 years old.

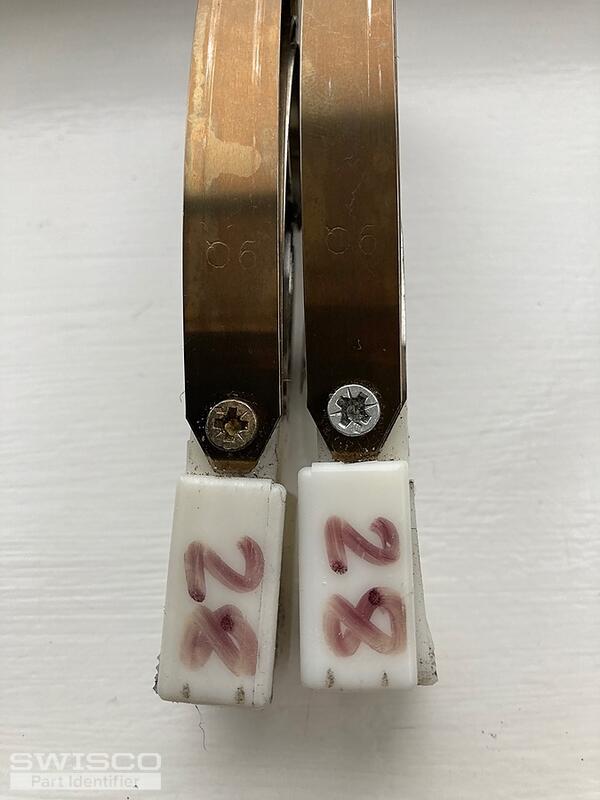

Hi. Appreciate some advice/guidance with regards to replacing/repairing two spring balance assemblies,removed from a plastic sliding sash window (the sash incidentally weighs approximately 55lbs). I assume the stamp on the springs themselves (close to the fixing hole)refers to the weight, there's j ... (cont.)

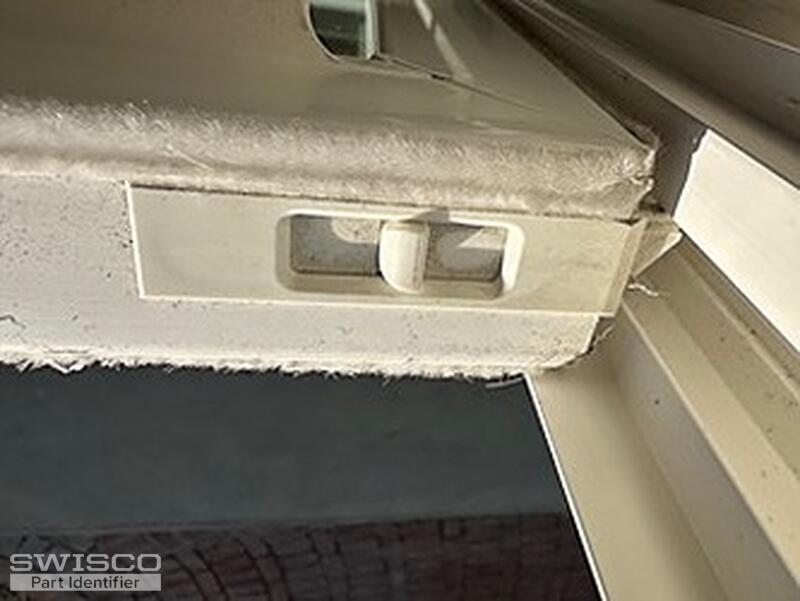

I need left and right coil balancers, left and right pivot bars, left and right tilt ouit latches and the "breathe" locks for the upper sash

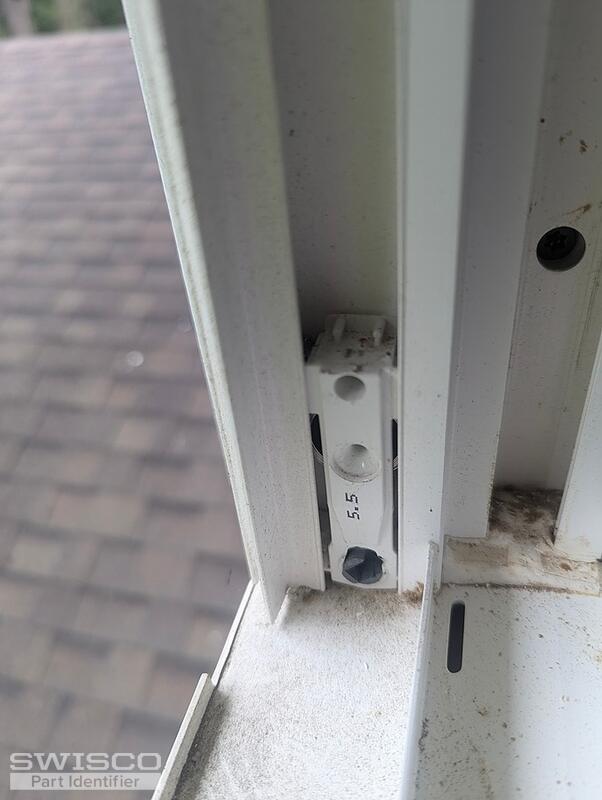

I'm seeking the attached coil balance. The coil has a '5' marked on it

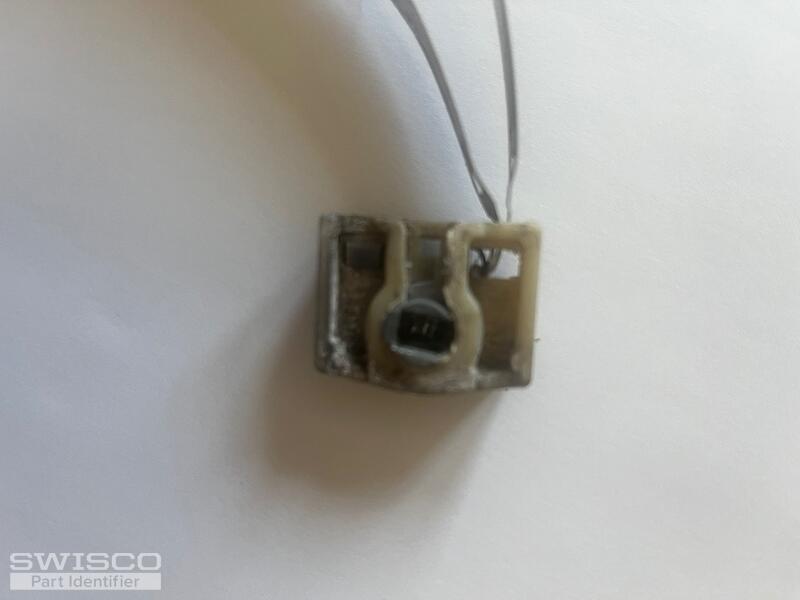

Window coil holder

Hello In need of some coils for Simonton windows. Pics attached, please guide.

Please advise based on photos for shoe and coil replacement. Coils are marked 4 and 5, shoe has an 8 on it, not visible in photos. Double coil balance encasement suggestions also appreciated. Exceeded upload lim it to show you that, it is 3" high and has a 2 on it. Thank you!

Spring shows #5.5 39" 220998

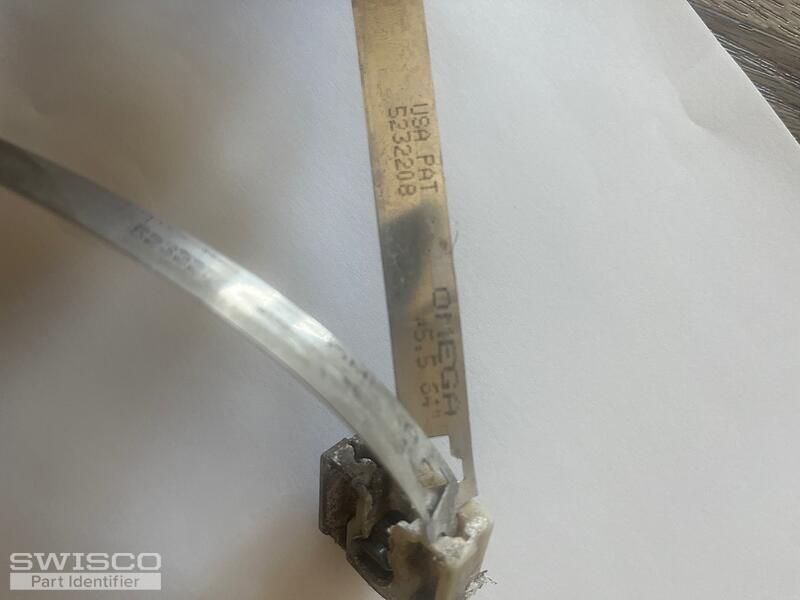

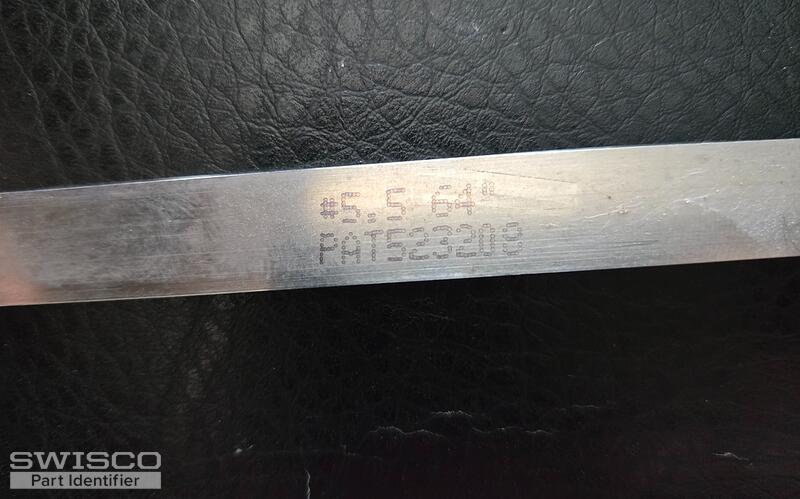

Metal coil has USA pat 5232208 and Omega #5.5 64" No info on white part Have different sized windows throughout the house.

Attached are pictures of the coil balance for my window. These pictures are from my window that weighs 23lbs. I also have another window that weighs 18lbs. and has the same problem where the coils have broken. The coils have broken on both sides of the windows. The plastic cover and the shoe are in ... (cont.)

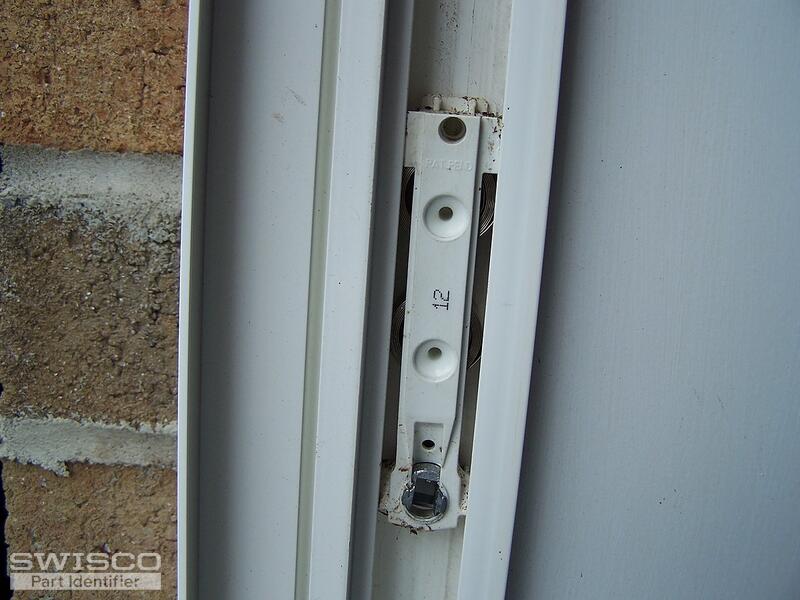

The windows were installed in October 2018 The first picture is the good balancer still installed the second is the one I took out. there is a 12 marked on the balance no markings on the springs. The lower window weighs 21.6 lbs. I hope you can help me find the right parts to repair the window. The ... (cont.)

I am working on a couple of Simonton windows with coil balances. one is a single coil stamped 5 and the other is a dual coil with the lower coil stamped 4 and the upper coil stamped 6.5. Which coil balances should I use?Thanks, Robert

Window is a double hung Pella window. G0318448582NFRC PEL - N - 108

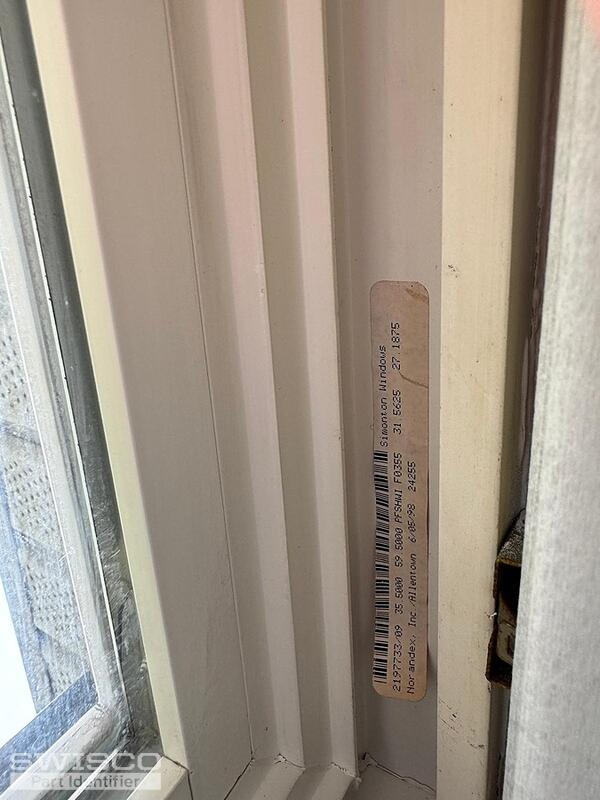

Hello, I see the label on the windows as "Simonton Windows 2197733/09 35.5000 59.5000 PFSHWI F0355 31.5625 27.1875 Norandex, Inc./Allentown 6/05/98 24255". I need the following parts now and later some other parts: Pivot Shoe x 20 Coil Balance x 20 Tilt Latch (as seen in the picture) x 20 Best Re ... (cont.)
