Viewing all customer Discussions for:

S160-07 7.5 lbs Series 160 Coil Balance

Can you identify and provide availability of this part off of a Plygem window?

The existing and missing is .5" x 1.25". on all windows, which are from the same batch. So the base shoes, base pins are the same. I have 2 lower sashes, 15 lb each. Can I get coils (4), base shoe (4), coil covers (4), pins (4) I have one lower sash, 18 lb. Could I get coils (2), base pins (2), ... (cont.)

Please help me identify these parts so I can repair my windows. You site is really easy to use and informative. Thank You

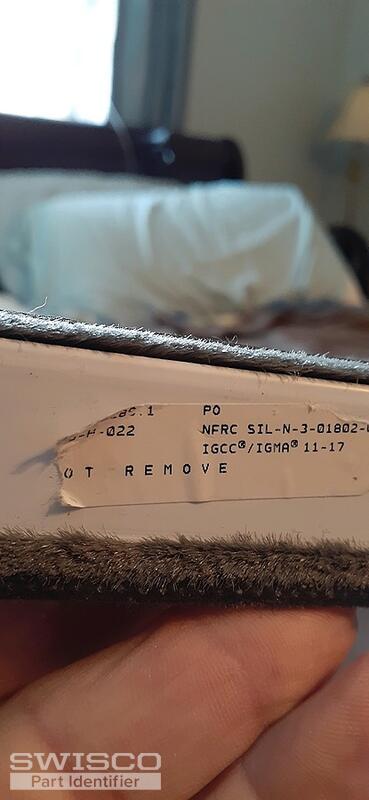

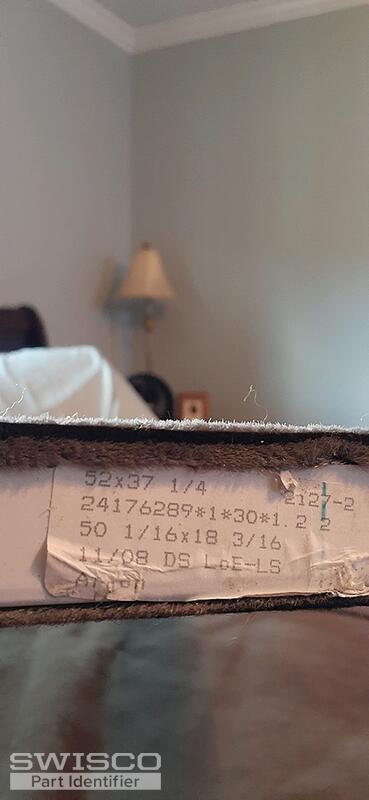

I have an American Craftsman series 70. Size52x37. I need a balance coil for the left side (looking out). the coil is supported by part # 801020. Not sure what the lb. coil it takes. Will it be OK to replace just the one side? Thank you for any assistance.

The coil snapped in the middle and I need to replace it. It has writing on it #7.5 31". I suspect it is the series 165. But not sure.

Thank you

I am pretty sure you have what I need, my pictures didn't turn out great, but the scan of the part number did. Both sides of the coils broke, so I need both plastic parts and coil springs for both sides. Can you confirm what I have and what I need to order. Again, I will need both left and right ... (cont.)

Two coils; one stamped 7M, the other 4. Width measures 15/32". Need 2 sets for left and right. May get 2 more for another balky window of the same make. No mfr listed. Shoe is reinstalled for now.

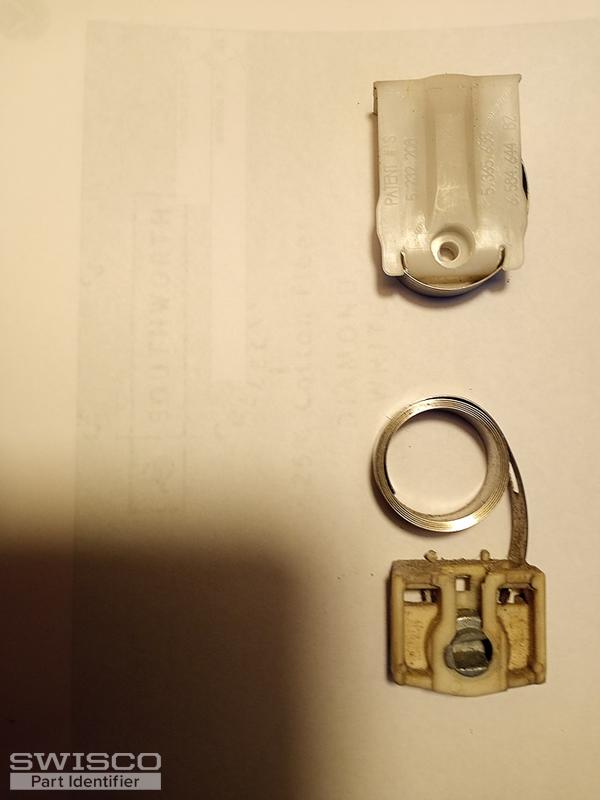

THE COIL BALANCE PIECES ( BOTH ) IN PHOTO ( FRONT) # 1 AND (BACK ) # 4 ARE 1.25 INCHES WIDE THE WINDOW HAS NO BRAND NAME ON IT- PHOTO # 2 - DOUBLE HUNG VINYL CLAD. THE COIL HAS PRINTED ON IT # 7.5 - 31 " THE TOP PLASTIC PIECE PHOTO # 1 WHICH HOLDS THE COIL HAS PRINTED ON IT - PATENTS 5.232.208, 5.36 ... (cont.)

Do you sell these parts? We want 8 pounds instead of 6.

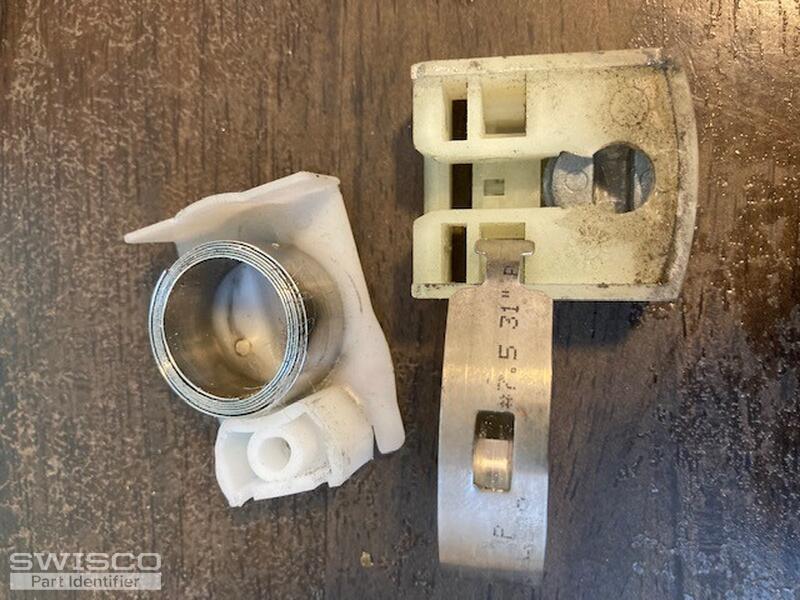

this is one of the balancers, the spring is stamped 7.5 31" and a number 52323.the window weighs 14.1 lbs, measured it on a scale. I believe the spring can be replaced with a 160?.I will need 4 of each part listed , just want to make sure I'm getting correct parts. parts required. 4 7.5 lb springs ... (cont.)

I'm a contractor trying to fix a window for customer, but I can't tell what size of coil balances I need. They are the type like your Series 196, but I cannot read anything off of the springs. There are 2 springs, piggy backed on each side, so I need one long and one short. The window is a tilt-in ... (cont.)

Please help me find what I need , the coil has broken Thank you, Anil

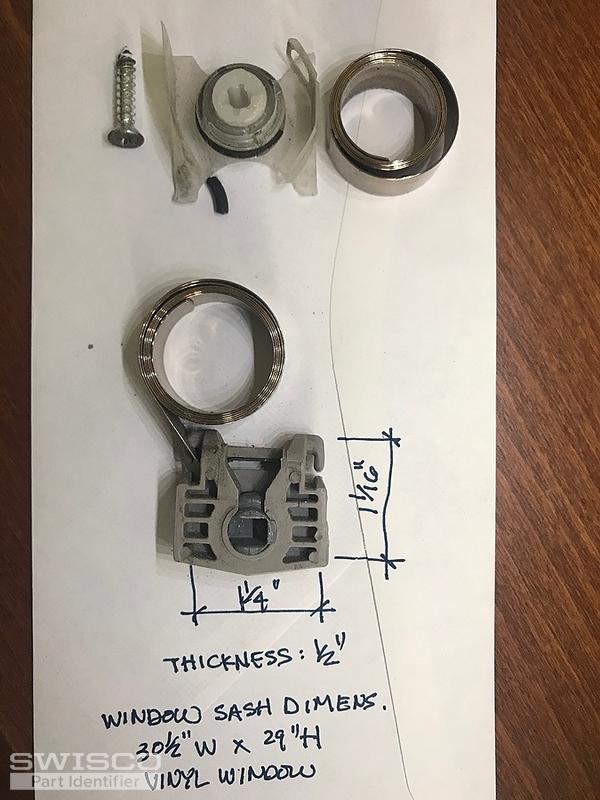

We would like to order a pair of window coil balances for the bottom sash- including the pivot chute, coil and support. The thickness of the pivot chute is 1/2". The bottom window sash size is 30 1/2" wide x 29" high. The pivot and chute fits pretty snugly in the frame chanel and we cut away the v ... (cont.)

Hello.. I tried measuring the shoes for the window to see if I could get replacement parts. Ltheybdont come out however. Any suggestions? Any way of identifying the parts? Both sides are broken.

Hello Swisco Expert! I need to replace a sash window coil balances pair. Please see attached photos, which include measurements. Additional info: - The shoe is stamped 550 Pat.#5,704,165 - Coil springs are 1/2" wide. The coil closer to the shoe is stamped with the number 8. The coil further away f ... (cont.)

My single hung window (approx 40w x 66h) will not stay open and coil balances and one pivot shoe (broken) need replacing. Each side has two coils one numbered 6 and one 7. See attached photos. Do you have these parts? The left side has 2 coils at top and a coil further down...is this correct ins ... (cont.)

Good morning, Attacked are the pictures of the parts we need for our window repairs. You do not seem to have my type of housing on the catalog, please assist me in m y replacement.

I have BF Rich Cabernet window that I had replaced in December of 2011. The spring that connects to the right balance shoe needs replacing. I have attached a picture of the shoe and the other the piece the spring connects to. And can it be replaced or should I replace the connecting parts also? ... (cont.)

I HAVE THIS COIL BALANCE, THAT IS STAMPED 7. IS IS A SINGLE BALANCE BUT THE COIL FITS RIGHT INTO THIS SHOE. I CANNOT FIND A SHOE THAT IS SIMILAR, AND I'M NOT SURE WHICH SHOE GOES WITH THIS TYPE OF COIL. THE SHOE WOULD MEASURE 1/2" THICK AND ABOUT 1 3/16 WIDE, IT IS ABOUT 1 1/2" LONG, BUT THAT ISN'T ... (cont.)
