Viewing all customer Discussions for:

16-024 Mounting Bracket

Many thanks for writing in. It's difficult to say for certain what you need without seeing the coil balance system removed from the window, but what you show looks like our 15-086 Coil Spring Housings. They connect to the 15-087 Housing Pivot, and use our Series 180 Coil Springs. You will need to re ... (cont.)

the springs have broken on 2 windows. on a sticker at the top of the window are the following numbers 491564 041995 and below that is TR9N TBAG DSLE. The other number appear to be size measurements. The 2 windows that have broken springs are the ones I use most often in nice weather and have had ... (cont.)

I believe the window needs a new channel installed, as I do not see one. However, there are balances. The top window will not stay up or closed unless windows are in locked position. Photos are of the right and left interior sides of the window. Currently there is no channel. There is a sticker refe ... (cont.)

Hello. Can u assist in hellping me determine coil size

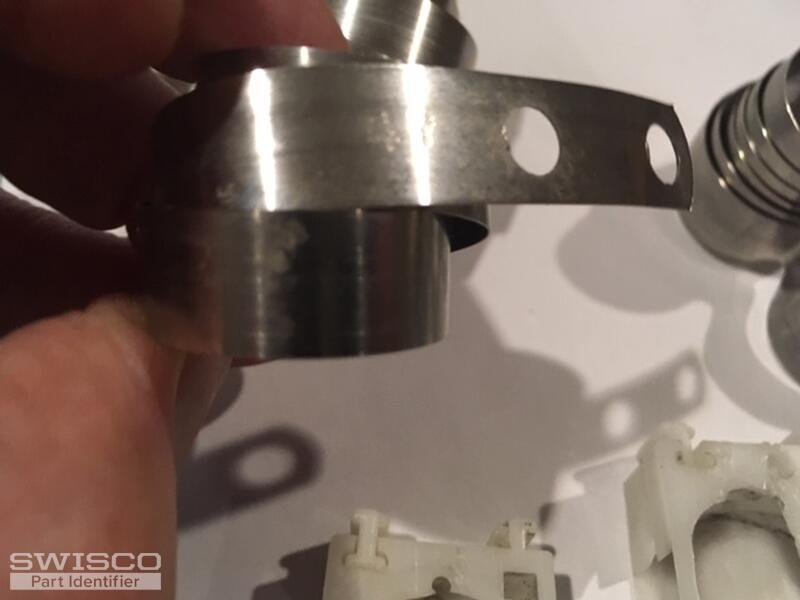

purchased these Accent Windows, here in Colorado, in 1997. coil spring balance just snapped. picture shows the number stamped on the back of the spring.

Looking for part numbers on the attached photos

I need to replace the single hung spring coil fixture for two single hung windows. I don't have the manufacture's name or the part number. I do have the patent number found on the spring coil housing. Patent: 5353548 and two photos showing the casing on both sides. Each window has two spring coi ... (cont.)

Hi I am trying to identify the attached spring balance which is a triple. The length of the top sash is 36" and the lower sash is the same. The coil balance support is approx. 5" high, 7/8" wide (inside track) and 1/2" deep (track/jamb). I hope this information is helpful in identifying the parts ... (cont.)

I need balance shoes as above, almost 9/16 (35/64?) x 1 1/4 x 2 7/16. Windows weigh 8 lb, are 19 1/2" and 20 1/2". When I order, I will need 4 shoes; 4 anchors, since I am not sure of the condition of the anchors; and pivot bars if the new balance shoes don't have the same slot as the old shoes. ... (cont.)

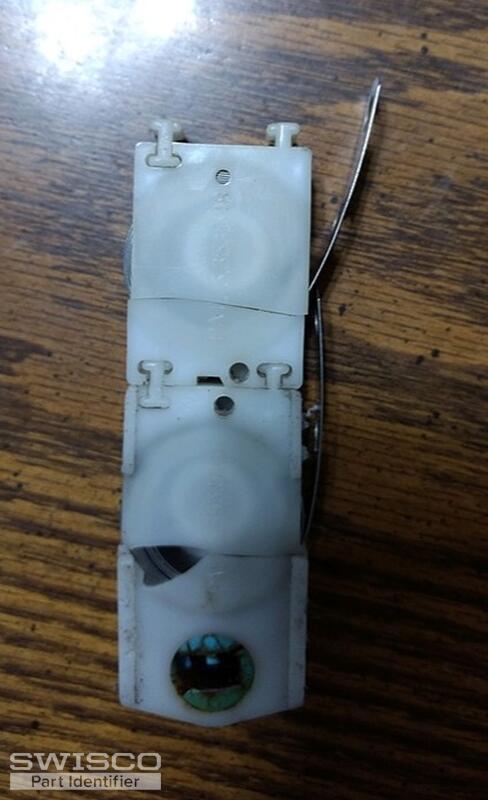

THIS PART IS WHERE THE PIVOT BAR ATTACHES TO THE BOTTOM AN THE COILS MAKE THE WINDOW STAY UP. THE PLASTIC CASING BROKE.

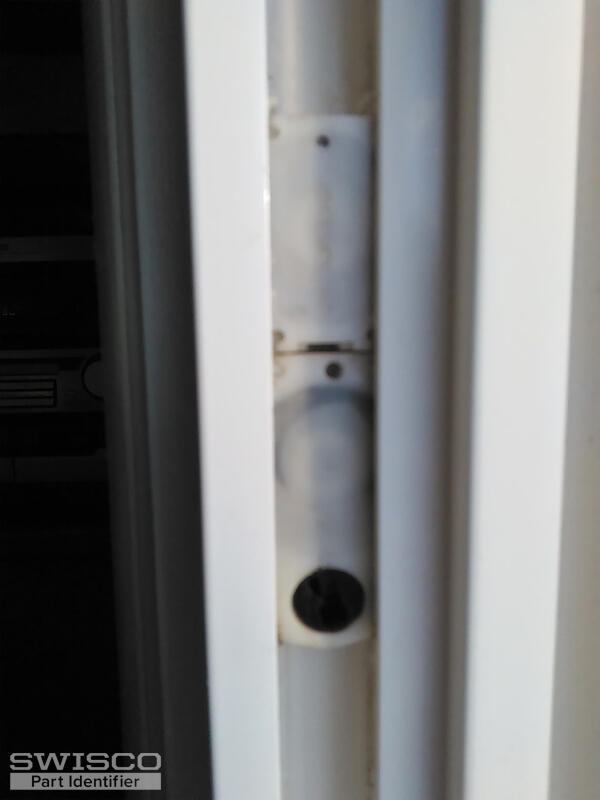

We purchased about 20 replacement vinyl windows from Gorell Enterprises in 1995. A few years ago the balances began failing. We currently need to replace at least five of them. I've attached a photo of a lower sash, hoping that you can identify the style for replacement. Please advise.Thanks.Dan ... (cont.)

I believe that I will need the tandem set up using 15-087 and 15-086. The spring has a stamp of 4Y, is this a 4 lb spring? When I install the the two coil housing, I assume that I hook them together and then pull the spring out and run one on top of the other up to the clip. Thanks you. ... (cont.)

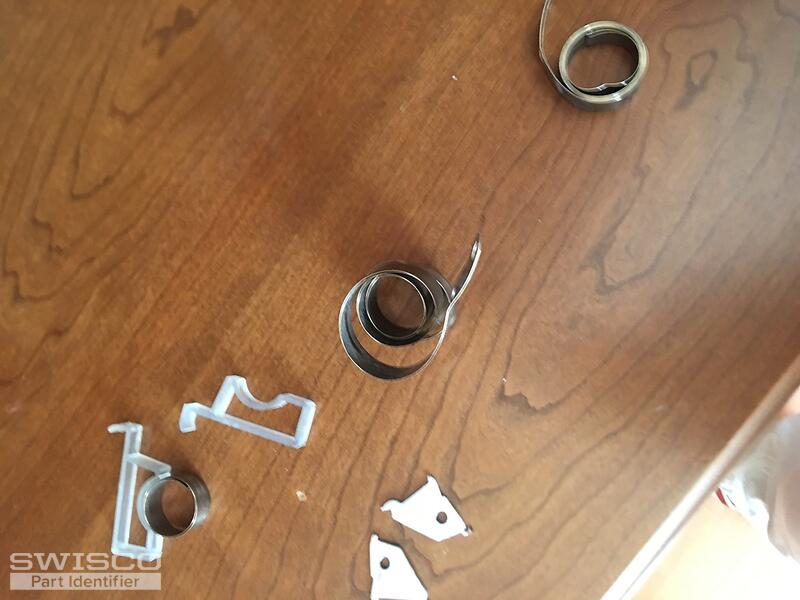

I had a window that would only go up so much ( see pictures), when I titled it out I saw the coil had broke. I have removed the coil, but now need to replace it. Thanks!

Please let me know which ones I need

Window cannot go up or down. Need to replace window balance. Please let me know the parts I need to replace both sides of the window?s balance. The window measures 35 x 45 (width x height) on the outside frame.

First photo is left balance unit in a window that works. Next 4 photos show right and them left in window that won?t stay open. Seems like there are 2 coils on each side but one on each side is disconnected. On left side there look like a half round metal clip. It is broken off on right side. Windo ... (cont.)

this has a coil spring and as you rotate the window it lock the slide, put the window back in position and the whole assembly moves. Not sure if the slide needs to come out with the window.

The window sash weighs 12 lbs

The sashes seem to weigh (I only have bathroom scale) about 27 lbs each. I have about 35 of these Gorell sashes with coil balance problem. I?d rather rebuild than replace them. Please let me know what you think. Do you have an installation viideo to help me get the first install done right? Tha ... (cont.)

Hello, I need to replace two broken sash support coil balances and worn coil housing pivots for both sides of a small bathroom window, please. The upper tilting window that needs the replacement parts weighs 13 pounds. The old broken spring coil balances are 15/32" wide. As seen in the attached ... (cont.)
