Viewing all customer Discussions for:

15-087 Coil Housing Pivot

Pivot shoe is 9/16. Pivot bar is 2.75 inches

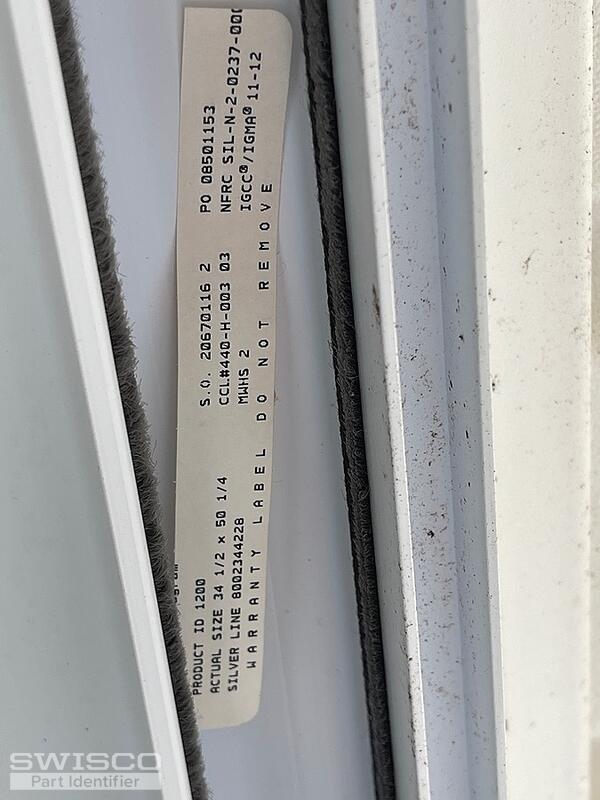

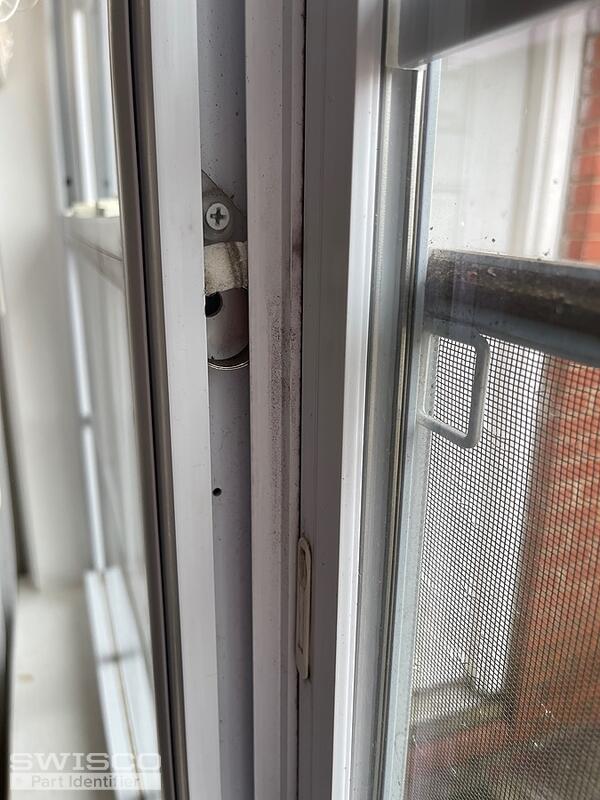

I have American craftsman silver line model, 1200 windows and it looks like the balance spring has broken. Can you help me identify this for the replacement part and how to get it out? Thank you for your help.

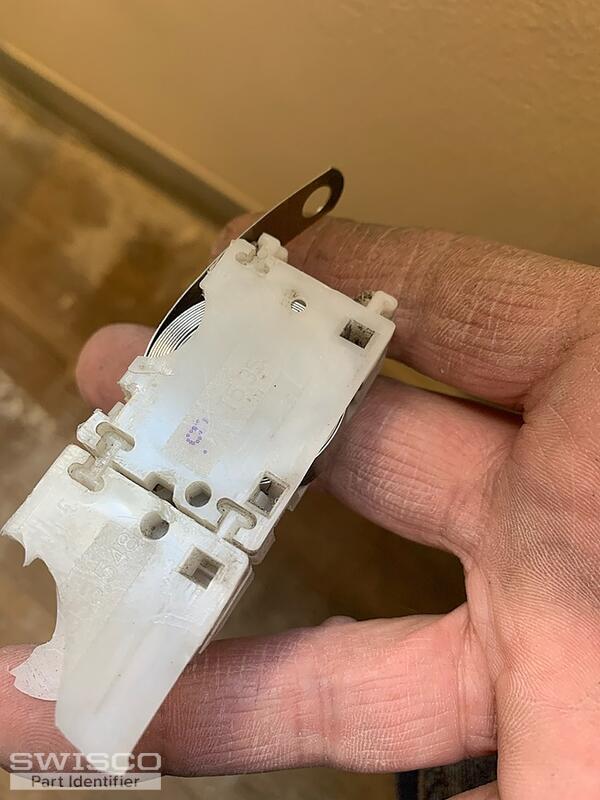

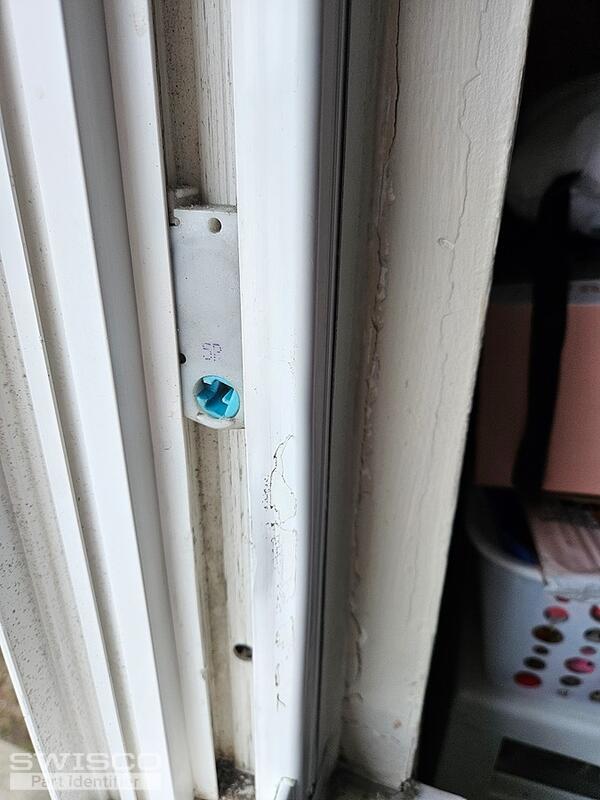

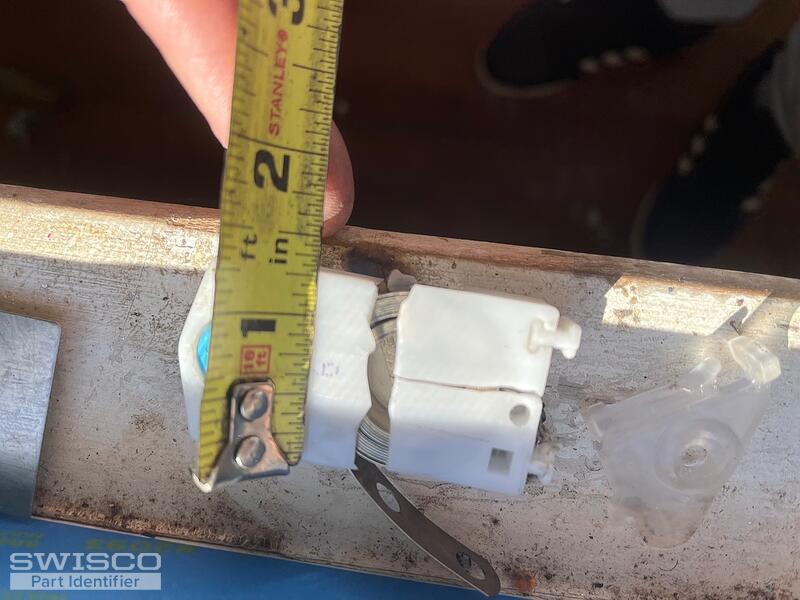

Coil housing is 9/16 x 1 1/4 x 2 1/8 ( 2 1/2 connecting clip to "v" below brake ) Coil balance difficult to read even when in focus pic on my fingers Pivot bar looks like # 26-422 Note coil housings are marked 6R and 6L I need to buy 2 of everything to replace everything broken

Pat5,353,548

Hello, I have several windows whose latch has broken. Additionally, the roller track which holds the window in and allows it to slide is also broken. Thanks in advance I was wondering how I'd track this down!

need 2 of these they have a number 7 printed on them

We have Gorell windows. On one lower window, the coil spring on each side seems to have broken. (See photos). It has also slammed down hard a few times causing the right corner to separate. The right bottom corner feels loose. (See photo). I would like to purchase the replacement parts and ma ... (cont.)

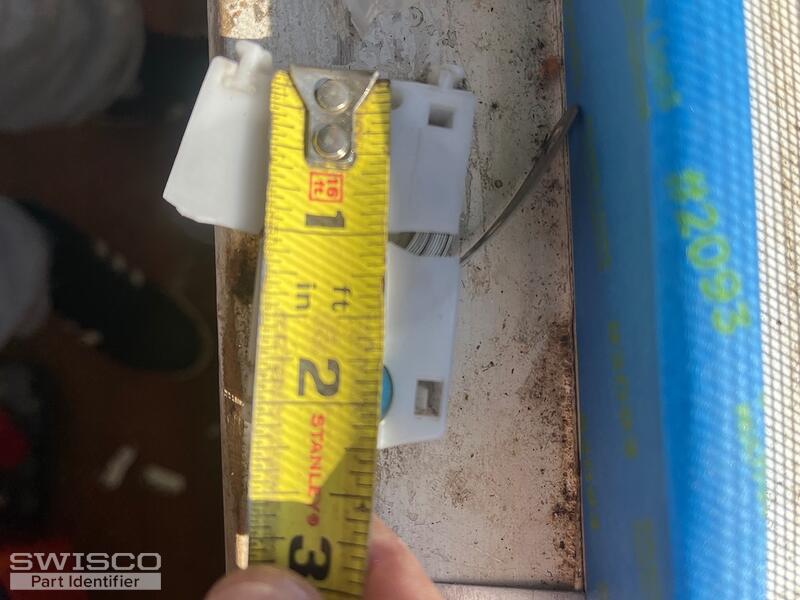

I am trying to locate this part, so I xan purchase it. It is a dual coil. The size is 4 1/4 X 9/16

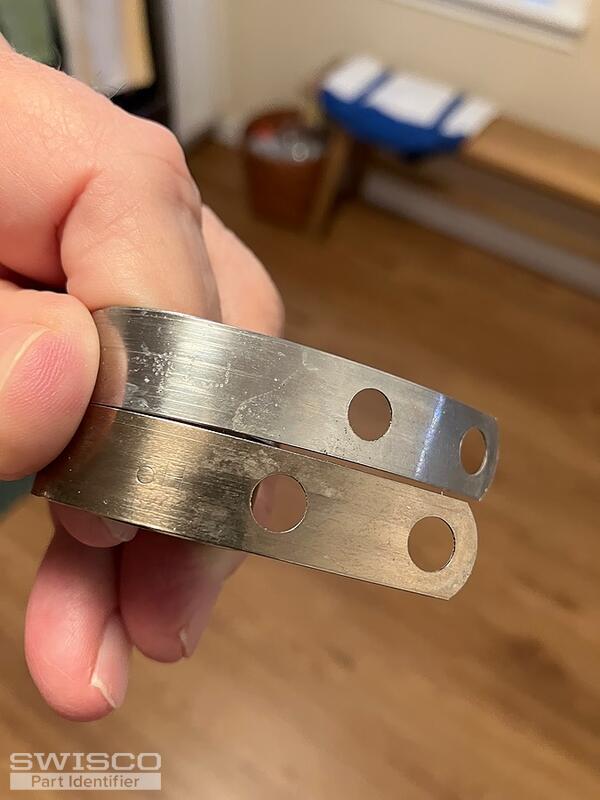

The window will not stay open. This "coil" pices is snapped in half.

Hi. I purchased American Craftsmen 8501 windows from home depot in 2014. The balance and tilt latches have gone bad in a few and i would like to purchase replacements please. I have included photos of what i need. 10 of each items should suffice. Hope you can help. Thanks

Hello. I see a 7 in dots on the old balances.I am looking at your S140 range. Would this be the correct fit? I need the mounting brackets as well. The triangular brackets like mine seem to be for the S180 model. Will they work with the S140 model? If not what bracket will I need?ThankyouRegarssLaure ... (cont.)

I'm not sure what brand my windows are.

Window won't stay up. Can you provide a link that describes how to replace this hardware?

could not find the same dimensions that match these.

I have Anderson silverline windows.I'm going to have to order the coil balance, mount bracket and cowl housing pivot.Thanks for your help.

I need help finding the replacement part for this window that I have at my rental property. Can you please help me identify the part so I can replace it and send me link if possible.

Hi, does anyone know what part would replace this ? Can I find this on the website ? Can someone please provide the link I am so confused on what to buy.

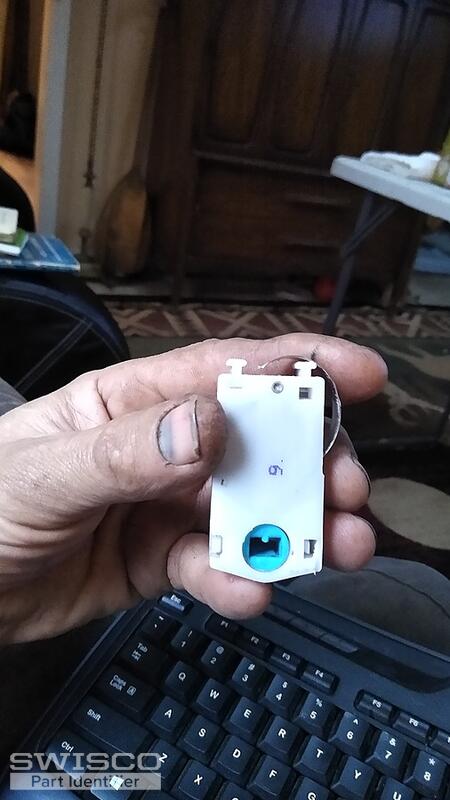

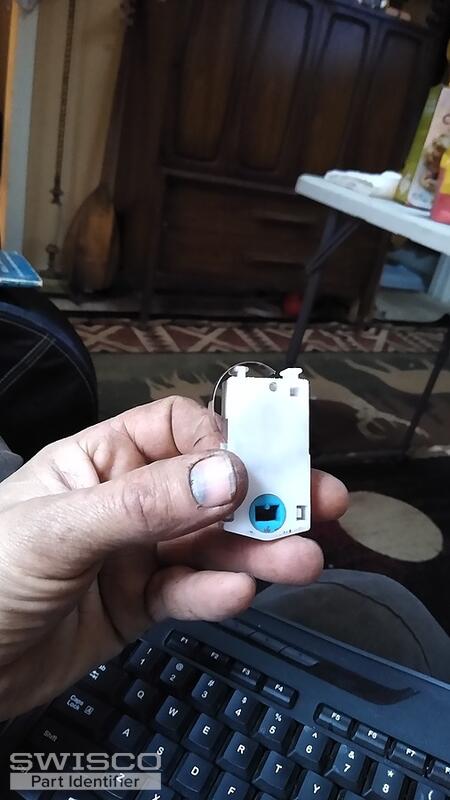

There is a number 6 - or 9 depending on axis.What I need is a link or part number so I can order a new one from you.Thank you,Robert

I need 4 of these parts coil balance. What other info do you need ?

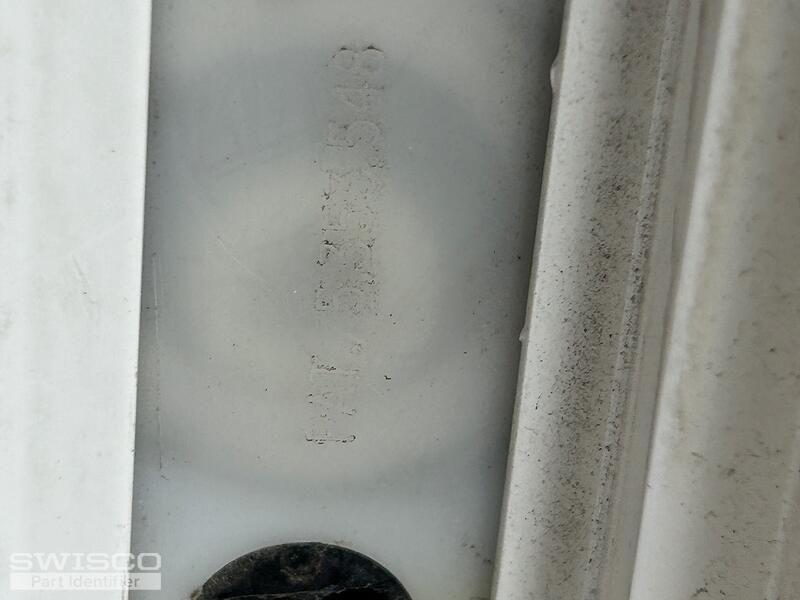

Markings found on window balance Pat 5353548.
