Viewing all customer Discussions for:

15-087 Coil Housing Pivot

There springs in the window tract which can seen in pictures--How do they come-out? Are they attached by screws?--What should my system look like

I was looking for the plastic that hold the spring

If this part is no longer available are there any replacements?

Hello, I bought American Craftsman windows series 8500 from Home Depot in 2006. The spring broke. I cut out a space and removed the pivot shoe, I have two coil housing pivots 15-087 (going to replace both side while I'm at it). The original coil housing pivot has 8 stamped on the side. I was goin ... (cont.)

The springs left and right are broken, do they come separately or with the whole sash? It says 8 A J on the spring.

Hi I'm trying to replace the part in the photo attached. Is it available and what is the process to replace?

I have a double hung vinyl window marked Nami and Dura Trust. one of the springs has broken and I can't hold the bottom window open. I need a new spring for the one side. Thanks. I believe it is an inside sash 24x48. pics of intact spring, and broken spring where coil is at bottom of window. ... (cont.)

What is this part called, where can I buy them and how do I install them?

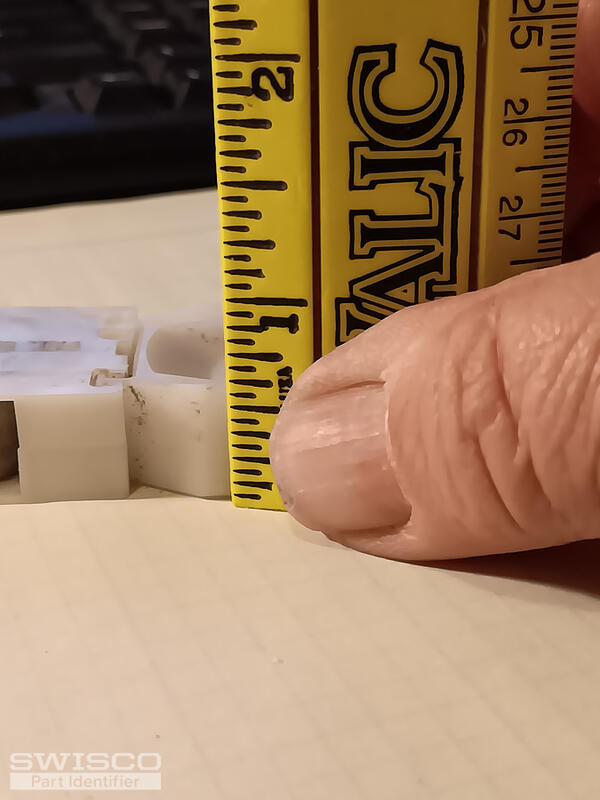

#7 is stamped on the balance spring from the single hung window. The unit is 1 1/2" wide x 2 1/2" high overall (to outside of prongs) x 1/2" deep. Once identified, we'd like to order 3 pairs.

I'm wondering what is the best removal technique to remove the window sash with the 15-087? As once you tilt the window towards you, the sash pivots lock into position and I'm unable to twist the sash for removal. With the 15-087, you are unable to simply pop one side upwards. The springs(s180), al ... (cont.)

I need to replacement the above balance. The spring has broken, picture included. I wish to purchase replacement parts for both right and left side. Please advise and send parts needed with prices. In case it is not cleat the balance is 17/32

Could you please take a look at the picture, and identify what kind of part that I can purchase from you, or guide how to get more information for you? Your help would be greatly appreciated!

I need help identifying this parts I don't see any number the the white plate in the picture is suppose to secure the band in the rail. I'm not sure how many springs there are suppose to me

Hello I have five windows on a house I just purchased that have broken coils. Can you please tell me if you have these parts? Thanks

Can you identify this part?

I do not see any identifying wording, but I have not been able to remove these parts yet. I was hoping to accomplish the removal and replacement in all one repair session. I am an accomplished DIY-er, but the window is heavy as it measures 42" by 32" approximately, so I will need to find a helper f ... (cont.)

Looking to get a couple of these for a customer of mine. Can you help please?

Yes. I have traco windows installed back in 2004. The one window will not stay up falls and slams right back down. What do I need to replace this. Also my latch's are broken to can you help please. Thank you Craig

Hello, I have attached pics of what I think you need to see. My upper window is in free fall now. The support mechanisms measure approx 5.5" long. The windows are tip in style and dated 2007. Brochure called them "View Point", made by "Focal Point". Please advise on your replacement parts. Email or ... (cont.)

Hi, i have a few windows that need these coil balance, can you direct me to the proper part?
