Viewing all customer Discussions for:

15-087 Coil Housing Pivot

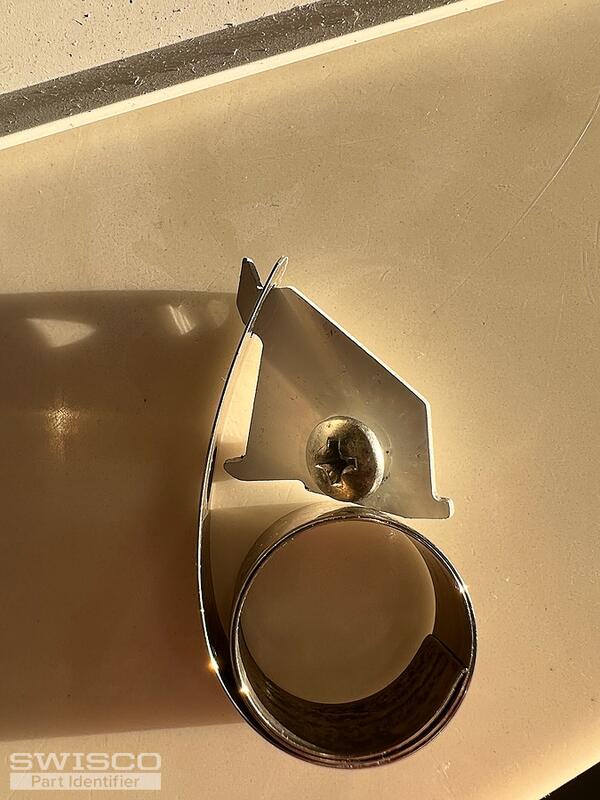

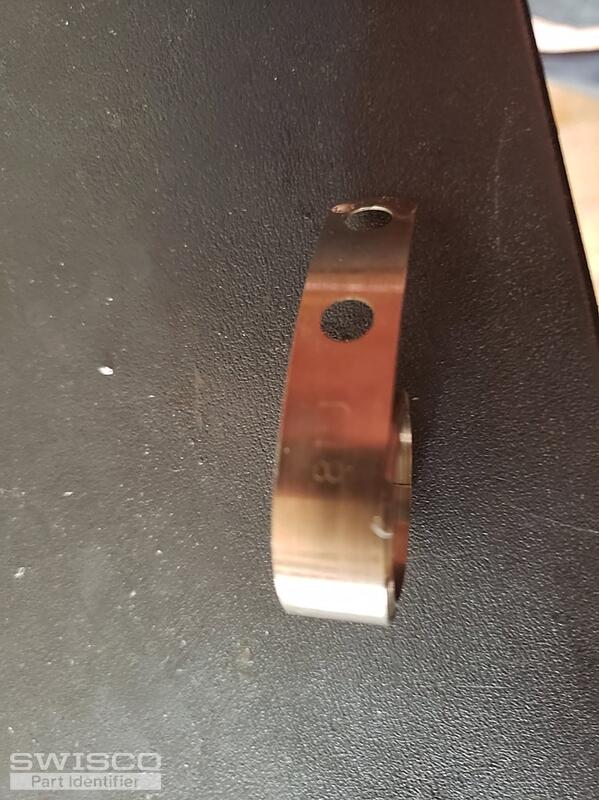

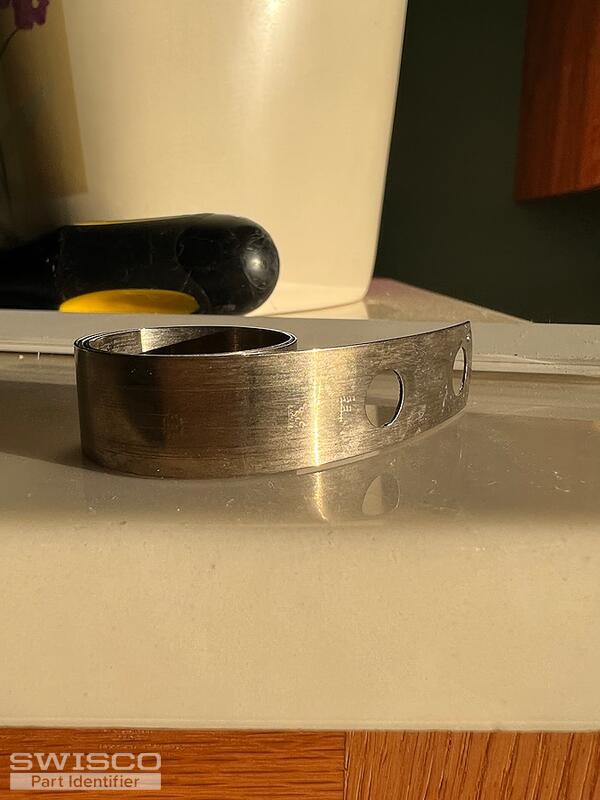

Can you help me identifying. Looks like ,double coil with the number printed on the spring 4z??

I'm looking for 2 sets of these springs as shown in the photo. That's 2 LH, and 2RH that are needed . Each is marked with an 8. They were the original units.A photo of the i.d. label also appears.Thanks in advance, Andrew

I need both sides with coil

The part is for a Treco window and measures 4" long and 1/2" wide. Do you have anything that size. The track it fits in is 1 1/4" wide.

I need four each of these with the springs

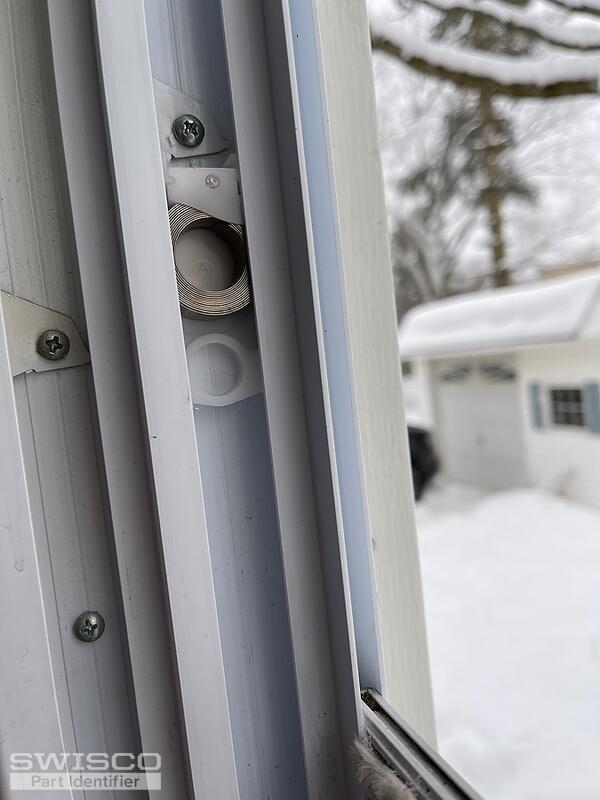

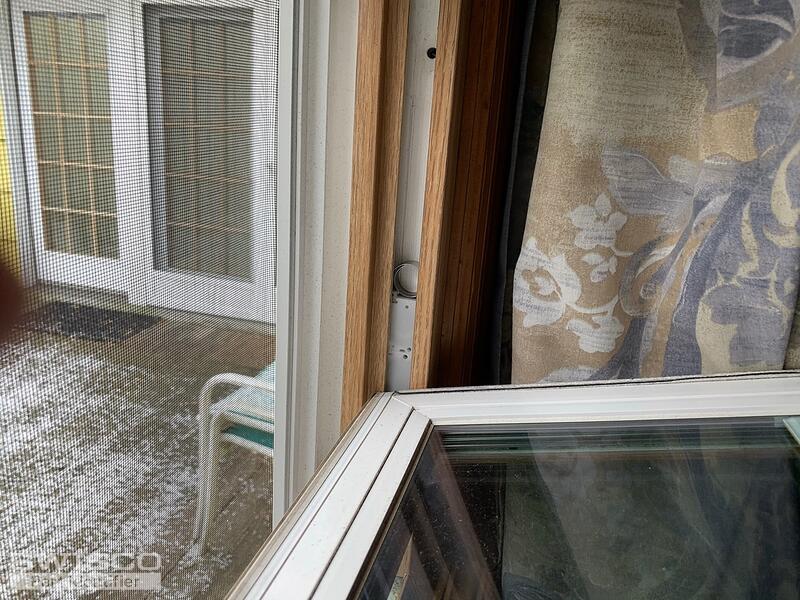

The balance spring is bad and I need to replace. I am not sure the manufacturer of the window or how to remove the bad balance without prying it out which I have not done yet.

Not having any luck with the manufacturer getting these parts but I thought maybe you guys have them in stock I'm just be easier to buy replacements

30 pound window. The part is about 1 1/8 inch wide 1/2 inch thick and about 5 3/4 inches long. 731V is on one metal roll 536v on the other roll. Patton 5,353,548. I hope this helps identify the part.Thanks,Don

Iam thinking I need the series 161 for replacement of right and left sides ? Bottom only Thanks

Need replacement spring and balance for silver line window constant pivot balance. Model 8002344228

Hi I just ordered the finger slide and need the window pivot shoe for American Craftman 8500 series window. is this the right one? (15-087).Sam

4 bottom guides straight (LIC PAT 5,069,001) 1 Sash top cover 1 bottom 90° guide 6 Sash locks internal with springs

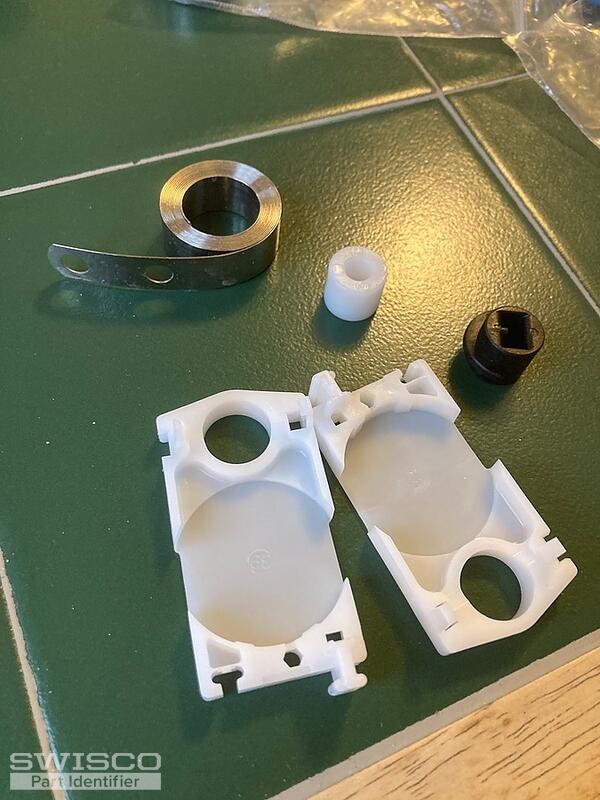

what are the part numbers needed to replace coil spring and complete housing both portions. Is it the same part number for left and right side of window?. On my windows the coil broke on both sides as well as housing.

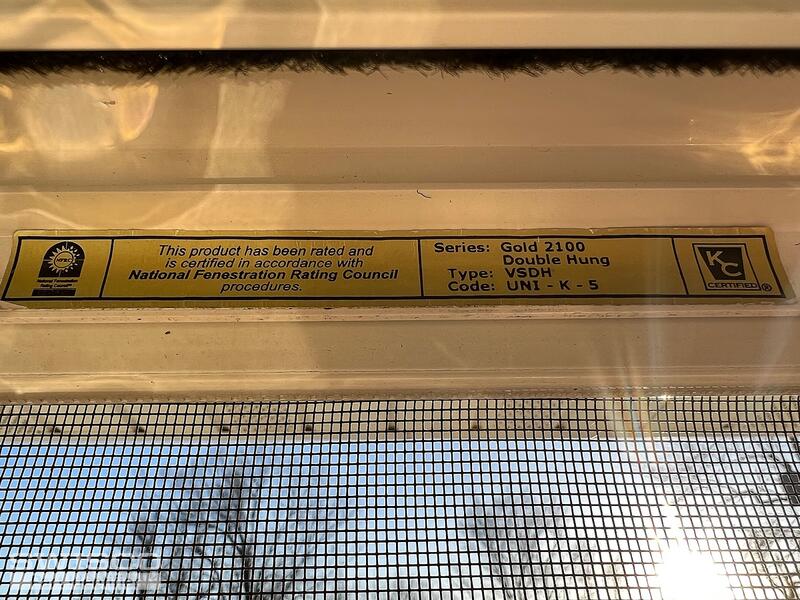

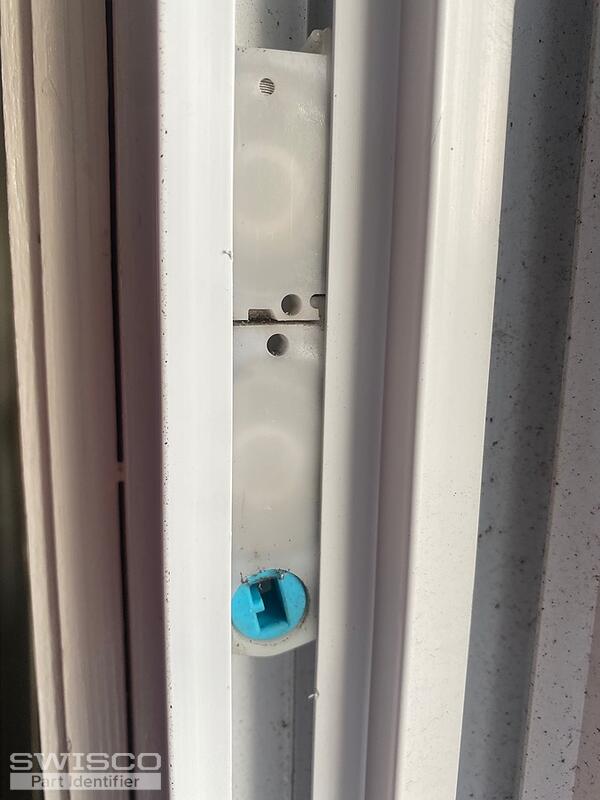

Both pieces(still in the window) say either 7L or 7R. There is the following info on the broken coil metal 7HH. Info on the window sticker in image uploaded. Window will no longer open, too heavy, need to know what replacement pieces to buy. Need to replace the coil balance on both sides. ... (cont.)

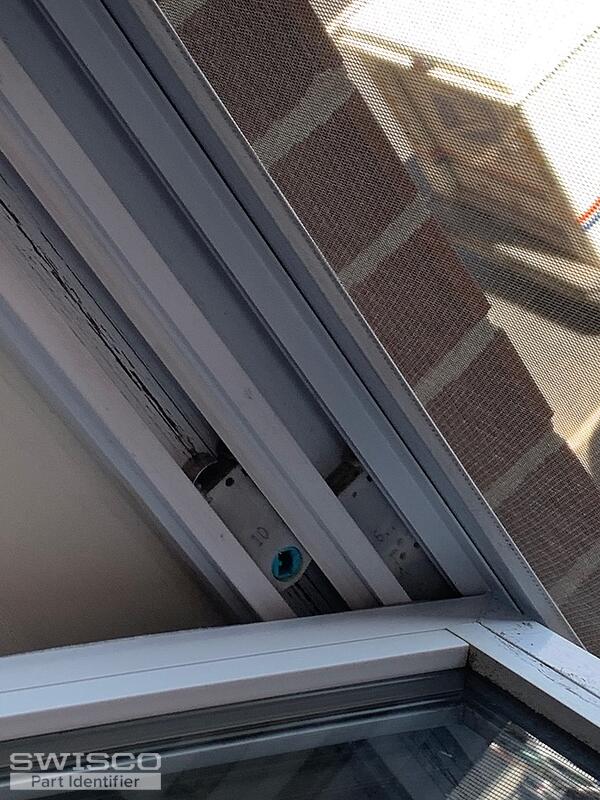

Trying to identify correct replacement for my windows.

Good morning,I'm trying to determine replacement parts for an 8500 series vinyl window, SKU: 741-250, R.O. 33"Wx 49 1/2"H Beige, D.H. with LO-E and Argon STD. JAMB depth and std hardware. I believe I'm in need of Tilt Latches - product code 26-408 and coil balances (see attached pictures). I can ope ... (cont.)

the balance is broken and need replacement.

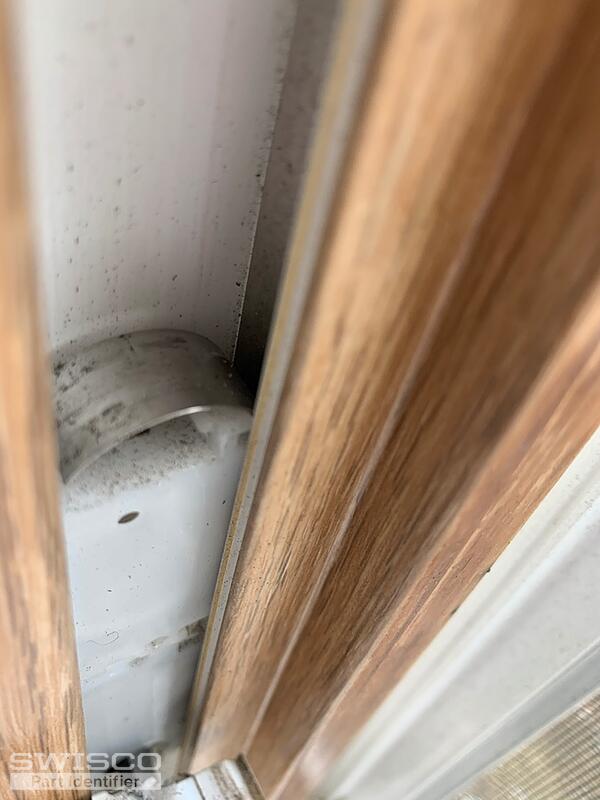

Need a replacement for American Craftsman constant balance. Photos are of window label and balancer that's broken

On the metal rolls is stamped 731v on one and 536v on the other. Size is about 1 1/8th inch wide, 9/16ths thick and 5 5/8ths long. It is a 30 pound tilt window made by CDI.

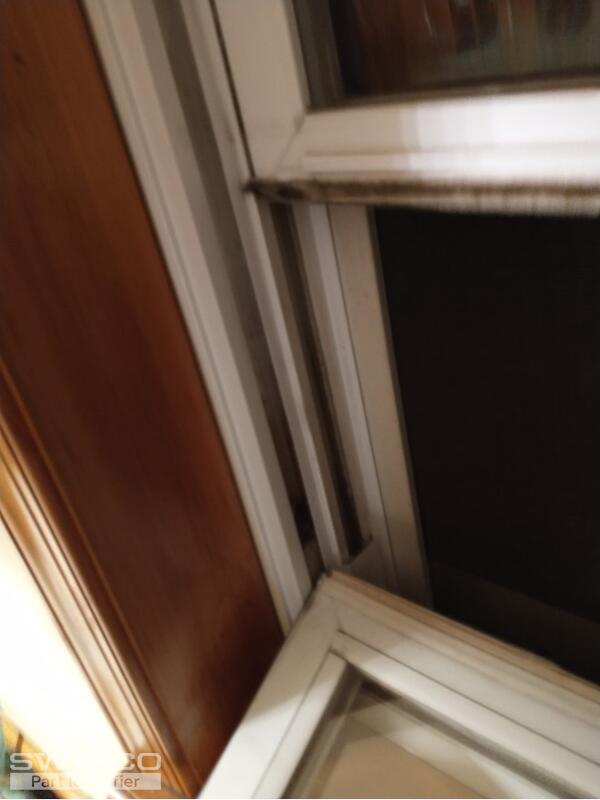

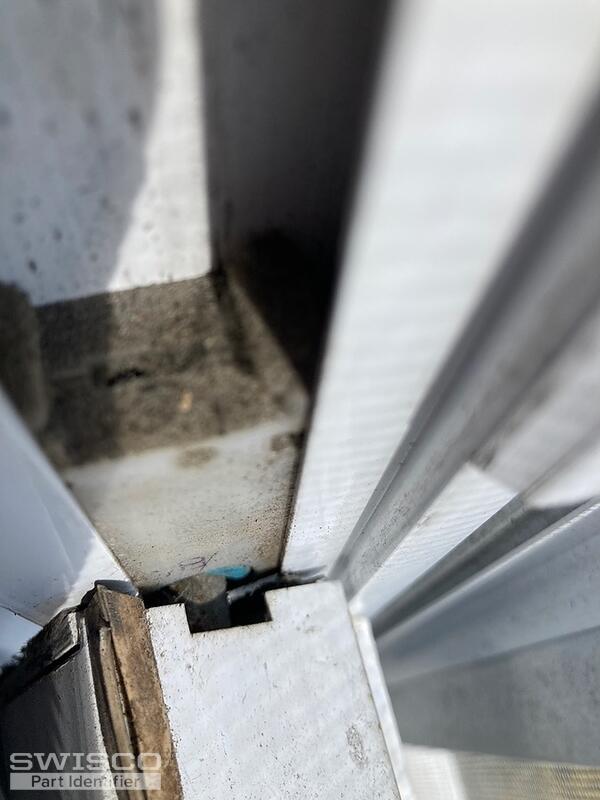

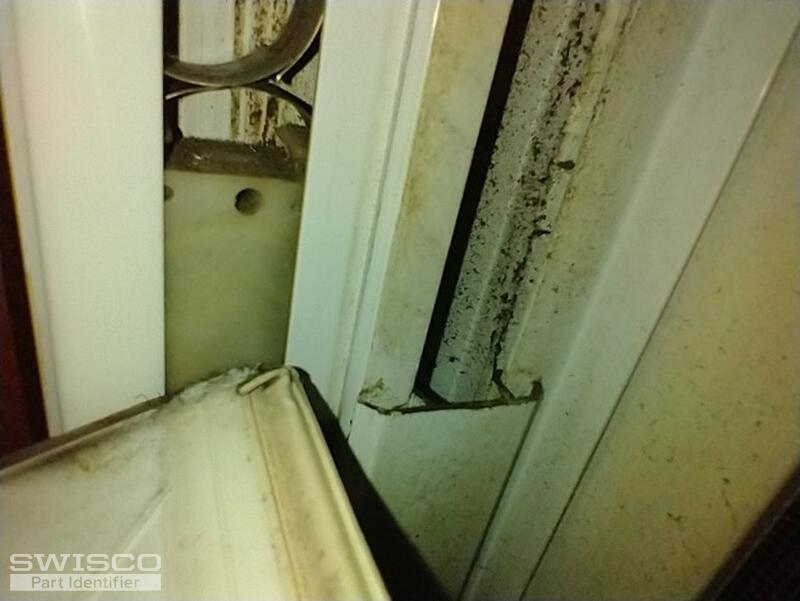

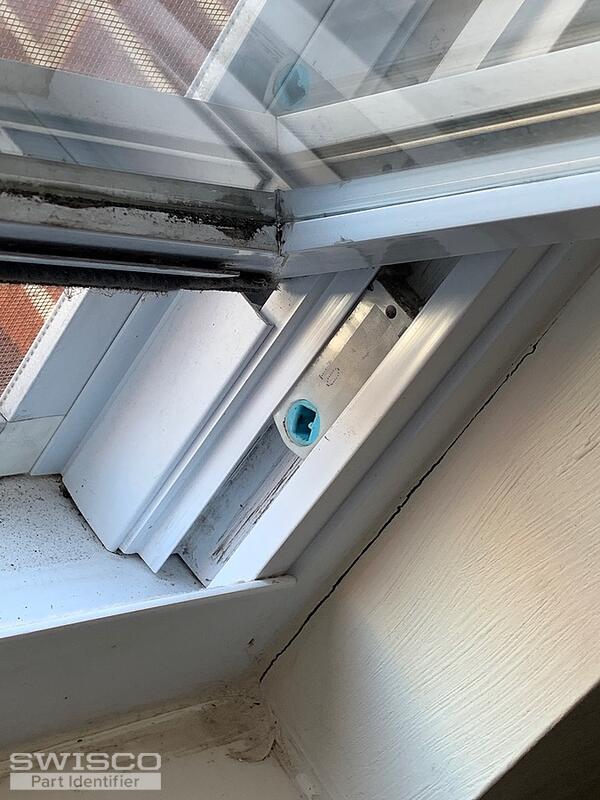

Hello, I think I need one sash pivot bar that broke from the base of my tilt window. Please review my pictures of where it broke off and please let me know if that is the correct part or not.
