Viewing all customer Discussions for:

15-087 Coil Housing Pivot

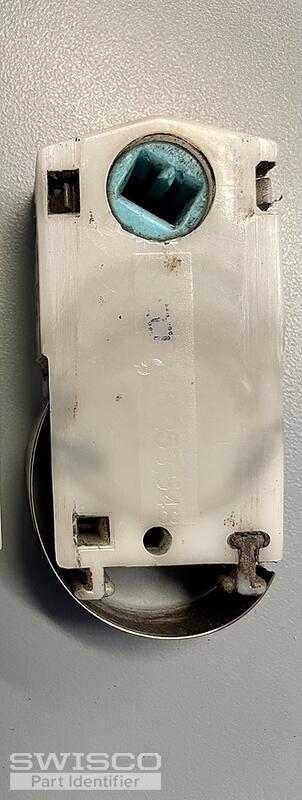

30 pound window. The part is about 1 1/8 inch wide 1/2 inch thick and about 5 3/4 inches long. 731V is on one metal roll 536v on the other roll. Patton 5,353,548. I hope this helps identify the part.Thanks,Don

Iam thinking I need the series 161 for replacement of right and left sides ? Bottom only Thanks

Need replacement spring and balance for silver line window constant pivot balance. Model 8002344228

Hi I just ordered the finger slide and need the window pivot shoe for American Craftman 8500 series window. is this the right one? (15-087).Sam

4 bottom guides straight (LIC PAT 5,069,001) 1 Sash top cover 1 bottom 90° guide 6 Sash locks internal with springs

what are the part numbers needed to replace coil spring and complete housing both portions. Is it the same part number for left and right side of window?. On my windows the coil broke on both sides as well as housing.

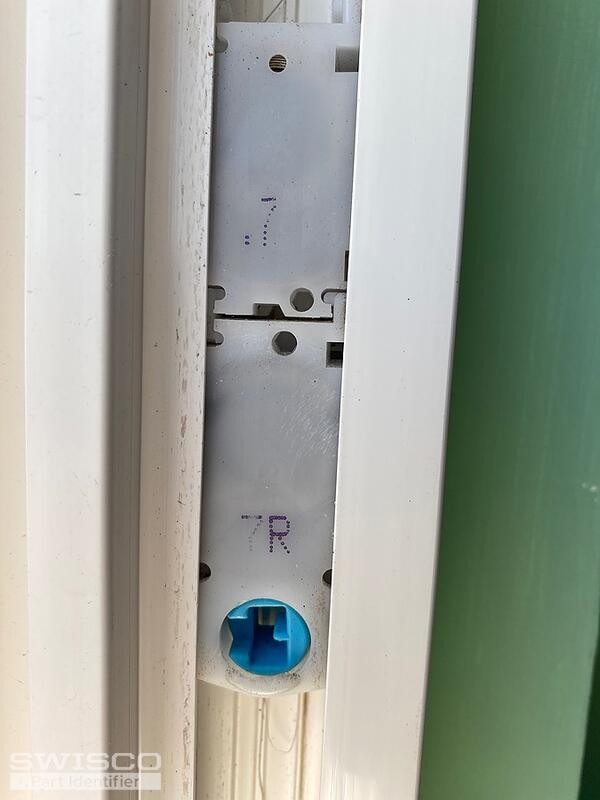

Both pieces(still in the window) say either 7L or 7R. There is the following info on the broken coil metal 7HH. Info on the window sticker in image uploaded. Window will no longer open, too heavy, need to know what replacement pieces to buy. Need to replace the coil balance on both sides. ... (cont.)

Trying to identify correct replacement for my windows.

Good morning,I'm trying to determine replacement parts for an 8500 series vinyl window, SKU: 741-250, R.O. 33"Wx 49 1/2"H Beige, D.H. with LO-E and Argon STD. JAMB depth and std hardware. I believe I'm in need of Tilt Latches - product code 26-408 and coil balances (see attached pictures). I can ope ... (cont.)

the balance is broken and need replacement.

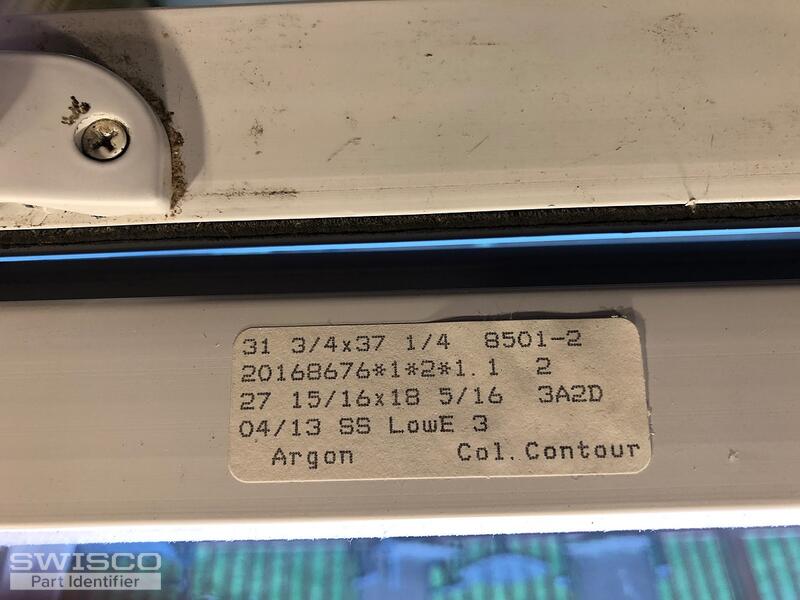

Need a replacement for American Craftsman constant balance. Photos are of window label and balancer that's broken

On the metal rolls is stamped 731v on one and 536v on the other. Size is about 1 1/8th inch wide, 9/16ths thick and 5 5/8ths long. It is a 30 pound tilt window made by CDI.

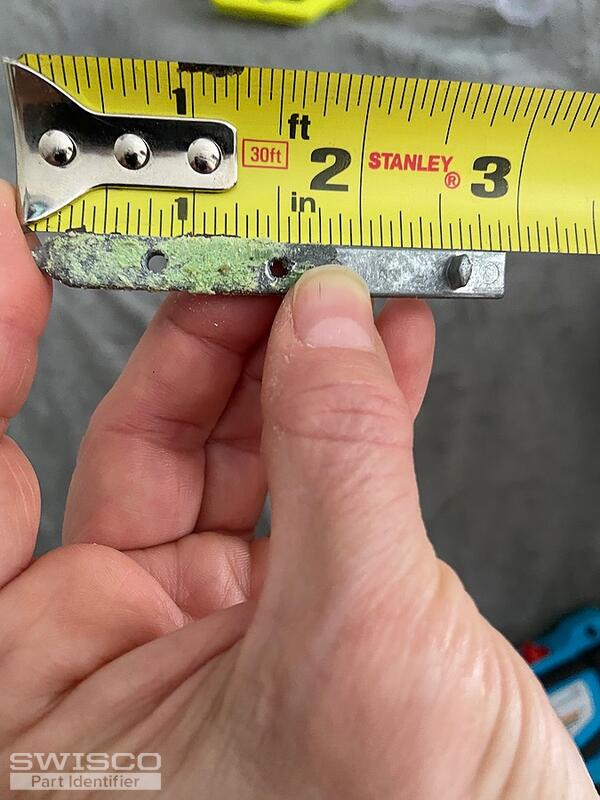

Hello, I think I need one sash pivot bar that broke from the base of my tilt window. Please review my pictures of where it broke off and please let me know if that is the correct part or not.

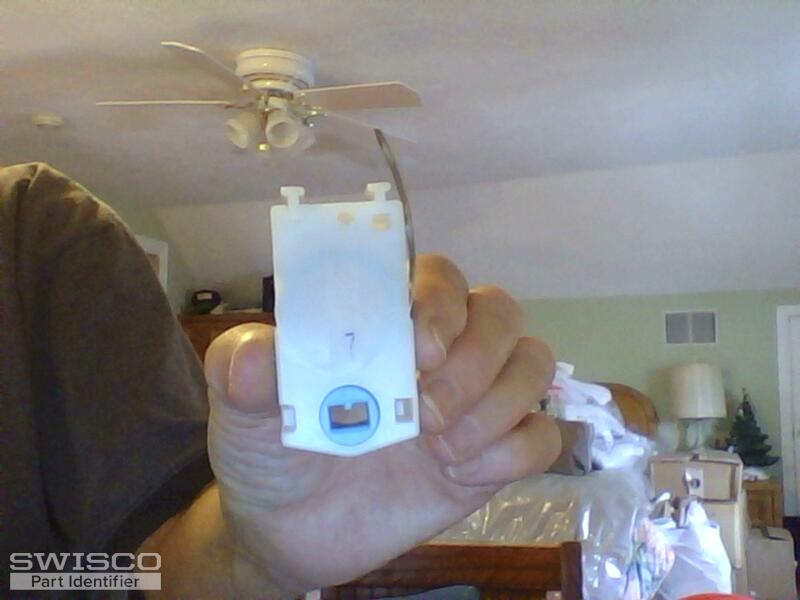

I have no name or part number only a 7 on the shoe the metal Spring snapped and came out looks to be more than one

Need the coil spring pivot shoe for American craftsman 50 series double hung window purchased in 2013

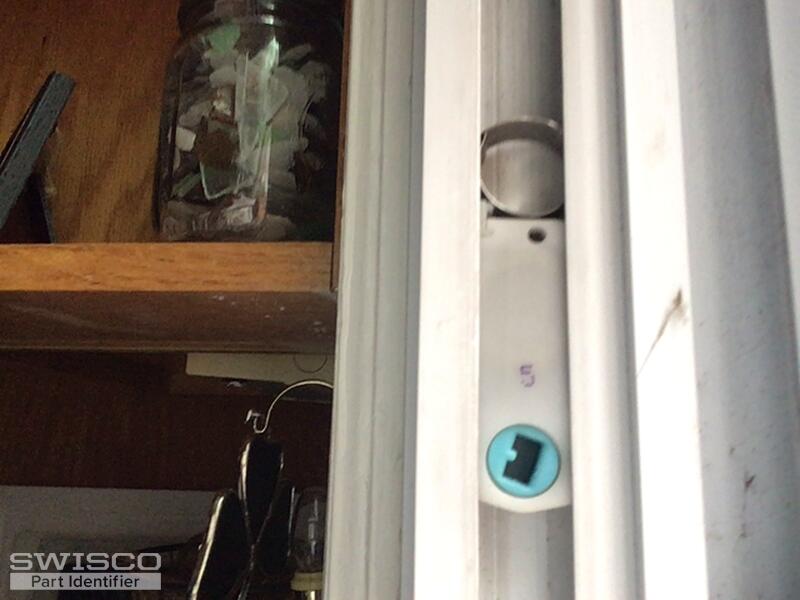

Hello. so happy I found this site. I am trying to repair two Trayco windows from the early 90's. smaller window, 31x20, has one "mouse" with a spring labeled "7" I think I got that 15-087. The larger window has one Mouse, and two extra cartridges all with springs labeled "5". My question is how ... (cont.)

I have what appears to be a broken coil spring assembly, where the coil broke from the rest of the coil in the housing. This is on a Traco window. The side of the housing has '38B' written on it if that helps. This one is form the left side but the right side is broken as well. Would you have anythi ... (cont.)

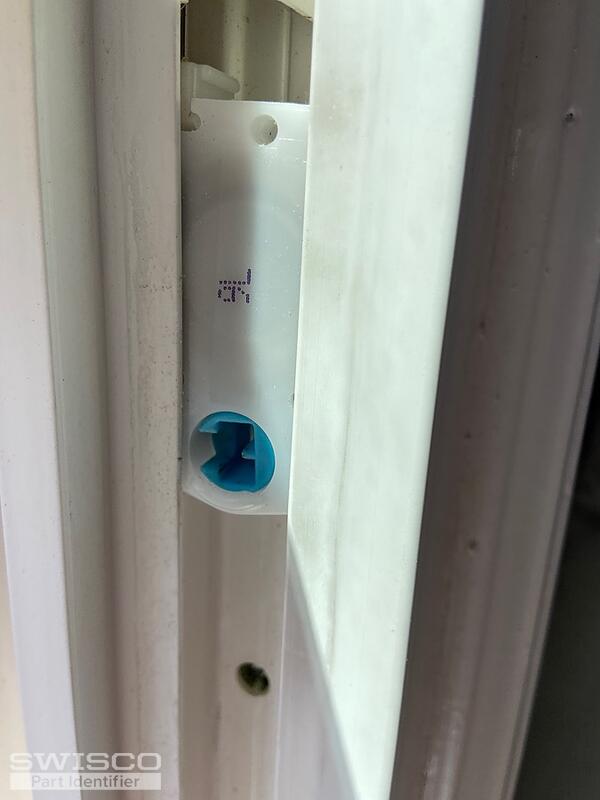

I need a #7 coil shoe for this window. The color is blue. Please advise. thank you in advance.julie

Can you determine from the attached images the correct parts that I need to replace both pivot shoes and coil springs. There is also a small part that is screwed into the channel (image attached) that I assume I need to replace also. There are no slots on the sash channel to remove the pivot shoe. ... (cont.)

What is the replacement part number to order the part shown in the photo.
