Viewing all customer Discussions for:

15-087 Coil Housing Pivot

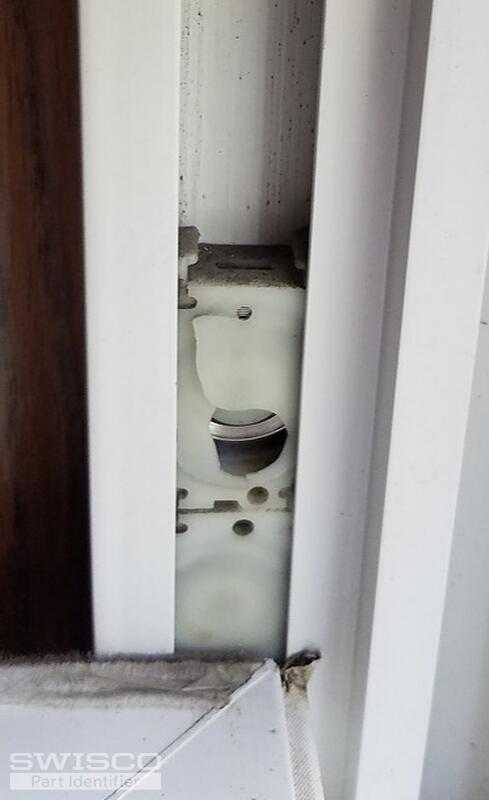

HelloI think I have Simonton WindowsThe photos are for the double coil balanceOne side had the coil come out and get bentShould I replace all the parts with the 15-087, 15-086, S180-5?The coils has a 5z on itDo I need to buy spreaders or can I cut the channel?I just saw that the pivot post has 6221 ... (cont.)

Many thanks for writing in. It's difficult to say for certain what you need without seeing the coil balance system removed from the window, but what you show looks like our 15-086 Coil Spring Housings. They connect to the 15-087 Housing Pivot, and use our Series 180 Coil Springs. You will need to re ... (cont.)

the springs have broken on 2 windows. on a sticker at the top of the window are the following numbers 491564 041995 and below that is TR9N TBAG DSLE. The other number appear to be size measurements. The 2 windows that have broken springs are the ones I use most often in nice weather and have had ... (cont.)

pat.5,353,548i have these constant force balances throughout my house. many of them snap up when you take sash out for cleaning. i measured the square footage of the bottom sash. i have ten windows, and i came up with 3 weights. 6 bottom sash weigh 21.4 lbs. 2 sash weigh 18.2 lbs.2 sash weigh 15 lbs ... (cont.)

Thanks for posting. This looks like our 15-087 Coil Housing Pivot. This is compatible with our Series 180 Coil Springs. Let us know if you have any questions.

For a gorell window.Need a pivot barIt is u shaped channelApprox 3 inches long by 3/16 highThe bottom of the u is approx a quarter of an inch..may need a shoe for this

Each side has either 7R or 7L. Needed for Norandex double hung tilt windows.

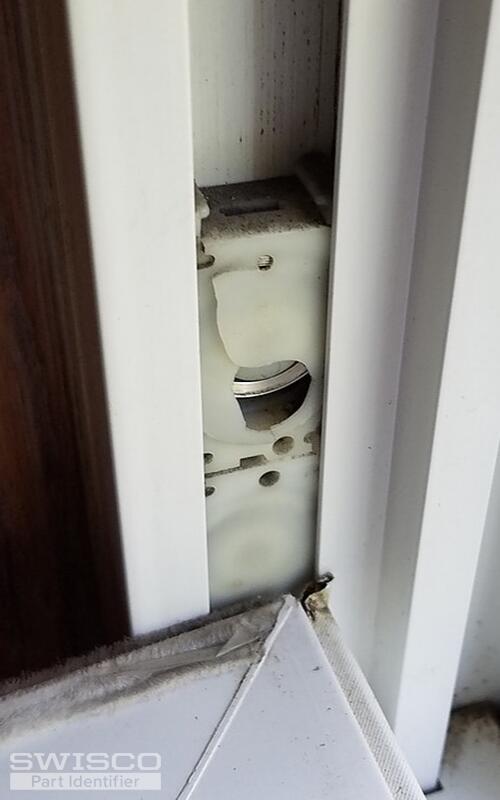

I believe the window needs a new channel installed, as I do not see one. However, there are balances. The top window will not stay up or closed unless windows are in locked position. Photos are of the right and left interior sides of the window. Currently there is no channel. There is a sticker refe ... (cont.)

Hello. Can u assist in hellping me determine coil size

Are these left and right ?

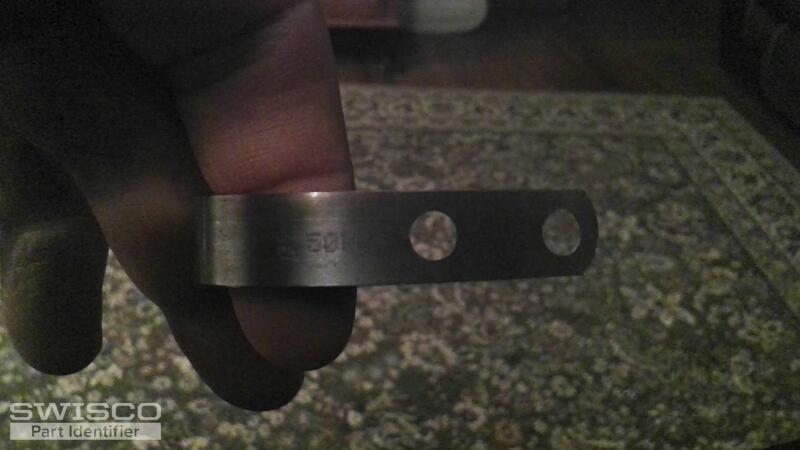

I am in the need for coil balances that are broken. Can you help me with identifying the correct one. It is stamped with 504x. Also I will require the pivot housing part number.ThanksJim

I think that I may have found the replacement parts needed but I want to confirm with a representative. Would the spring be your S180 and the coil housing pivot be the 15-087? I would need 2 of each.spring seems to have a stamp on it is something that looks like a large 6 made with dots then a clea ... (cont.)

Need replacement coil spring balance pivots for Accent Windows installed in mid 1980s in Denver, Colorado. Double hung vinyl windows total width about 35 inches and total height about 51 inches. Front and back edges of the plastic case measure 3-11/16" not including the 2 tabs on top. The thickness ... (cont.)

purchased these Accent Windows, here in Colorado, in 1997. coil spring balance just snapped. picture shows the number stamped on the back of the spring.

Looking for part numbers on the attached photos

On the large part spring has number a big 7 then a small 23x onit. The small one has a big 7 and then a small. 37w believe to be TRACO WINDOWS. BRIGHTON GLASS

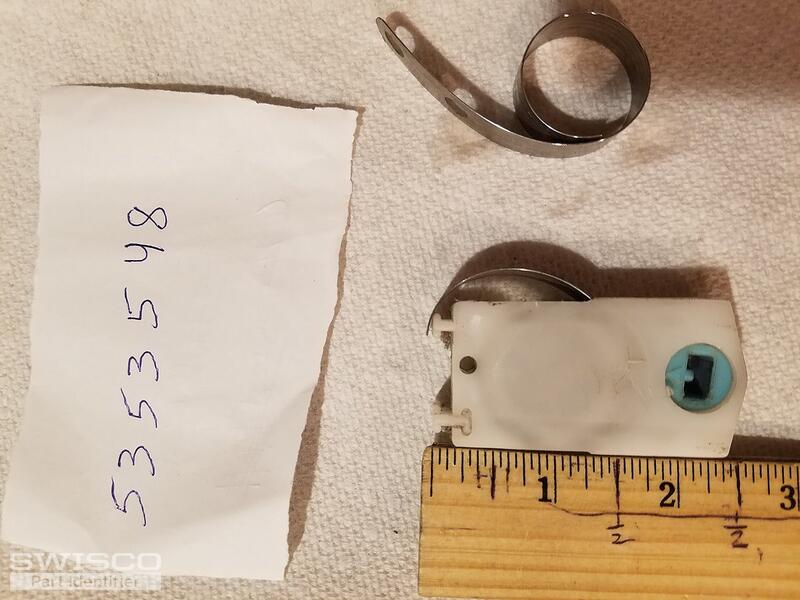

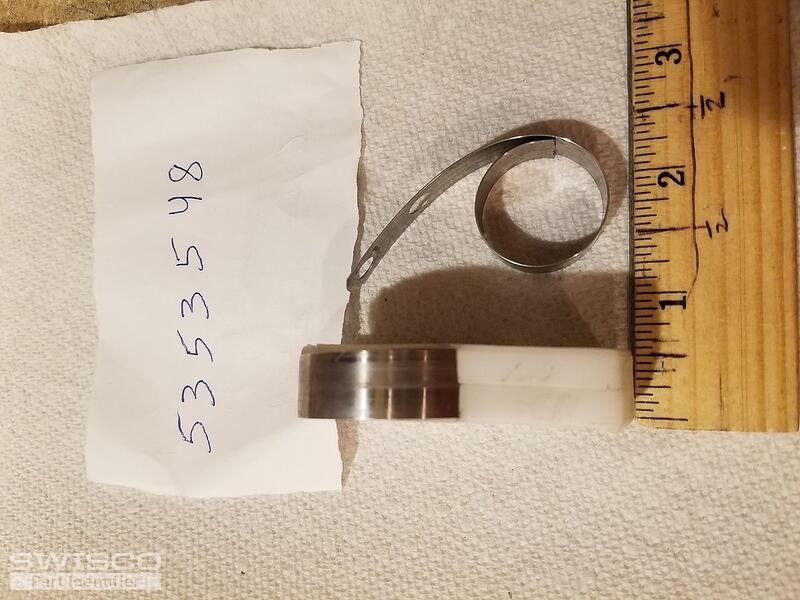

I need to replace the single hung spring coil fixture for two single hung windows. I don't have the manufacture's name or the part number. I do have the patent number found on the spring coil housing. Patent: 5353548 and two photos showing the casing on both sides. Each window has two spring coi ... (cont.)

I need two constant force balance springs for a Royal Prime window. What part number do I need and where can I find it?

Hi I am trying to identify the attached spring balance which is a triple. The length of the top sash is 36" and the lower sash is the same. The coil balance support is approx. 5" high, 7/8" wide (inside track) and 1/2" deep (track/jamb). I hope this information is helpful in identifying the parts ... (cont.)

I need balance shoes as above, almost 9/16 (35/64?) x 1 1/4 x 2 7/16. Windows weigh 8 lb, are 19 1/2" and 20 1/2". When I order, I will need 4 shoes; 4 anchors, since I am not sure of the condition of the anchors; and pivot bars if the new balance shoes don't have the same slot as the old shoes. ... (cont.)
