Viewing all customer Discussions for:

15-188 Pivot Lock Shoe, 1/2" Thick, Blue Brake

Thank you

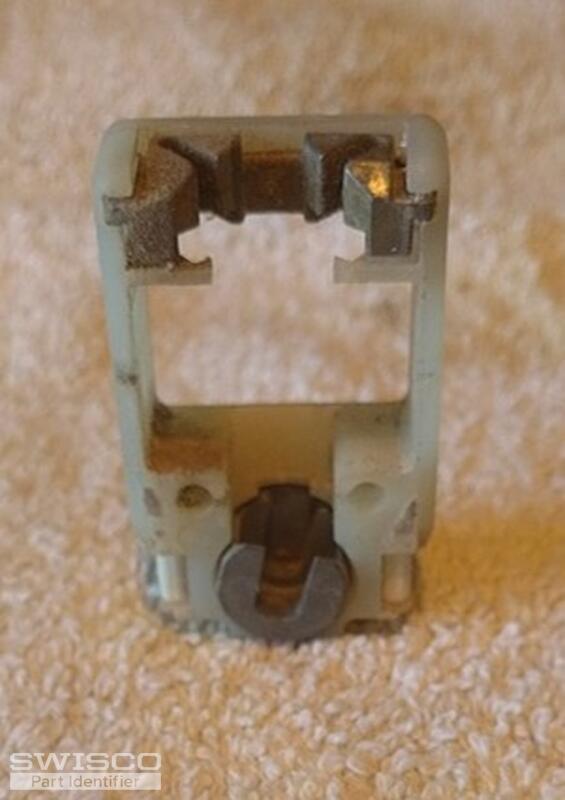

I need help in identifying a pivot lock shoe for a Plygem window by Great Lakes Window - pictures enclosed. It's approximately 2 1/8 inches high, 1 1/4 inches wide, and 5/8 inches deep. It has a metal cam which accepts a circular pivot bar. Thank you in advance for your assistance. ... (cont.)

Hi, I have model 0601 Alside windows that have almost all of the shoes and locks broken on them. Can you recommend replacements? Thank you, Cheryl

This part is measuring at 2 1/8" L 9/16" thick 1" wide the brake pad on this part is WHITE!

Can you please help me locate replacement pivot shoes??

no markings found but they seem to match up to part #15-188

No names or numbers known on part - Guessing these are called shoes?DIMENSIONS APPEAR TO BE : 1" Wide2" Long1/2" DeepDo I have to remove window from casing to replace these?Appreciate your assistance !Thank you.

First I can't find any markings on the existing tilt windows.The tube is 24 inches long and 9/16 diameter I've included pictures of the tube end that you can see has a "red" end.I need to identify and replace a number of pivot shoes, picture included. Also need help in understanding how you replace ... (cont.)

I have the small pivot shoe as shown in this post: https://www.swisco.com/discussions/Cant-find-Match-to-Pivot-Shoe-77-142287 In the post, Bob recommended 15-178, yet why wouldn't 15-188 work as 15-188 appears to be closer in size depth wise than 15-178. Does it have to do with the brake pad thickn ... (cont.)

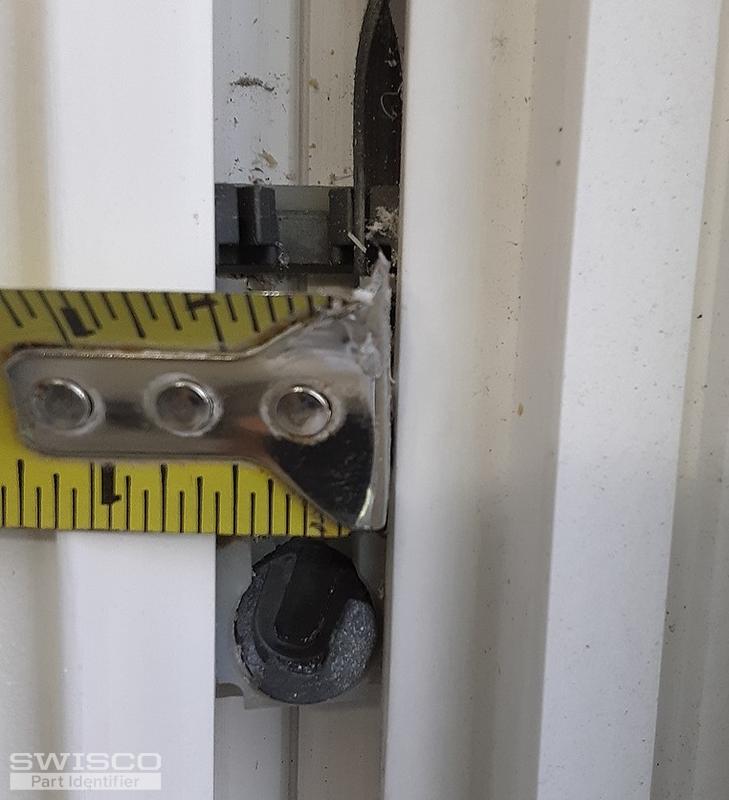

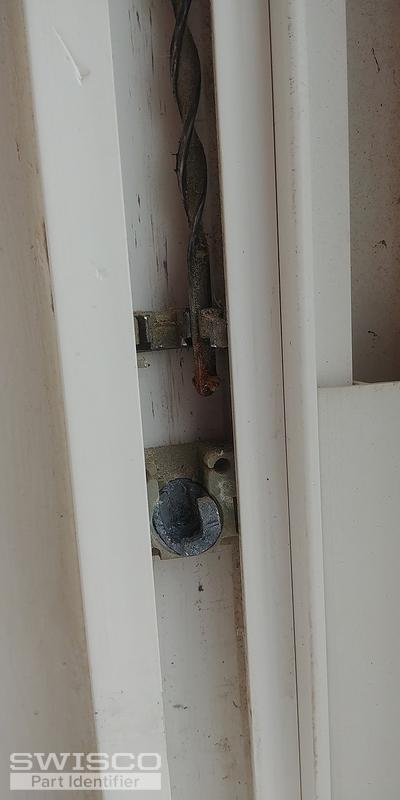

I need to replace 2 pivot shoes on a Jeld Wen vinyl window, probably at least 20 years old. The cams are broken. These photos are from an identical window. Works with a spiral balance. The old shoes have plastic "locks" to hold the balance in place. Roughly 2 3/8 x 1 x 5/8. Do you have something tha ... (cont.)

The part shown I believe is in a Silverline window. I'm not sure if the glide is intact or not can anyone help identify the part Thank you

hi ...I just got off phone with Jody wish we could have spoken a bit more ... my window's measurement is in one of the pics(30 1/2 * 56 1/4) the date on the label is 1998 ... I need to order parts to fix my tilt replacement window .. hope these measurements are helpful ... measuring to the nearest ... (cont.)

These are supposed to hook up to the window to hold it in place.

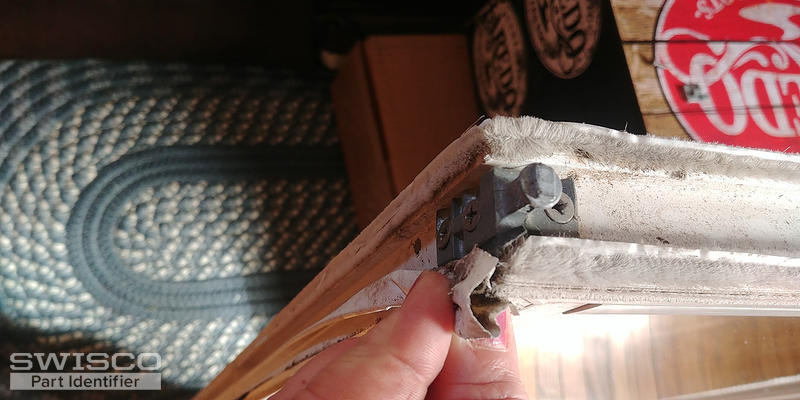

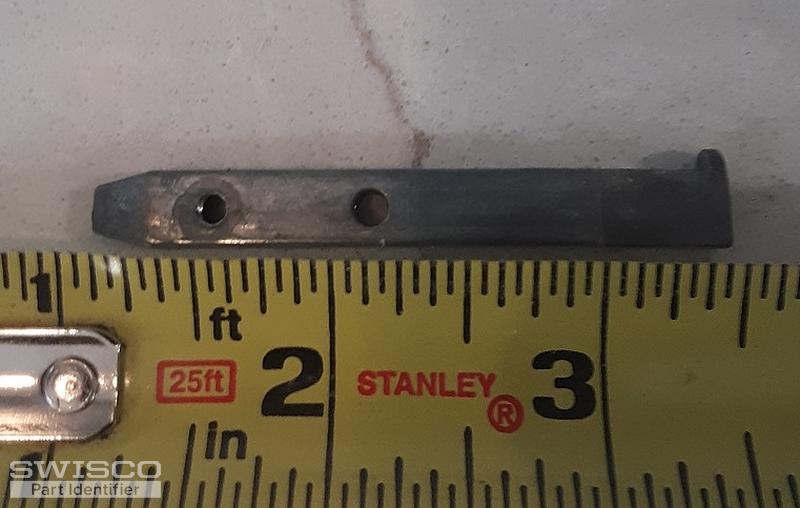

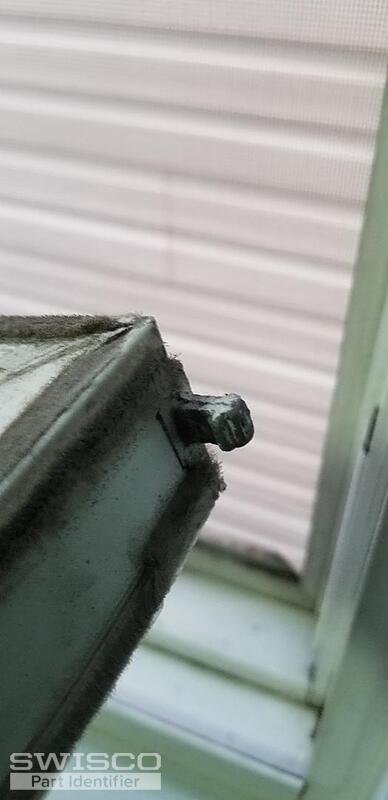

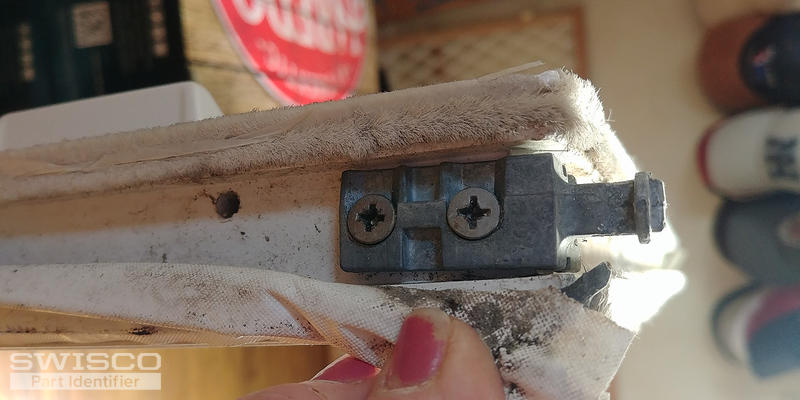

Believe this is pivot bar # 26-428, but can't tell by your picture ifthe end is flanged out like mine. It is from a Quaker Alex J window. Will be looking for pivot balance & sash balances for the same. Thank You, Dan

Morning, I was hoping you can identify the two parts I have attached. Please let me know if other info/pictures are needed. Thanks

Need matching pivot shoe to go with identified pivot bar 26-226

correct part # Please

Hi Can you help me to identify the replacement shoe? Will it be 15-188 or 15-135 or other? The size is 2"x 1/2" and 1 1/4". See the attached picture

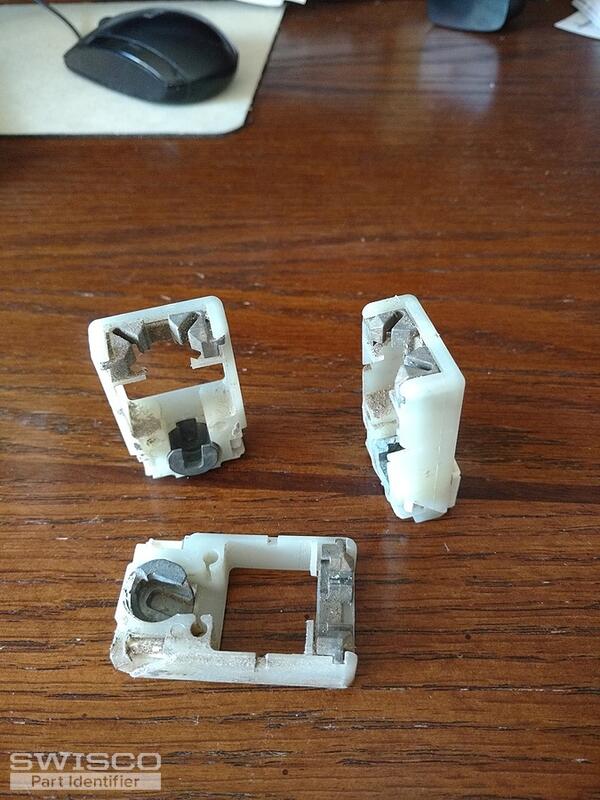

Have about 20 broken pivot shoes and 12 broken pivot bars Would like to replace but do not know of the parts Thank you Nancy

I am looking for these replacement pieces. The window model # is H-LC40. Can you help?
