Viewing all customer Discussions for:

15-199 Pivot Shoe, 17/32" Thick

I have some tilt windows, and I need to replace all the hardware pieces. I'm stumped on the spring, the ones on there right now are double springs. The top of the spring assembly needs to be rounded/beveled/sloped to let the tilt catch pass over without breaking the plastic. I pulled out one of the ... (cont.)

Some of my windows have missing or broken ballasts. Consequently, the windows won't stay up. I believe the windows are Louisiana Pacific. Attached are the pictures you requested. The ballasts are actually 3 coil - not 2 coil as I originally stated. The window in the picture is 32" x 33 1/4" Side la ... (cont.)

Two coils 1.#6.5 35" 2.#3.5 35"

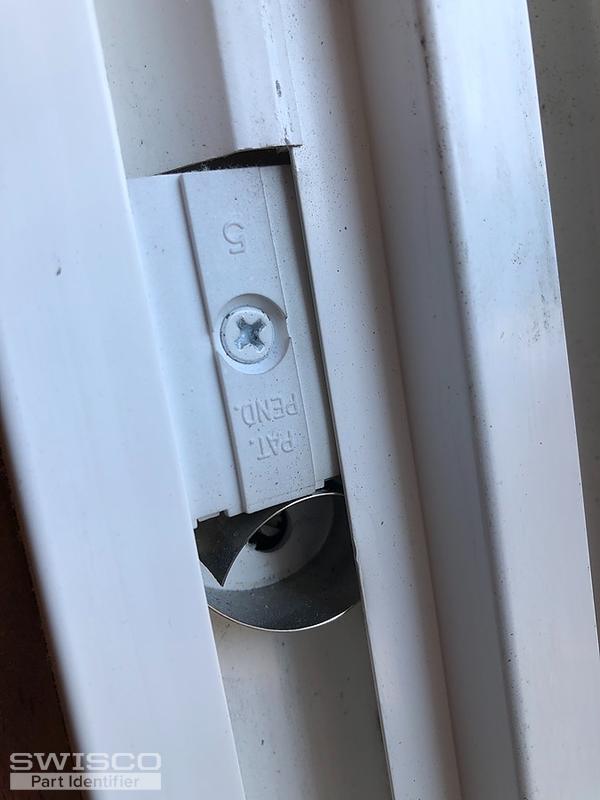

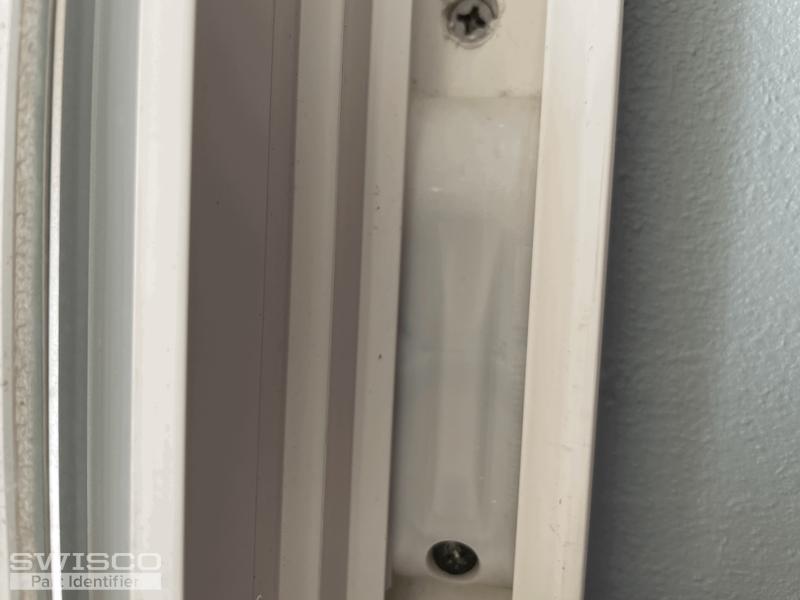

I have two windows that have the same balance damage - the covers are broken and the screw is missing that holds the covers in place. The springs appear to be ok and the shoe does not appear to have any damage. Would like replace with new balance - also need the screws that would attach the balance ... (cont.)

Hi. I have the basic single tilt latch 3 x 5 Simonton windows. I believe I need coil balance constant, tilt latch and quick tilt pivot shoe sash carrier for 2 of my windows. (Window is fixed on top) Please help me figure out what to order. Thank youTara

Spiral Balance Pivot Lock Shoe

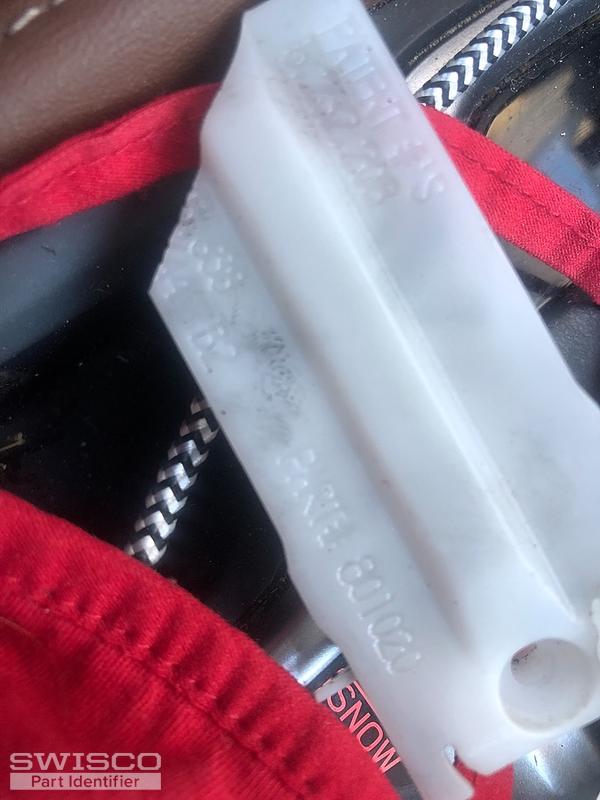

Part number 801020. Coil says 4.5. 35" p . Coil look to be 1/2 " need shoe too. I will need whole set up for both sides of window right & left.

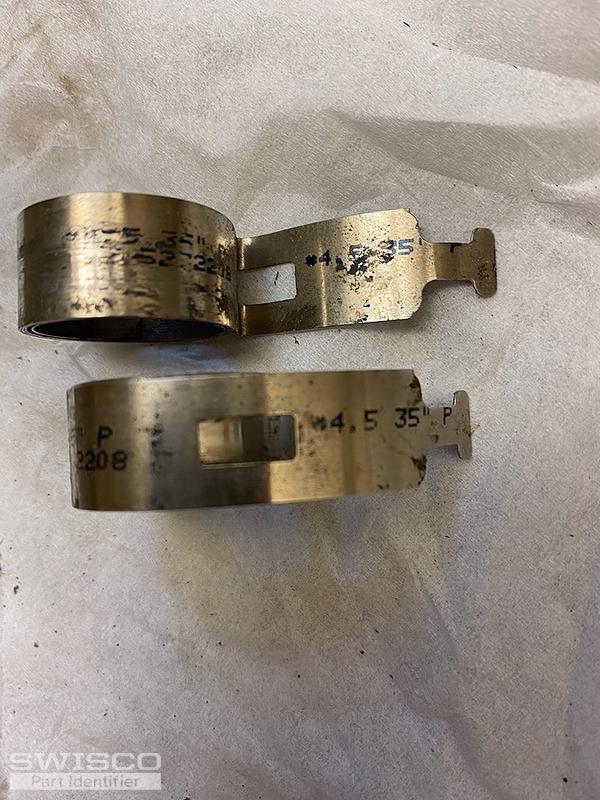

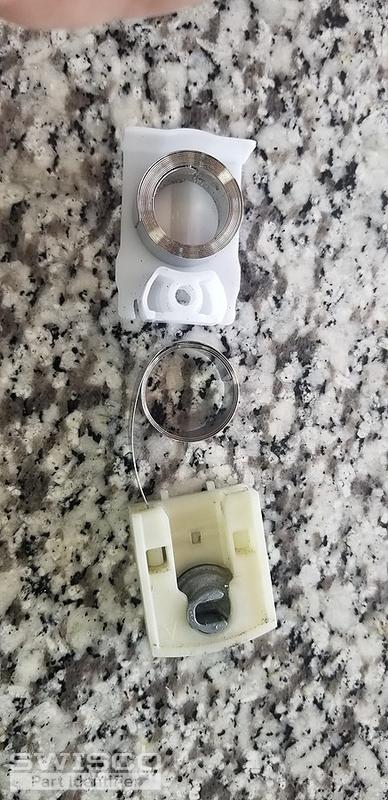

The balances for my bathroom window both broke in half. Looking for replacements but just want to make sure I'm buying the right kind. Markings on the coils : 4.5 35'' Thanks for the help!

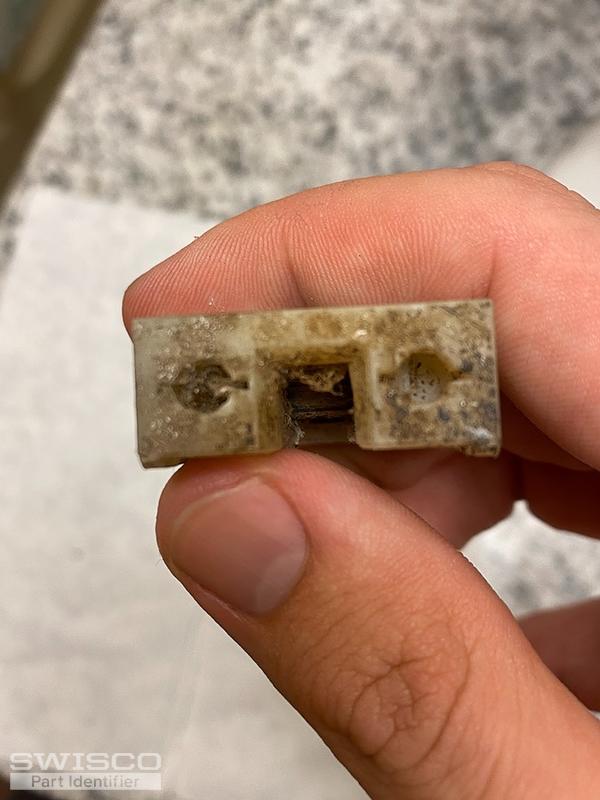

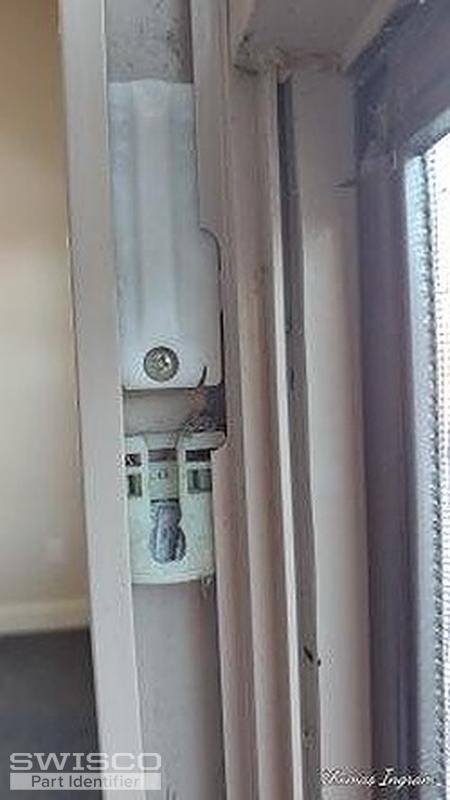

I was replacing a broken coil with the new one you sent me and I unfortunately broke the plastic end piece that holds the coil. I'd like to buy two of them please. See the photos for the same piece on the other side of the window. It is approximately 4"x1". I might as well get the bottom pieces too ... (cont.)

coil balance window

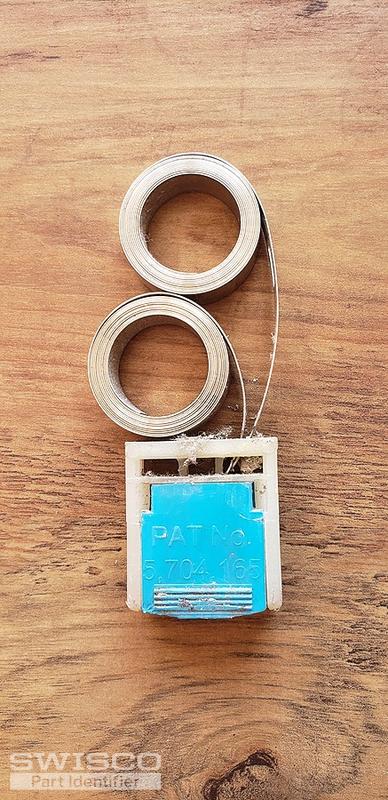

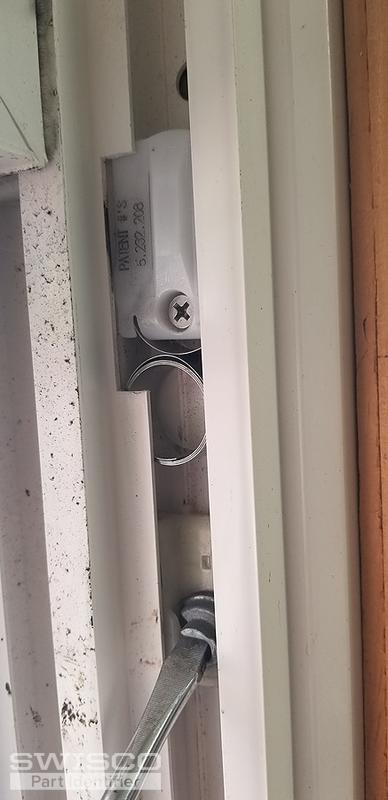

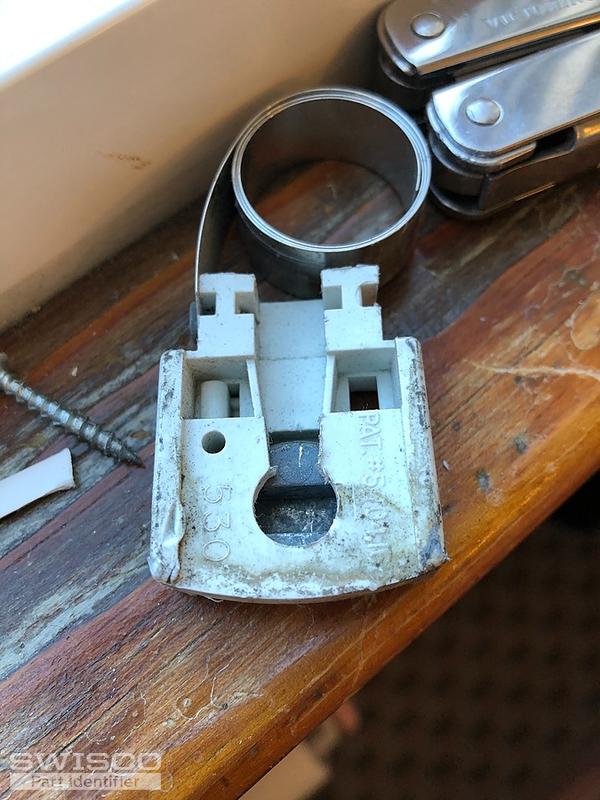

Hello all. I have these 20 year windows that I need to fix some parts. The coil has a patent# 5232208 and the shoe's is 5704165. The caps have disintegrated. I need this help asap. Thank you very much.

PAT.#5,704,10

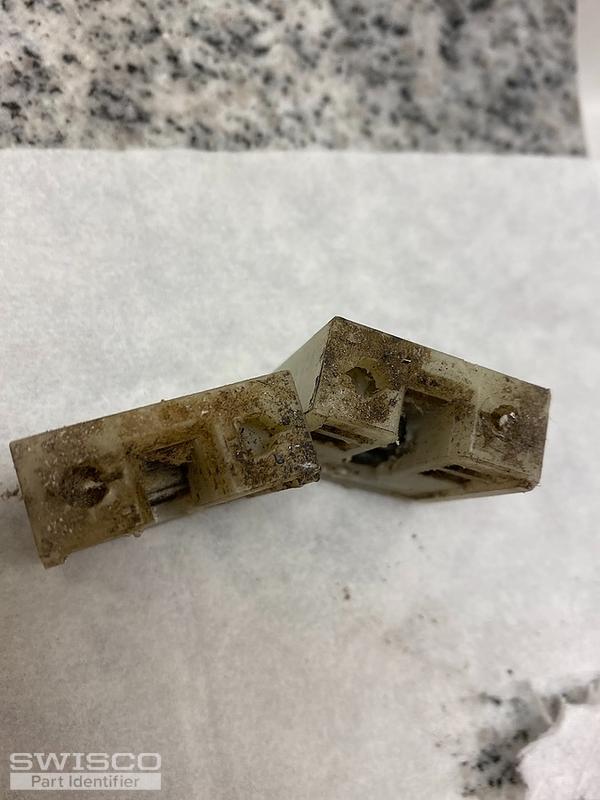

Hi, I am looking for an identification of these broken balances. Any help would be greatly appreciated. Garry

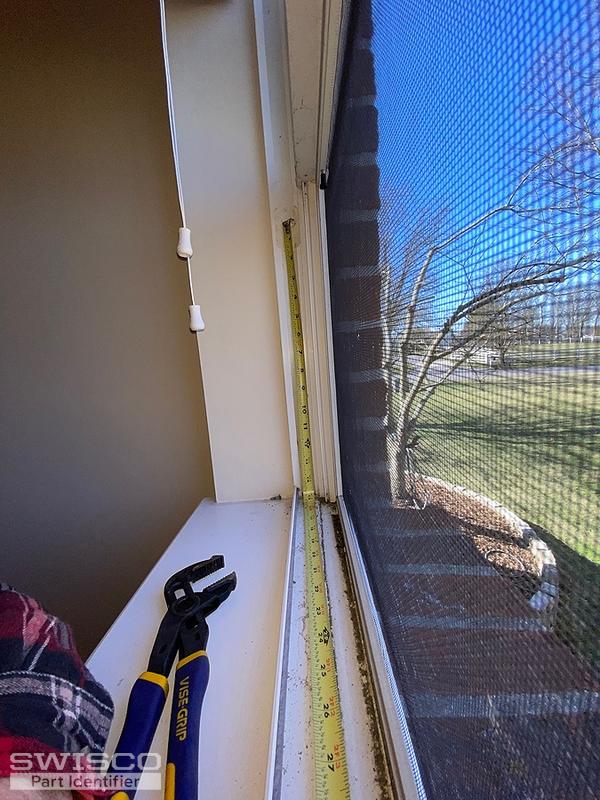

Need new left and right spring assemblies for small (~12") double hung swing out vinyl window. See photo of length of spring req'd.Need new left and right spring assemblies (36") for larger double hung swing out vinyl window.First two photos are small window with spring assembly removed on left and ... (cont.)

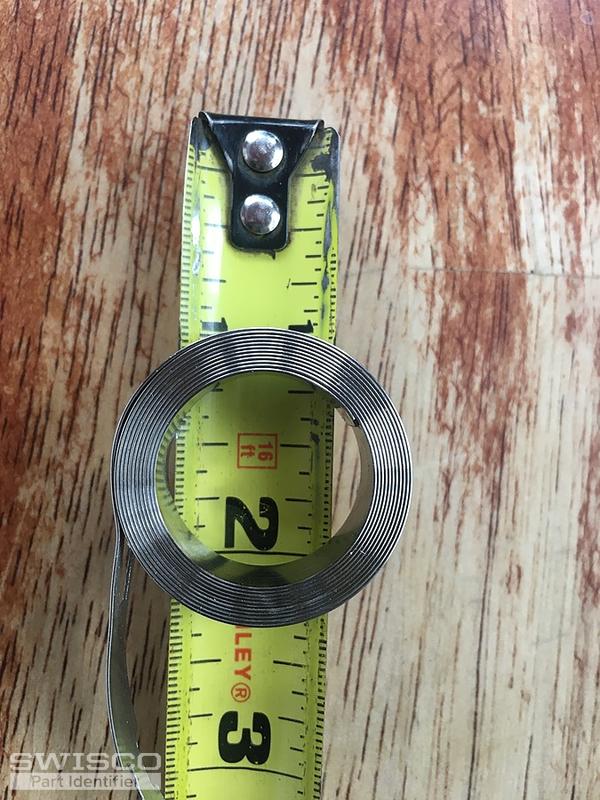

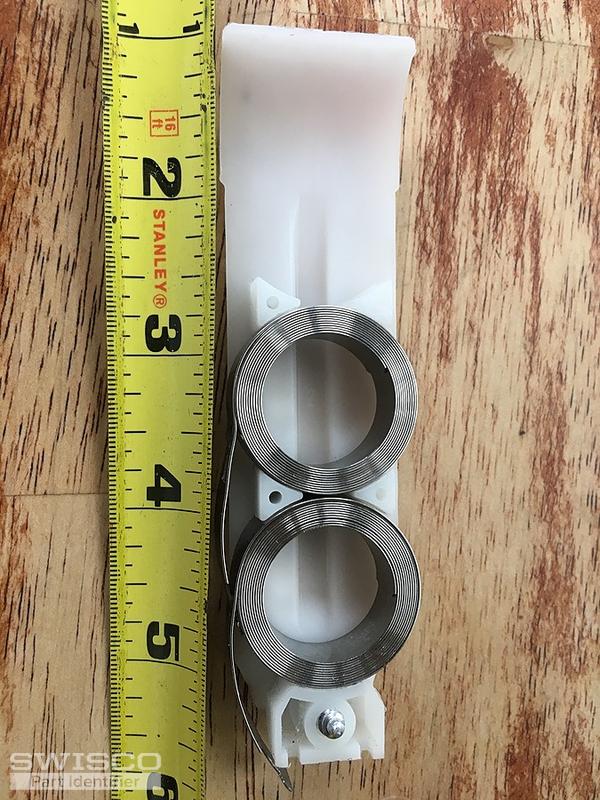

the markings are difficult to see, there appears to be 2 lines first line 5 0 35" p second line 2208 spring width 3/8" coil width 2 1/4" unit height 4 1/2" thank you

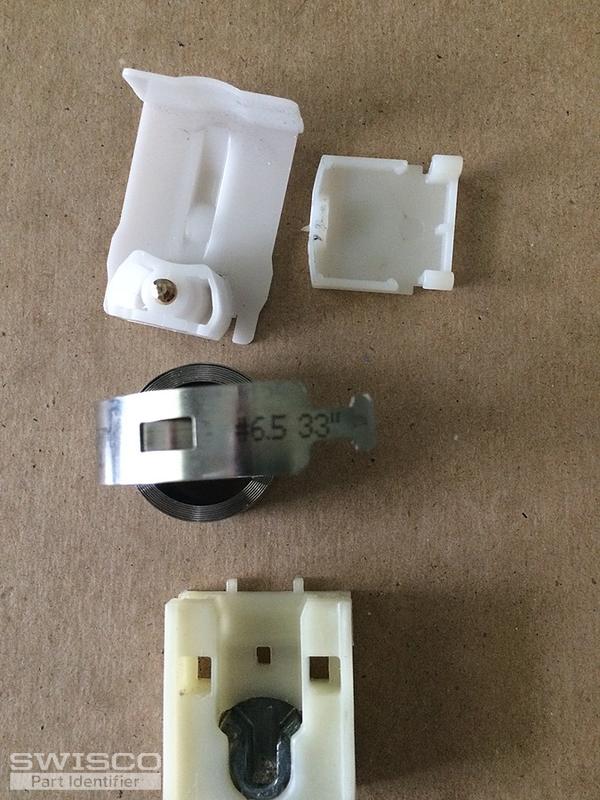

Trying to get part number, price & delivery for(see attached picture); Appears spring( #6.5 33")only has broken but would like complete kit if available. Current window is single hung, small bathroom window. Label on window reads; ABC Supply Company / Jefferson, La. / D0180 Simonton Windows 1701052 ... (cont.)

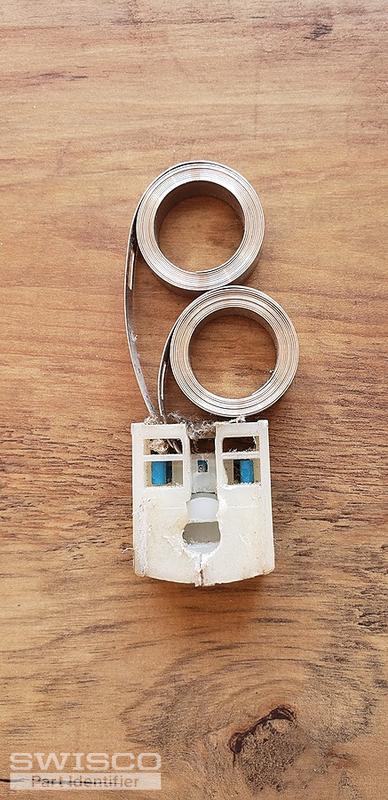

I'm trying to find the double coil spring and pivot shoe. Left side of single hung window.

I'm trying to fix/replace my window balance springs and cannot identify the exact part I need. I'm not sure of the weight needed to support the window sash.

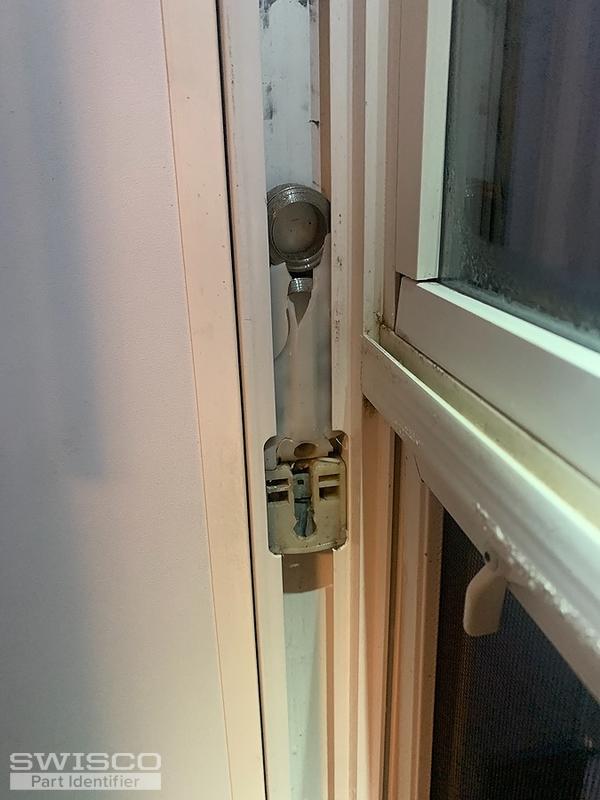

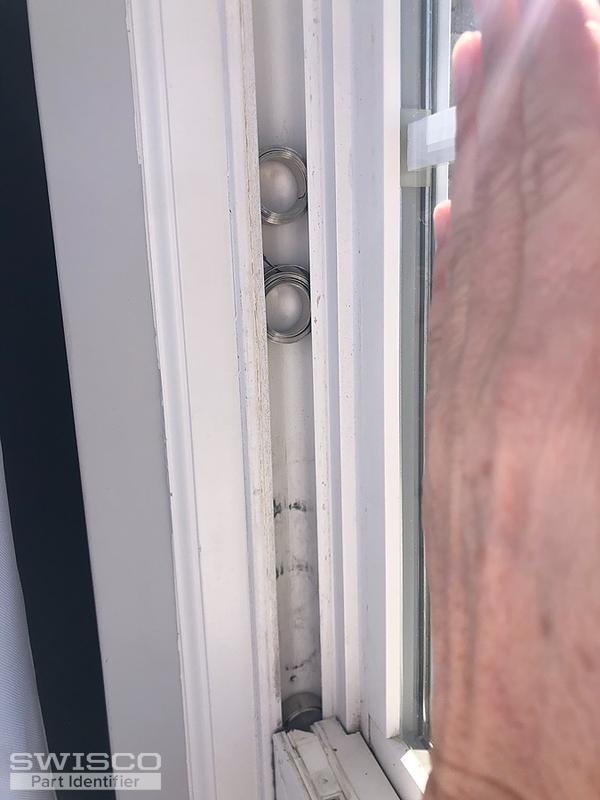

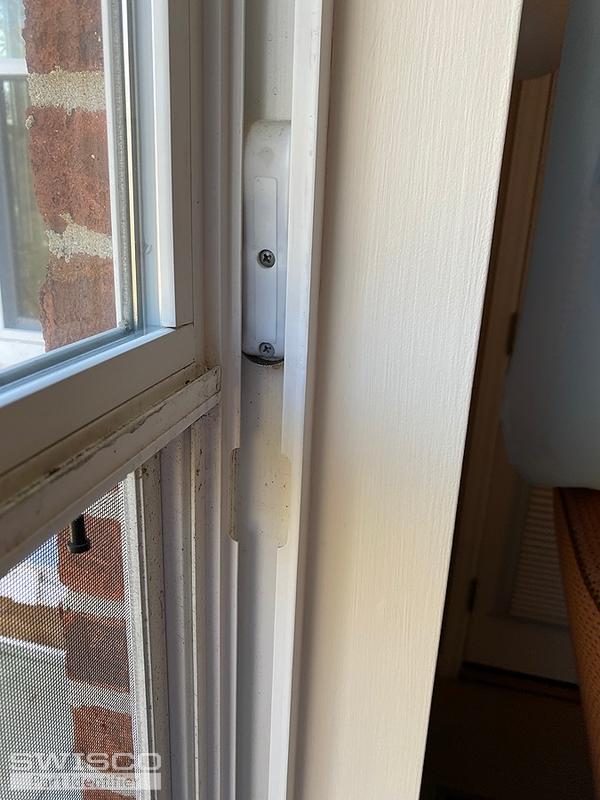

I am looking for balance assemblies for Simonton windows in my home. I don't know if you need the order number but here it is... 307894/11. It appears there are two springs in each assembly, left and right side. Do you have replacements? Photo attached is from an assembly still intact on right ... (cont.)

controls up and down also tilt
