Viewing all customer Discussions for:

S180-09 9 lbs Series 180 Coil Balance

I need a pic or video of how to assemble the s180 coil into the 15-187 coil housing pivot. Please tell me the 26-422 pivot bar fits into this new housing. Need a pic or video of how the this works

The window size is 27.5''x37.5''. The window is a Traco window and I believe they are out of business. Google got me to here using the Pat.# 5353548. Can you help?

Hi, I need to obtain two of these coil balances. They use a single coil. The weight of the pain is about 16 to 16.5 lbs. you can also let me know if there are other associated parts that I may need in addition to the coils. I may have to cut a slot in the track as there is no way to remove the ... (cont.)

I am looking to replace broken balance but not sure what one I need. Here are some pictures not sure if its a 6 or a 9. Window is 31x45 thanks Paul

On the metal rolls is stamped 731v on one and 536v on the other. Size is about 1 1/8th inch wide, 9/16ths thick and 5 5/8ths long. It is a 30 pound tilt window made by CDI.

I seem to have a broken balance on one side of my alliance sashlite window. The metal strip is messed up. One photo shows that strip and the other photo of other side appears ok

My niece has a sash that does not stay up. The windows are about 5 years old. The coil spring appears to have 'escaped' from the 9lb Quick Tilt Balance. Unsure what "series" (i.e 140 series) is needed.

I have a 30H x 48W double hung impact window that the balances on the lower sash have broken. The weight of the window is 48 pounds. The springs are mangled, and some are broken. The spring housing is brittle and broken as well. There are 3 coils on each side of the sash. I could not find any maki ... (cont.)

Tilt window (15 pounds) is hard to open. Do the coil springs fail? Note - I have not tampered with or removed the coil springs / shoe. Any advice?P.S. - I forgot to mention the following. The pivot shoes are still lively when I turn the blue disc while pushing into to position when reattaching th ... (cont.)

I need 2 balances like this for a sash that measures 34 3/8 tall by 49 1/2 wide that weighs approx 20lbs

Not sure how good picture is but you can see items that need replacing.... basically all parts for the balance. The number on what I think is the shoe is #6. Please let me know what I need to order! Thanks, Bill

constant forcecoil balance53.53.548looking for a balance for my repacement window

broken coil has 6CH laser etched on it. the balance has 6.. also included tags that were attached to the window

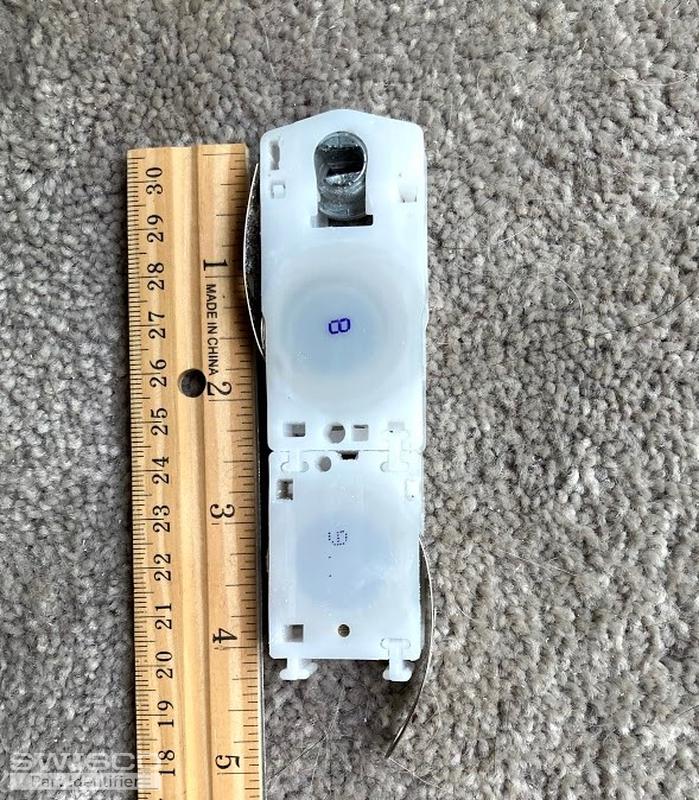

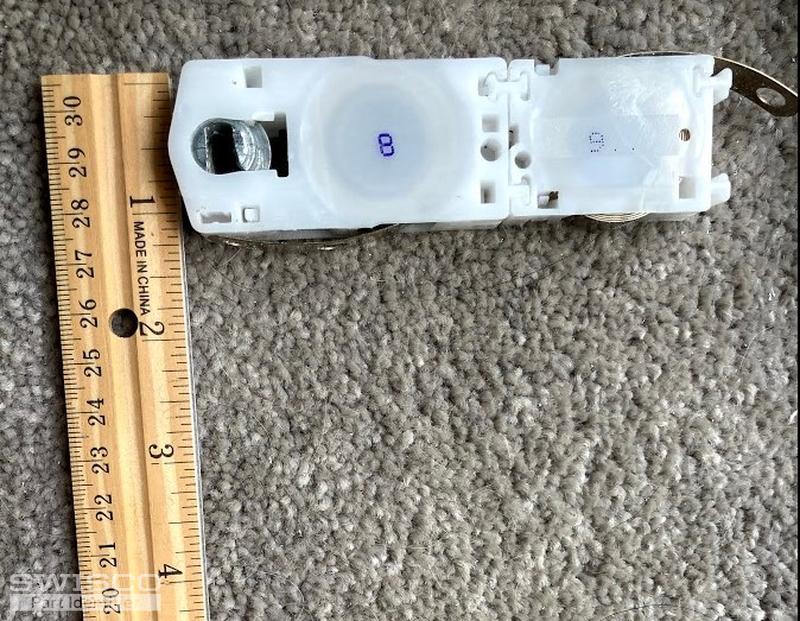

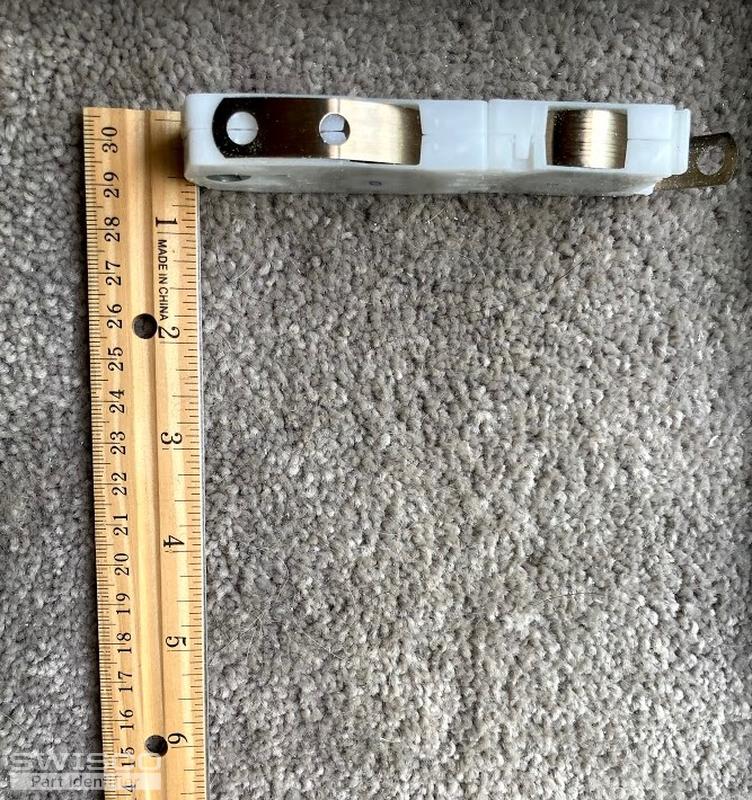

Hello-! I have a double hung window with one of the windows lost its constant force balancing, where it will just fall straight down. So I've took apart one of the functioning unit and took measurements & pictures. The failed unit have coils from the upper, smaller unit unwound partially and it i ... (cont.)

Hello hope all is well I'm looking for this part for both side R &L with spring . Thank you Exp-pro glass

Can we see pictures of the coil and shoe removed from the window? This will allow our parts experts to better recommend replacement options for you.I have attached a video on how to replace these balances to make it easier for you.

pat.5,353,548i have these constant force balances throughout my house. many of them snap up when you take sash out for cleaning. i measured the square footage of the bottom sash. i have ten windows, and i came up with 3 weights. 6 bottom sash weigh 21.4 lbs. 2 sash weigh 18.2 lbs.2 sash weigh 15 lbs ... (cont.)

Thanks for posting. This looks like our 15-087 Coil Housing Pivot. This is compatible with our Series 180 Coil Springs. Let us know if you have any questions.

I need to replace this constant force balance system in a single hung window measuring 35 3/4 x 59 3/4 in an 85 series single hung window. The number is faded but it appears to have the number 9 for LB rating.

Hi, looking for coil balance spring stamped # 9.
