Viewing all customer Discussions for:

15-259 Coil Balance Pivot Shoe

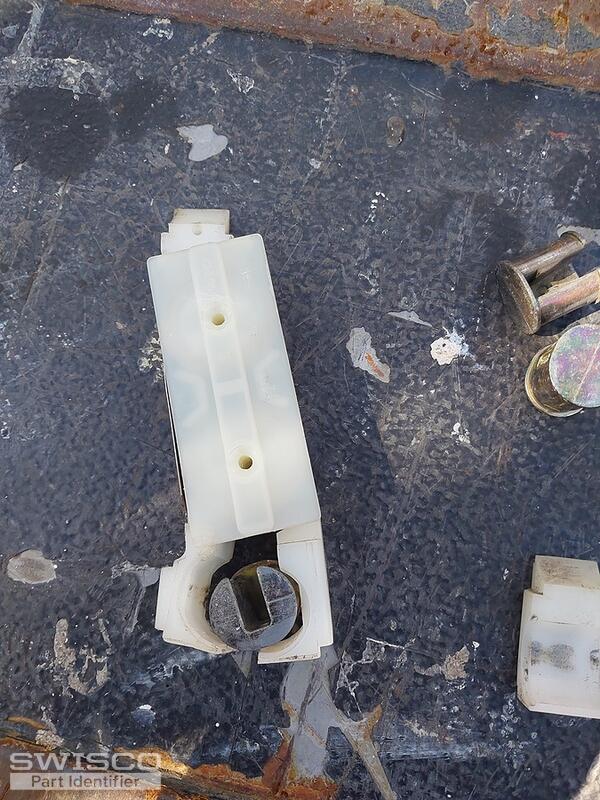

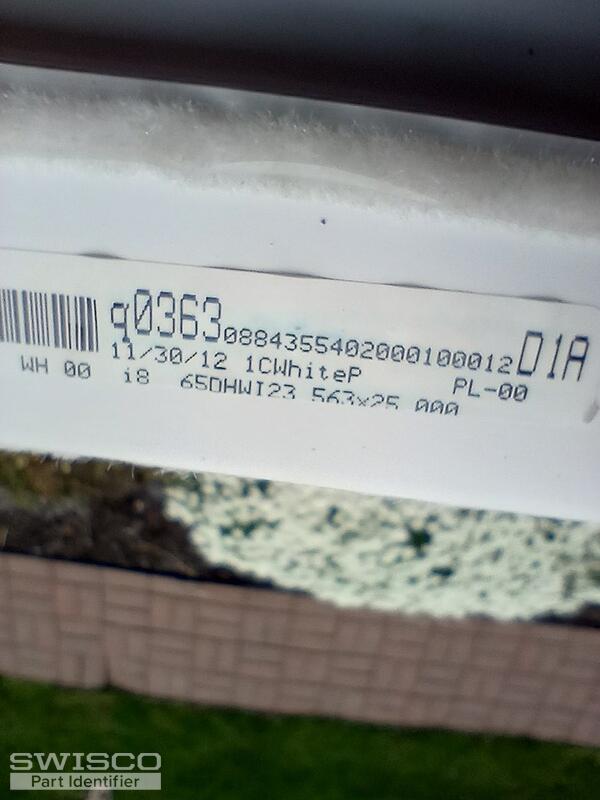

I need 1 airlock (picture 1), 2 of the pivot bar/foot (picture 2) and 2 balance assembly's (picture 3). picture 4 was found on one of the double hung windows Where can I find parts and window repair workers for this product.

I think it's a Pella window

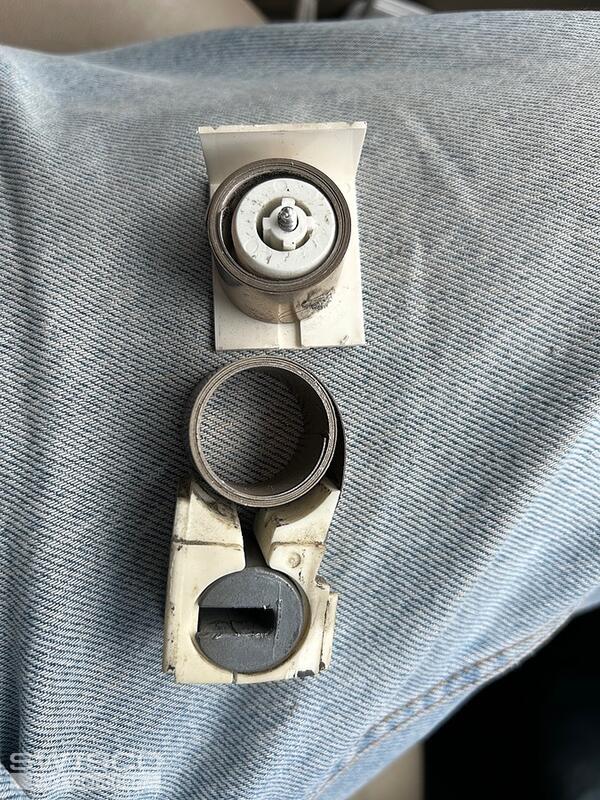

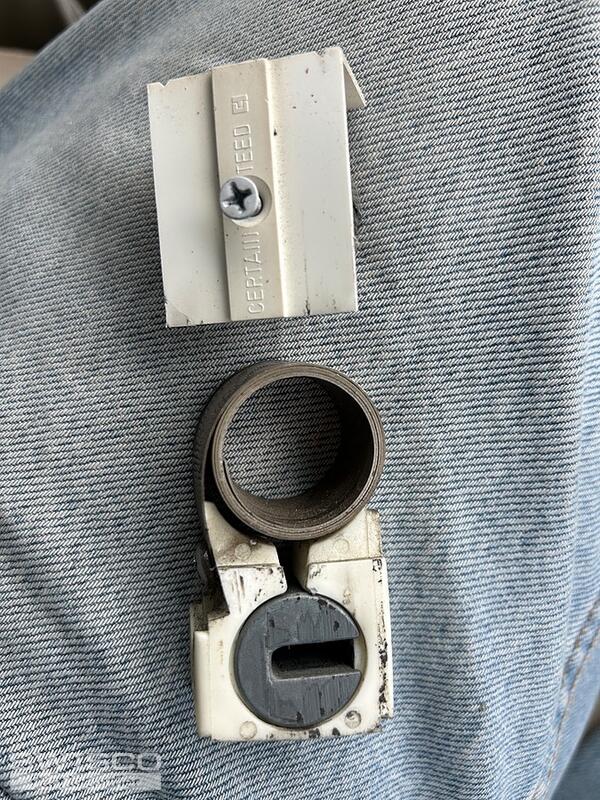

We have Home Depot windows we bought in 2007. I believe they are Simonton 6500. See picture for the broken balance. I see the parts for replacement but since it is two coils how do I do weight for coils. I assume I weigh the window and decide weight by 4 for two coils on each side ... (cont.)

I have Simonton Series 8000 Storm Breaker windows purchased in 2006.

Need parts for 2 windows

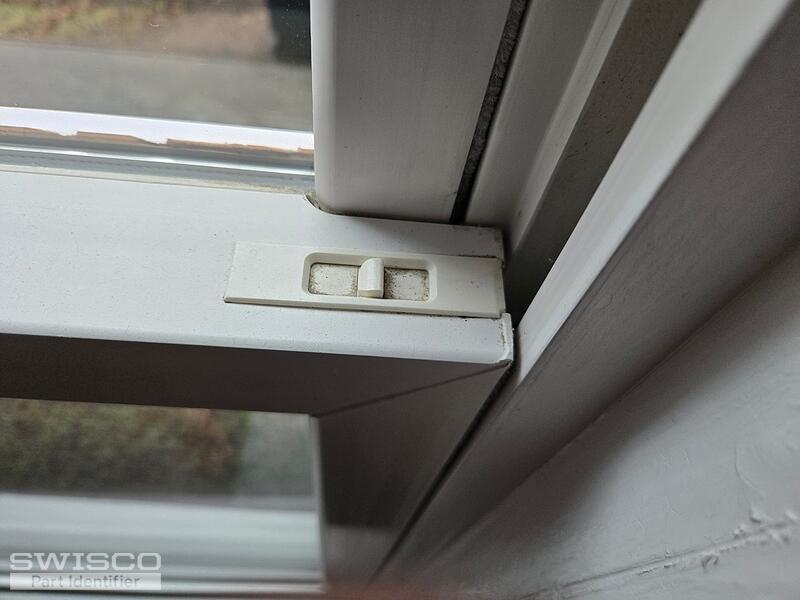

I need help to get replacement balance mechanism and tilt latch for this window

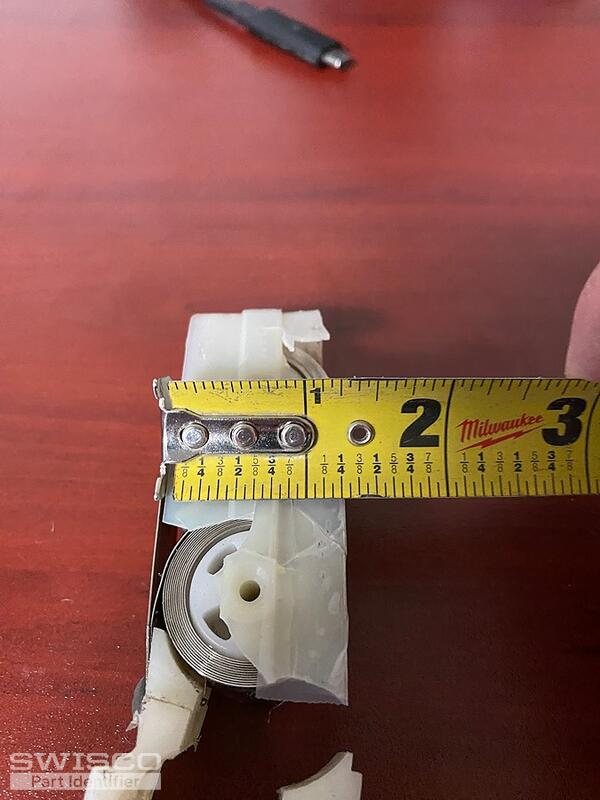

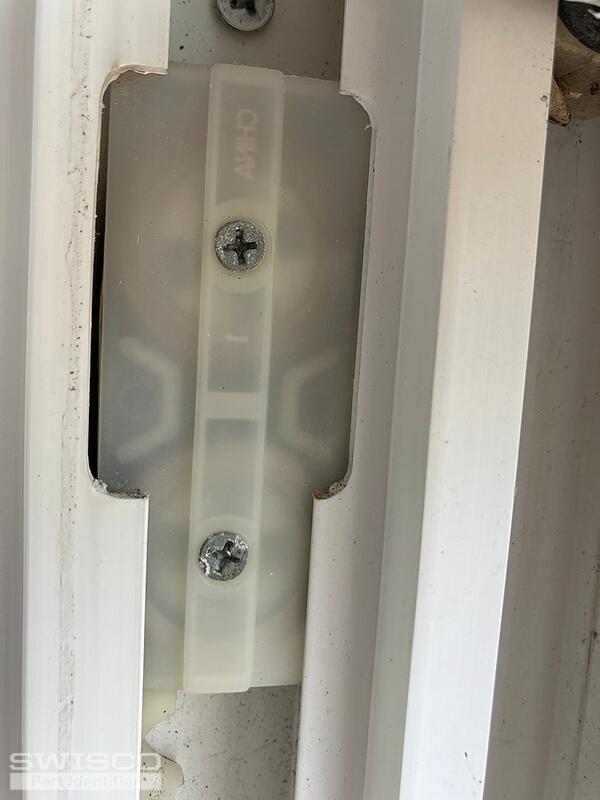

I am would like to replace all 4 coil balances. I have included pictures but it they are double coil balances, the cover is aproximately 1-1/4" wide, 13/16" deep and 3-1/4" long. The coils are 3/4" thick and a roughly 1-3/16" diameter. If you have an questions please feel free to reach out to me. ... (cont.)

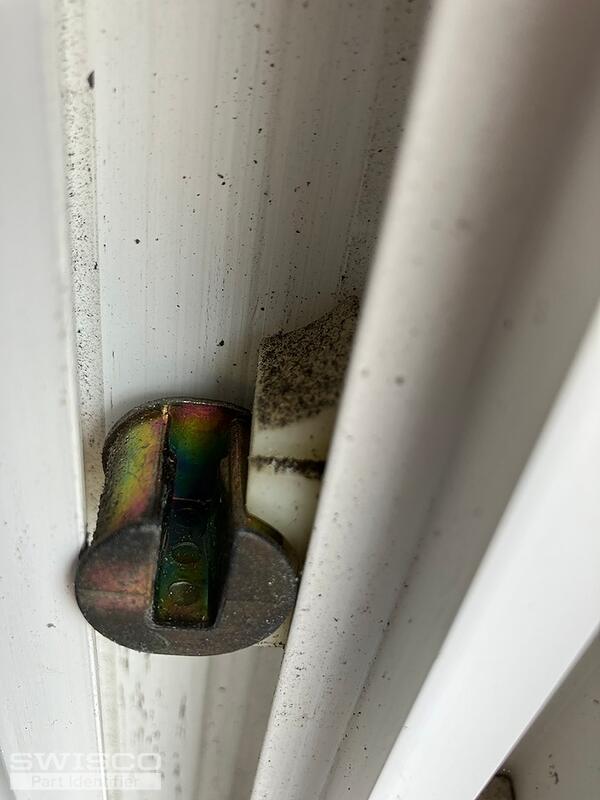

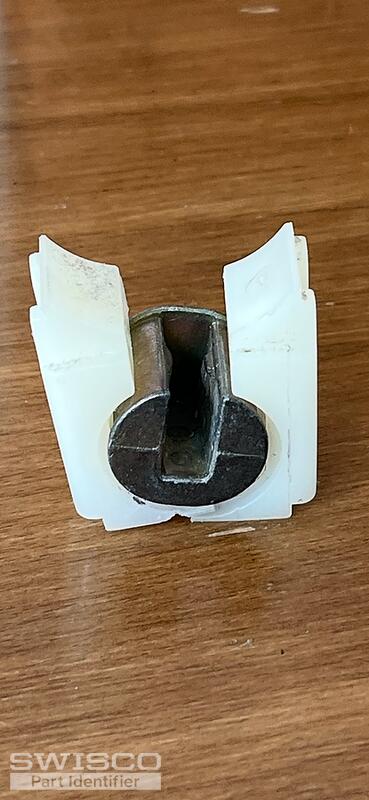

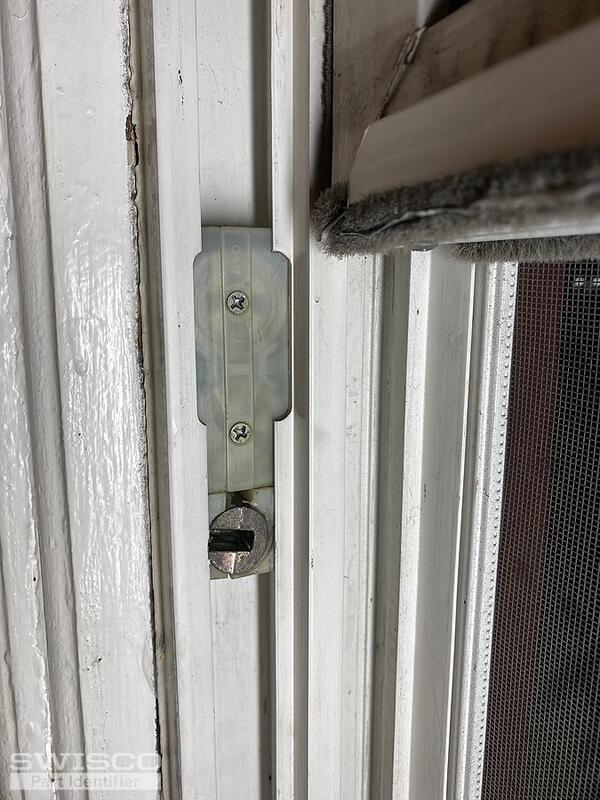

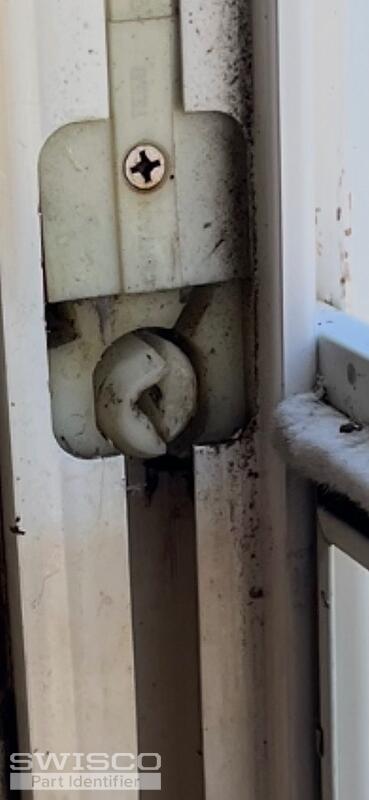

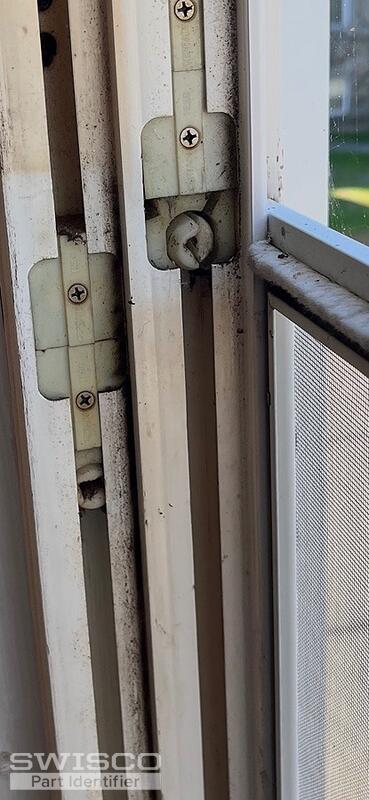

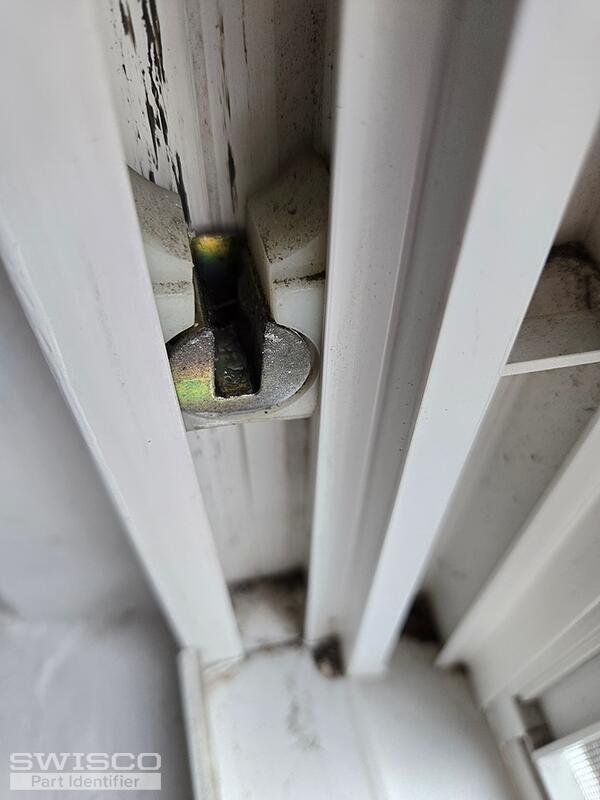

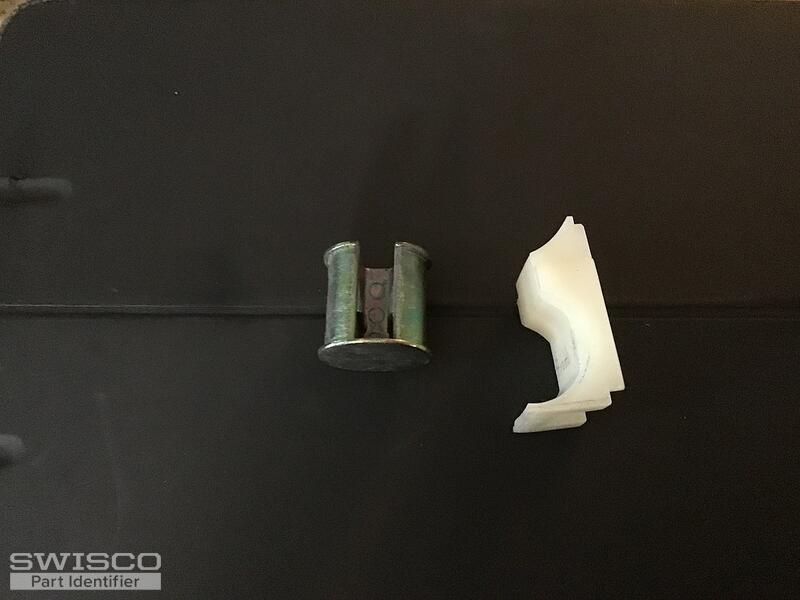

Looking for pivot shoe for window. Ordered 15-192 wich is close but barrel is wrong. Pivot bar does not fit in it.

I have Simonton 6500 series double hung coil that I cannot read the weight off of. The window is 26 1/2" wide and 13" high measuring the glass, 30 1/2" and 17" high including the frame but inside the track, Please advice what weight coil(s) we need, THANK YOU for the great video!!! I had spent an h ... (cont.)

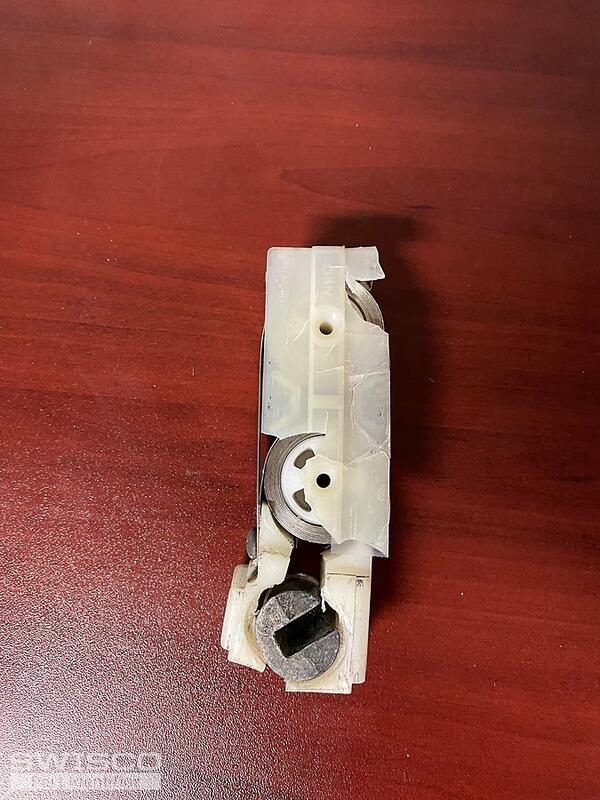

Origional plastic housing retainer for Siminto windows cracked, faulty design.

My upper part window dose not stay closed and slides down

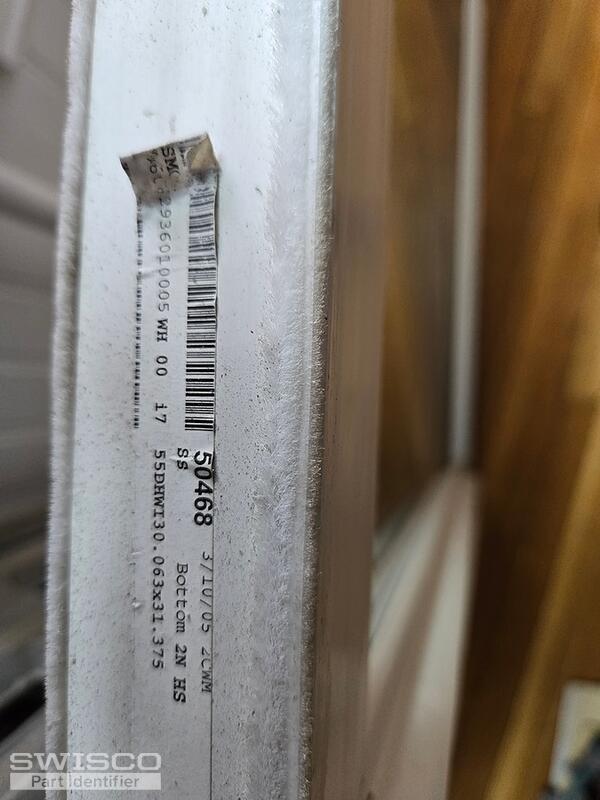

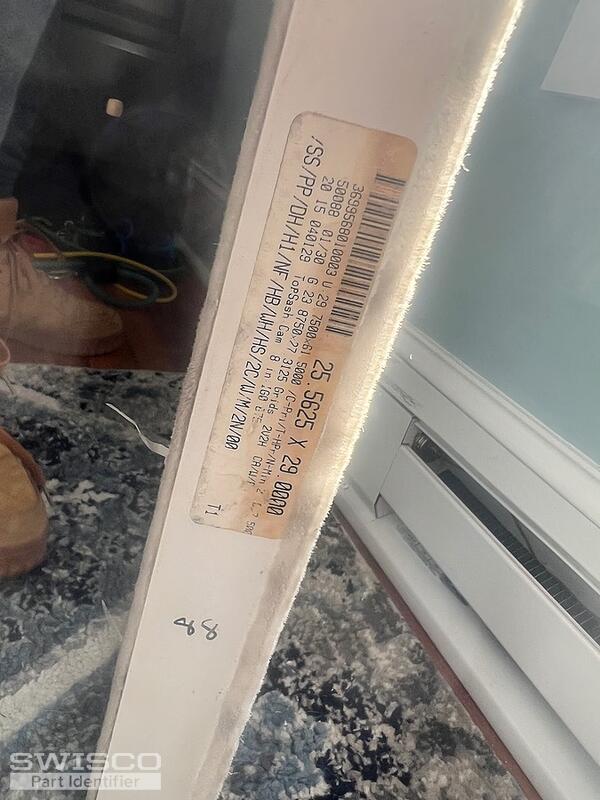

SIMONTON WINDOWS code sim-1 H-R25-48x80 Series: 07-80 DOUBLE HUNG ASTM 588 and HUD UM 117

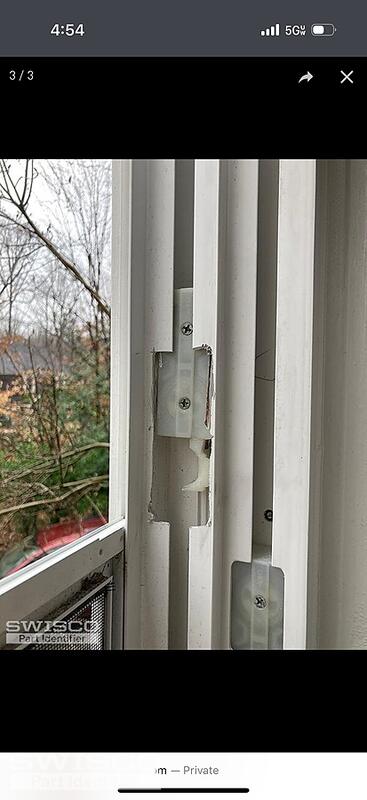

The picture is the side that is on but in other side is broken and missing parts

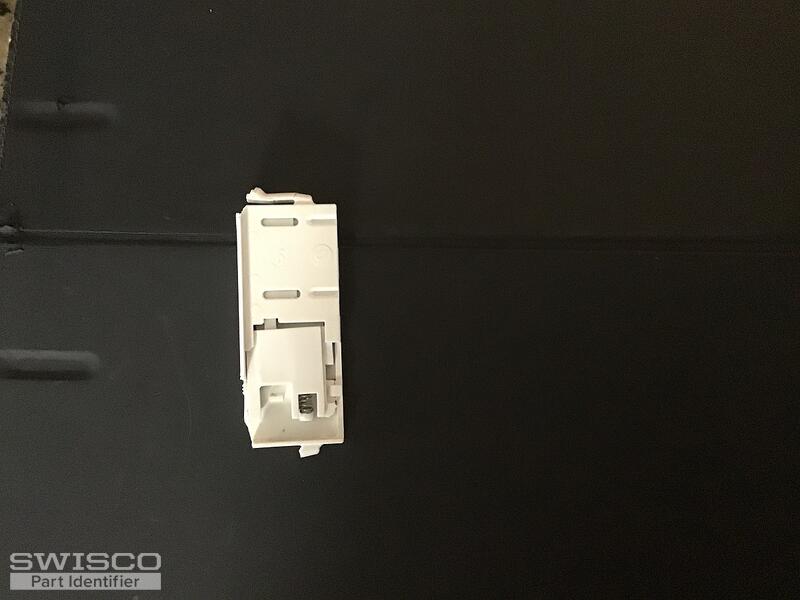

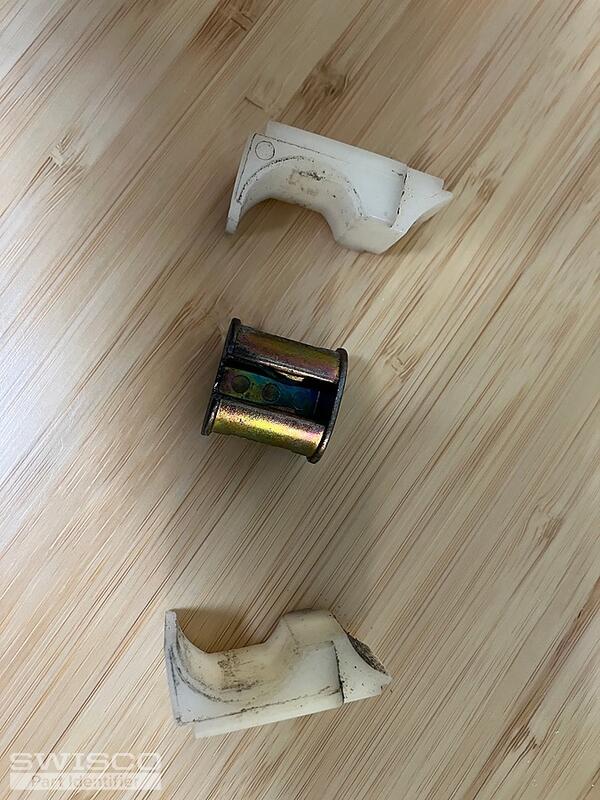

I need 1. Two pivot housings (the plastic housing in which the cast brass hinge/pivot sits), as well as 2. Two white sets of tilt latches (2 lefthand side, and 2 righthand side). The measurements of the tilt latches: Length (not including the spring-activated triangular part which latched to the win ... (cont.)

I need to replace some of these on my windows. I do not see the exact part on your site. I was wondering if there is a comporable replacement part that does not look exactly like this. Thanks Brian

What part # would these be? 1st 3 pics are of the balance needed and the other is a cam lock. Distance between cam lock screw holes measure 2 1/16". Came off a doublehung Simonton window purchased in 2011.

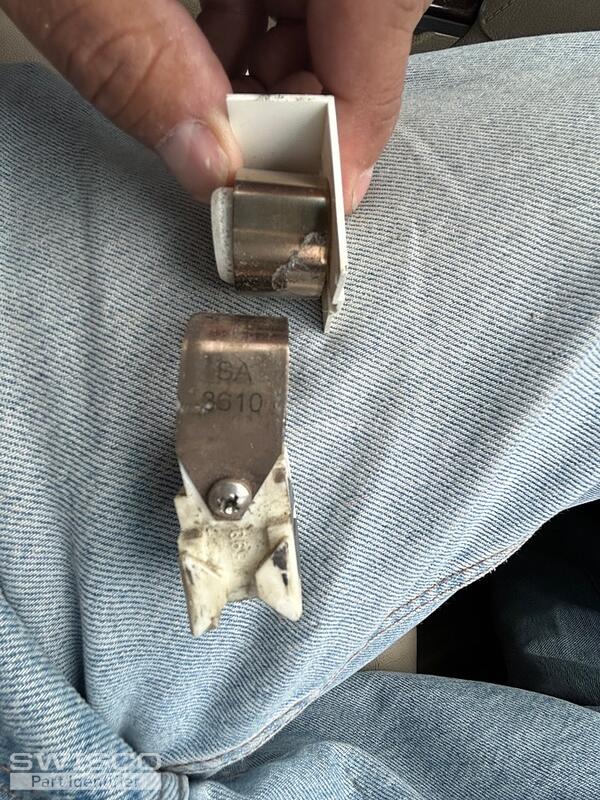

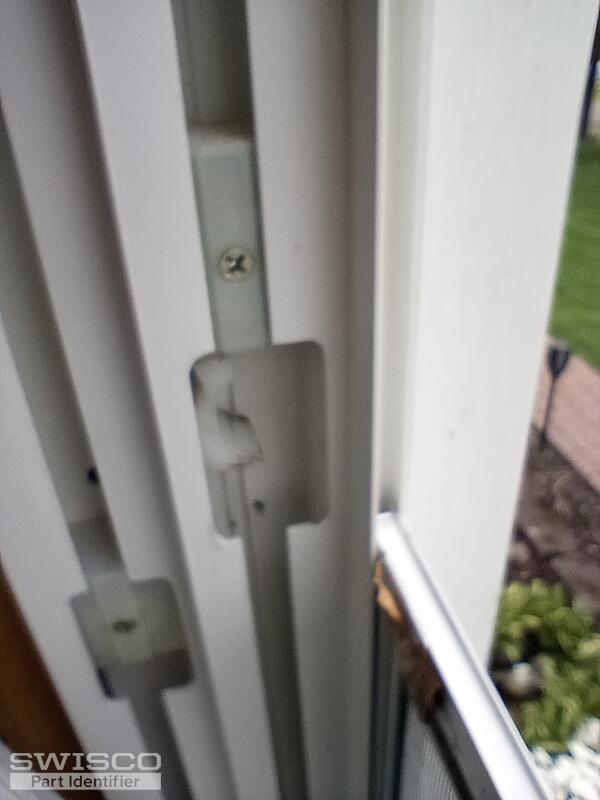

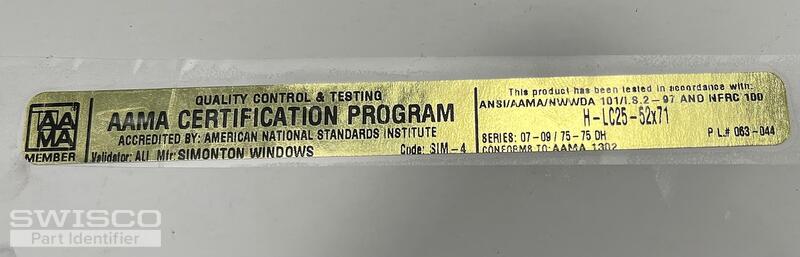

Needing to replace the shoe brake/pivot for a Simonton DH. Labels indicate window is a: SERIES: 07 - 09 / 75 - 75 DH H - LC25 - 52x71

I believe my window balance setup is a Simonton. My window coil balance is stamped with - 10J. It's a single coil balance. The bottom half of the double hung window weighs 17 lbs. I'm unsure which coil weight to use as I don't see one for 17 lbs. Thank you,

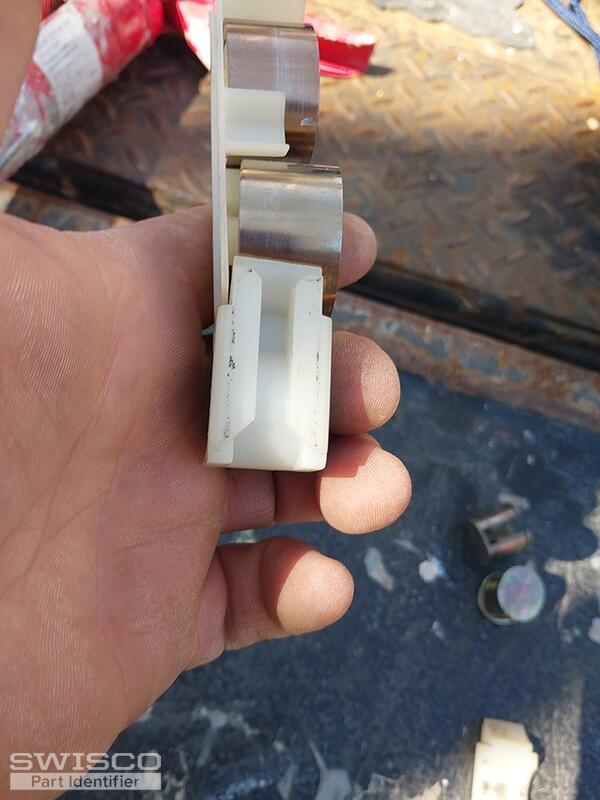

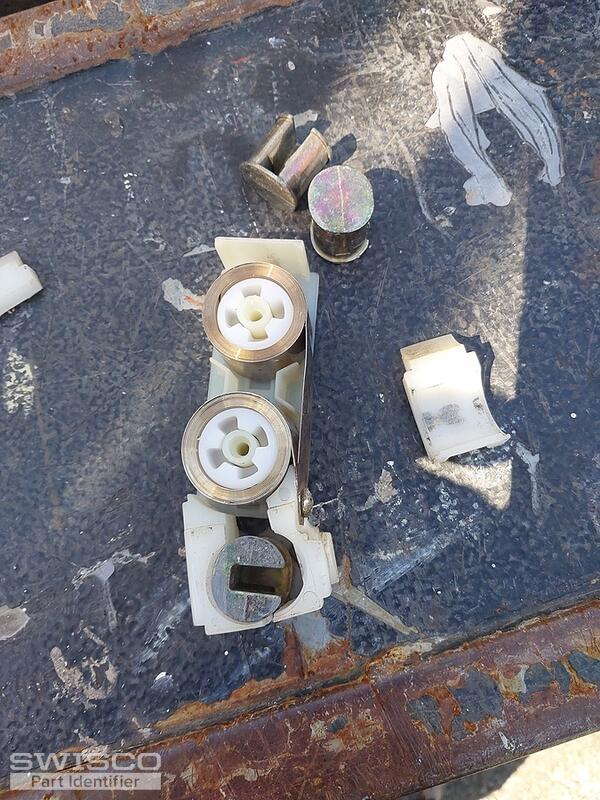

I am ordering a coil balance pivot shoe and need the coil that goes with it. It says it should go with series 156 but can’t figure out what weight it is.

I need the above named part including housing, barrels, coils, etc. for complete replacement. Attached photos show the part, whioch contyailns no visible numbers or indentifying marks.
