Viewing all customer Discussions for:

15-111 Pivot Shoe, 1/2" Thick

Trying to replace coil balance and pivot shoe in Simonton Window. Please see attached photos. Any suggestions or advice on where to start would be greatly appreciated. Thank you

I am hoping to match the sash springs in my window. numbers are as followspatent #'s5.232.2085.365.2086.584.644 B2thank you for your help.Gerry

Hello, I hope you can please help. We have several broken coil balances, but I'm not sure which style or series is the correct replacement. We could not locate any stamps or markings on the coil. Attached is a photo of an intact balance. Can you please advise what series or style to use or what ... (cont.)

I need to identify all the components, including the spring assembly, the locking mechanism, and the side pins on the sash. The locking mechanism has a number of 4.610.108 on it.

I'm looking for a replacement of the part I included pictures for. I need this coil to be 72" long.

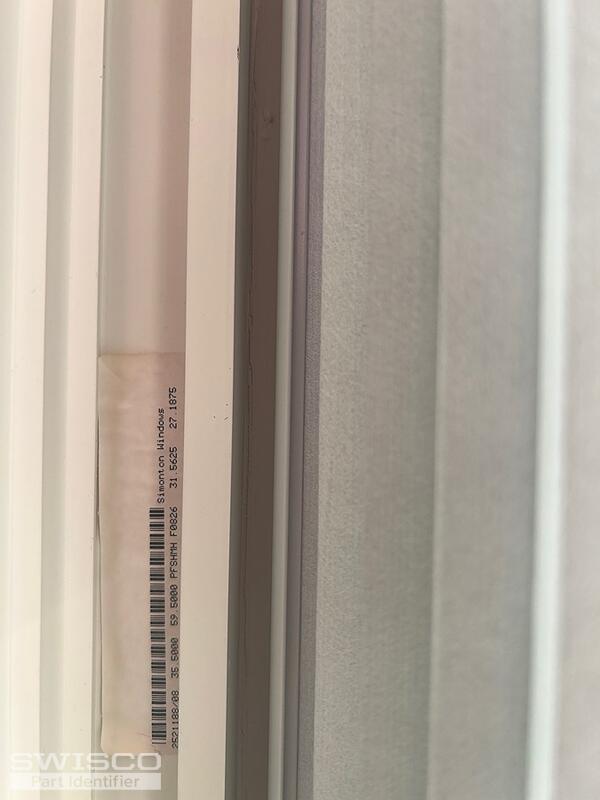

do you sell the balance asssembly for simonton windows double hung windows i include a picture that shows the simonton window part number, the window is 23 years old

Please help in trying to determine if you have something to replace my broken pivots. The 26-373 or 404 look to be close but mine are plastic/ ceramic? I don't know the brand of windows, there are no markings or numbers visible. All vinyl

I'm looking to find replacement parts for the coil balances and pivot shoes for several windows in my house. The one pictured had coils marked with 5 lb and 6 lb weights. The cartridge holding the coils is approximately 1 19/32" tall, 1 5/32" wide, and 9/16" deep. The pivot shoe assembly is approxim ... (cont.)

Looking for help in ordering the right window spring and sash retainer pin. Thank you in advance! TW

Hello, Can you please help me finding a balance for the following sash size: 17 x 23 1/2 Tall, balance does not have a spring, inside track is 1 1/2 wide, 5/8" deep, and openning at front is 5/8" Attached are pictures.

I am looking for 3 different parts. I think they are called 1. coil balance shoe 2.window double coil balance system 3. tilt window latch. Its the pieces in picture 4, 5 & 6. I do have the loose parts that we took out of the window if you need the actual pieces. I attached a picture of the only ... (cont.)

Need 1/2 INCH BALANCE and PIVOT Bar for Simonton Window 4141011/02 (35.5 x 59.5 -PFSH LEAR F 0031

need help identifying for this part.

I am looking for replacement Pivot Lock Shoes as one is completely broken, Coil balance and coil support. Can you identify, based on my photos, what replacement part numbers I need? I think I need 15-111 Pivot Lock Shoe. Mine is 1" tall, 1 1/2" wide and @ 1/2" deep. (See attached photo) I think ... (cont.)

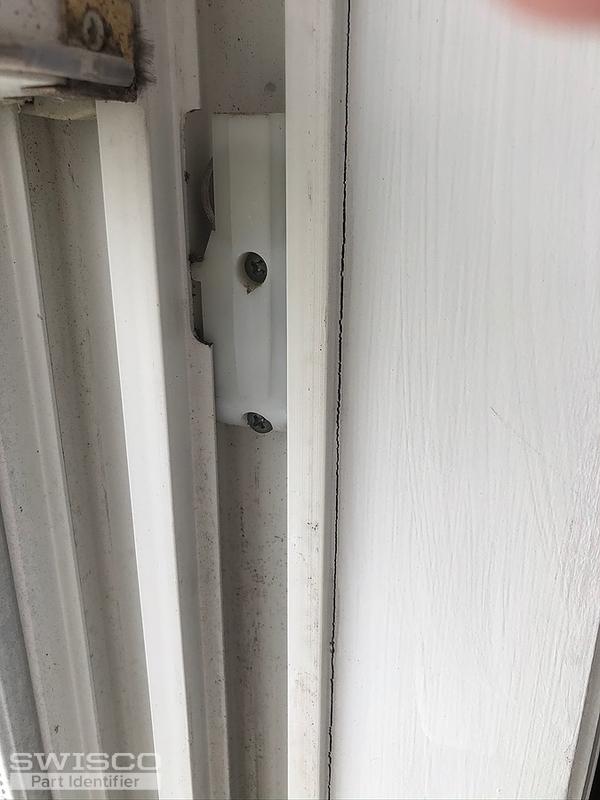

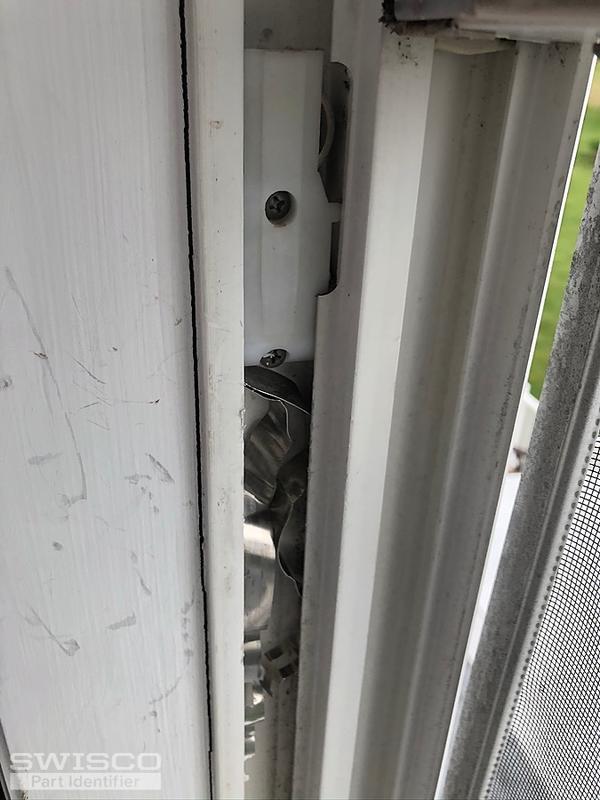

Please see attached pics of spring broke on a vinyl window. It is left side that is broke facing the window as seen in pic EFFE. Pic 7006 is the right side and what it looks like normally but on the right not the left which is broke. I did find on the bottom of the window the number F0878. 5/21/99 ... (cont.)

I need the part in the pic for 2 sets of windows. I just don't know what that part is exactly.

As per my chat with a Swisco help desk rep, this am, attached are pictures of the window parts I need. There are two pictures of each part. One is totally broke, the other seriously cracked. I need one for the left hand and one for the right hand side. Please let me know if you have them or someth ... (cont.)

Broken balance Only paten numbers available

Thise has three spring steel coils to hold window in open pisitions

Hi! The coil balance(s) broke inside the window frame. I believe I need a 15-111 shoe. The attached coil has a stamp 5.5 35" The unattached coil just has a 3 stamped on it. It is a double coil system. They are 1/2 inch wide. Also, the latch is broken. I believe I need a 26-243 left and a 26-244 r ... (cont.)
