Viewing all customer Discussions for:

15-192 CertainTeed Pivot Shoe

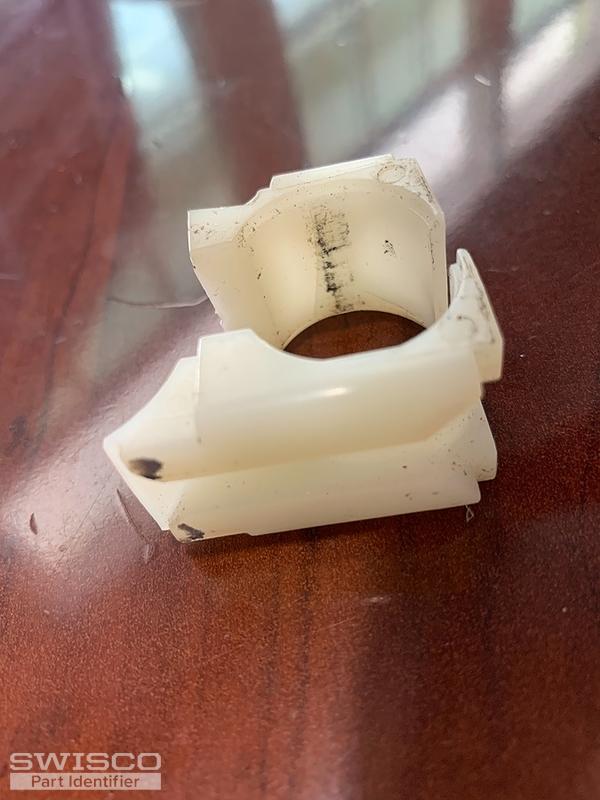

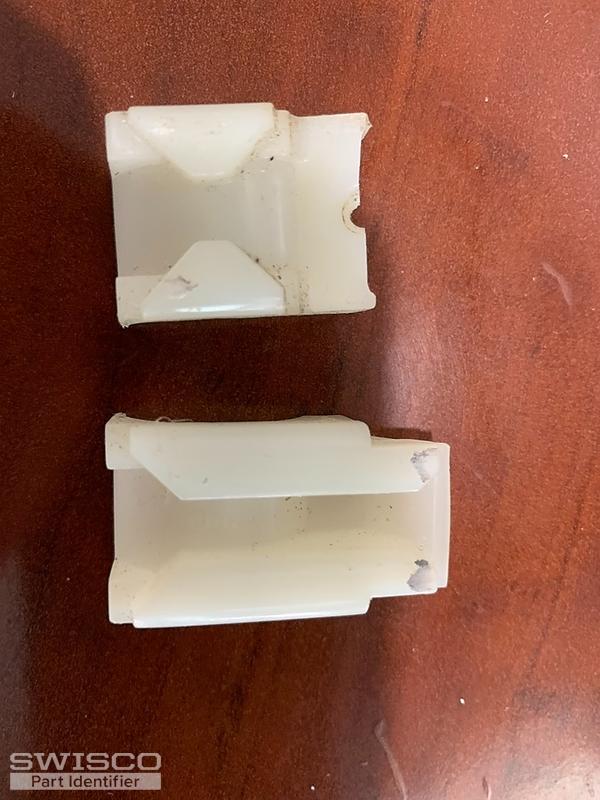

Got a little carried away cleaning these windows and broke a couple of the pivot lock shoes. Can't quite figure out the replacement part. These are 1 1/2 inches tall, 1 1/4 inches wide and 13/16 inches deep. Showing a broken one and one that still works. Please advise. Thanks! P..S These window ... (cont.)

Need balance replacement

5 of my simonton windows have the top window that fall if the lower window is not closed. the parts on each side of the window are broken. Can you tell me if you have the parts? If yes, which part #?Thank you in advance,Anne

Simon ton double hung. 6156049/01 35.25" by 59.25" SPDHWI h0068 6/22/05 A17WH I have 24 of these windows to which I have to replace all the weather stripping including the wool feathering. The attached photos show the bottom molding and the feathering. The slot for all appears to be 3 ... (cont.)

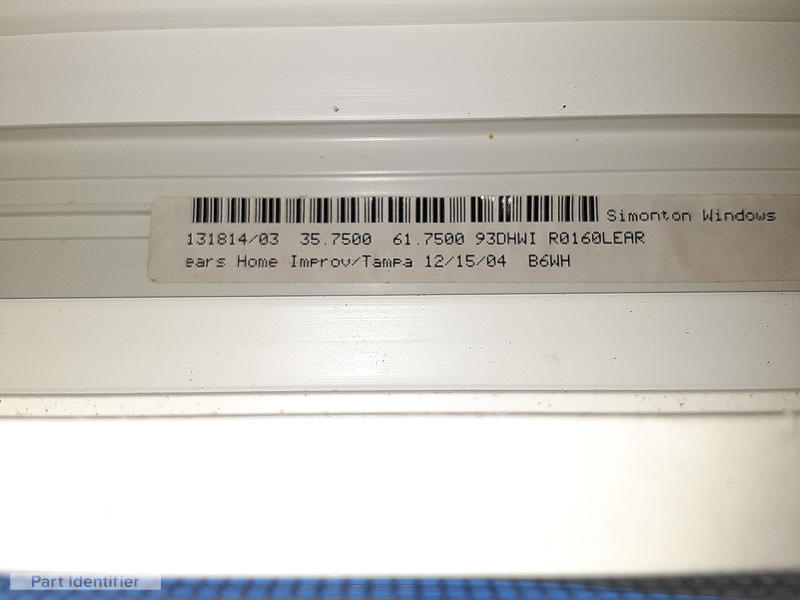

Per my email of january 16....markings/numbers found on window label.... 13184/03. 93DHWI. R0160LEAR. B6WH

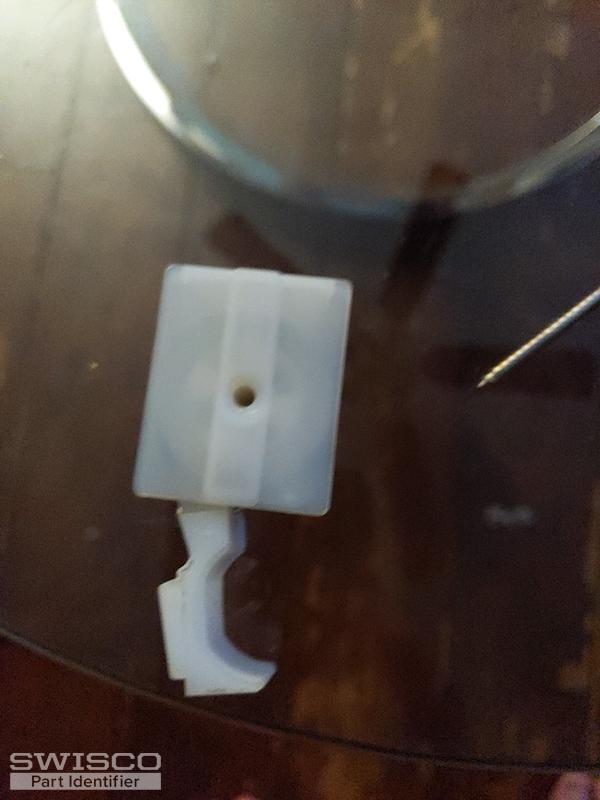

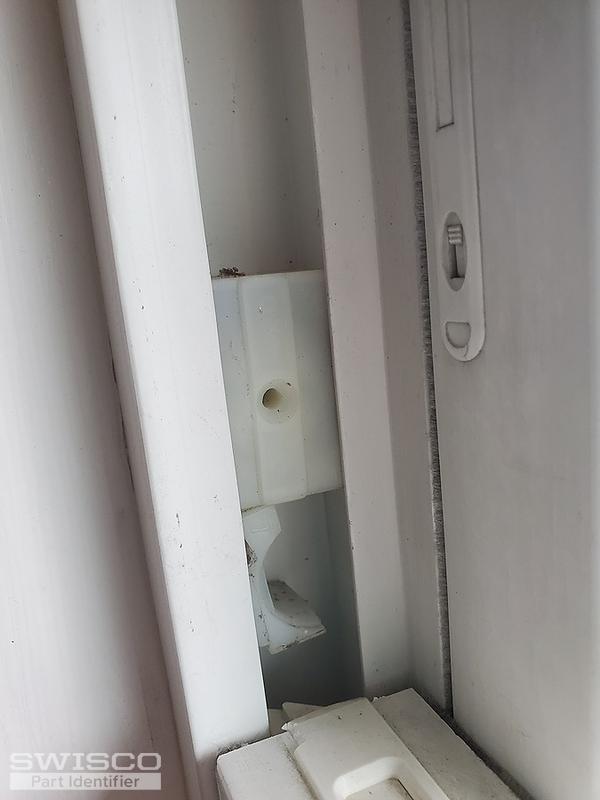

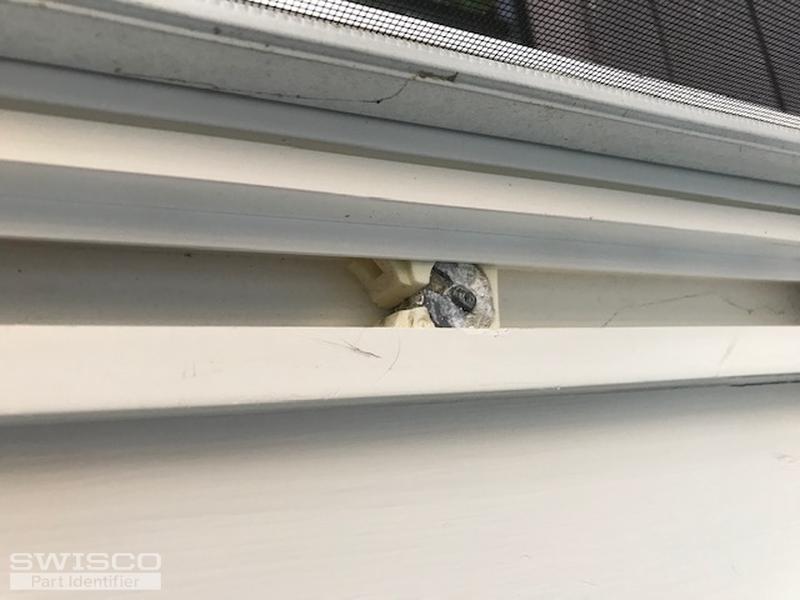

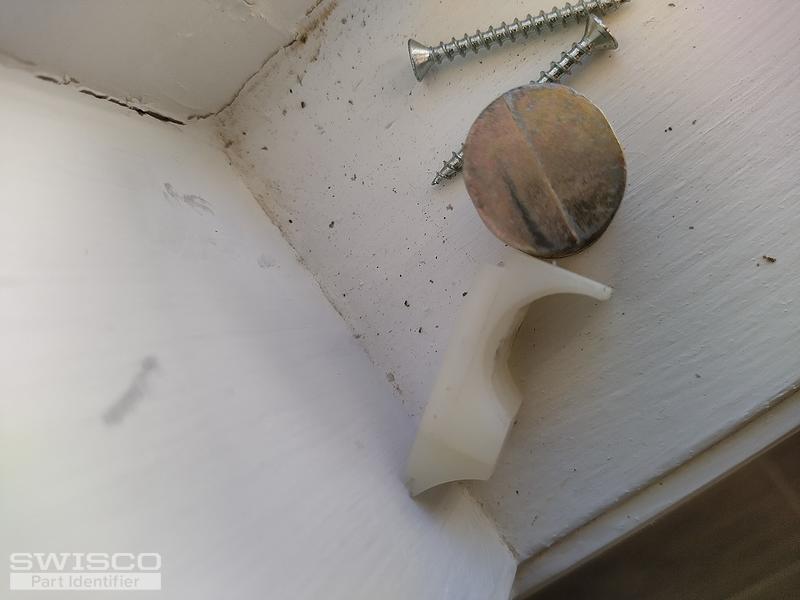

Hi. I broke both both pivot shoes on my window. Please sea attached. What parts do I need to replace them? Thank you

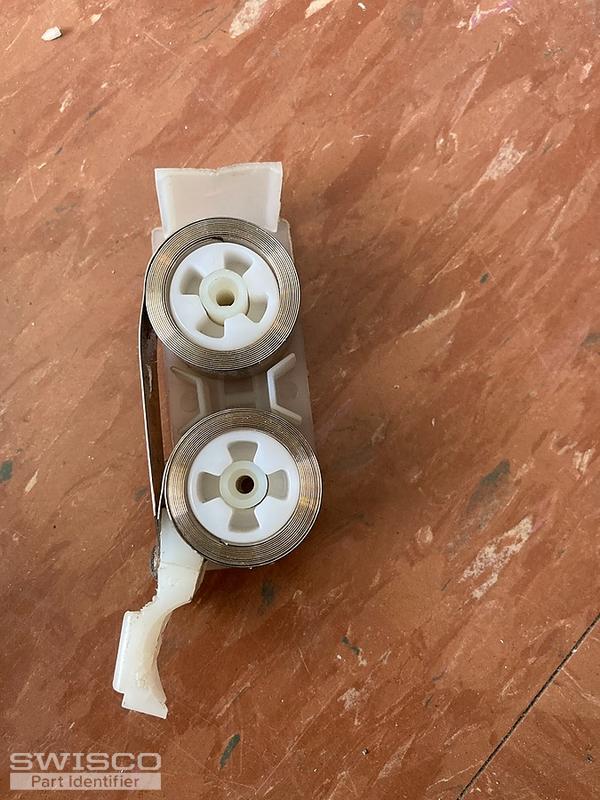

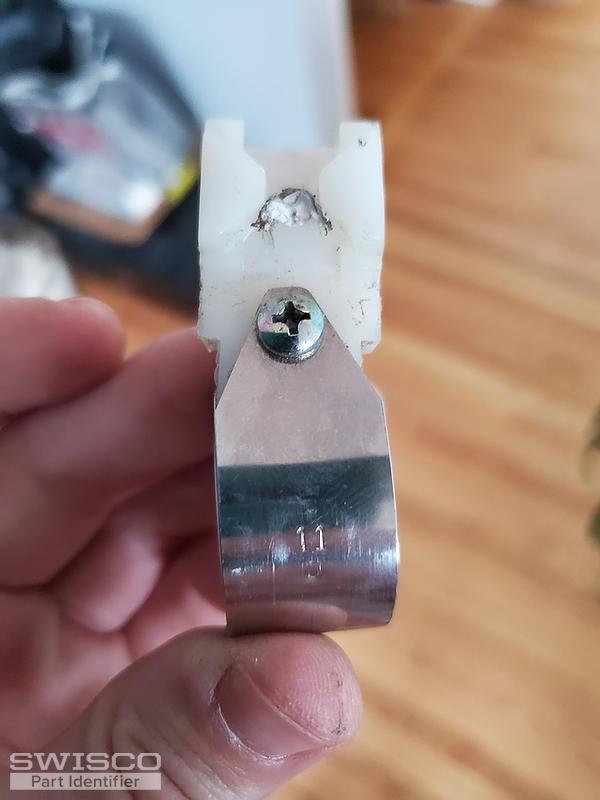

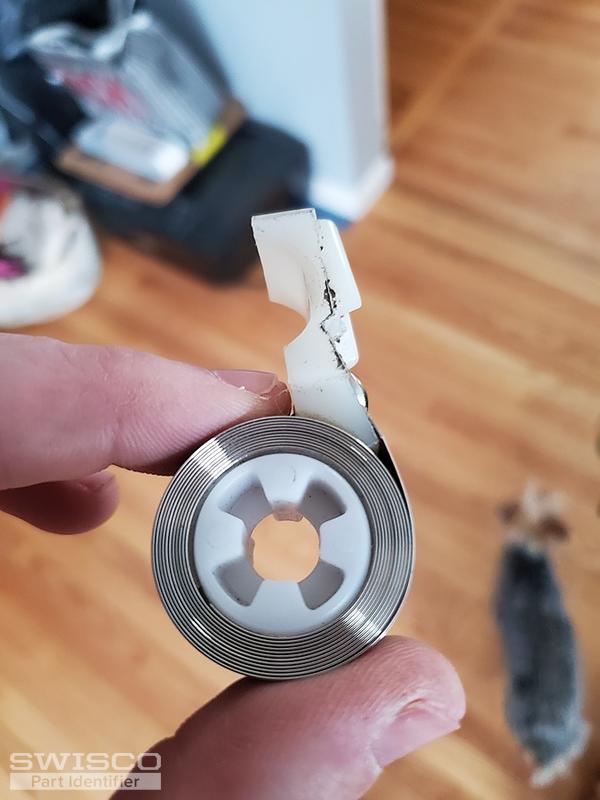

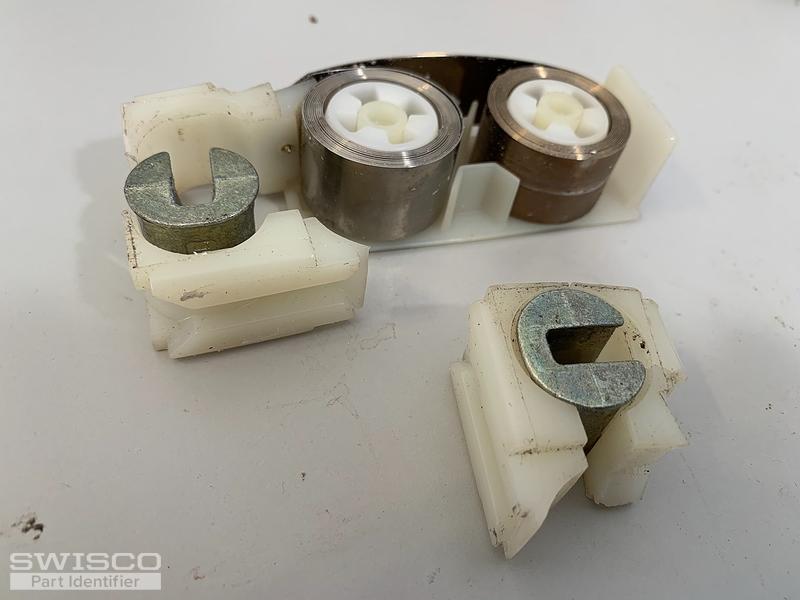

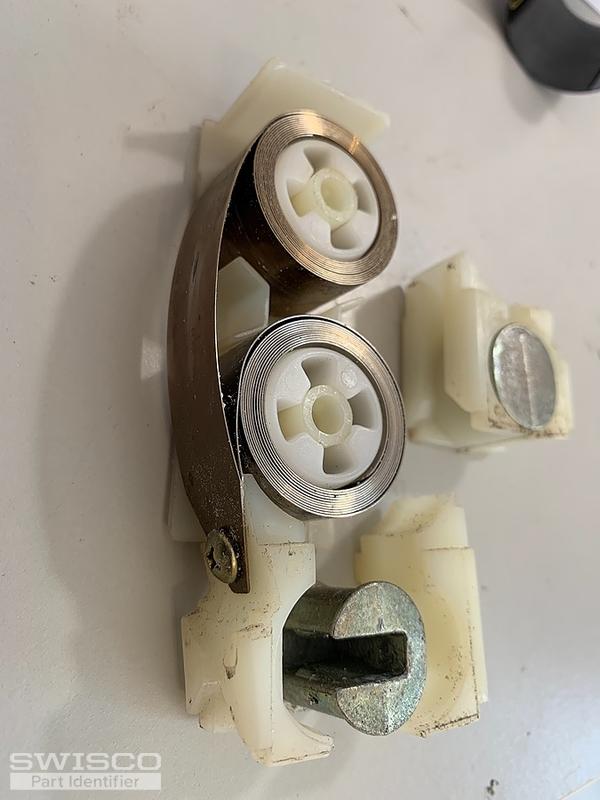

Hello I have a couple a broken tension bars . Cannot find any numbers on the actual cover for weight but as you can see in the photos it is a double coil and on the coil stay at 408 . The shoe is busted off I would like to see if I could buy the whole entire kit not individual parts. Thanks ... (cont.)

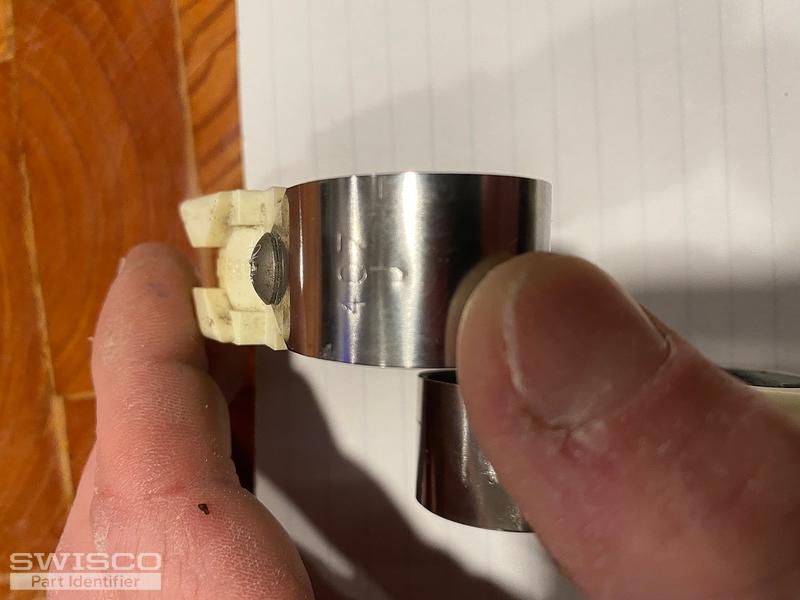

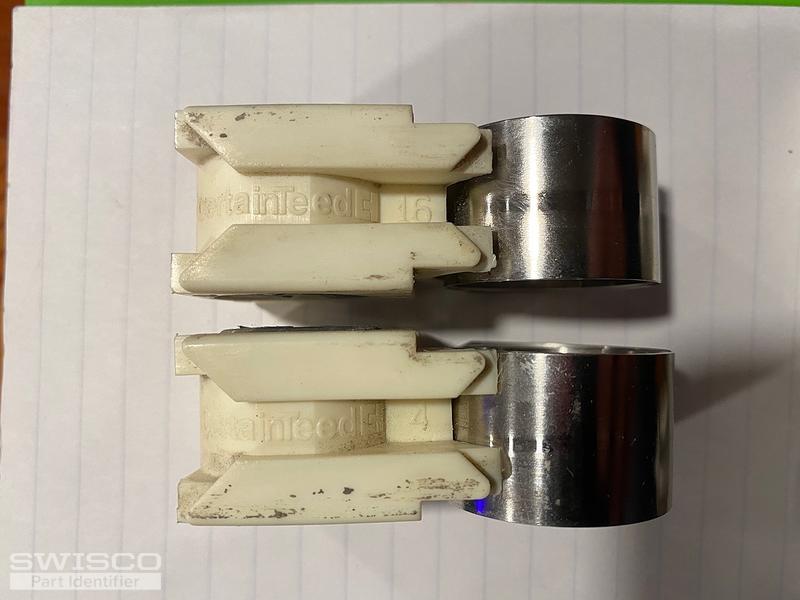

Hi! I need to replace these balances in my window. I'm confused by the numbers stamped on the coil. Also one says "16" on it and the other says "4"..

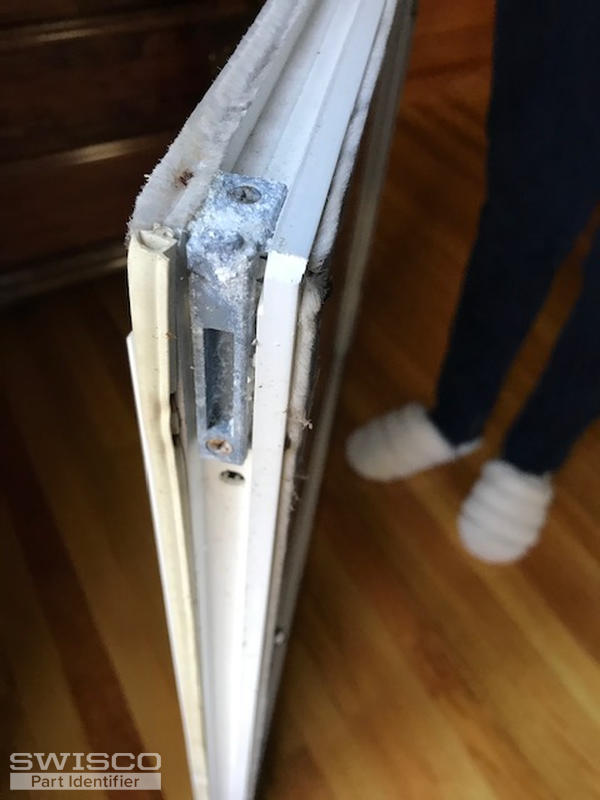

Hello: I need both the pivot pin and locking mechanism for these windows. Also, any instructions on how to get the locking mechanism out of the channel.Jerry

Having trouble matching parts

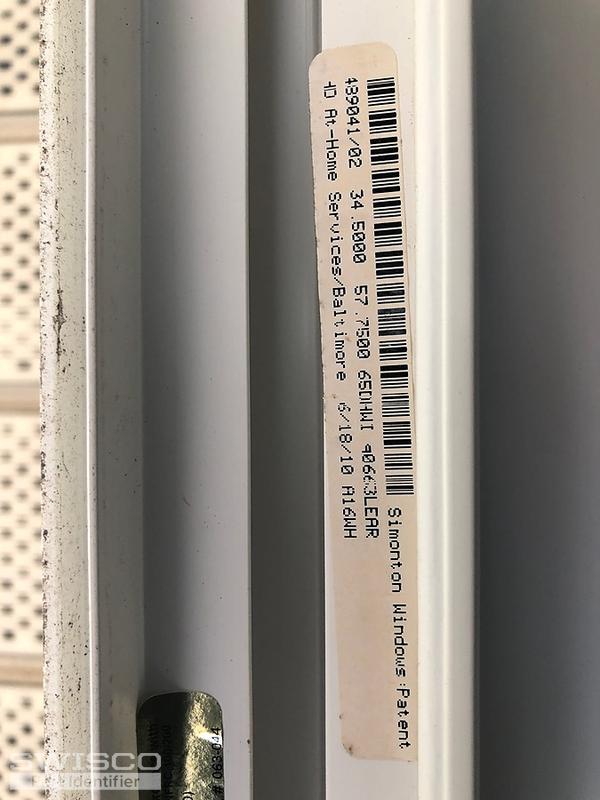

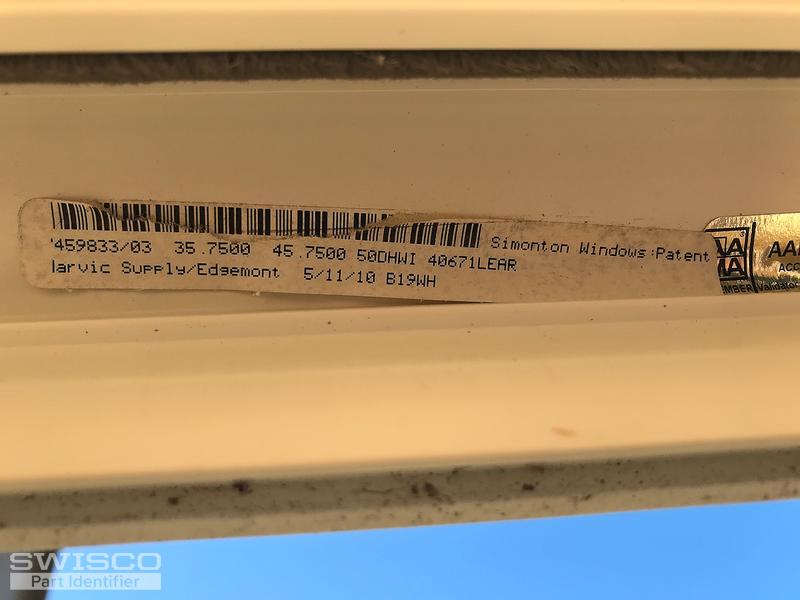

We bought a pair of Simonton double hung sash windows from a salvage store, for use in a greenhouse. See one of the pictures for the Simonton label. Two of the pivot shoes have broken, as shown in the other two pictures. These pivot shoes attach to a coil spring. Are replacements available? ... (cont.)

The window is a vinyl window with a left and right spring approximate 26" wide approximate 23.5 height. The window is light and I am trying to get the weight with a digital scale I need all the parts associated with keeping the window open Lock pivot bar This balance comes complete with a pivot ... (cont.)

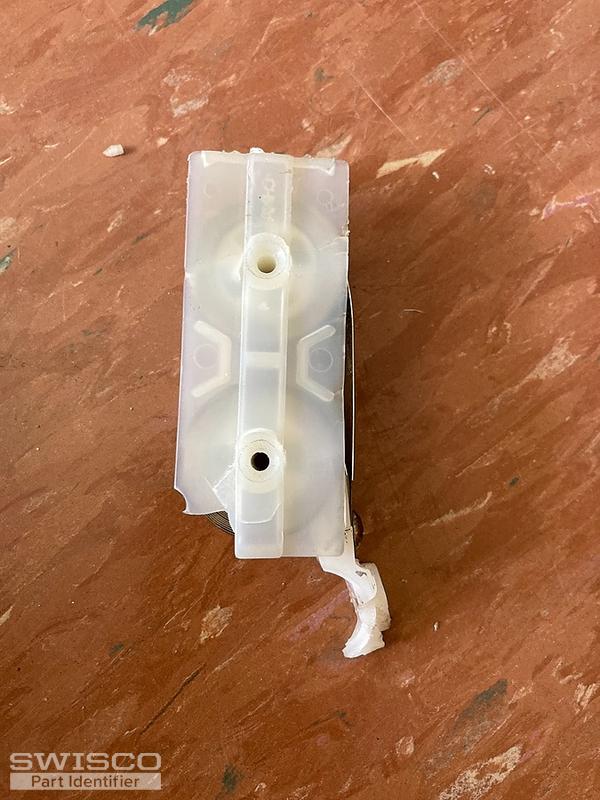

I have s D-H window with all four window supports having broken shoes. Looks like age fatique. They broke when the windows were tilted inward activating the cam lock. I do not see replacement parts on the web site but part 15-180 has the same dimensions except the height is 1.5" instead of 2". I ... (cont.)

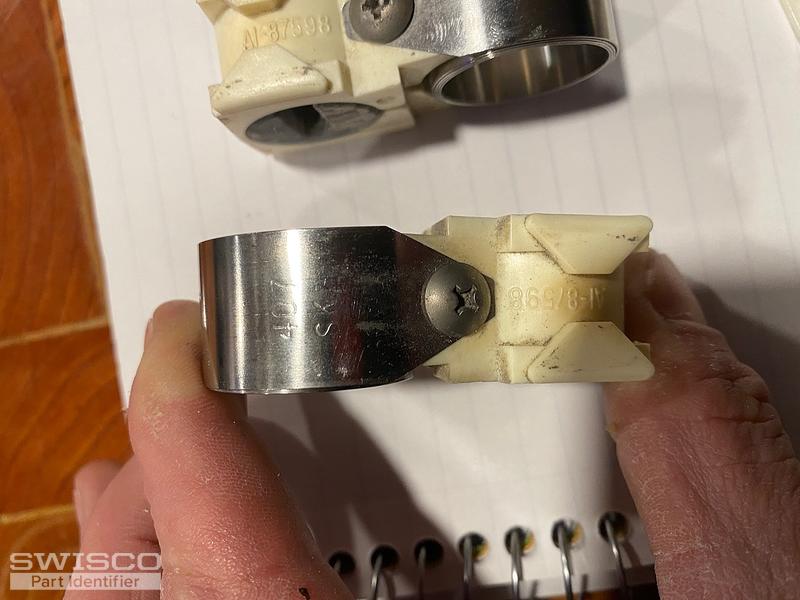

Simonton windows Can you help identify parts the spring has 407 stamped on it so I think it would be a 170-407 and 171-407 But I don't know about the rest

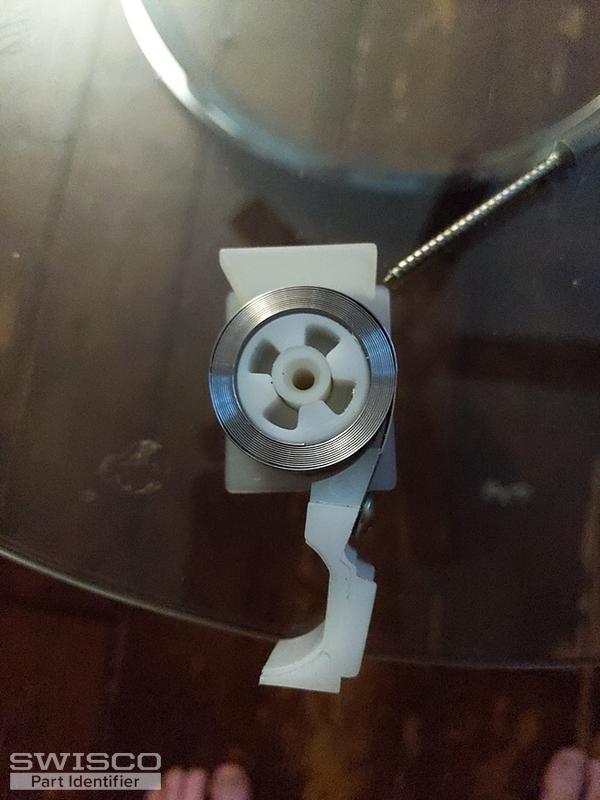

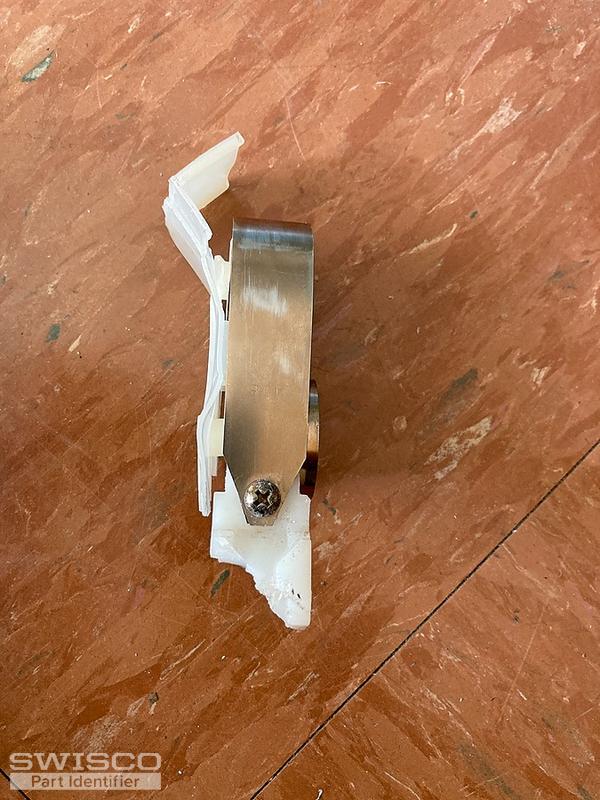

I have a simonton window. The bottom part (shoe?) Broke off, I need 4 replacements. Id like a complete set of pivot and shoe as it seemed to break from weather degradation (brittle from cold exposure)

The cam on the white metal recoil spring I don't know if I can replace just the white metal or if I have to do the whole unit but I did buy the L piece for the window that goes into that on another window

I need the part number so I can order a replacement. Thanks

I have enclosed photos. One for each side of window both broken. I hope you can help me find these parts.

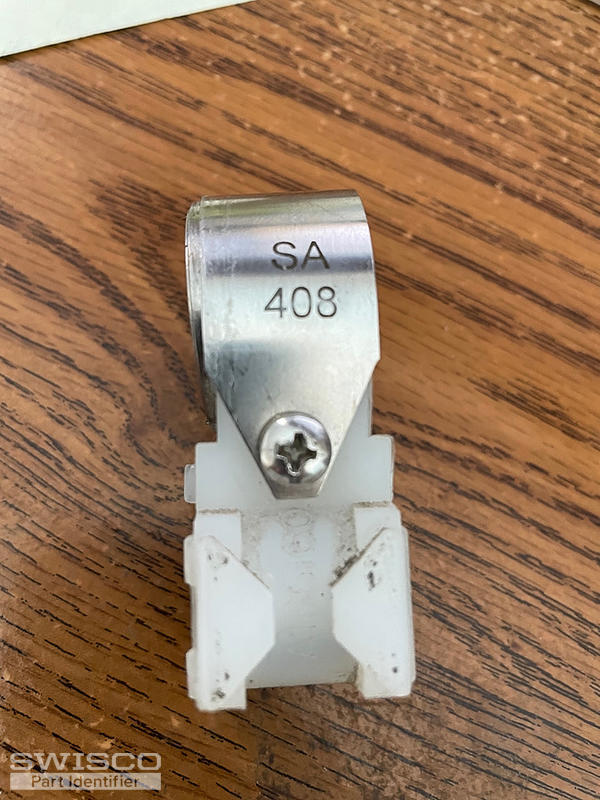

I am looking to replace the coil for my window. I have attached a photo of the stamp. Is that the same as your S170-408 Series? Thank you in advance Mark

I am lookin for both window pivot pins, pivot latches inner c shaped pieces and the inner assist Springs.
