Viewing all customer Discussions for:

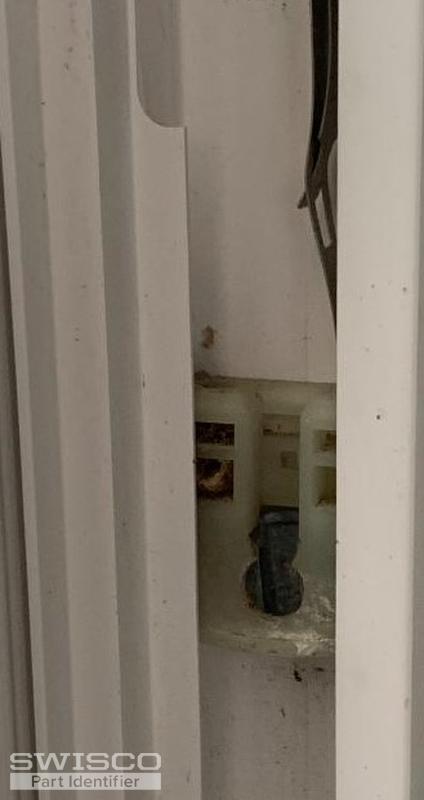

15-199 Pivot Shoe, 17/32" Thick

Hi, I am looking for a Triple coil spring holder for Simonton 2003 windows. The coils and pivot shoes seem to be in good condition so I would replace only the holders. The current holder is about 4-5/8 long. I included 3 photos. The entire broken assembly, a good coil holder and the sticker in ... (cont.)

Hi, I need to replace the left side window balance assembly of a Simonton double hung window It is about six inches long. The photo shows the unbroken right side. Patent number 5.232.208

I broke the balance I believe it's called taking the window out

This right side balance Support assembly has broken. Upon inspection of the same windows in my house. I have determined that I need five (5) right balances and three (3) left balance support assembly's. These are completely missing. I need all of the hardware. These are triple coil balance syst ... (cont.)

I think I have a dual coil window balance except the springs do not have any markings. I think they are the Series 165 Egress Coil Balance. ss coil and 3/8" wide. It is a fairly large/heavy window.

Spring on one side of window seems to have broken and coiled up on top of the piece where sash clips into. Does not have a brand sticker on window and was installed about 6 years ago.

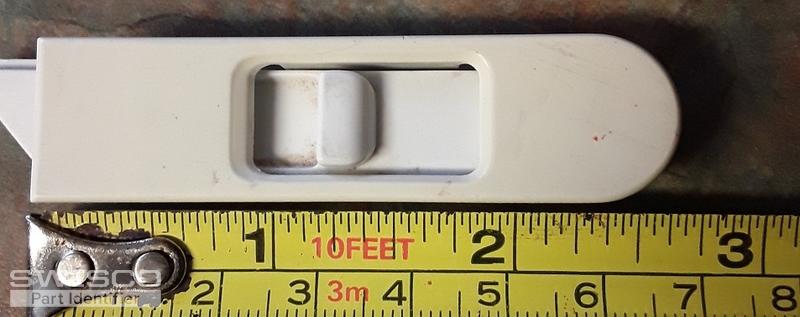

I'm looking for this latch.

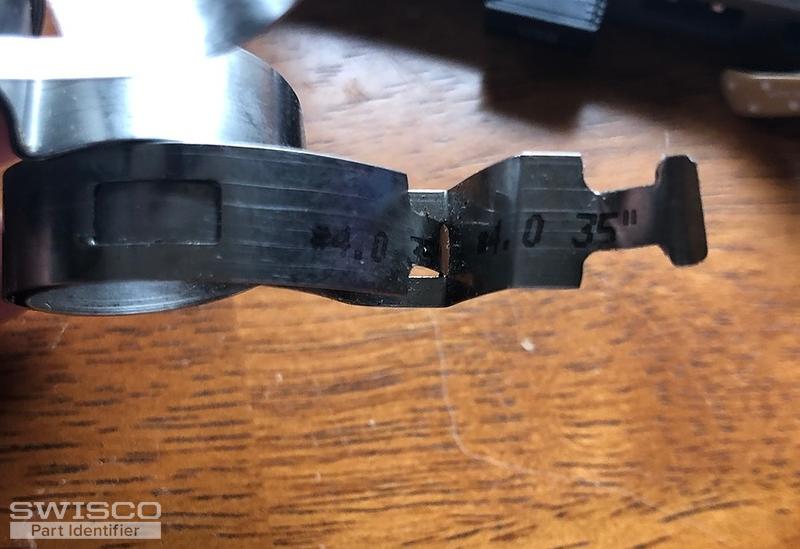

Good morning! Hoping you can identify what is needed to repair my window. The 2nd picture is the cover over the springs. The springs are stamped "#5.0 35" 5232208, #4.0 35" 5232208, #5.0 35" 5232208". Any help would be much appreciated! Thanks!

The pieces on the top are from one window. The metal bar on the bottom is from a different window. The smaller part on the top has a pat. no. 5.704..165. They are from windows that were install in 2003/4.

I'm trying to order a new coil balance. I know I need a triple coil but I don't know how to figure out what lb I need. How can I figure that out? Thank you.

I need to replace some coils on my Simonton Single hung windows but I can't read the stamp on the coil. the windows are approx size of 34" x 60" and 34" x 64". One window has a label Series: 40-06 and P.L.# 063-014. The coil is 3/8" wide. They also appear to be dual coils. On some windows I may al ... (cont.)

Hello...looking for replacement parts for the attached photos please.I am relatively handy and would like to replace the parts myself. Thank you.

Sash channel balance??

I have two windows in my house that need spring balancers. The one picture shows the spring info I wrote down. Could you please let me know what parts I need.

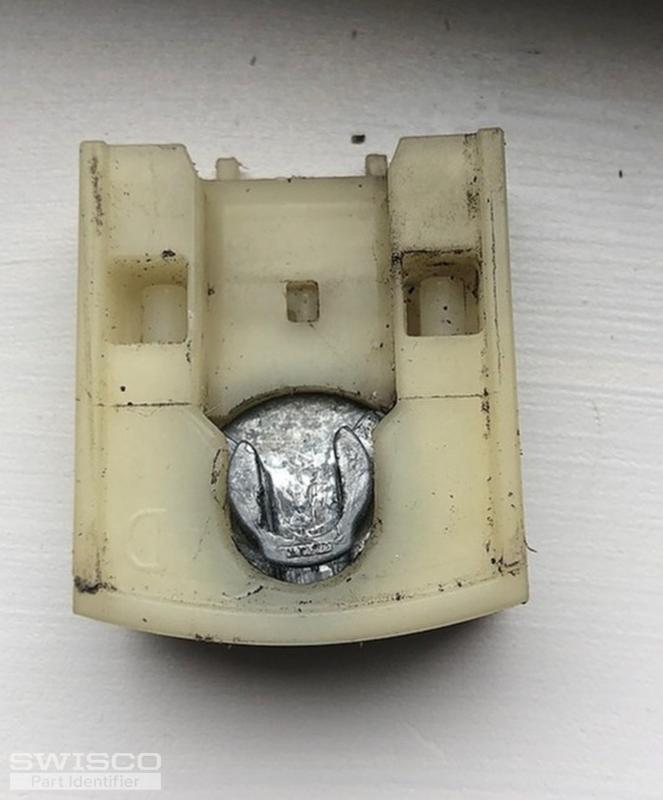

Coil support has part # 801020 stamped Shoe measure - 1 1/4" wide, 1/2" thick and 1 7/16" to bottom of curve Coil spring - 1/2" wide...has #3.5 35" p stamped in ink on coil spring.

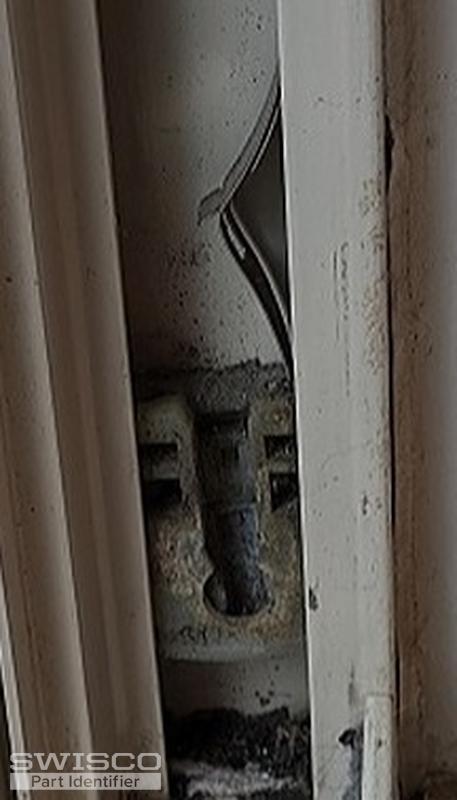

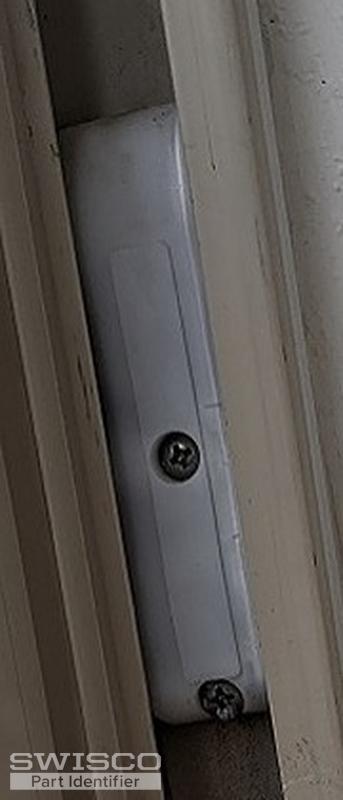

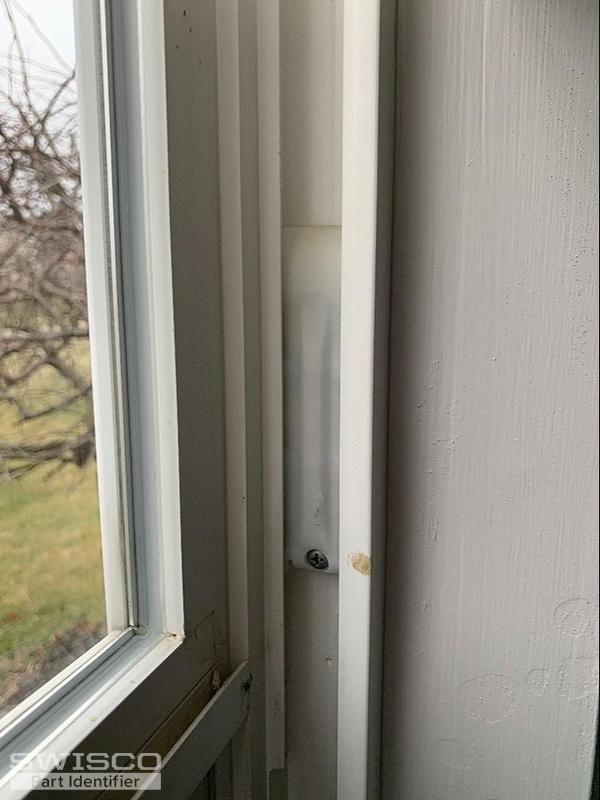

I'm not sure how to remove this, so I took pictures in the window. The window will not stay up, so it looks like the window balance spring is broken. It's a double hung bedroom window. I'm not sure which window balance spring to buy- how many pounds. Would you please advise? The patent I can se ... (cont.)

Hey, can you identify these parts? I have 3 windows where they are broken. Also, on a few windows the pivot bars have rusted out and need replacing. The pivot bars that are rusted out and need replacing would also go into whatever new balance system was used. However, there are a few rusted pivot ba ... (cont.)

Hi. My name is Cory. I work for South End Glass and Mirror in Louisville Ky. I can't find something that matches this perfectly. Any help would be greatly appreciated. The overall size is 4 7/16. The width of the coil is 1/2". The height of the shoe is 1 9/16. The width of the shoe is 1 1/4. The thi ... (cont.)

Looking for full balance assembly for Simonton Series 40. Assembly and spec pictures attached. Thank you

UV light has deteriorated several of these to the point where they have crumbled. I am looking to replace everything that is photographed (coils, covers, pieces that the sash fit into-- whatever is shown). I found a sticker on the window containing this info : H-R40-48-72. It lead me to this documen ... (cont.)
