Viewing all customer Discussions for:

15-199 Pivot Shoe, 17/32" Thick

The pieces on the top are from one window. The metal bar on the bottom is from a different window. The smaller part on the top has a pat. no. 5.704..165. They are from windows that were install in 2003/4.

I'm trying to order a new coil balance. I know I need a triple coil but I don't know how to figure out what lb I need. How can I figure that out? Thank you.

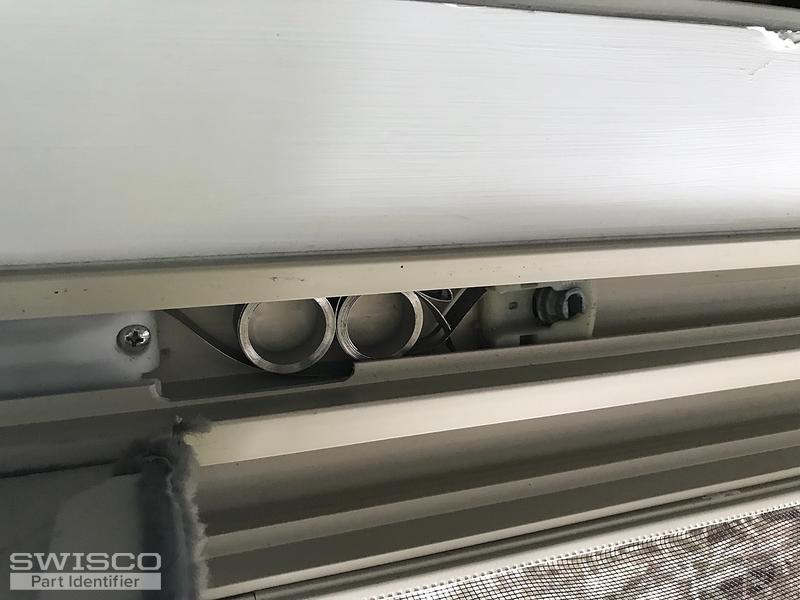

I need to replace some coils on my Simonton Single hung windows but I can't read the stamp on the coil. the windows are approx size of 34" x 60" and 34" x 64". One window has a label Series: 40-06 and P.L.# 063-014. The coil is 3/8" wide. They also appear to be dual coils. On some windows I may al ... (cont.)

Hello...looking for replacement parts for the attached photos please.I am relatively handy and would like to replace the parts myself. Thank you.

Sash channel balance??

I have two windows in my house that need spring balancers. The one picture shows the spring info I wrote down. Could you please let me know what parts I need.

Coil support has part # 801020 stamped Shoe measure - 1 1/4" wide, 1/2" thick and 1 7/16" to bottom of curve Coil spring - 1/2" wide...has #3.5 35" p stamped in ink on coil spring.

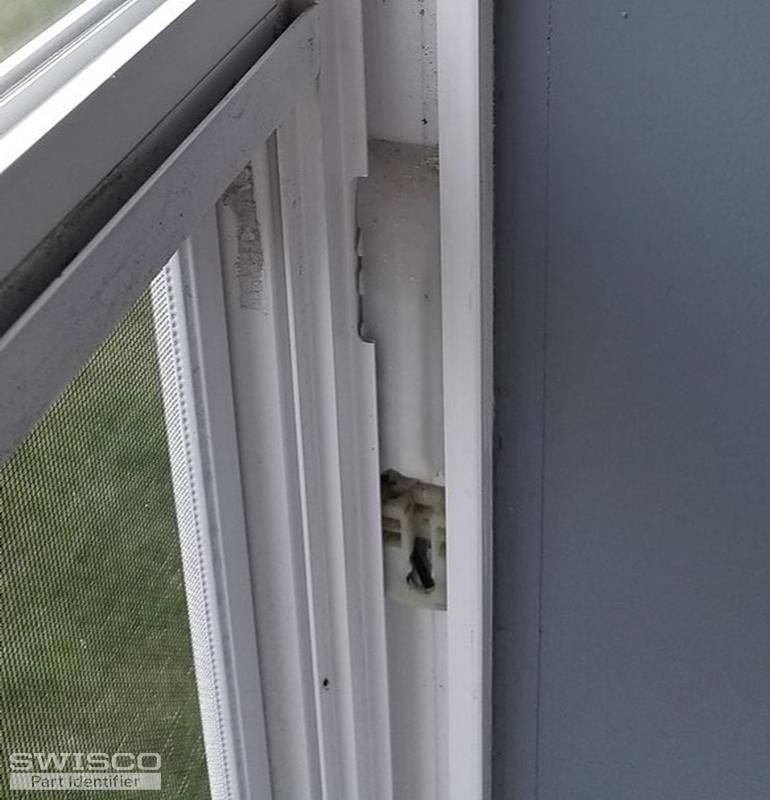

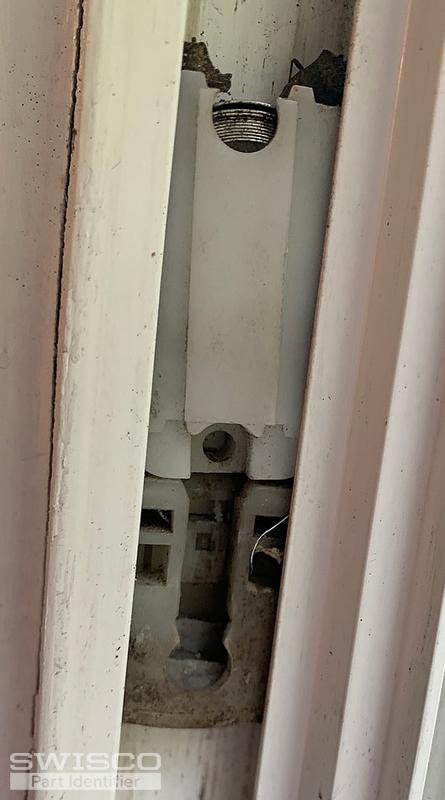

I'm not sure how to remove this, so I took pictures in the window. The window will not stay up, so it looks like the window balance spring is broken. It's a double hung bedroom window. I'm not sure which window balance spring to buy- how many pounds. Would you please advise? The patent I can se ... (cont.)

Hey, can you identify these parts? I have 3 windows where they are broken. Also, on a few windows the pivot bars have rusted out and need replacing. The pivot bars that are rusted out and need replacing would also go into whatever new balance system was used. However, there are a few rusted pivot ba ... (cont.)

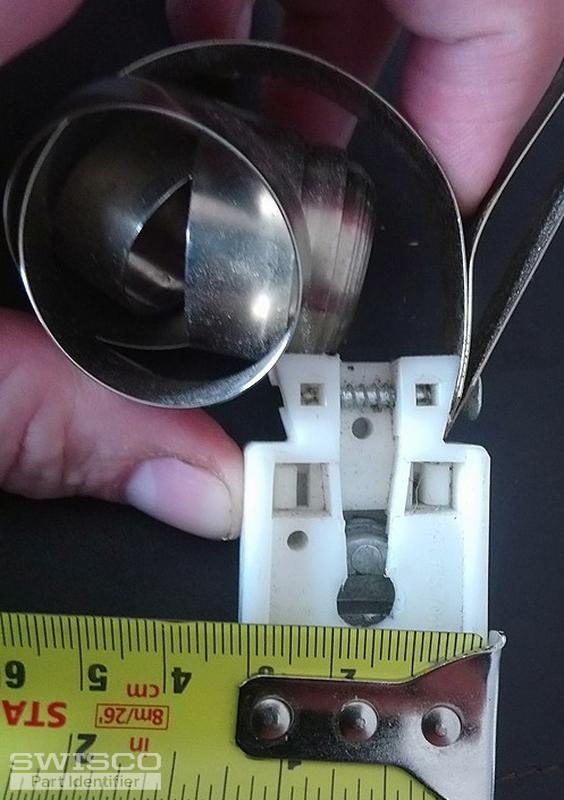

Hi. My name is Cory. I work for South End Glass and Mirror in Louisville Ky. I can't find something that matches this perfectly. Any help would be greatly appreciated. The overall size is 4 7/16. The width of the coil is 1/2". The height of the shoe is 1 9/16. The width of the shoe is 1 1/4. The thi ... (cont.)

Looking for full balance assembly for Simonton Series 40. Assembly and spec pictures attached. Thank you

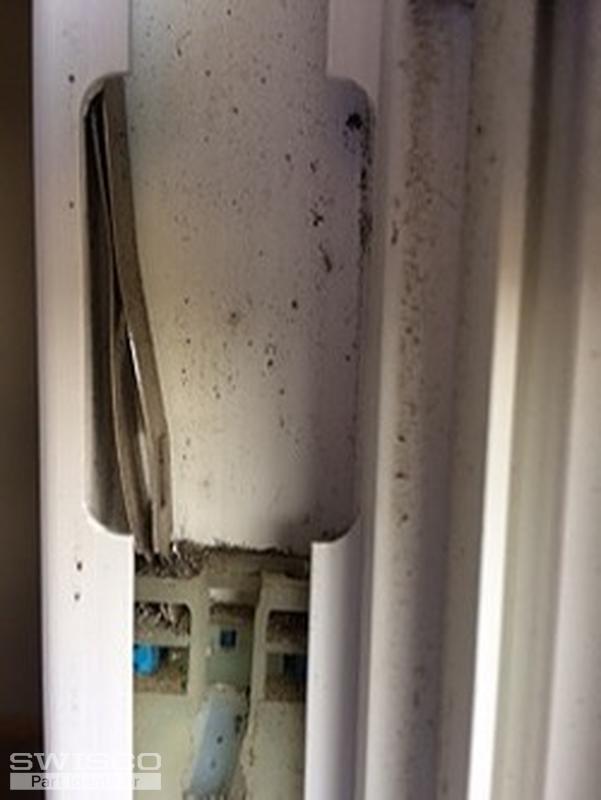

UV light has deteriorated several of these to the point where they have crumbled. I am looking to replace everything that is photographed (coils, covers, pieces that the sash fit into-- whatever is shown). I found a sticker on the window containing this info : H-R40-48-72. It lead me to this documen ... (cont.)

Hello I am trying to replace the pivot shoe in my viwinco window. I have just ordered and replaced the metal pivot bar which was also broken however it seems the show is stuck and only slides up with the window a couple inches before stopping. I am trying to identify which pivot shoe is the correct ... (cont.)

I recently purchased an S140-18 Quick-Tilt, Dual Balance... My window is 27lbs.

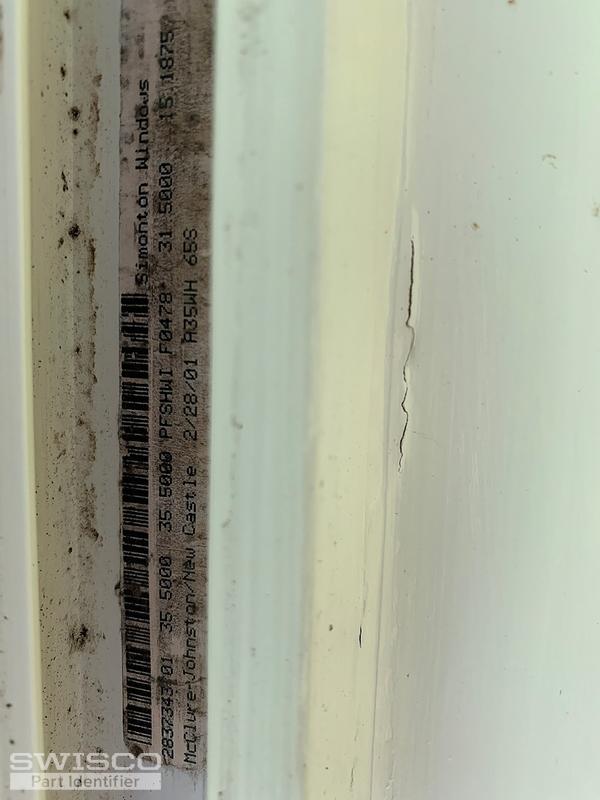

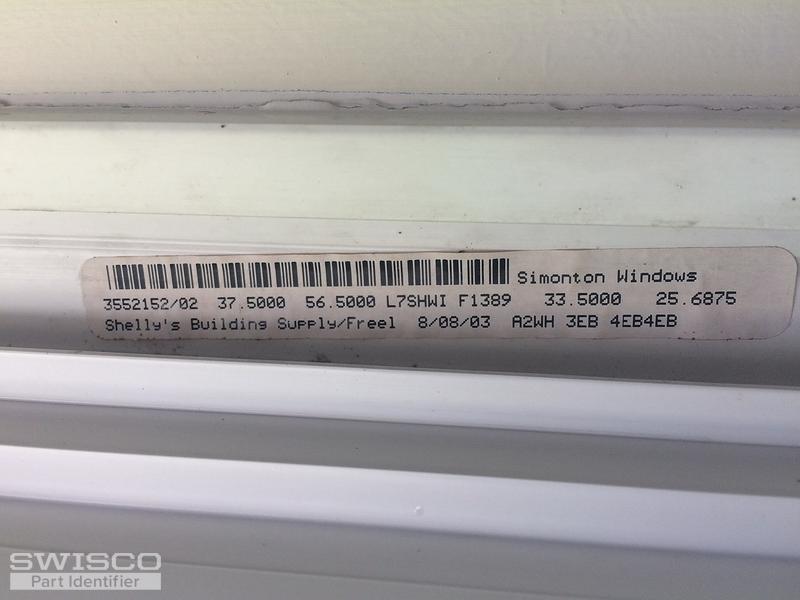

Dear Sir or Madam: I'd like to replace the spring assemblies for my Simonton double hung window. Can you look at the attached pdf and let me know what to order? I'd like to replace the spring assemblies for both the lower and upper window (both sides). Thanks, John

I am pretty sure this is a 3/8 inch egress coil triple support it's an inch and a quarter wide by 4 1/2 inches long and looks similar to your product code 15?205. I also need a little metal bar that goes down in the bottom of the window as the Pivot arm

I was hoping you could help me possibly find replacements for this window found on band #3.0 35" P 10:50 SM3 D13 31 Jul 07

We are in need of balances, shoes, & pivot bars for 7050 MI windows. We previously submitted a request but lacked pictures on the balance piece needed. Please contact us if we can get these parts through your company.

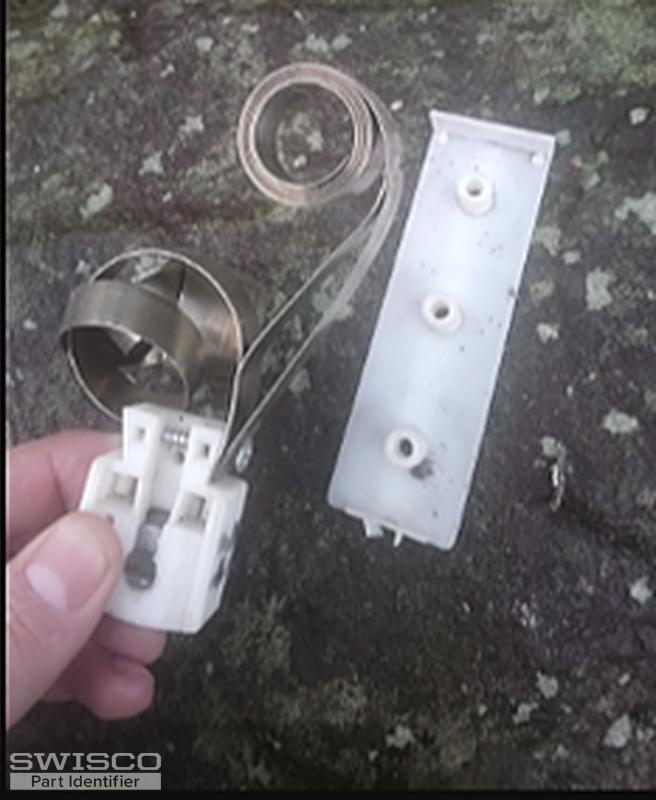

Before I knew anything about how the coil spring and support foot worked, I yanked out the entire set up because the plastic cover was completely broken up and the window wasn't staying open. I thought the replacement part would be one piece, not two or three. Now I realize that the cover is the on ... (cont.)

I need the left balance as well as the right balance.
