Viewing all customer Discussions for:

15-259 Coil Balance Pivot Shoe

The windows are in a state of disrepair. Broken shoes and coils. Would like to replace the coils and pivot shoes. We have 10 sashes. 5 x 25lbs (these appeared to have two coils like this one) 3 x 33.5lbs and 2 x 32.5lbs (these have 3 coils on each side) Would replace both sides as recommended. ... (cont.)

These windows say "Prism" on the latches. Not sure if these are able to be replaced. Obviously the window just falls down. Looking to identify replacement parts and get a useful installation guide. Thanks.

Hello,I need pivot lock shoes for our Simonton double hung windows which were installed in 2010. I am not sure about the part number but i am hopping that you will be able to identify it from the photos. Pivot lock shoe looks like a spring and my dimensions are- thickness sideways 1.26 in, width 0.9 ... (cont.)

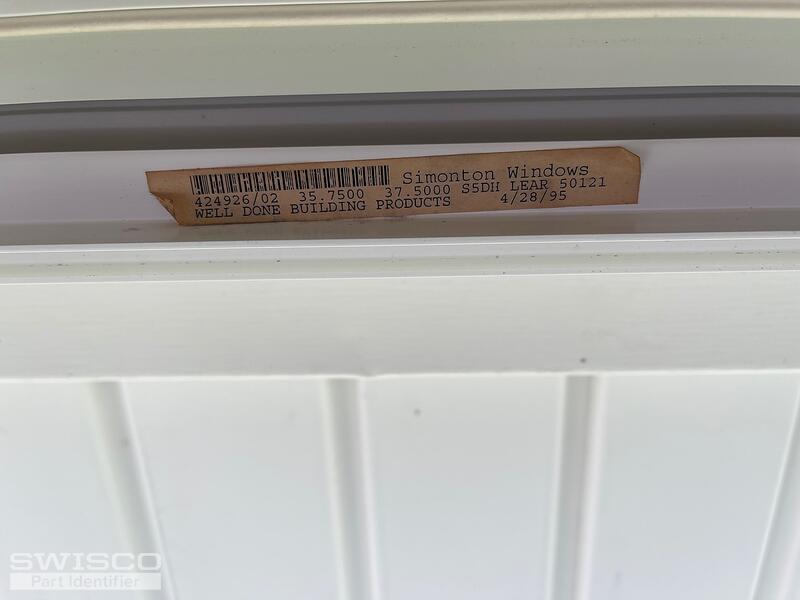

The photo shows the number on the bottom sash but I haven't been able to get a good picture of the strip on the upper sash. They appear to be the same tag this one showing bottom but the top tag again appears to be the same. This window won't stay up and I have had to cut dowel rods to keep it clo ... (cont.)

Have two windows that won't stay up. Pic above are the parts that are broken. Trying to find replacement parts Simonton window sticker says 2006 in pic Thank you Lori

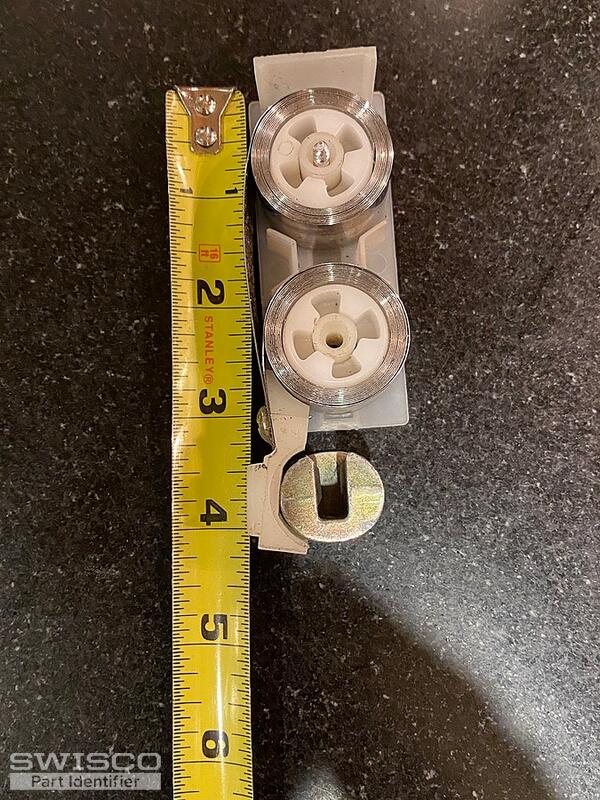

Need 4 pivot shoes, which are 27/32" wide and attach to the double springs with a screw. Top date 8/07/09 2CDrkBzM Top 2n HS SM@8Bar Code 05674099010002 wm 00 i7 55DHWI39.563X24.50050344 ss Bottom date 8/07/09 2CDrkBzM Bottom 2n HS SM@8Bar Code 056740990100

I would also like to get pivot bars and coil springs that goes with this part

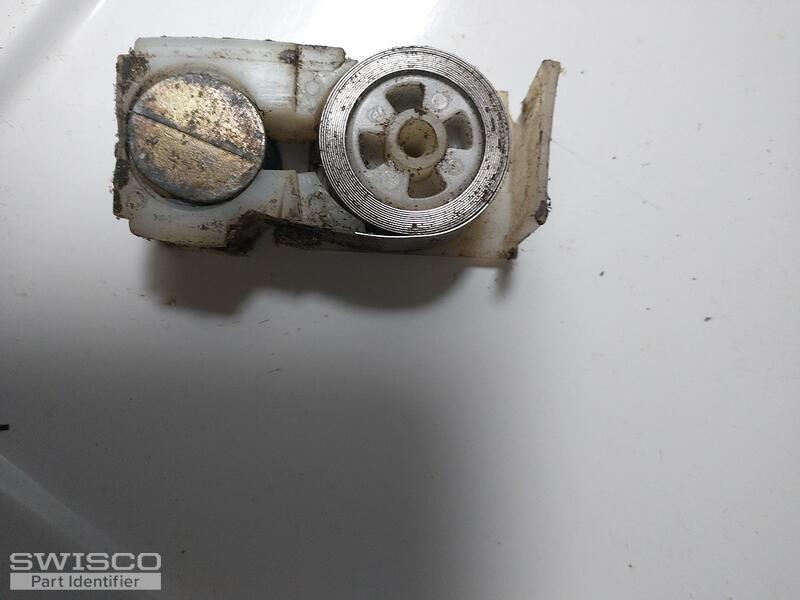

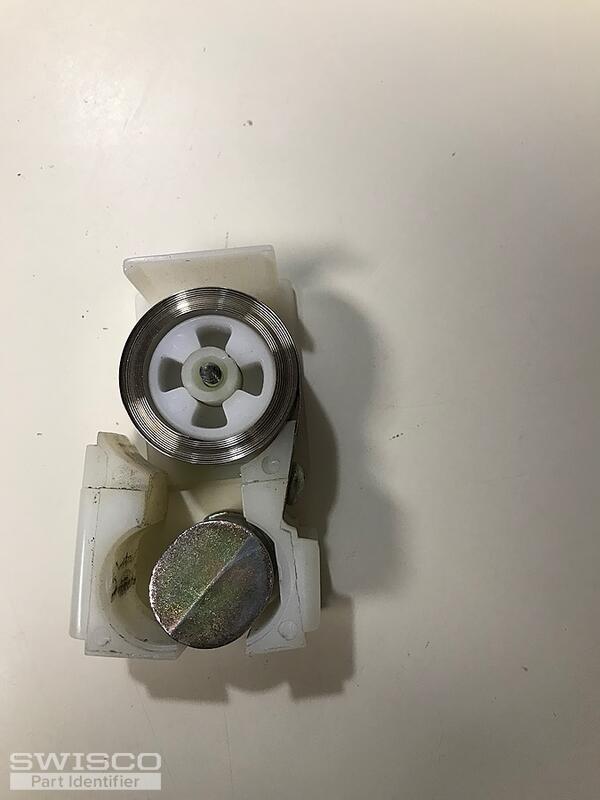

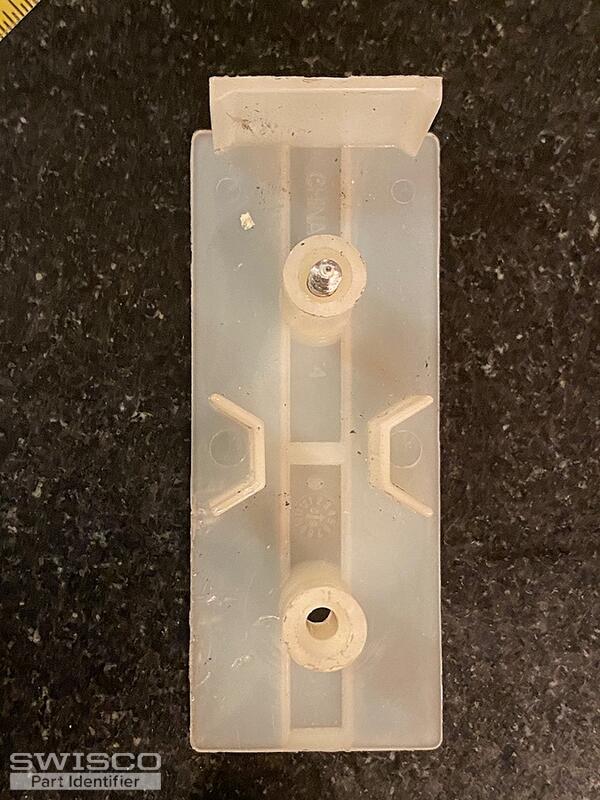

I believe this is a pivot shoe but I'm not sure the parts I need. No numbers or markings on it. Thank you for any help!

I need 4 tilt balances and 3 sash pivot bars. Can you please help me pick out the correct ones?

What do I use to replace this old coil balance. The sash weighs 20 lbs.

Hello, Looking to replace these parts. Thank you!

I am looking for the matching Window Balance and Pivot for a customer. They are 7 or 8 lb balances x2 and the pivot pictured x1. I have photos of the window labels if that would help. Maybe s170 coil balance assy?

Happy new year! I have some 6500 series double hung windows (I think simonton) purchased and installed by home depot in 2010. At least one shoe on each window is broken. I removed the whole balance assembly (had to cut a bigger hole) and pulled everything out. None of the coils have any numbers or l ... (cont.)

Hi, I have Simonton windows. On several the coil balances are broken. In most it's the plastic pieces. I would like to try replacing one first to see how it works. I attached the window details and balance part. Can you share what parts I need for that window. I assume I definitely need balance ... (cont.)

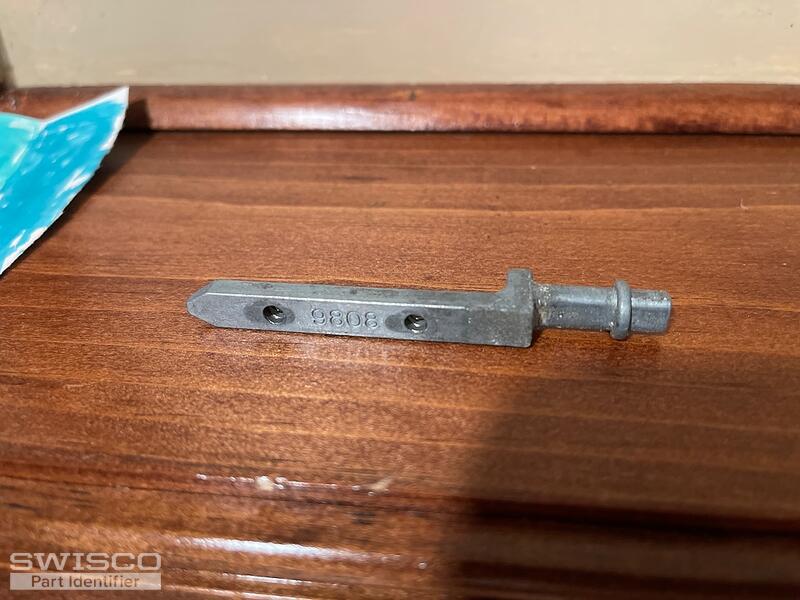

Pivot shoe lock broken 1 1/4" wide by 1 3/8" high x 5/8" thick Tilt latch broken (Right hand) 3/8" tall x 5/8" wide x 2 5/8" long Pivot Bar Broken (WRS DIE CAST SIMONTON PIVOT BAR 3 holes)

I need the replacement parts for the Simonton coil balance and pivot bar. If you have any questions please feel free to contact me.Thanks - Charles

I have a property with simonton windows, which have some broken and missing parts. I have broken tilt latches, broken pivot bars, and completely missing balance assembly on one of the windows. I would like to replace them, but I am not sure which items match.

Hi, I need to replace the entire coil balance parts but mine look different. Thanks

Hi, I am looking for the pivot bar in the one picture and the set up you see in the other picture which should be the pivot shoe, coil spring, and coil spring cover. In the third picture is a label of the part number. I would need enough to replace on five windows

Need replacement coil balance for Simonton window,see picture for model sticker. Please confirm which assembly would work with this window. I understand I may need pivot shoe (15-259), coil support (15-255), coil spring (S159), and pivot bar (26-083). Is this correct? My current coil spring does not ... (cont.)
