Viewing all customer Discussions for:

15-259 Coil Balance Pivot Shoe

Hello, I accidently ordered part # 15-192 Shoes to replace the shoe in a simonton window' The size of the shoe is almost identical if that helps. After vwatching your video it looks like i need to order a different shoe pivot bar and possibly a new coil balance and coil supports as well? Let me kn ... (cont.)

I ordered a part for this - which I received yesterday - but I apparently didn't get the correct part based on my conversation with customer service. Am I able to send them back and get the correct part as per these photos?I have 2 windows with this issue so I would need 4 assemblies I believe.Than ... (cont.)

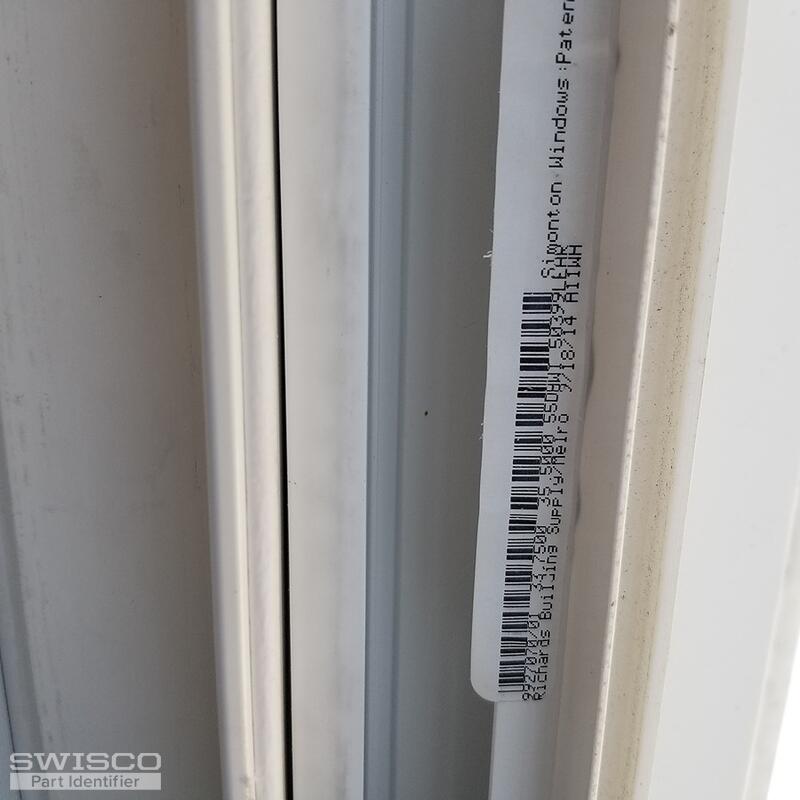

Simonton windows Richards window supply /Melro 9/18/14 A11WH 9927070/01 33.7500 35.5000 5508WI 50399LEAR

Pívot shoe 15-259 has a depth of 13/16 (actual .840), which is greater than 13/16 almost 27/32. Coil support is the recommended support and has a measurement of 13/16. If the pívot shoe is greater than the coil support, how will these work together?

The piece the widow goes into broke. I need a complete new setup.

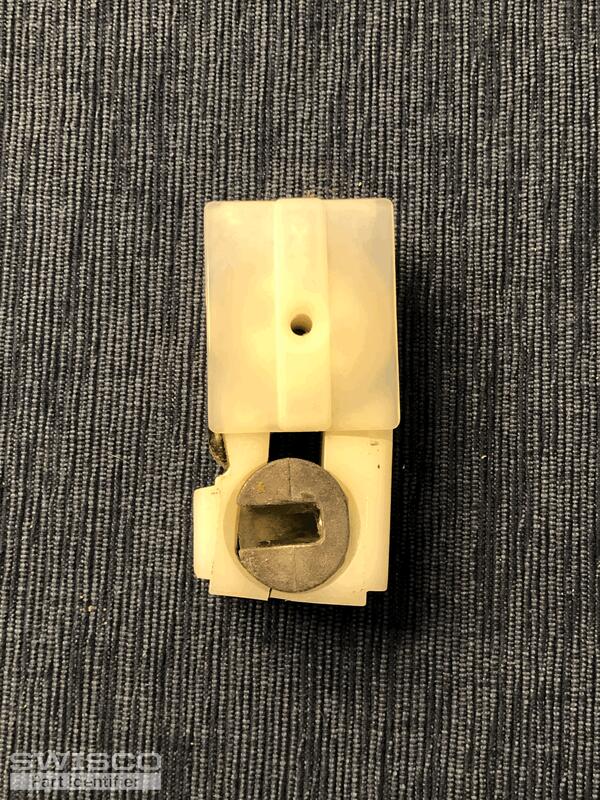

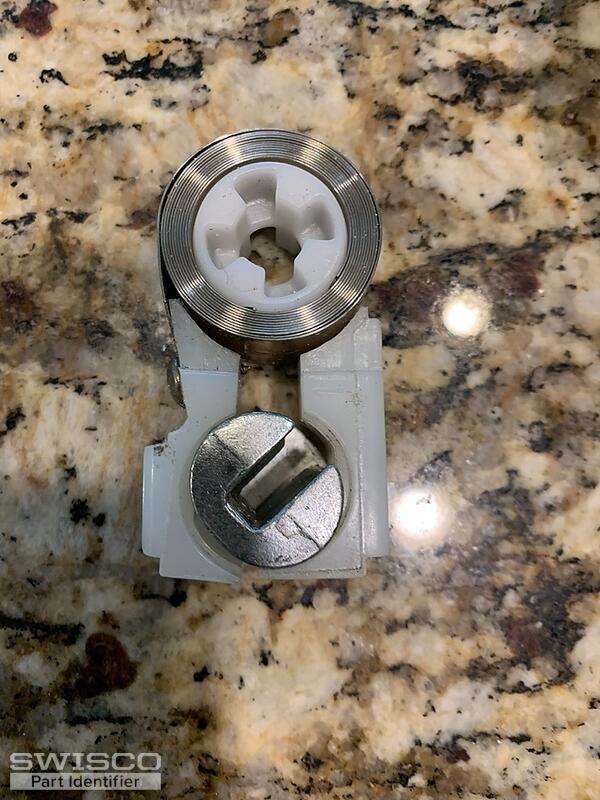

I need a replacement pivot shoe, I have included some pictures. It's a Simontin window, what part would you recommend. ThanksMike

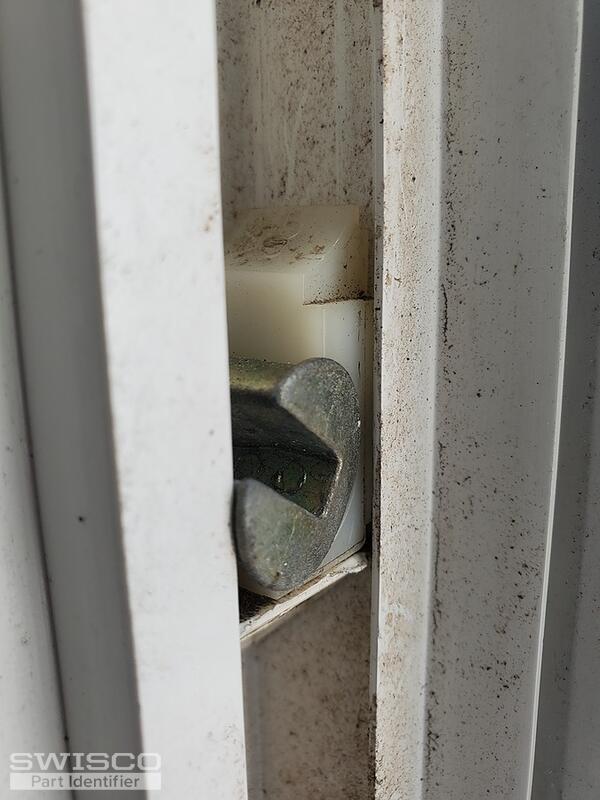

Can you tell me which pivot I need to order to replace this broken piece. I included the bar code that I found on the side of the window.

Hi ... I am in need of all these pieces pictured. The only part I see a number on is the coil balance. I see the related parts that are used together but on the coil cover I believe it's called there is a narrow and a wide to choose from. If they both work with the 170 series coil why is there a na ... (cont.)

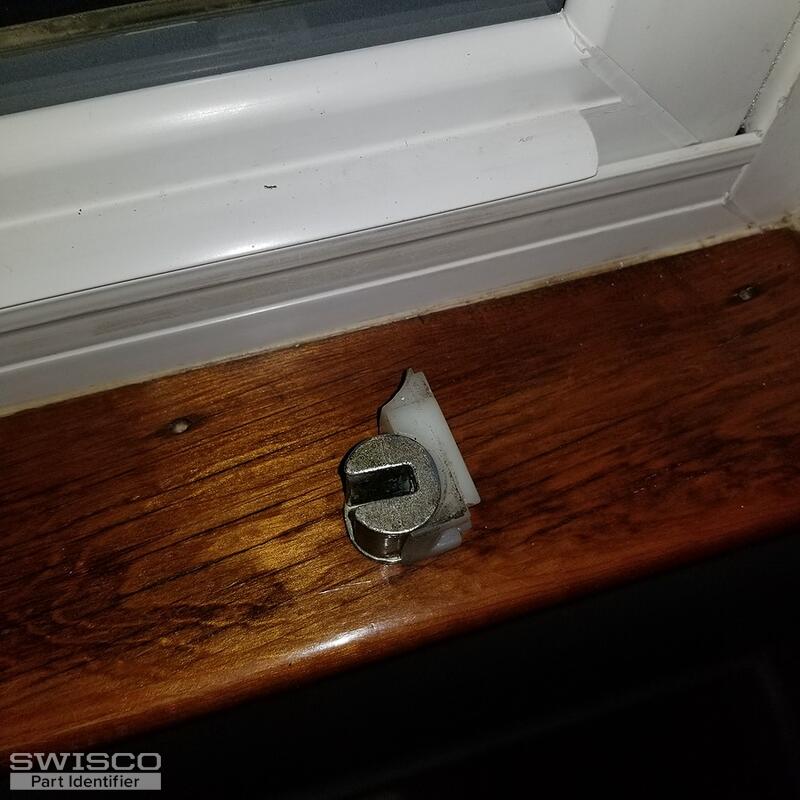

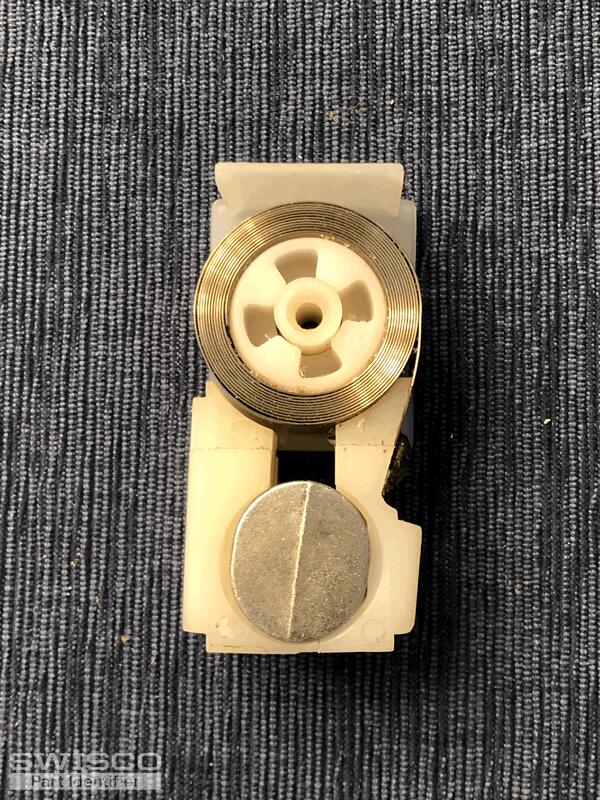

The pivot shoe on my window broke and I matched that up to a 15-192. The pivot bar also broke, but I don't see one on the website. Here is a picture of my old pivot bar. Do you guys have anything comparable or that will work with the new pivot shoe. Please let me know, thanks.

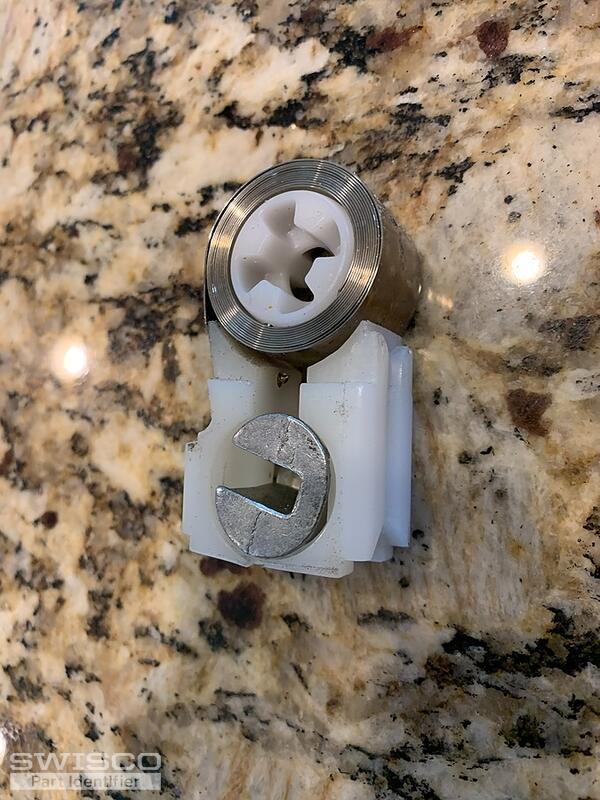

I have two coil balances on 2 identical windows with broken pivot shoes. One is the right side and the other is on the left side. They are 1 1/4 wide and the coil spring attaches to the pivot shoe with a screw. Could you please recommend a suitable replacements? Thanks!

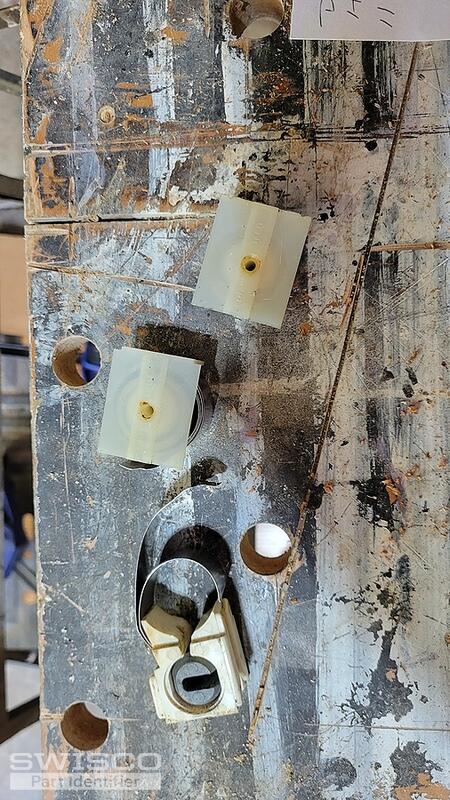

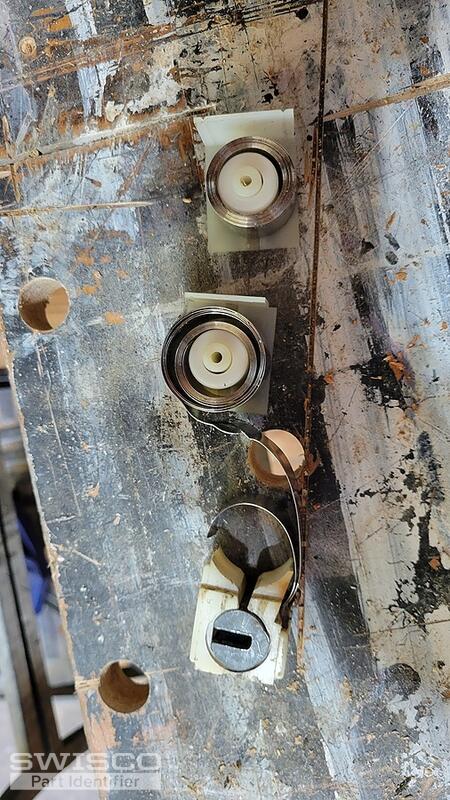

I have already received parts for my smaller windows from SWISCO, they used an 8.5 lb spring. THis window is much larger and the original manufacture used 3 springs in tandum as you can see, All the other parts are the same, so do I just use a stronger spring for use with this window or do i need a ... (cont.)

I need to replace 3 coils because the shoe broke. I also need to replace 3 pivot bars. I don't have part number but the coils appear to be 3 to a set. The window sash weights approximittely 38 pounds. I don't know if I can purchase just the coil that connects to the shoe housing or if I need th ... (cont.)

I have 2 Simonton replacement windows that have recently snapped. Here are some pictures of one of the broken counterweights and one that is still in tact. These are both from upper windows.

Once again I need your Help This is From a Simonton Window I need at least 2 but could not match them to any of your stock.

Hi: I have a single hung CertainTeed Vinyl window. The left side counterbalance spring seems to have broken so the window won't stay up in intermediate positions. I took it off and you can see the one spring is attached to the shoe but the other spring seems to have broken where it would attach t ... (cont.)

Here is the picture

Looking for part number on coil balance assy (left & right) for the following double-hung window. Sticker on window reads: 6870652/01 31.75 37.25 98DHWI X0019LEAR DAYSTAR WINDOW 11/08/07 A11WH Do they come with the plastic jam spreader?

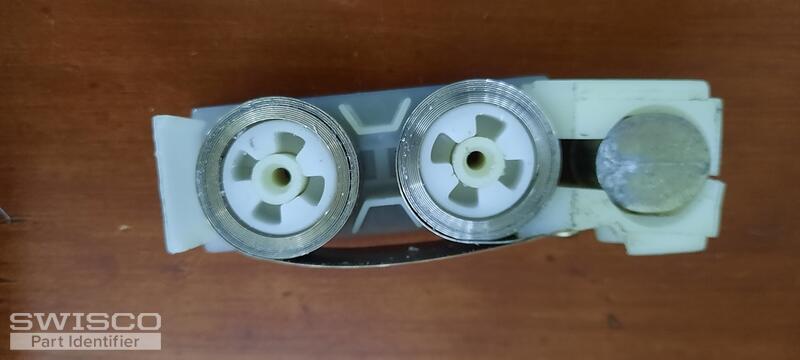

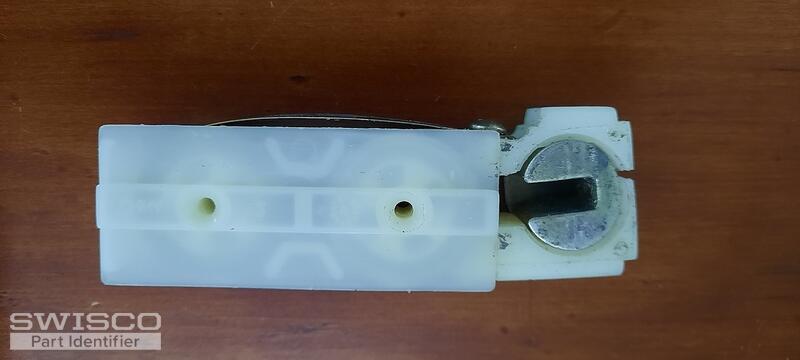

I'm looking to replace a few broken window closures. These are simonton windows about 10-15 years old. Some of the smaller windows are single spool but the bigger ones are duel spool.

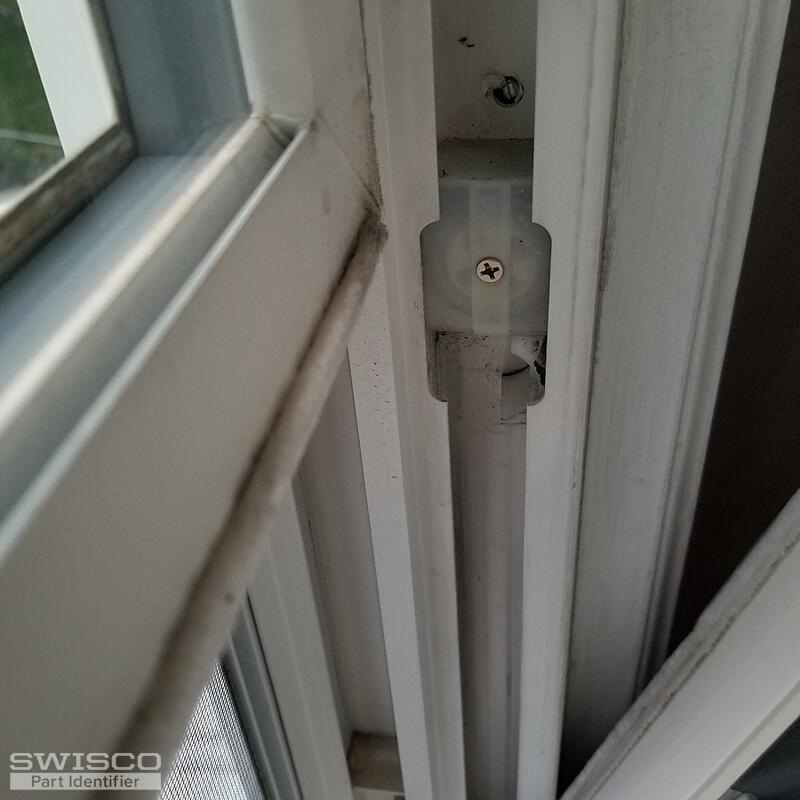

My window won't stay up and I think I need to replace these small plastic parts and the box thing that they go into. One of the small plastic pieces broke and left part of it in the box and won't come out. The other box has a plastic piece that didn't break but is still stuck in there. Both also h ... (cont.)

43x53 double hung
