Viewing all customer Discussions for:

39-083 Dual Arm Crank, 21-1/2"

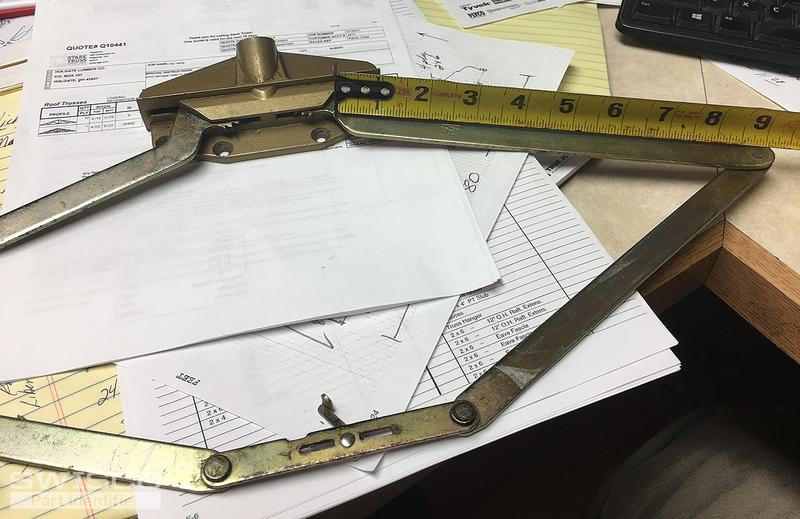

Need 2 mechanical crank out awning window replacement parts. Windows purchased approx 26 years ago. Looking to see if you have the replacement parts

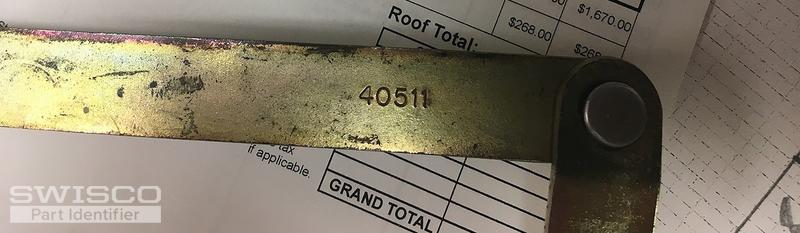

numbers on arms 40510 and 40511 and 30895 Crank operator is stripped, gear and brass keeper will not stay in operator.

Arms are 9 inches shaft connecting to window is 4 inches. No markings on unit. Thanks

Looking for a new crank system for my bathroom window

Do you have these parts

I am retired from the window industry and thought I "knew it all." However, We have just purchased a home built in about 1993-1994 that has Caradco casement and awning windows. The operator crank has a metal cover (verses the plastic pop off type) and I can't figure out how to remove it. Could yo ... (cont.)

The shaft for the crank is broken at the gearing and will only open the window. Looking for a crank for the window that is at least 30 years old. The second photo is of the locking lever to help identify the window brand as there are no markings to be found on the window itself.

Need operator or parts for Semco casement window

The operator is grey metal and has a marking that looks like with a triangle overtop of a line on it. The operator spline piece is on the left side. There is a number on it, but it is extreamly hard to read, the best I can tell it sais ?198?420 best guess maybe a 4 and 7 respectively for the ?. The ... (cont.)

PLEASE HELP IDENTIFY

Window handle not working. Can be forced to push the window out, but can't retract the window and the window doesn't sit firm. (Winds will cause window to rattle and bang.) Handle arm says "U.S. PAT 4083264" + "CAN PAT 1979 45012" Picture 8605: The adjacent window that works fine. Picture 8606 ... (cont.)

Looking for this part which is inserted in the crank mechanism of a semco dual arm window crank. Also I don't know if there is supposed to be a pin which keep this part from unscrewing when the crank is turned.

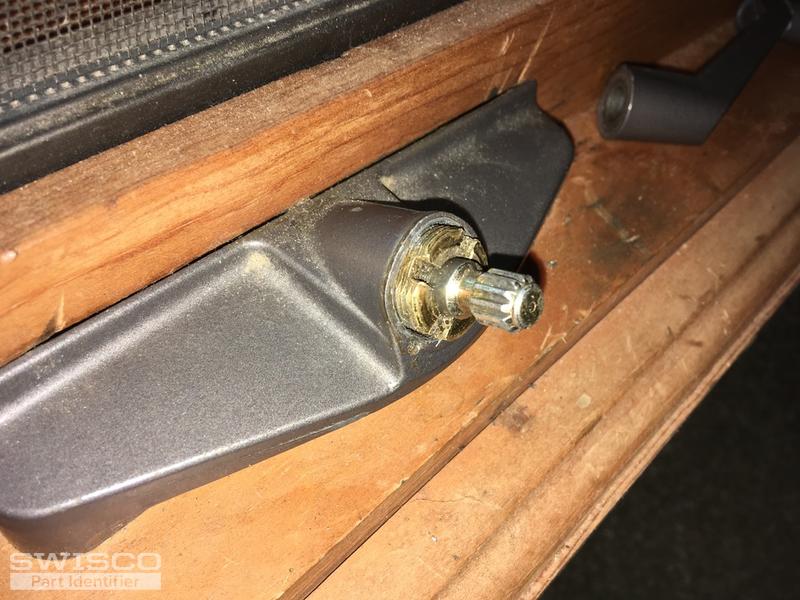

I need the part shown in the attached picture. The bronze insert will not stay in place because the housing threads have stripped, and when you get the handle almost closed the rotating shaft pops out. The operator has four mounting holes.

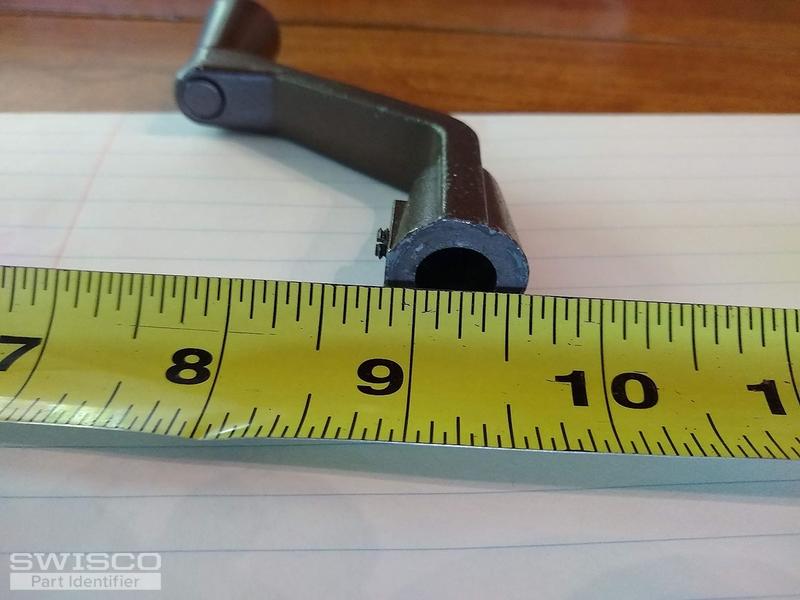

i want to find a new worm gear and handle for this bathroom window. Is that possible or do I need to replace the operator? Thank you!

Window was cranked open to max and then when tried to close the handle came out the the casing. The inside is stripped so it looks like I need a new unit. Only marking on it is Somco.

Couldn't find any numbers on these anywhere. Any help would be appreciated.

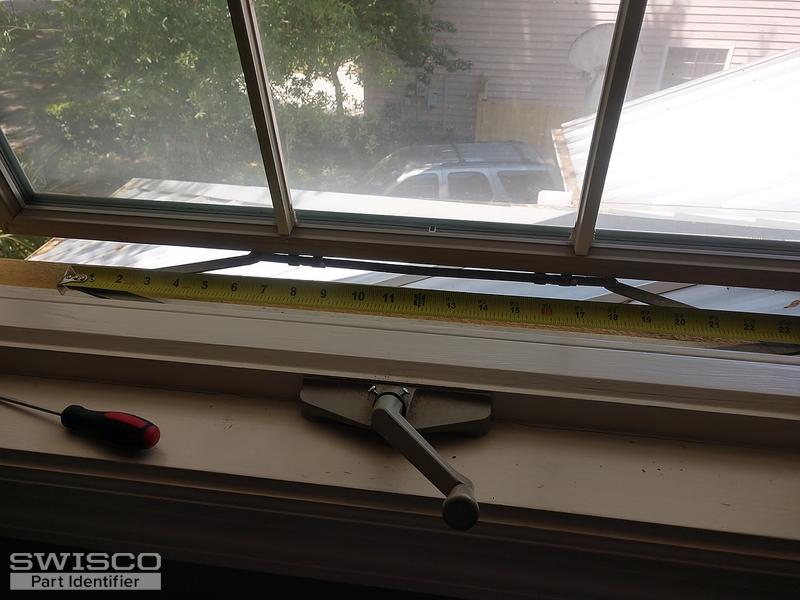

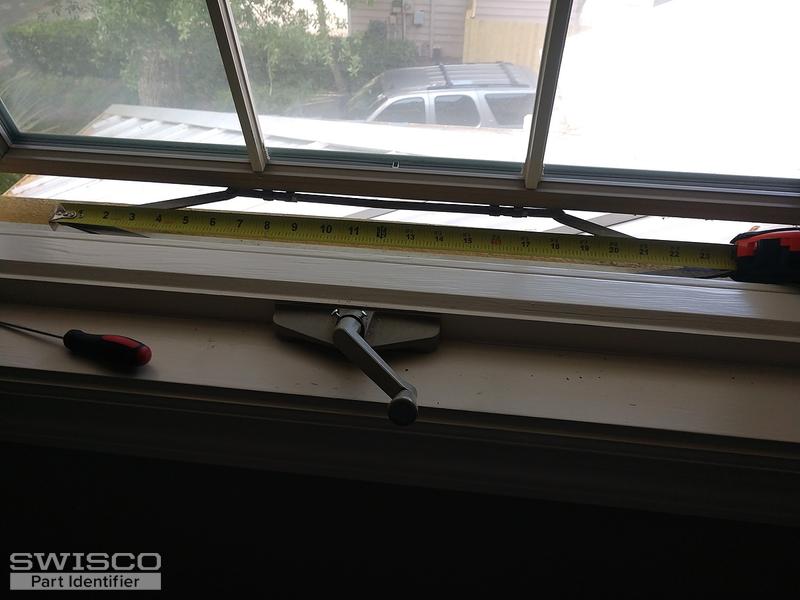

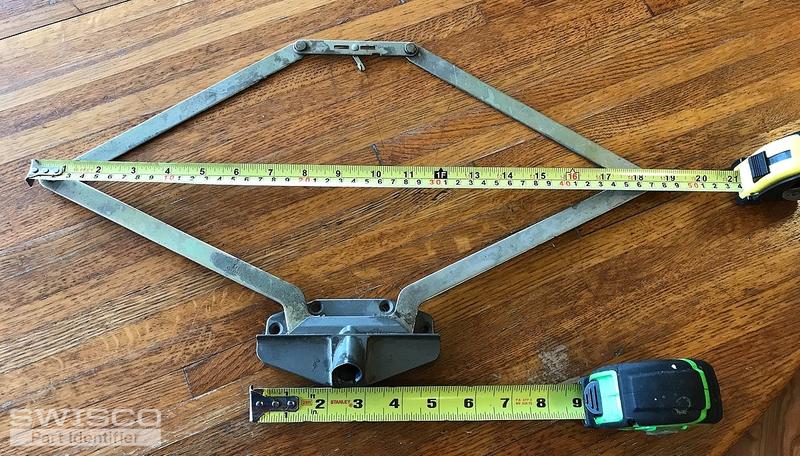

trying to find the best replacement for this operator it looks like part #39-083 but the overall of existing is 21.5" part #39-070 overall length would work better, but the crank mechanism looks incorrect. please advise

We had ordered replacement parts in order number 1268130 but they were too big, can you help me figure out which size we need please?

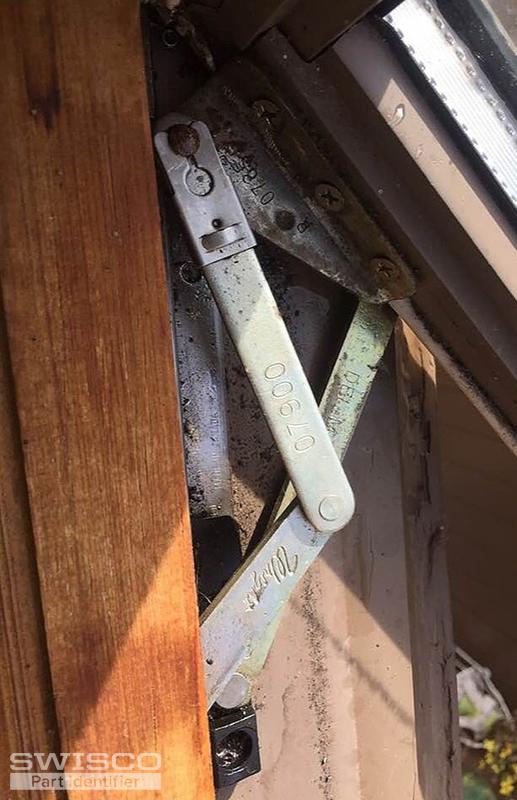

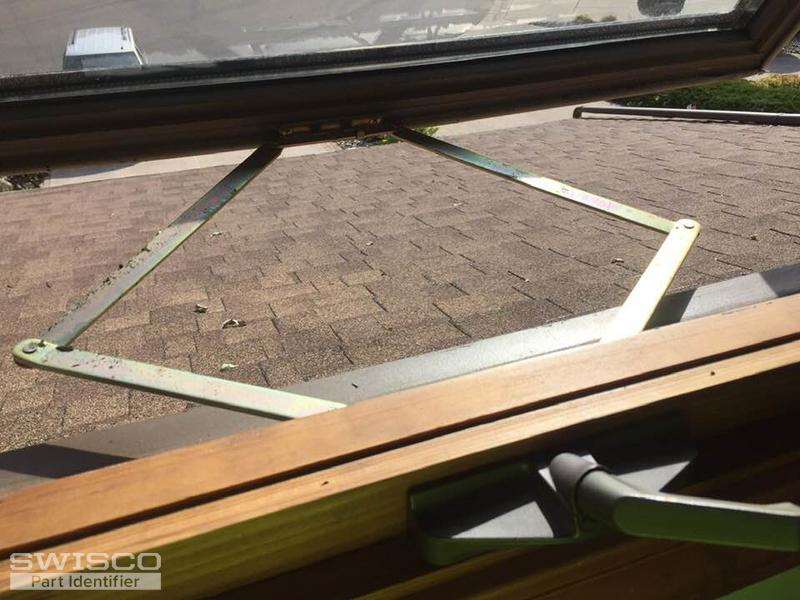

One 9" hopperOne 5.5" left handI am in need of these replacemet parts. Can you tell me what brand would work? It appears I was misreading left and right hand. Please clarify. From the inside the lock is on the right and hinges on the left

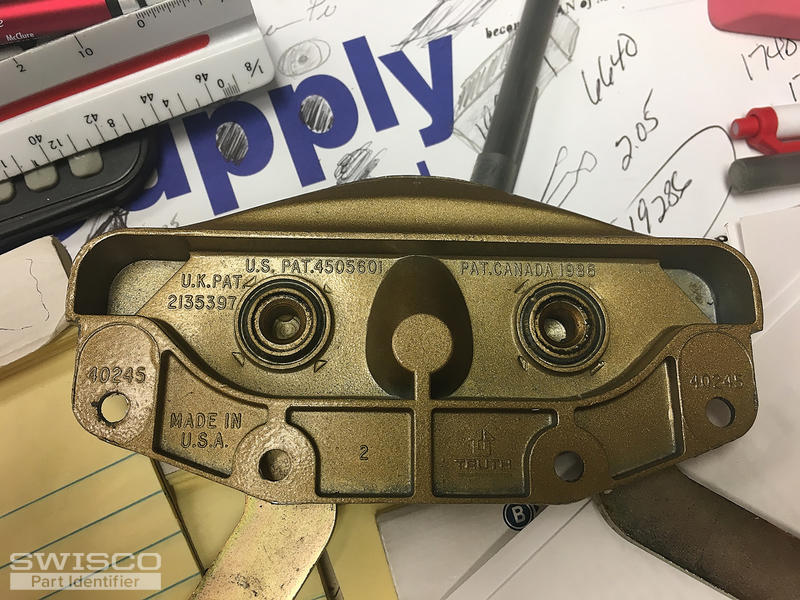

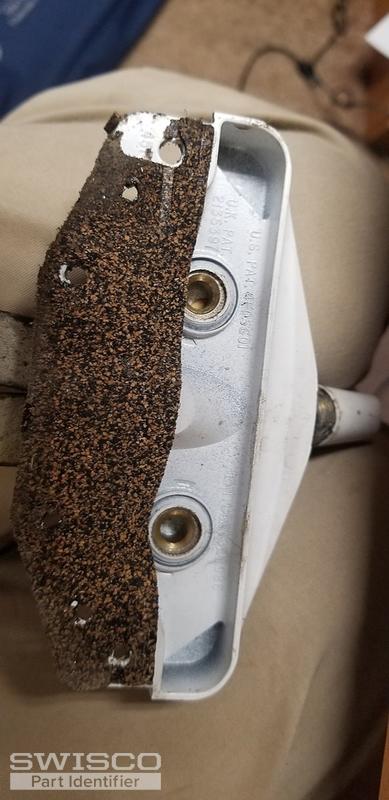

The window is about 25-30 years old. The crank will no pull in the window. I read the patent number as US Pat. 4505601
