Viewing all customer Discussions for:

15-145 Coil Support Barrel

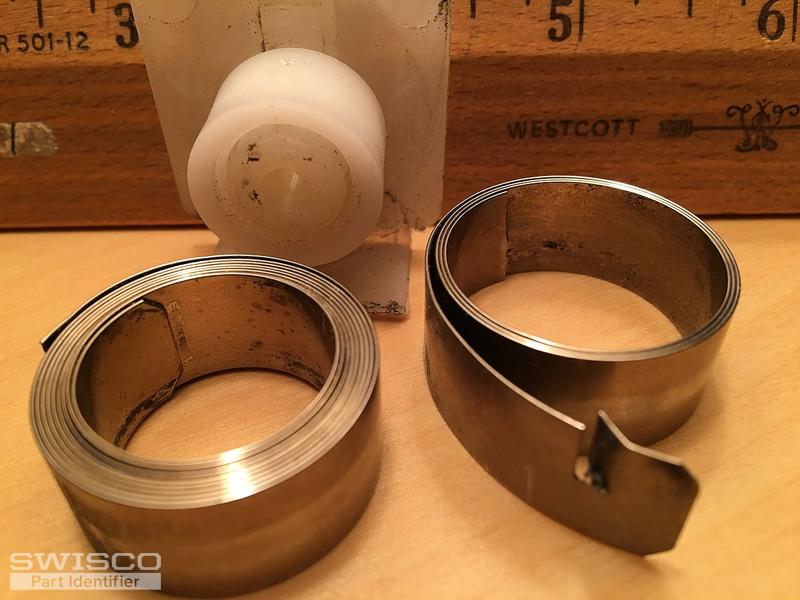

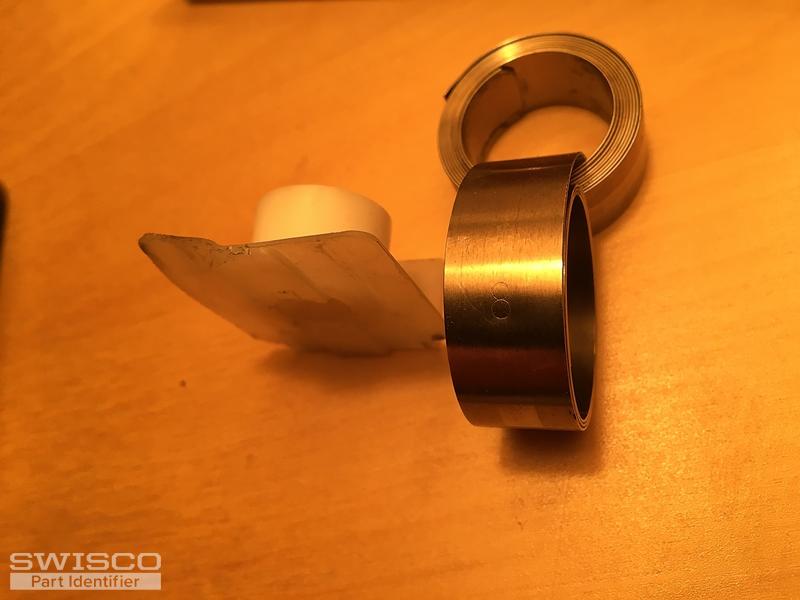

No mfg identification on the window or any parts. The parts I need are for the lower sash of a double hung. There is a "10" on the coil spring which is included in the 3 attached pictures. The overall window size is 36"x52". The lower sash size is 33"x26" I am looking for both the pivot shoe & coil ... (cont.)

I have window need part to repair it

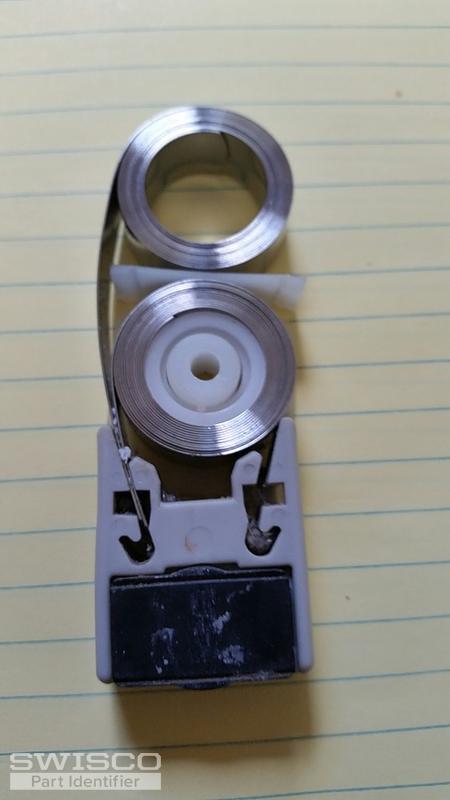

Hello - The window code on the gold label UL-2, shows the manufacturer was Alside Products (acquired by Associated Materials.) The gold sticker doesn't show much information clearly. I attached it, along with the other sticker that showed the mfr date but not much else other then the PO @ 2260 an ... (cont.)

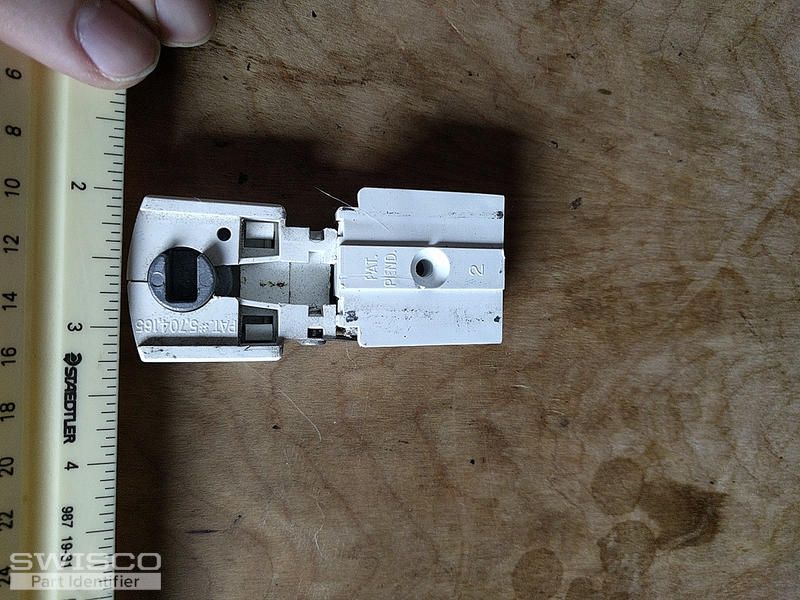

I need the entire setup you see in the pic!

I am looking2 sash latches left right who go flat at top of sash with 2 screws.2 sash spring left right2 plastic stopper who goes bottom window.The sash is 19" x 21 1/2"There is no brand name or part number anywhere.

looking for coil balance to fit older Kastner windows

Hello,I cannot find a model number on my windows but these to me look like 150 series correct? I found the number #6 and #7 posted on the coil themselves. I just wanted to see if I am order the right parts below.#7 (S150-7) coilpivot shoe (15-140)cap (15-144)support barrel (15-145)#6 (S150-6)ThanksT ... (cont.)

Pivot shoe replacement

Hi, How are you? I hope this picture on top would help you identify parts to built other one like this to fix my window coil balance. Thanks

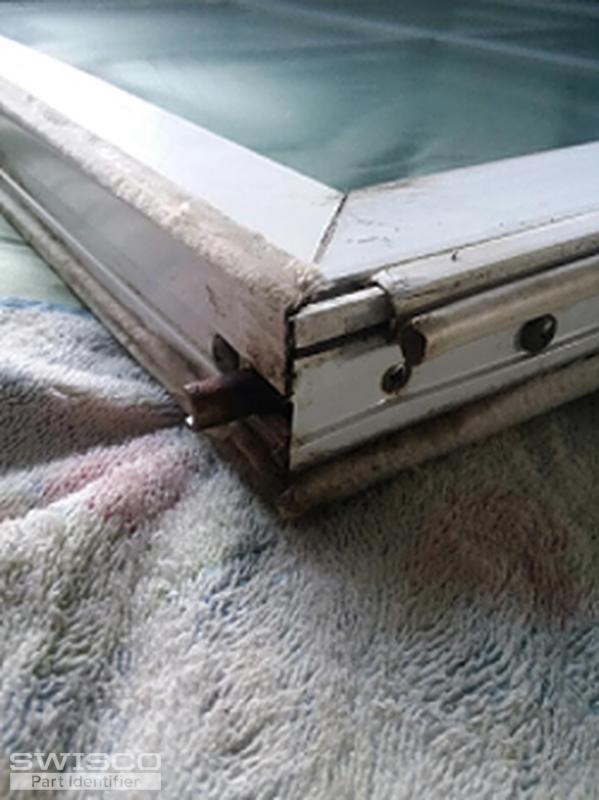

PIVOT BAR IS 2 1/2 INCHES LONG, WINDOW WEIGHT IS 3 LBS, SPRING HOUSING HAS THE LETTERS A,B,C,D,E,F ON IT. WE THOUGHT PART CODES FOR THE WINDOW IS 26-030 FOR PIVOT BAR AND 15-177 FOR THE COIL BALANCE SHOE. WE NEED HELP WITH THESE PARTS TO SEE WHAT SPRING MATCHES AND TO MAKE SURE ALL PARTS ARE CORRECT ... (cont.)

Can you please help me identify and find these parts

I have CertainTeed double hung windows that were installed in approximately 1998. Need to replace both units and only ID # is a CL on the springs. Can shoe metal piece be replaced without spring? I enjoyed your website and learned a lot about fixing this problem but certainly don't want to order w ... (cont.)

I am looking to replace the attached parts for 3 windows in my home.

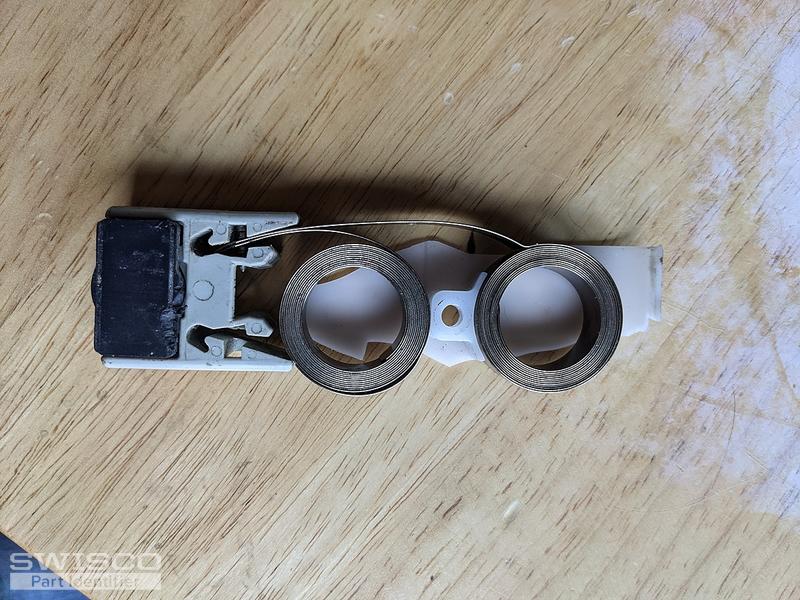

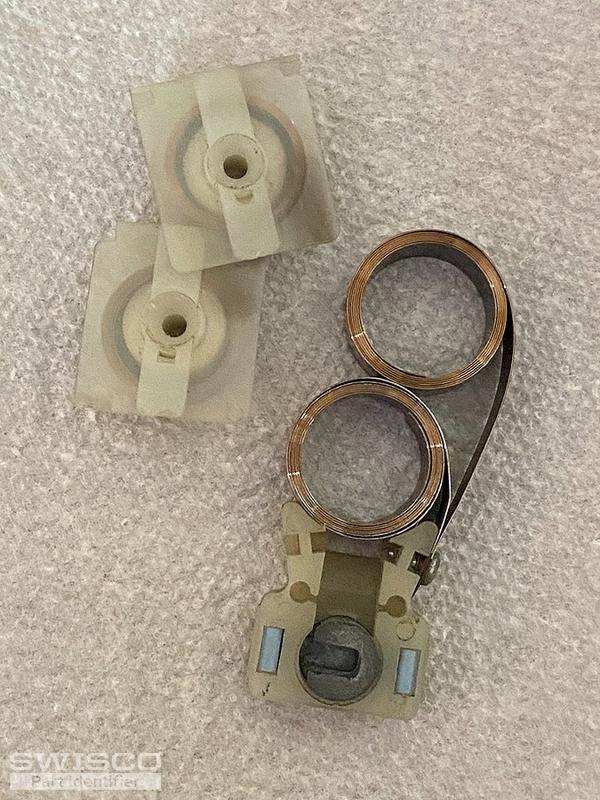

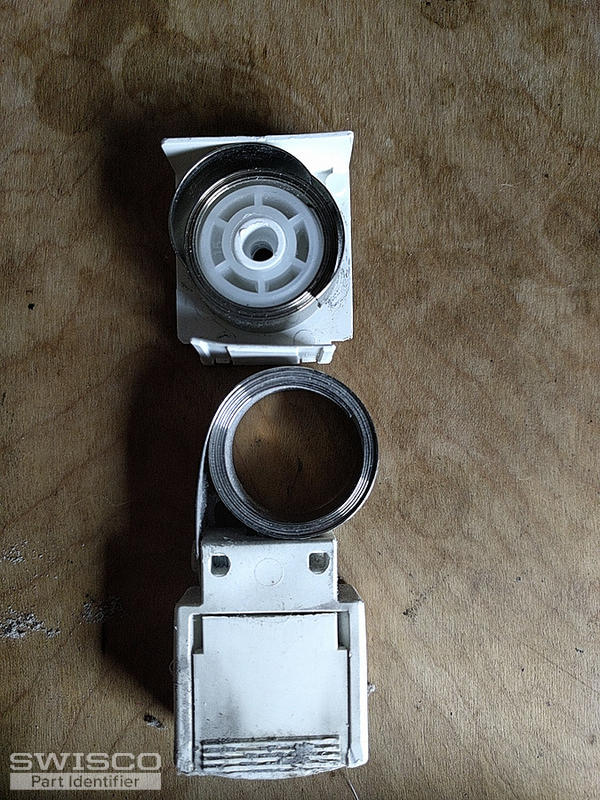

Hi Swisco expert, I have a small single hung window in the bathroom with the coil balance system. These are the parts I took out. There is a coil attached to the assembly on top and a coil attached to the shoe at the bottom. Not sure if they were one coil broken into 2. There is no marking on the ... (cont.)

Please help identify these window parts so I can order the correct ones.Thank you , Scott

Hello Swisco Would you be able to identify these parts please, what would the part numbers be? Thank You, Lori

I think they are Great Lakes - Plygem double-hung parts

Hi, I am currently need to replace both of my coil balances on my bathroom window. I have attached pictures of the broken part. Any help that you can provide is greatly appreciated. Thanks

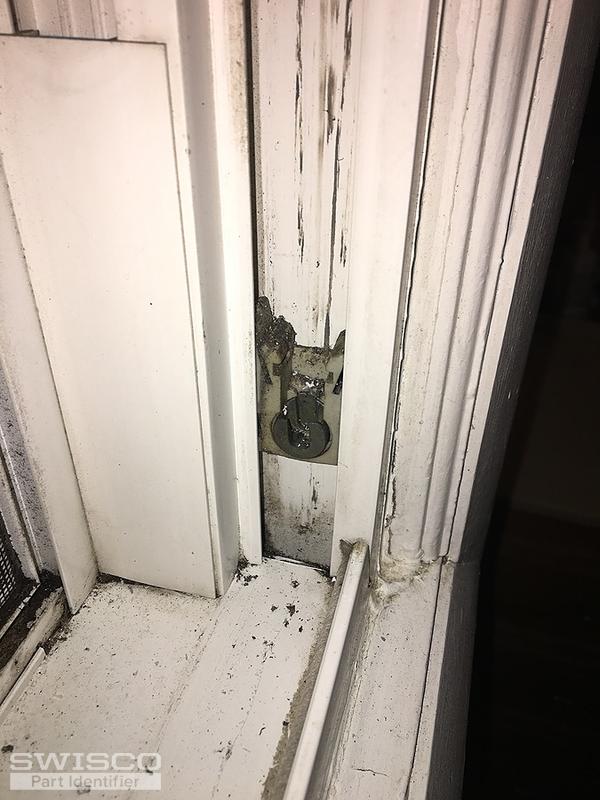

The pivot shoe on are windows keep breaking trying to find replacements

What are the parts numbers for these items and these are 2 spring What springs go on these There is no screw, instead a hook Thanks Jim P
