Viewing all customer Discussions for:

15-167 Pivot Lock Shoe

the stamped numbers and letters are 11TGX B.S.I. AK...JPG.295 IS A PICTURE OF WHAT THE PIVOT BAR SLIDES INTO BUT I CAN NOT REMOVE IT ,IT JUST SLIDES UP AND DOWN IN A CHANNEL. I AM ALSO GOING TO NEED NEW PIVOT BARS .THANK YOU FOR ANY HELP YOU CAN PROVIDE. CHARLES

Channel balance I need?

I was hoping you could help me identify the correct replacement shoes and any other tools needed to replace both window shoes?

I couldn't get the images uploaded on your site. This is a Milestone Single Hung window - 27". Also, if the window doesn't stay in the up position, what part(s) do I need to repair? Thanks, Patti

i cant find a pivot bar thats 1 7/8 tall 17/32 thick and 7/8 wide

I have one vinyl window that the Lock Shoes have deteriorated. They were builders grade windows, the only thing I can find on them is some paperwork with Astoria Pro Single-Hung Windows but I am not finding anything on the internet. I've have a picture of the part I need although when I click on a ... (cont.)

There are some damaged 12 year old single sash windows in my condo unit. It appears that I will need channel balances, pivot shoes and snap in glazing to do the repairs. There are 100 condo units in our complex and I am quite sure that others are having problems with their windows as the instalati ... (cont.)

I need 10 pivot foot that look like 15-167 ,178 or 188 BUT have a dimension issue. my foot is 1/2" deep (f-b) by 2 1/8 " (t-b) by 1" (l-r) the 3 units that look like mine are 1 1/4" left-right which is the width of the track it fits into in/on the window. Do you have something that will fit my track ... (cont.)

With this pivot lock shoe, the video shows it being used along with a spiral balance charging tool. The tilt sash that I am working with has a corded balance. Is there a special tool that is required for this disassembly and reassembly?

Hello. i could not find a similar sash pivot bar to replace in my window, can you please take a look at the pictures and advise. Thanks,Juan

no markings. The bottom part that's missing looks like on part: 15-188 I put the sizes in the one photo. I cannot find an exact match. Please advise.

Do you have something that will work to replace my broken balancer? Photos attached.

Good morning! I am looking for a specific pivot shoe for my 19 year old tilt windows in my home and was hoping you have it. Here is a link to a nearly identical product you sell: https://www.swisco.com/Pivot-Shoe-5_8-inch-Thick/pd/Tilt-Window-Replacement-Pivot-Lock-Shoes/15-070 The only differen ... (cont.)

Hi, I have a broken window slider. I also THINK I have a broken slider guide, but I cannot be sure. I've attached a photo of the slider (which is broken but reinserted for purposes of the picture). I've also attached a photo of what I believe to be the slider guide, which has a metal interior t ... (cont.)

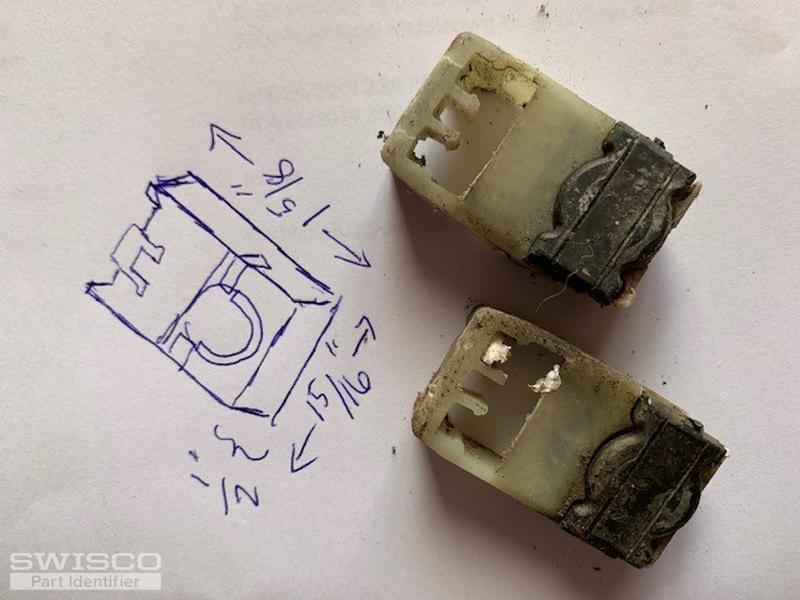

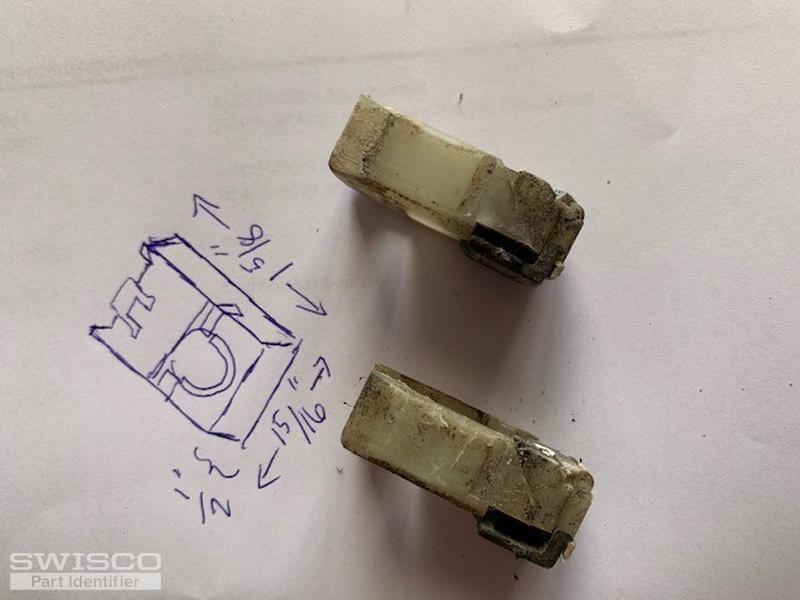

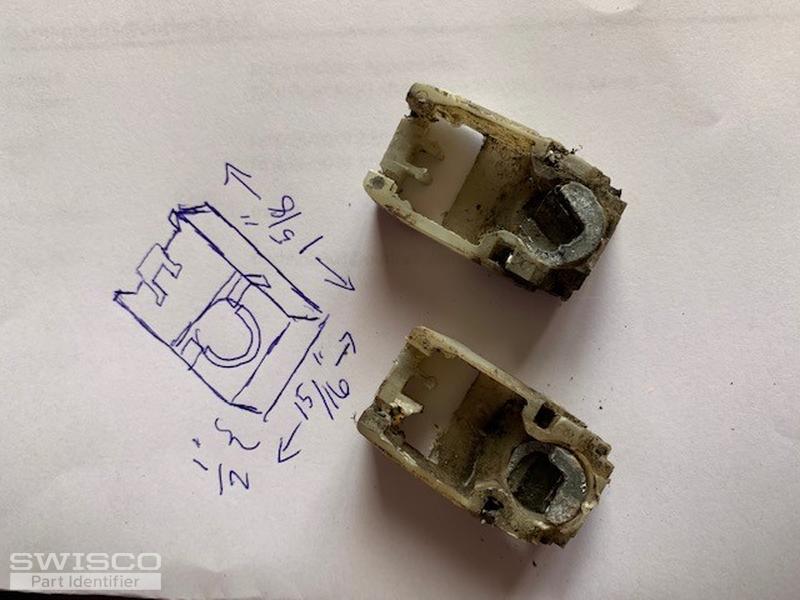

Attached are the pictures of my window parts needed. The measurements are as follows: 1 7/8" long/tall, 1" wide, 3/8" deep.

Could you help me identify the correct parts to make my windows function? I have about 10 of these that are the same size and none of them work properly.

Need part for window

Good afternoon. I am trying to find the pivots shows from the pictures I added here. The ones closest to these are your Product Code: 15-188 However, that shoe states a 1 1/4" width, and my shoe is definitely only 1" wide. All other dimensions are correct but width. Please let me know i ... (cont.)

I am searching for replacement hardware for tilt windows installed in a condominium on Marco Island, FL built in 1997. The building drawings specify Binnings Pan American aluminum windows or equivalent. The only numbers are on the support balances. The windows are 1 inch in depth. The ... (cont.)

Please see attached photo number 1. I have three broken "1/2" RIBBED CHANNEL BALANCE FOR JAMBLINERS" that I believe need to be replaced with your Part #62A-23HD. Each is stamped with "23HD" on it and measures 24" in length and 1/2" wide; see photo number 2. Please confirm and I will order three of t ... (cont.)
