Viewing all customer Discussions for:

75-006 Spiral Balance Charging Tool for Tilt Windows

I have double hung tilt window with a broken spring. I don't know if I need new 3D335 picture number part? I would like two spring replacements so they ware the same. Also don't have a tool to load them. Want to make sure I'm getting the right parts. Also broke the plastic piece that goes over th ... (cont.)

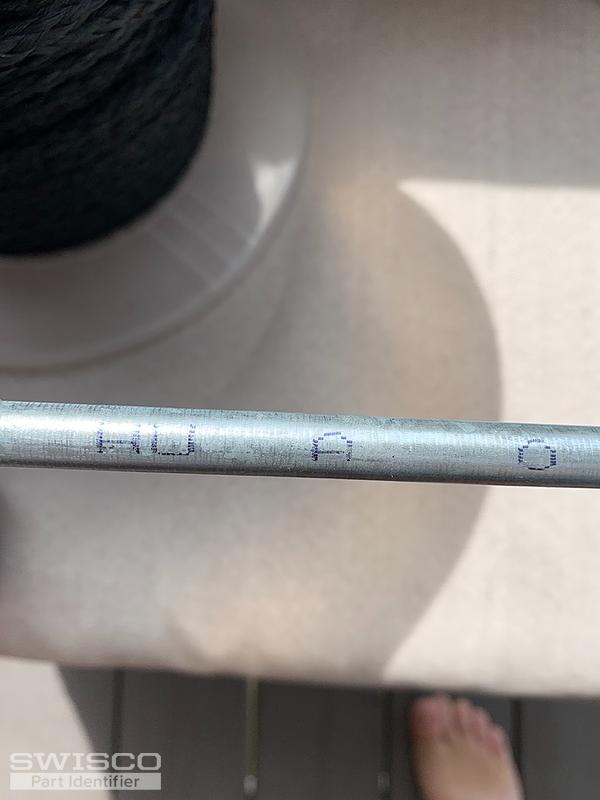

Would like to see if you have replacement parts to match these. Number on balance has a number looks like 2 8 mi8

Hello, I have some pretty old windows (installed in '89) and I'm looking to replace the spiral balance and pivot shoes. The balances themselves have this coil wrapped around them but the metal tube itself is 3/8". I'm assuming I would go with th3 3/8" spiral balance but then I didn't see any with a ... (cont.)

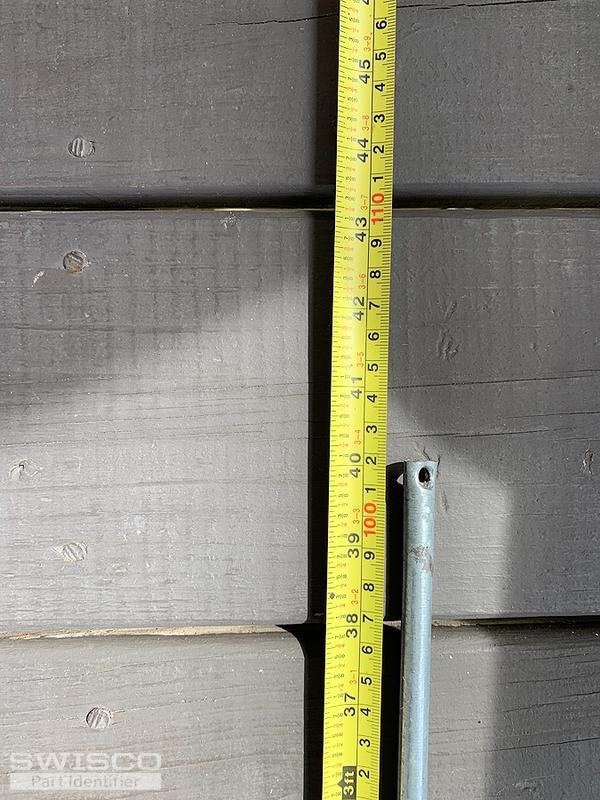

The rod on my vinyl windows is 40 inches long and 3/8 inch dia I need 4 of these.

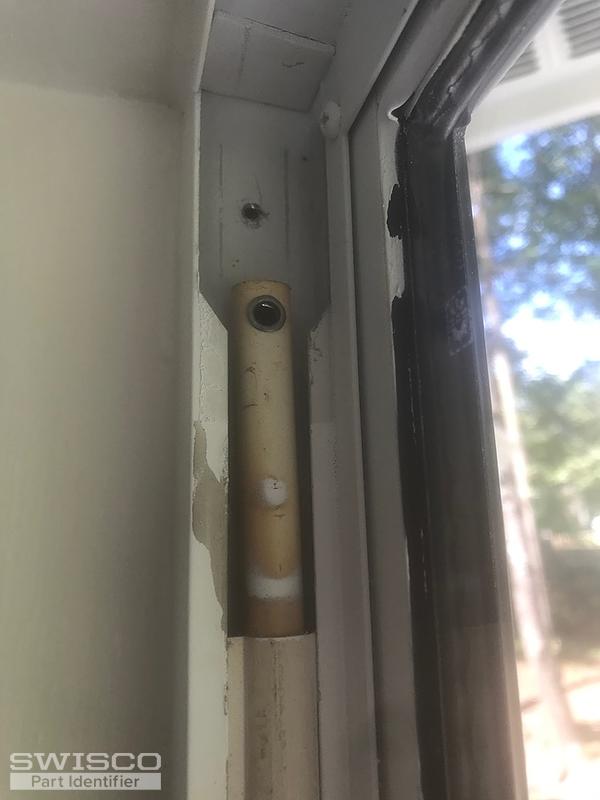

I have the Acorn single hung aluminum window with spiral balance. Where and how does the sash attach to the pivot shoe? Your tutorial doesn't show this very well.

Parts I believe are correct: 26-226 Pivot Bar 15-178 Pivot Lock Shoe S600-17 17" spiral balance Does this look right to you. Thank you!

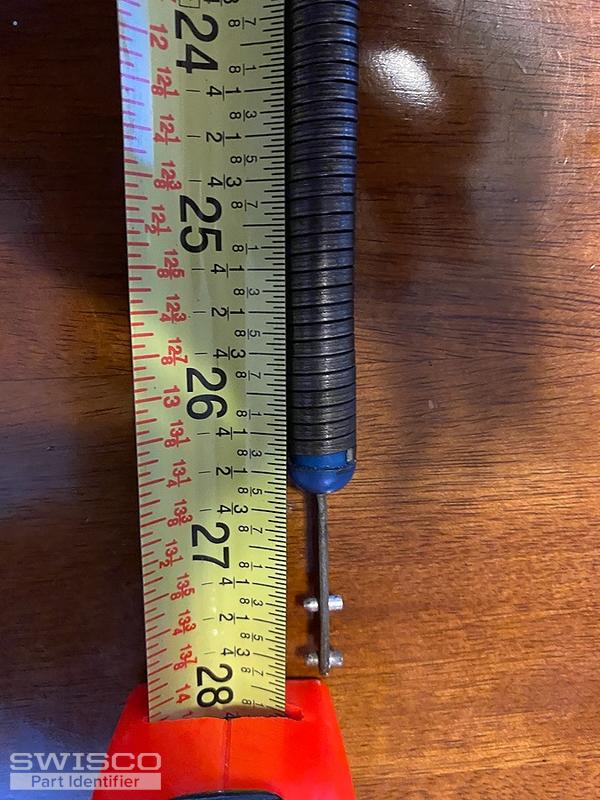

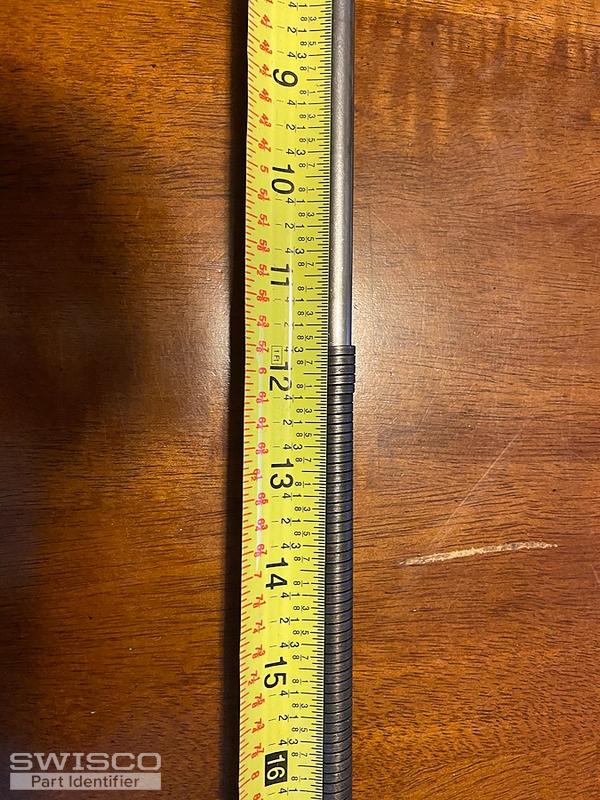

The spring inside of my spiral tilt window balance broke. I measure the rod and it was 3/8in and rod was 28.5. Would that be 29 or 28in rod? Should I replace both of them.

I?m just curious, if there is a normal known life cycle for spiral balance in a typical home with vinyl windows? Many of the windows in our house need them replaced, mostly due to the red plastic tips being broken. They have never been abused, Possibly just the plastic aging, dunno. I?ll be orde ... (cont.)

I need 10 of the spiral balance rods, they are 28 1/2 inches long, 3/8 wide. I need 10 of the spiral balance rods, they are 28 1/2 inches long, 3/8 wide.I also need two of the bottom handles or locks that have the metal tension part.Finally I need the tool to install the balance rods, and the part t ... (cont.)

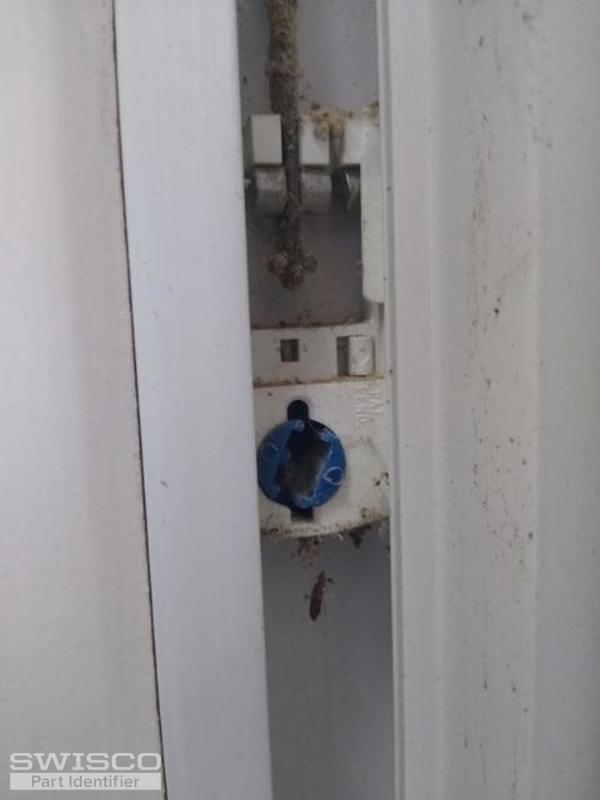

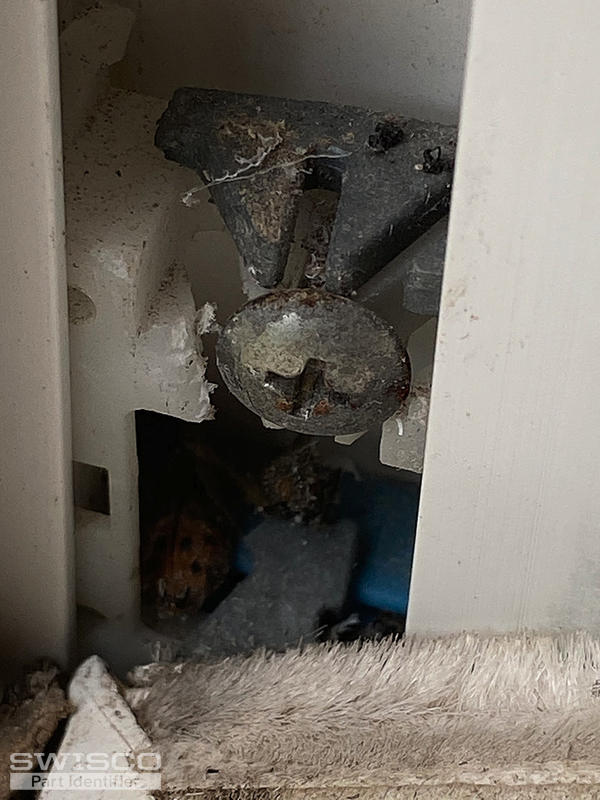

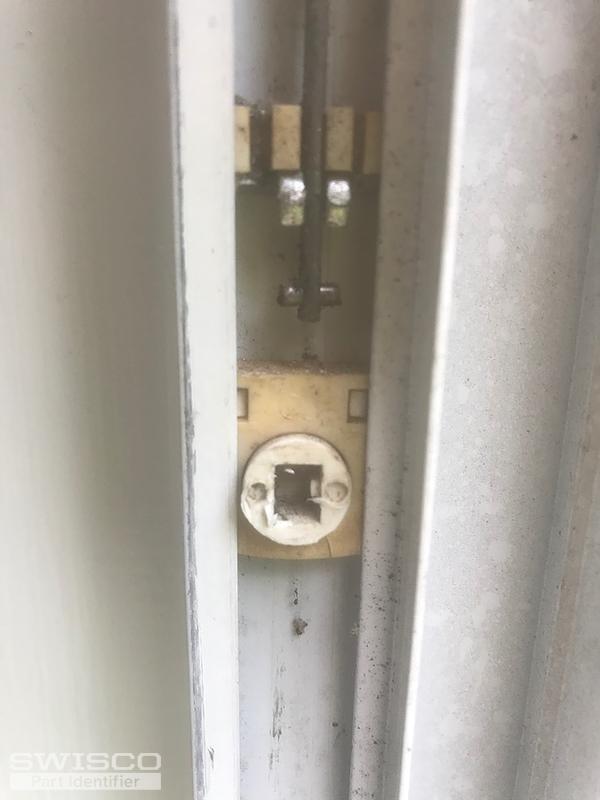

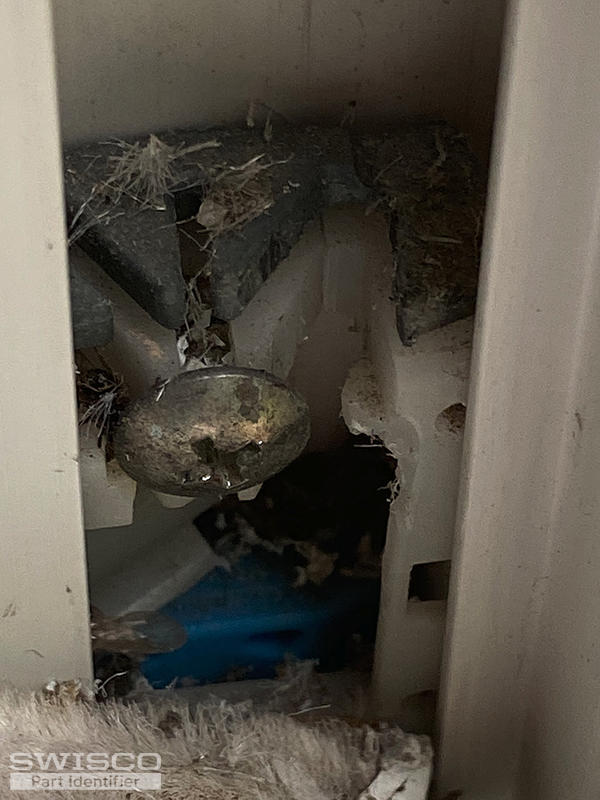

I am not sure what this part is called, though it may be the pivot shoe. It holds the spiral balance rod at the bottom of the window track. The windows were installed in 1997 and most are still functioning well. I have about four that have a similar problem throughout the house.Thank you for your ... (cont.)

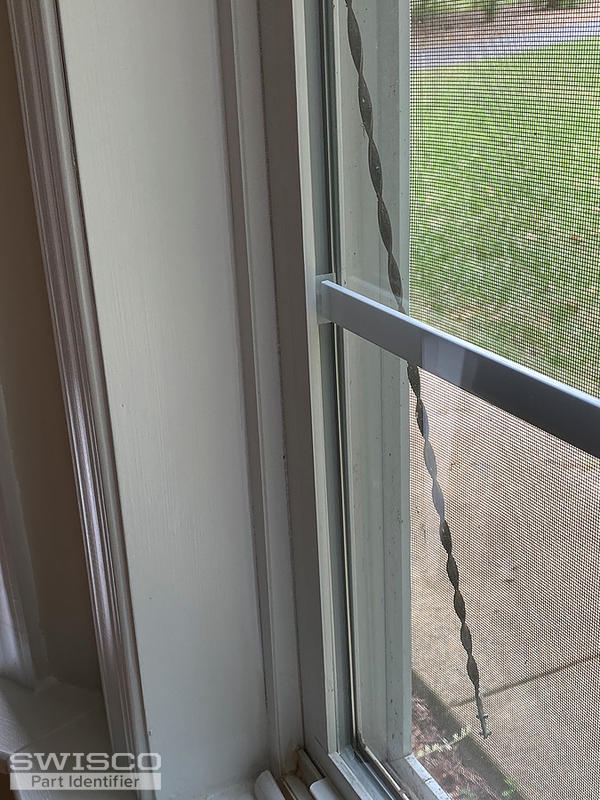

Hi, I would like to replace the balances on my single hung tilt window. They are the spiral type measuring at 28.5 inches from top to bottom,excluding anything beyond the tube portion, only the actual tube was measured. I think the diameter is 3/8". I think I will need to replace the pivot shoes as ... (cont.)

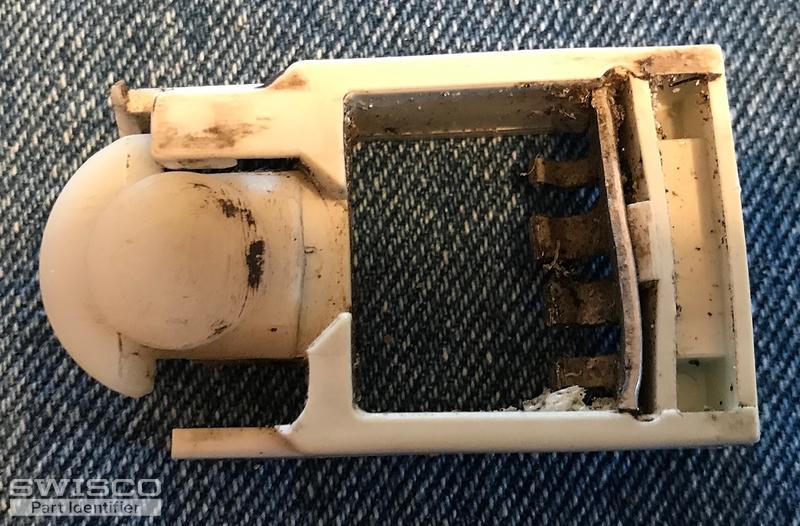

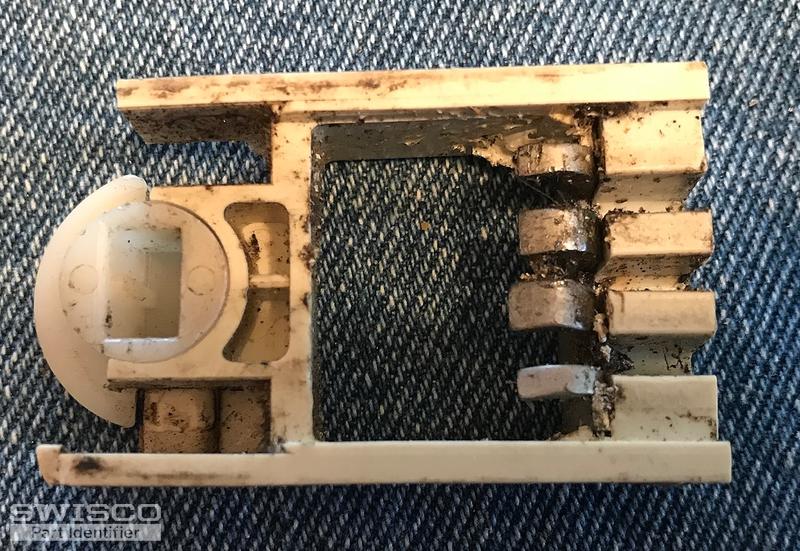

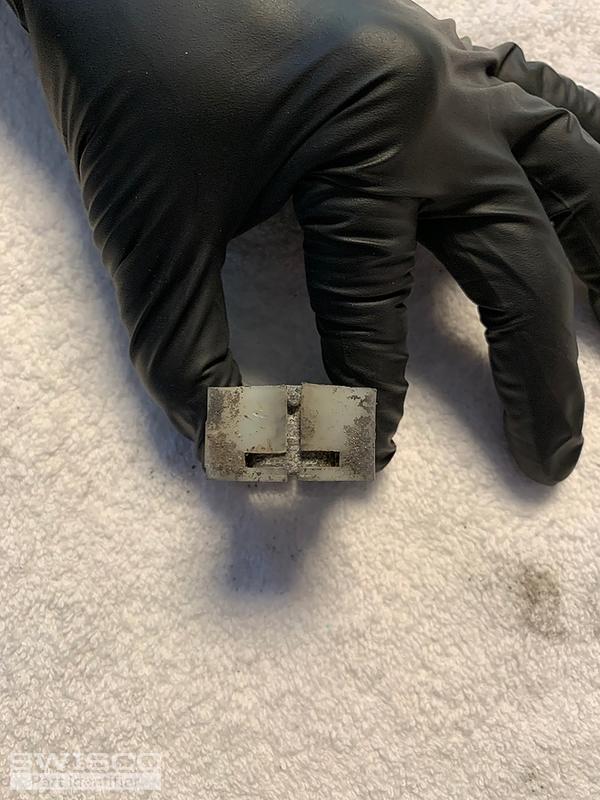

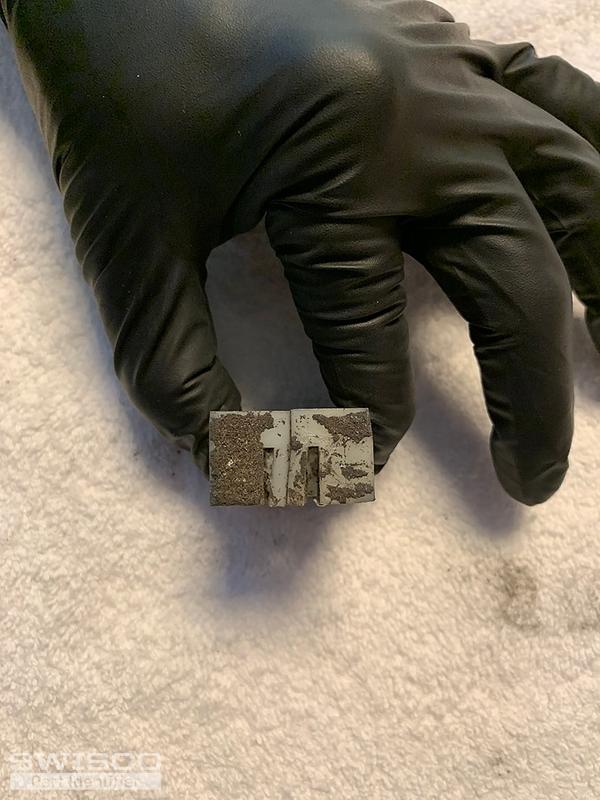

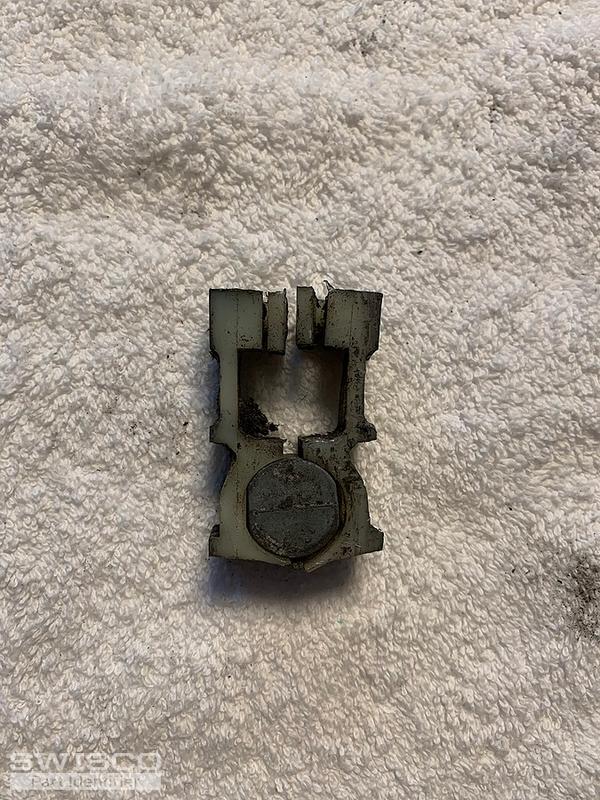

This is one part but you can see that its broke. The windows are 40 years old. the whole piece is missing the cam. Can you help us ?

I want to replace the spiral coil springs in my MW windows (installed in 2000). The channel is 1 and 1/4 inch wide. The lower sash weighs 19 pounds. This is my second post to you today since some of my MW windows spring balances and others have spiral coil balances.

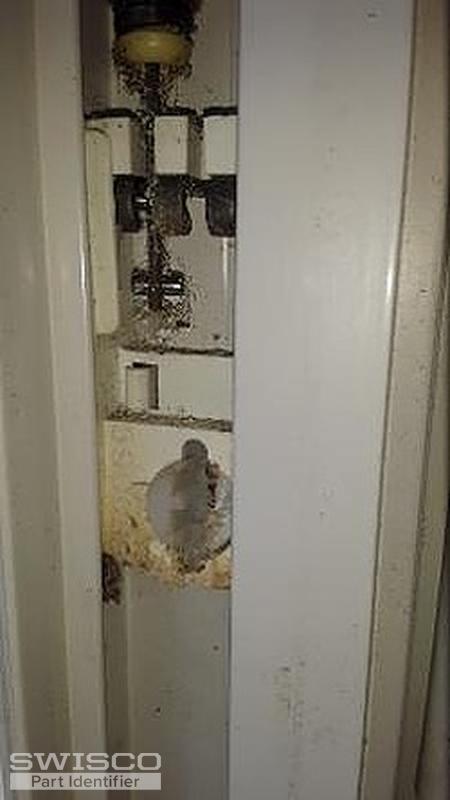

I read in your posts that the 590CSB pivot lock shoe has been discontinued and noticed your suggested replacements, however my shoe has a white cam versus the blue that were discussed and the depth of the shoe is 1/2", not the 5/8" that was mentioned before. I am considering the 15-046 pivot lock s ... (cont.)

Hi there- I am looking to replace this pivot shoe for my window. The following are the dimensions of the shoe: height - 1 7/8 in width - 1 1/4 in thickness - 3/4 in Can you please help me out with this? Thank you, Alyssa

Found Pella name on window latch. I need parts one window has 28 inch tubes with plastic covers and blue ends. One window has 22 7/8 inch spring tubes with blue ends, I need shoes for these windows that appear to 1/2 inch X 1 1/2 X 2 1/8 and 4 axles. Can you help?

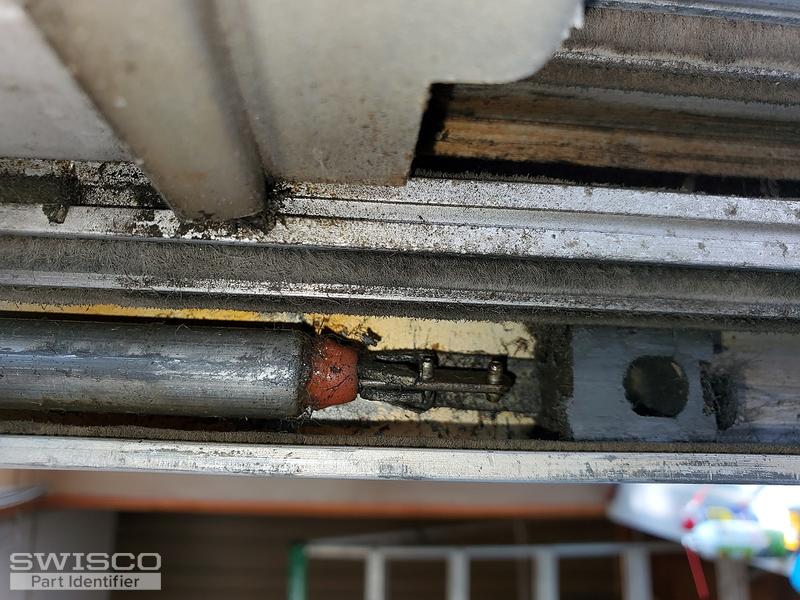

I am replacing my spiral balances because they have failed on 2 of my windows. This issue is they continually come free from the pivot shoe, which is a locking pivot. To make sure I fix the problem completely, I thought I would replace the pivot shoe with the spiral balance, however, I haven't fou ... (cont.)

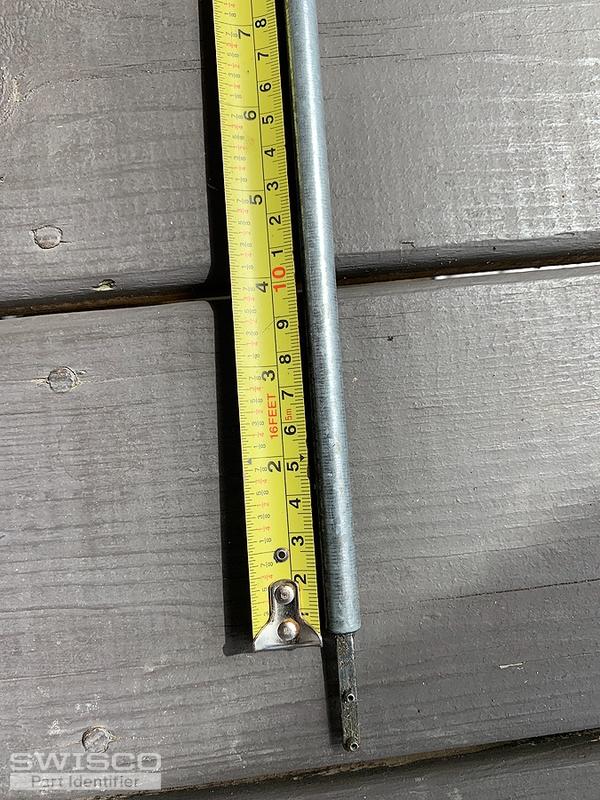

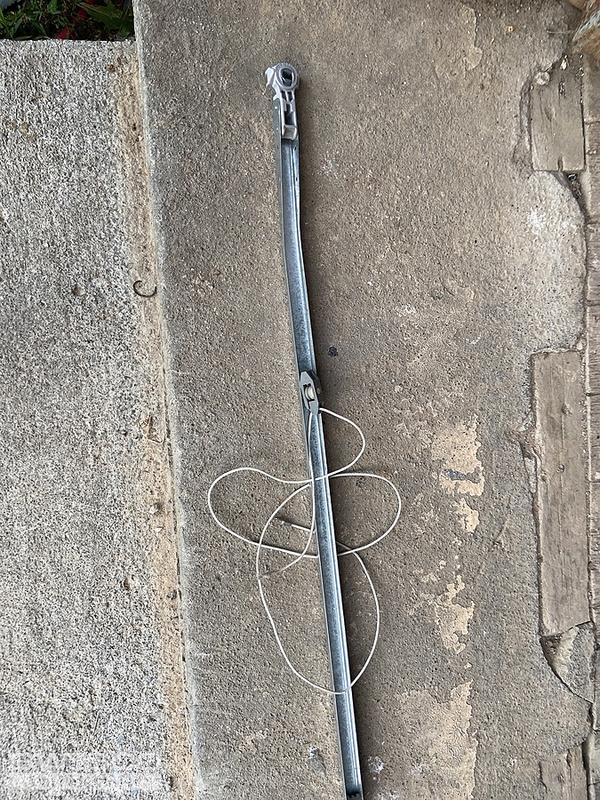

the rod is 34 " silver...total length 35" looking to get the replacement rod and socket attachment.looks like the 5/8"

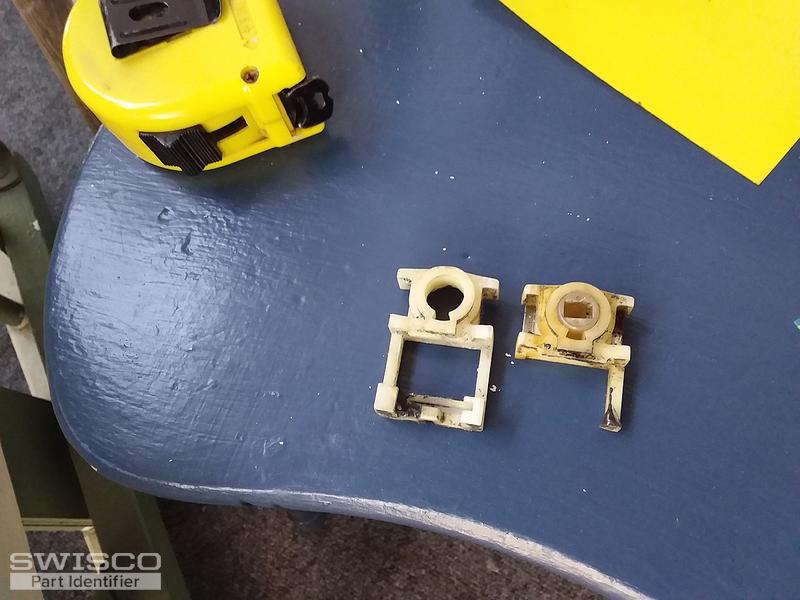

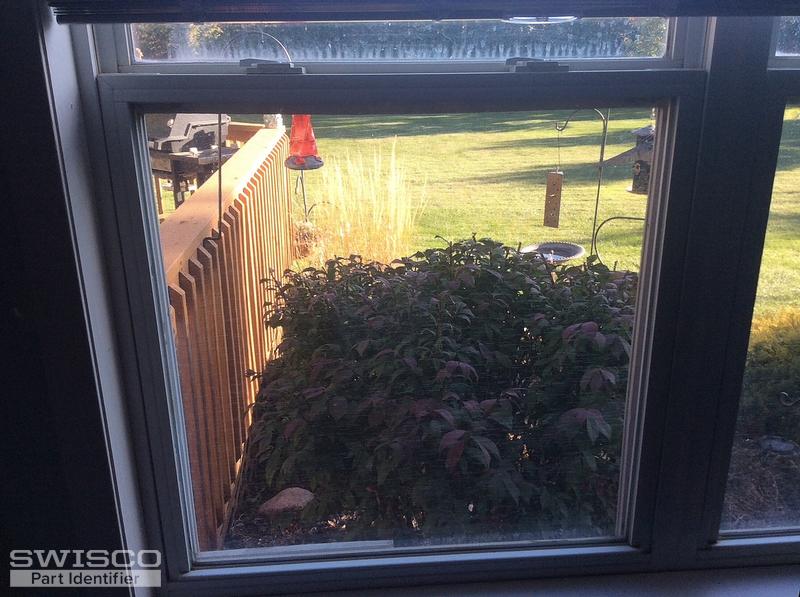

These photos are from one window - left and right side. They were very tight to get out and I had to really push them. I'm thinking that theywere possible oversized replacements. The original wondows ( picture attached) were installed in 1981. Thanks for any help.

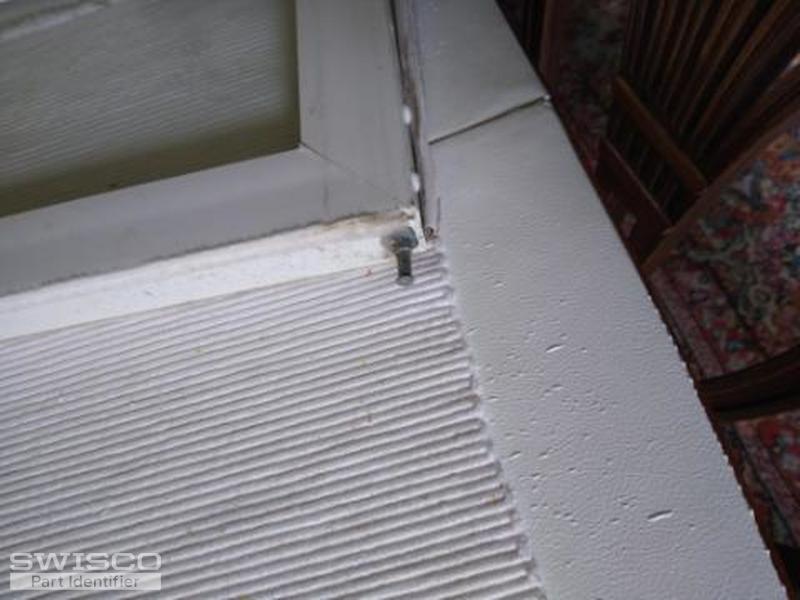

Need for pivot Pen, Spyro tool Sparrow tool, Pivot pin,
