Viewing all customer Discussions for:

75-006 Spiral Balance Charging Tool for Tilt Windows

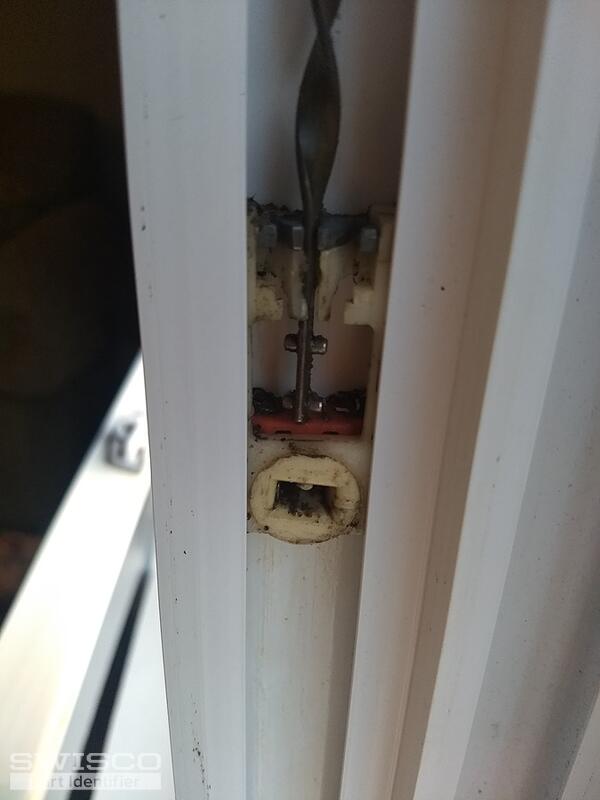

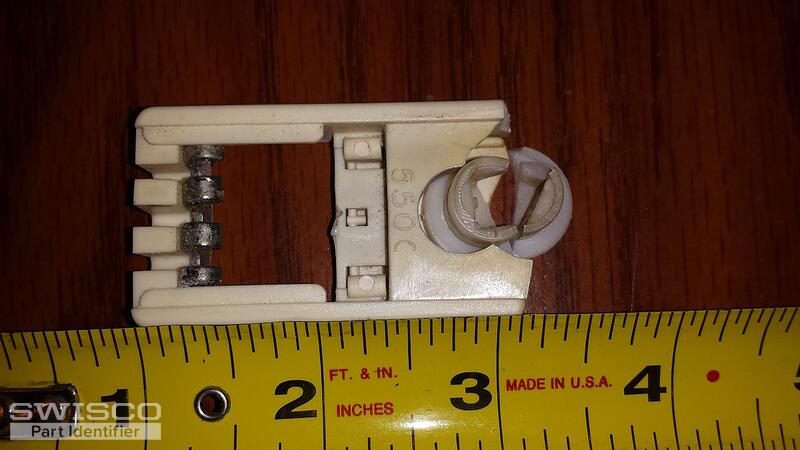

Hi can you identify the replacement pivot shoe for me please ? I sent a picture and the number on the part is 505C. I was on your site and I need to buy replacement spiral balances, and my pivot shoes seem less than ideal. The metal component has come off ( though I was able to put it back ) but in ... (cont.)

It's me again. How do I identify these balance SHOES? Also, do I really need that white spacer thing? (one pic shows it with correct alignment, other pic shows it jammed at an angle). Do they come with the shoe or do I order them separately? regards,Eric

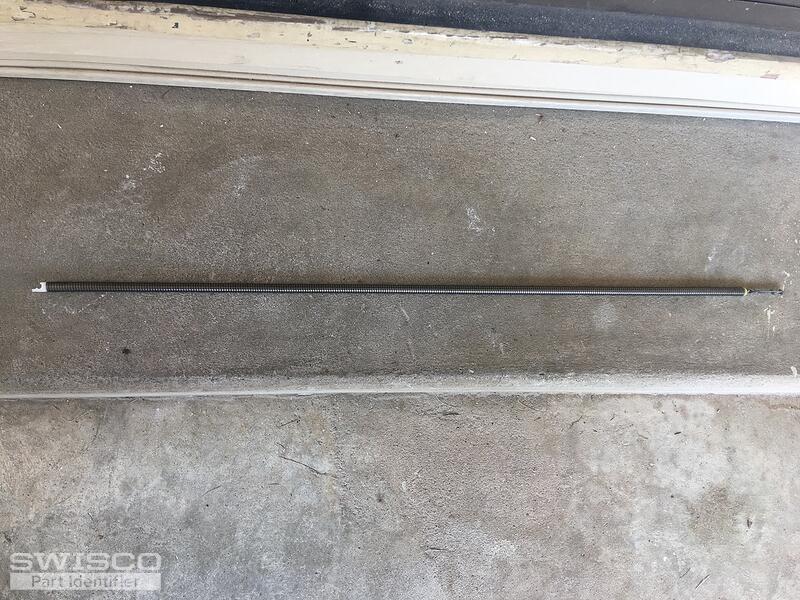

I have a spiral balance that has a white plastic housing that measures 28 inches in length and 3/8inches round. The spiral completely extended adds another 28 inches to the length. The pictures or the mechanism in the channel of the window has no way of coming out at this point. So if you have the s ... (cont.)

Height 3? Width 1 1/4

Dear friends, I am trying to replace all the sash parts pertaining to a 53" wide x 50 5/8 tall PGT vinyl window i have installed in my office (drywall inside, stucco on block outside). All the parts associated with tilting the window and the balances are shot. The only parts I DONT need are the l ... (cont.)

Hi there, I have a broken pivot shoe and spiral balance from a window with no identifiable markings. The pivot shoe is 2?x1.25?x.5?. I didn?t see any options that had the similar curved metal piece, so I was hoping for an alternate suggestion. Thanks! Melissa

The windows are 19 years old and the majority of them have at least one side broken and it seems to be in the same area. I have no idea from your parts pictures exactly what parts I need. Thanks for your help.

Please help me identifying the part It is a 5/8" tilt window with orange red color and it is 14" in lenght Thank you Regards, John

I'm having trouble with Patriot double hung tilt windows Series 2200 that were installed throughout our house in 1996. The windows have become very difficult to slide open and closed. Some of the windows have responded to using WD40 and silicone lubricant on the spiral balances, but some are still ... (cont.)

Dimensions: 2"tall X 1-3/16" wide X 5/8" thick. Part# on back is either 6119398 or could be 6119998. Hard to read number, most likely the first number. It has a metal cam. Window was made and installed by Air-Tite Windows which has gone out of business. Please advise which replacement part will work ... (cont.)

I have 9 windows ( CARE FREE ) that would be 18 springs and 18 slides 1/2 in dim.?

Thumb button actuator and shoe as seen in images. Not sure the brand, see no identifying numbers. Window guy told us should be easy to find on-line and replace ... so far as my 3 hour search says he is wrong lol! This product you have 26-312 looks like it may work but according to my notes (as see ... (cont.)

the tilt latch measures 7/16" deep 11/16" wide and 2-3/8" long the pivot measures 9/16" thick 2-1/16" long by 1-1/4" wide Please advise on part numbers I need. Also one picture shows that there are no sash stops at top to hide the necessary notch. What can I use to cover this. Thank You, Louis ... (cont.)

Good morning.I have Owens Corning fiberglass windows that need replacement parts.I have attached a picture of the serial number for this window.In addition to Spiral balance and pivot shoes, I additionally need a charge tool and replacement vent latches. I cant seem to find a vent latch match on yo ... (cont.)

Unfortunately I?m unable to find any parts identification

I have identified 15-118 as the pivot shoe I need. My version has a screw apparently to tighten the grip on the tip of the balancer or to keep it from slipping out. I have sent a picture of the screw on an installed shoe Also sent a picture of the broken shoe with the plastic broken where the screw ... (cont.)

I have two windows with the hardware as shown. The first is a spiral counter balance...I have seen these in different sites. The other, the spring spiral i have not seen in my searches. Both have the same type of bottom connector...they have little metal dowel type appendages that stick out and they ... (cont.)

Hello, Your 15-015 has the right outside dimensions, but I'm not sure about the size of the pivot bar pocket. My pivot bar has a stamped U shape, 0.315 wide by 0.190 high. The pocket in the shoe is about .33x.22. Will the 15-015 accept the pivot bar I have? Also, my spring balances are unlike anyt ... (cont.)

All are 27". Is there a difference between the blue and red tip ?Also need some window channel locks. Photo to come.

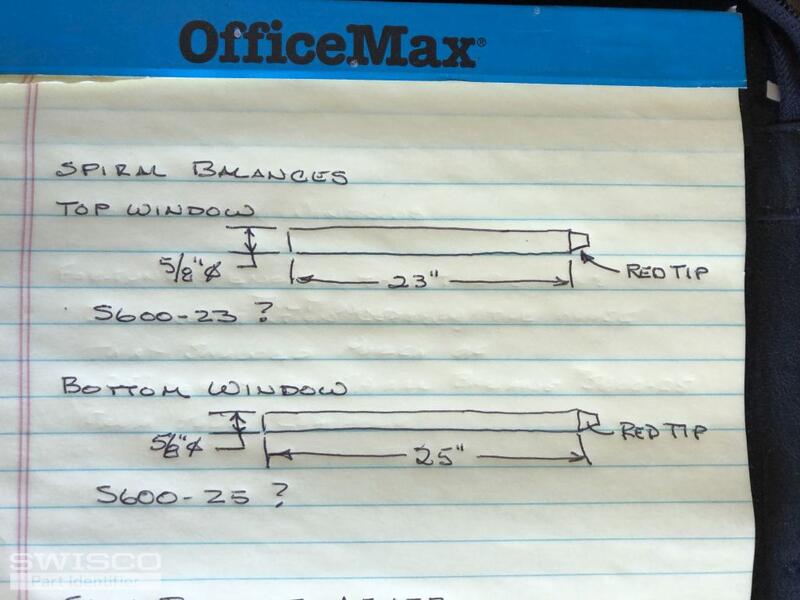

My granddaughter recently purchased a house and we determined there were issues with some of the windows. They are double hung tilt windows. We were fortunate enough that there was some documentation left at the house that showed the purchase of the 25" series 600 spiral balance (S600-25) from you ... (cont.)
