Viewing all customer Discussions for:

S160-05 5.5 lbs Series 160 Coil Balance

I need these coils 5.5 by 58 inches long

I need all these parts. One coil is marked 5.5 lbs. The other is for a small window and has no markings. I assume the lightest. Please send me a list of the parts so I can order them. These are out of Simonton windows.

I'm looking for replacement parts for the above pictured windows. Anyone know where I can locate?

The coil spring broke in two pieces on the left side. I'd like to replace both sides at this point, as both sides show wear. I need to replace both coils, both shoes, and both of the brown unit above the coil. The window was manufactured on 3/24/09. "MOD 267. SH 01. The bottom sash is 30 7/8" x 16 1 ... (cont.)

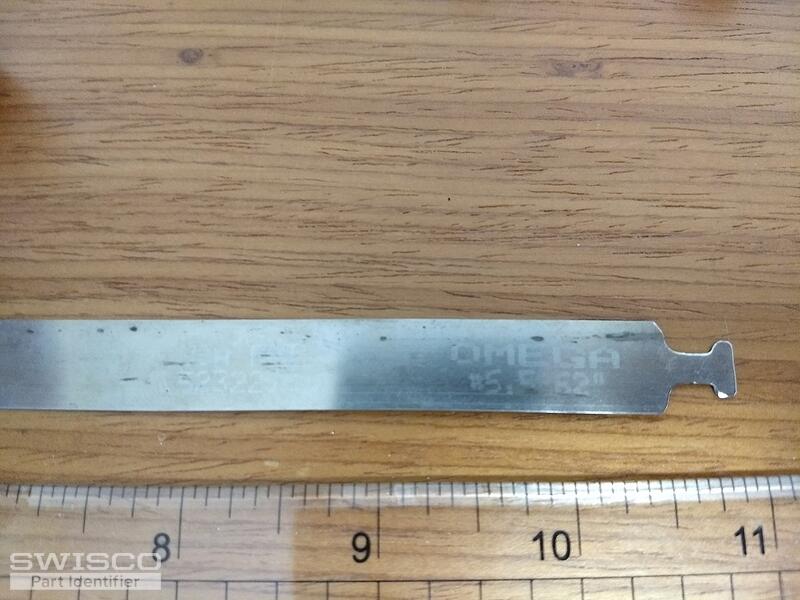

Hello, I need enough coil balances for 7 windows. Each side seems to have two coils so I may need 28 (plus two extra) so 30 Coil Balances. plus any part you think I will need to complete the installation. The Coil balances say Omega 5.5 62" on them. The windows are single hung an approximately ... (cont.)

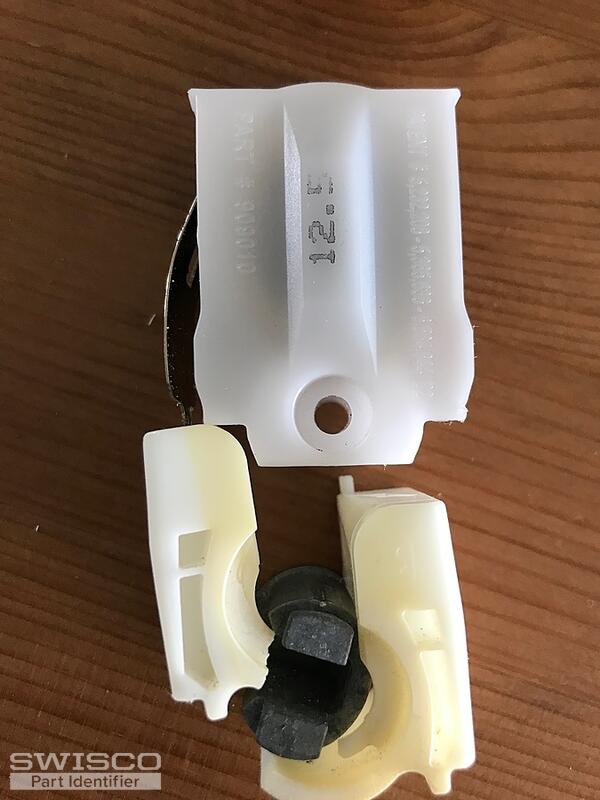

looking for Simonton balance. 4 of each Part #909010. Patent # 5,232,209-5,365,638-6,584,644 62 in black ink 12.5 Second balance has in black ink 11.5

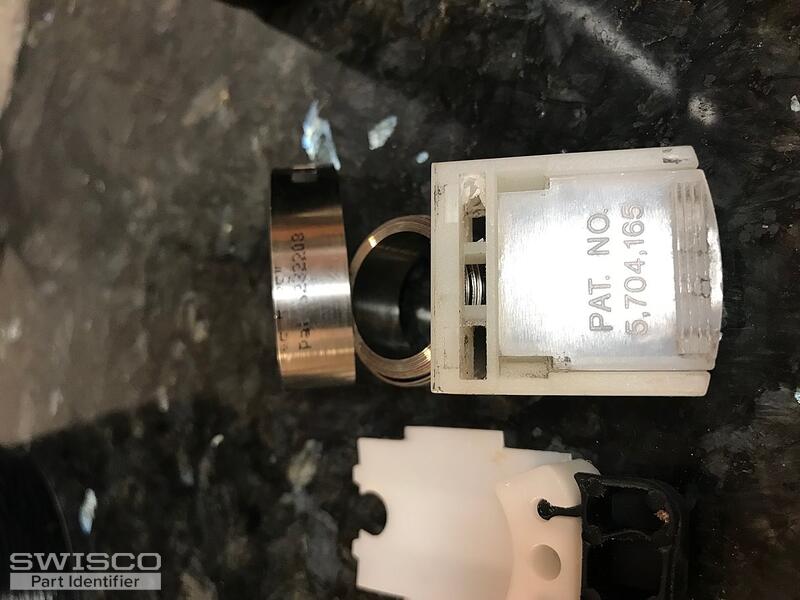

H-R35-48x72 Series 325-324 double hung PAT. NO. 5,704,165 PAT. 5232208 #5.5 35"

I have 3 different size windows, no stamp is on the coils. They are all vinyl Double hung Tilt windows 46 x 47 36 x 53 24 x 36

Hi! I?d like to repair broken coils on several of my 20 year old CertainTeed windows. Can you help me select the right part(s)? These are 16lb windows and the mechanism attaches at the very top of the frame (not towards the middle, as shown on your video), with 2 coils on each side. The coils ar ... (cont.)

Hello Would like to know the availability of a set of these balancers. The window is @30" wide by 40" height. Thank you

Hello, I?m looking to purchase new double coil balances for my 36 x 60 single hung window. The coils measure half in wide. The pivot shoe is 1.25? wide by 1? tall by 0.5? thick. The coil springs have a T style locking end to attach to the pivot shoe. The coil spring holder measures 3? long by 1-1/8? ... (cont.)

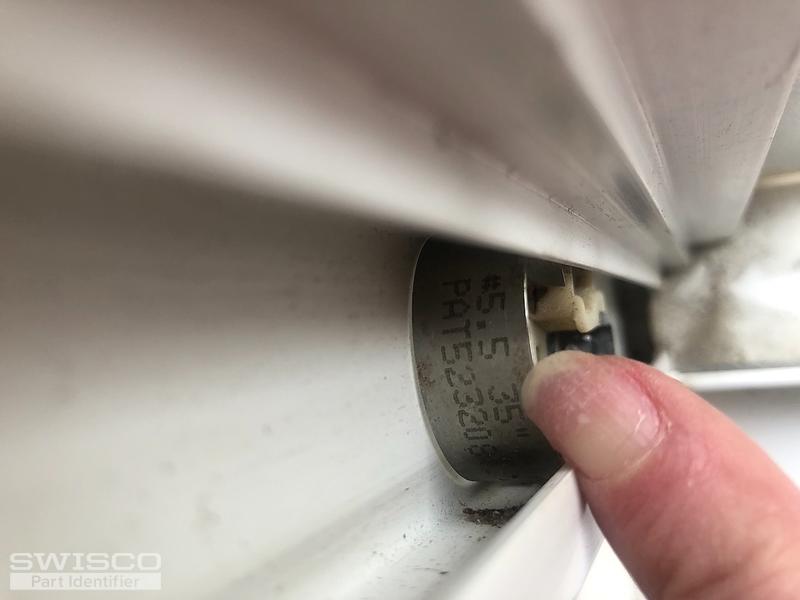

I have a Simonton window #9605021430 Pat 5232208 #5.5 37". These coils are 1/2 inch wide. Simonton says they don't carry the parts anymore. Window total length is 58". only the bottom portion moves. There are two coils on each side of the window. Will I need to replace the balance shoe,tilt pins, ... (cont.)

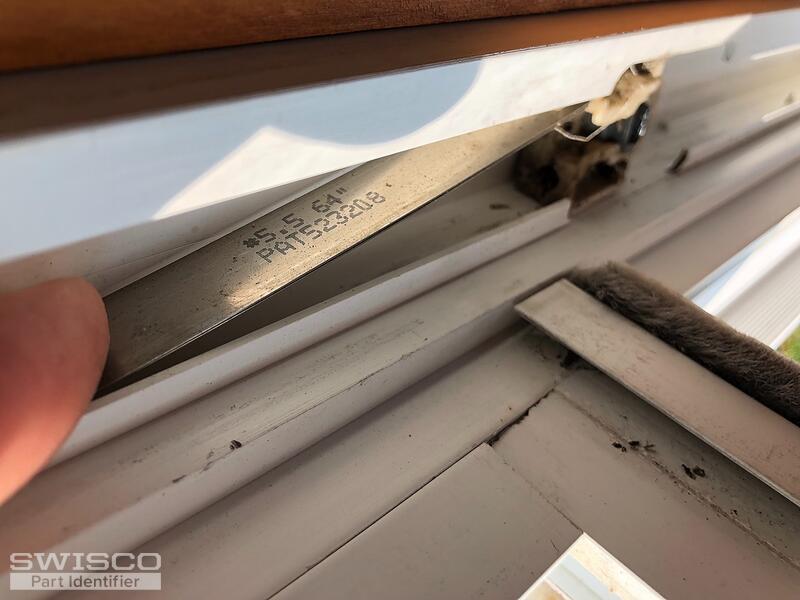

Hello, Having trouble finding proper coil balances for Simonton windows. Windows are standard 36"x60" windows marked: Simonton Window 9904161120, D0349 4/16/99, 2370629/01, UNIT: 35.5000 59.5000, G1 31.5625. 27.0625, OMSH. Old coil balances are marked 5.5#, 39" A PAT E523208, but measure ~64" l ... (cont.)

Hello, I need to order a Jamb Spreader tool and the parts to repair the coil balances with balance shoes for Reynolds Windows. I believe my parts are manufactured from a company called Amesbury Truth. I would like to upload pictures to you in your parts identifier, however, the pictures uploader ... (cont.)

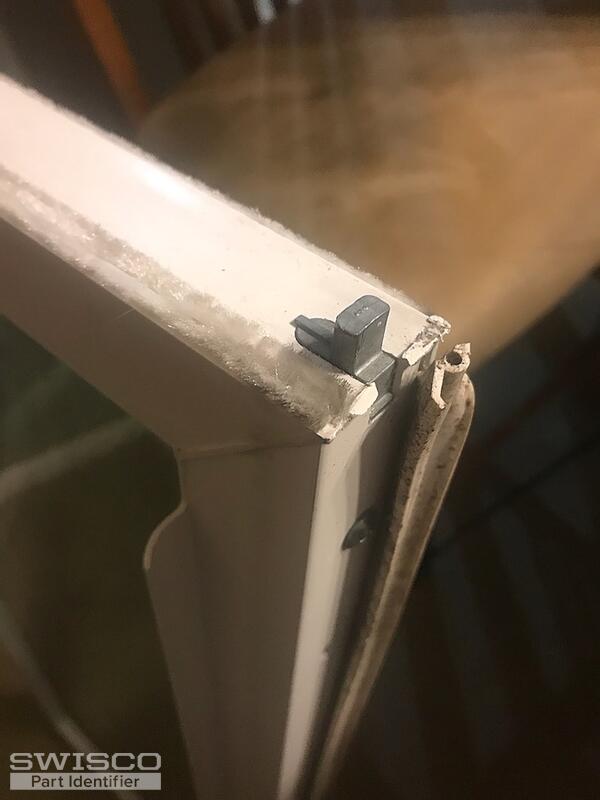

Hello, I have Insul-Weld Vinyl windows. The coil on one side broke and the tilt pin (?) on the other side is broke. Pics included. Number "5" is on both coils. The coil assembly is 1 1/4" wide with 2 screws. I believe I need a double coil assembly and a tilt pin.

Greetings, I find no brand name on the windows or parts. The pivot shoe lock is approximately 1 1 1/4 inch wide by 1 3/8 length by 1/2 deep. The coil is 1/2 inch wide x 35 inches marked with possible part number 232208. Pics 1 and 2 are off a functioning window, pic 4 is what's in both sides of the ... (cont.)

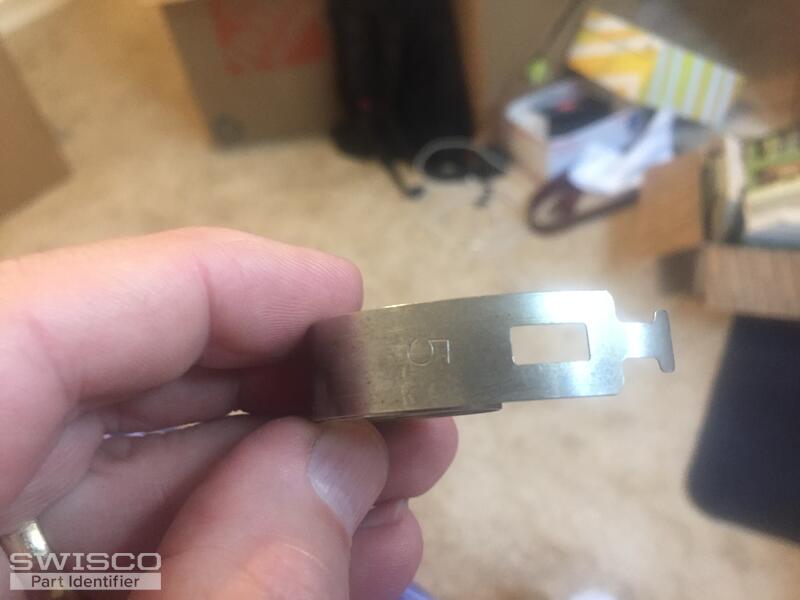

The spring balances in my windows are broken. I am submitting photos of the only one that is not broken to show the end. Only mark is a 5. Can you help? Thank you. Jeff

simonton vinyl window valance 5.5 35" pat 53218 I think. I need the slide in the frame and the plastic housing and springs.

I have returned various window parts due to incorrect product selection. To further assist me, I would like to ship samples of my broken window parts for someone to examine and then tell me exactly what I need for proper replacement. Please advise how I can do this.

I would like to purchase 2 sets of replacements for both sides of the window. I can't figure out the correct weight to buy I also can't figure out how to get the old parts out and the new ones in, Can you give directions for that? Thanks, Rick
