Viewing all customer Discussions for:

16-024 Mounting Bracket

Broken part is from a low end brand of window that has apparently been discontinued. There is NO Notch to remove the balance. I'm asking for advice on how to remove the broken piece and the availability, if any, of a suitable replacement part from Swisco. Other than the 5R marking in the picture I s ... (cont.)

Good morning. I am looking for pivot shoe and spring replacements for the above window, the springs have broken. The units measure 2 5/16" tall, 1 1/4" wide and 9/16" deep. The 28"X18" sach is stamped '7' on the unit and the 32"x22" sach is stamped '8'. I will need 5 sets of the #7's and 2 of the #7 ... (cont.)

The picture is of my old sash pivot bar it is 2 5/8 long 5/16 wide u shape 3 holes one closest to pivot shoe is 5/8/inch next one is 5/8 back from there last one is 1 3/8 from first hole. Pivot shoe looks to be a 15-087 and stamped on spring is 15v then a different type of 6 on it also. Pivot shoe n ... (cont.)

Hi, I am looking for this replacement part. This is coming off of a 50 series American craftsman window from HD. Thank you

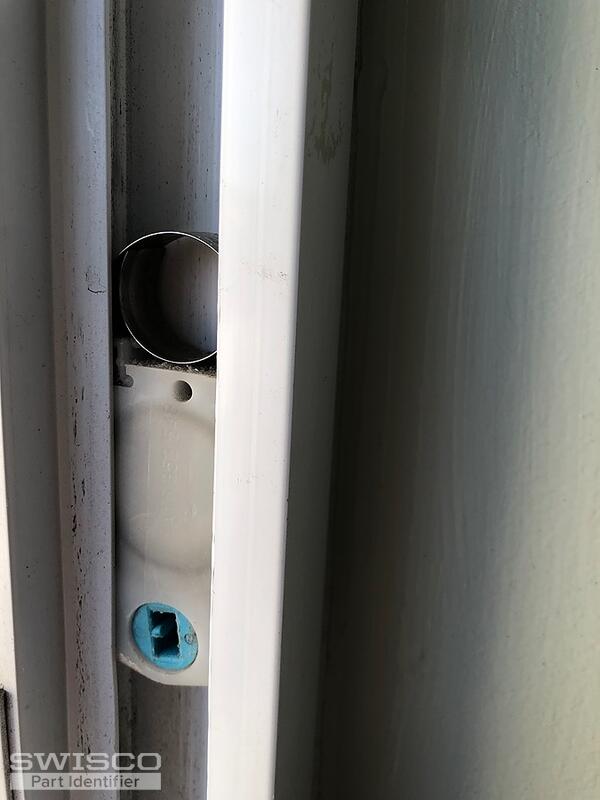

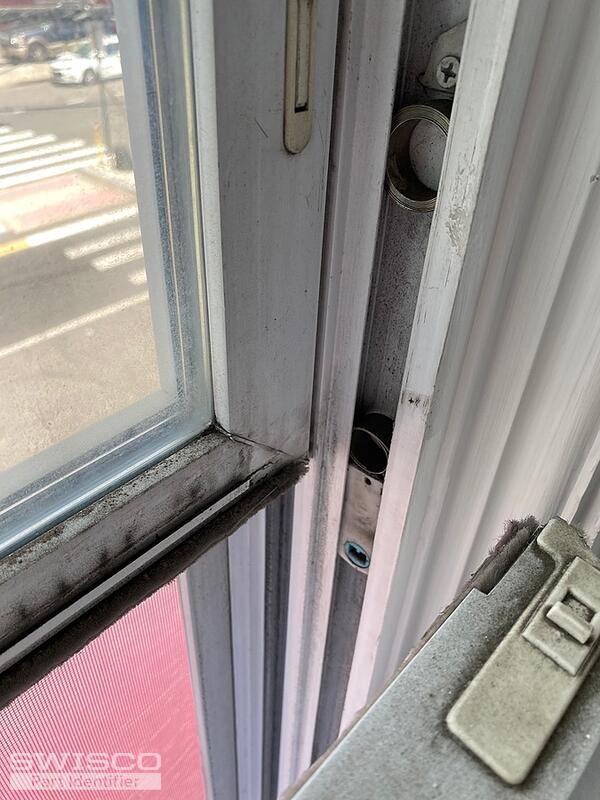

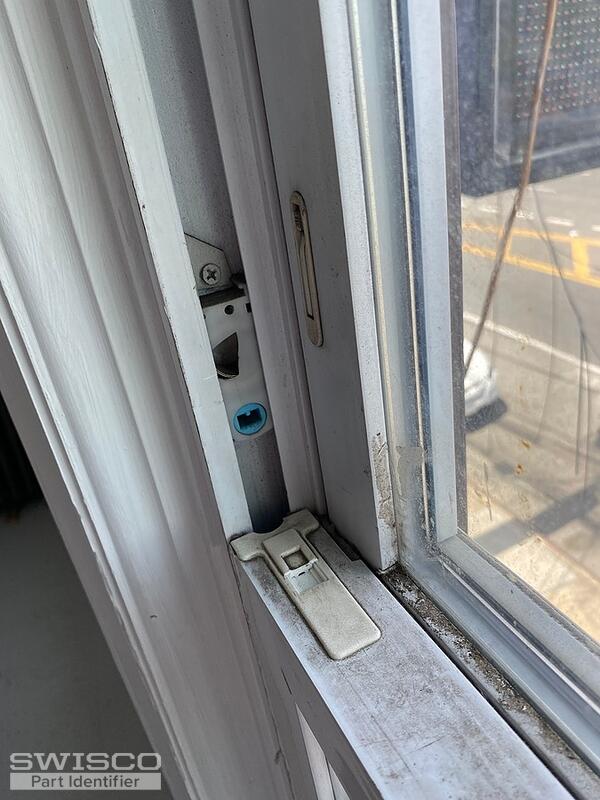

Hey there, I have a few vinyl replacement windows in my apartment that seem to have a broken piece preventing me from being able to open them. The piece in question, that I was able to get a picture of is the piece with a blue circle on it. Research tells me this might be a window balancer, though ... (cont.)

Hi. House was built in 2005 and has original Kinco windows. One window has faulty coil mechanism on one side. Attached are pics of the label and the 'mess' on that one side. Also a pic of a good plastic coil mechanism from the opposite side that seems to be fine.I am not sure what to do. I can re ... (cont.)

Need to order these parts the pin rusted and broke the broken pin is rusted in pivot stash

The window size is 27.5''x37.5''. The window is a Traco window and I believe they are out of business. Google got me to here using the Pat.# 5353548. Can you help?

Hi, After the window is opened, it cannot be hold there, it will fall off and close. Is the balance broken? Please advise me buy the parts to fix it. Thank you! Tania

I have a double hung window 33"x47" and the top section has a broken surface mounted tilt latch and the bar that goes into the valance is also looks bent. the Valance spring also appears to be broken. Both are on the left side when facing window from the inside. I would like replace both bars and bo ... (cont.)

I need both springs on 2 Windows,so 4 springs Total. Windows are 20 years old+ Also send me a video describeing how to insert them and if I need any special tools.

Hi. I'm trying to locate replacement springs and sliders/units for 2 American Heritage(?) double hung windows approx 15 years old. Photo 937C? shows a snapped spring and has 8HB stamped just below the 2 holes that connect to the side bracket in the track (photo E0CA?). The housing unit attached to ... (cont.)

I am trying to replace coil spring balance. But, I have no idea which one to buy. It has mark of "8R" (left one has mark of "8L"). It also has "PAT5,353,548" on it. I am also including tag from window itself. Please help me with identifying. Thanks,

Top coil is a 6lb, bottom is a 7. Patent # is 5353548

Hello, please let me know if you have these 2 parts for me to order and also is there a video on how to cut out to get shoe out I have no openings to get out?Thank you,Mark.

I purchased these Parts back in 2014. My window keeps getting stuck down at the bottom. They are pulled down Windows so if I bypass that bottom part I can slide the window up. But once I close it, it gets stuck again. I tried to send a picture of my order from 2014, which I kept a copy of. I tried t ... (cont.)

IS 180-5 THE COIL SPRING FOR THE SECOND COIL ON S-161-05, ALONG WITH COIL HOUSING 15-086? Or what is the number for s161 with 2 coil spring 5lb.

Hi. Thanks for providing a place to ask for advice. My windows are Certainteed brand installed new in 2005. Over the years, I have had problems with the coil springs breaking in these windows. I have replaced a few and have always found it a struggle - mostly when it comes to attaching the hole i ... (cont.)

I am fairly certain these two parts are correct (based on patent 5,353,548) Coil Housing Pivot (plastic) 15-087 Tandem Coil Housing (plastic) 15-086 There was no number on the coil spring. Need help in finding the correct coil spring The spring is 1/2" wide with two round holes Dimensions of ... (cont.)

Good afternoon. I have two window sashs requiring the coil balance replaced. One sash weights 13.6 lbs and the other weights 15.6 lbs. I couldn't find any identifying marking either on the housing or the coil spring. I measure my housing and it is slightly smaller than than the S161 and S210. My ho ... (cont.)
