Viewing all customer Discussions for:

15-188 Pivot Lock Shoe, 1/2" Thick, Blue Brake

Approximately 1.25 inch wide 2 1/8 high 9/16 thick

I don't have the brand or name of the windows. Just a logo of uniframe. It does look like if I pop the top or bottom cover it has a cutout to remove the pivot shoe. Looking for replacements and required tool.

Hi, I have tilt windows and the metal part is broken (not sure what it is called). Can you identify this part for me?

I need a pivot lock shoe for 23 year old vinyl window thats 37 W by 50 H, installed by former company called Tristate windows of Branford, Ct.

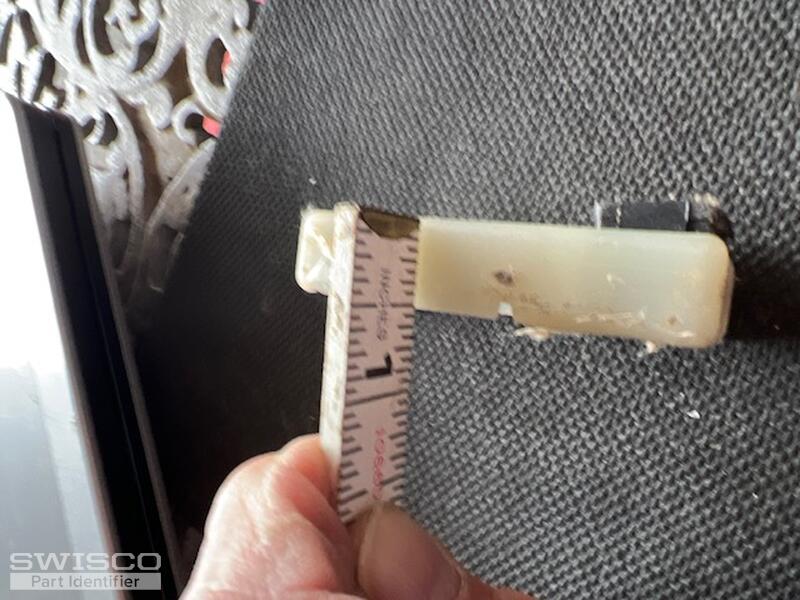

I need help identifying the parts I would need to fix some double hung windows.In the pictures, the pivet bar is about 2 3/4" long, 1/4" wide and 3/16" thick. It is held with 2 screws that are about 3/4" apart, center to center. The second hole is oblong. The end of the pivet bar is about 3/8" in di ... (cont.)

Image 2460 is the working side. The other 2 pics are the broken side. What additional details are needed to identify the correct replacement part? Window is vinyl with both panes can tilt.

I had this boot break when replacing the pivot bars in my window.

Pivot shoes and spiral balances jam quite often. WD-40 helped in the short term but now there seems to gummy residue building up.Do you have shoes and balances for these Crystal windows?Thank you,Thomas

Can you identify this pivot shoe and do you have a replacement? The house is over twenty years old and there are several of these that have broken. Previous owners did not attempt to repair/replace them.

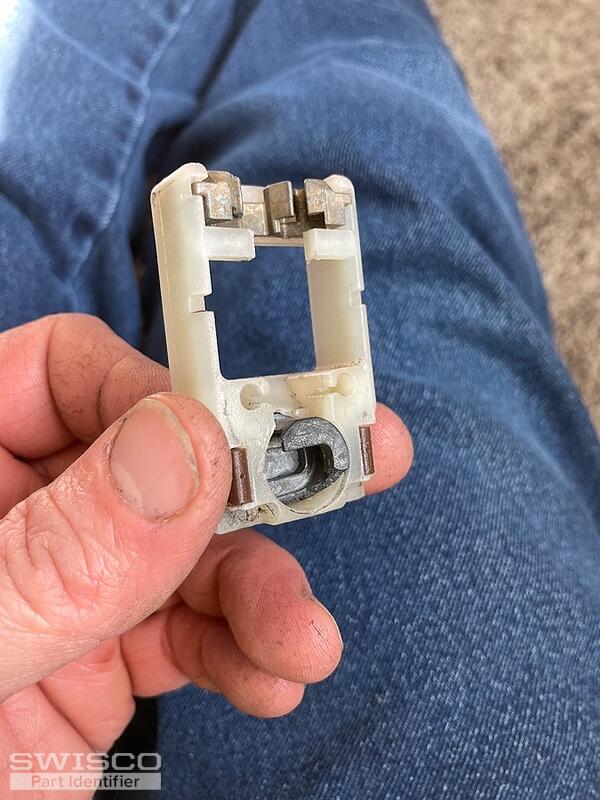

Hello, I'm trying to replace the pivot shoes on some old vinyl windows and am having trouble finding one that will work. 2 1/16" height 1 1/4" - 1 5/16" wide (varies depending on where on shoe measured) 1/2" - 9/16" thick (varies same as width) So with those specs I didn't know if it's better to ... (cont.)

I am looking for a 6 window balance set with the following dimensions: - channel length: 25 inch - depth/height: 1/2 inch - width: 15 mm (sorry for the metric) - weight window: approx. 16-20 lbs Pictures attached There is stamp on the balance: 24C

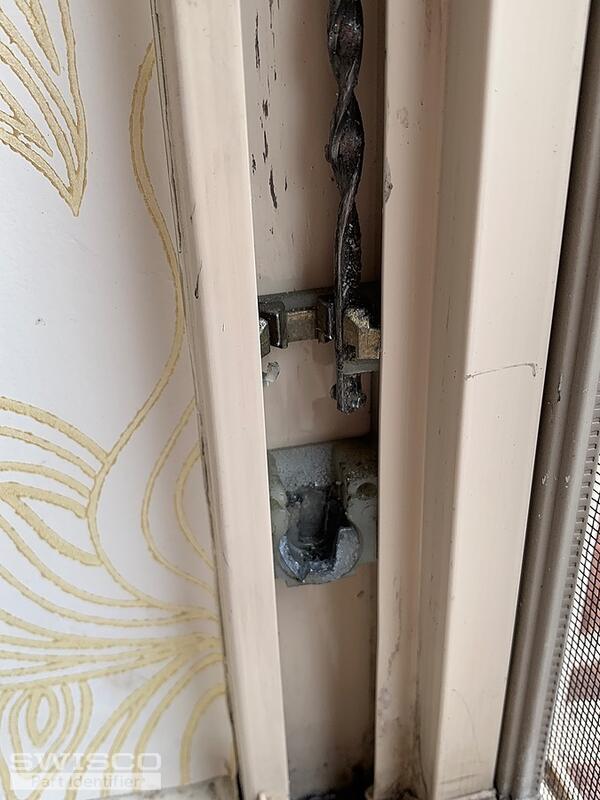

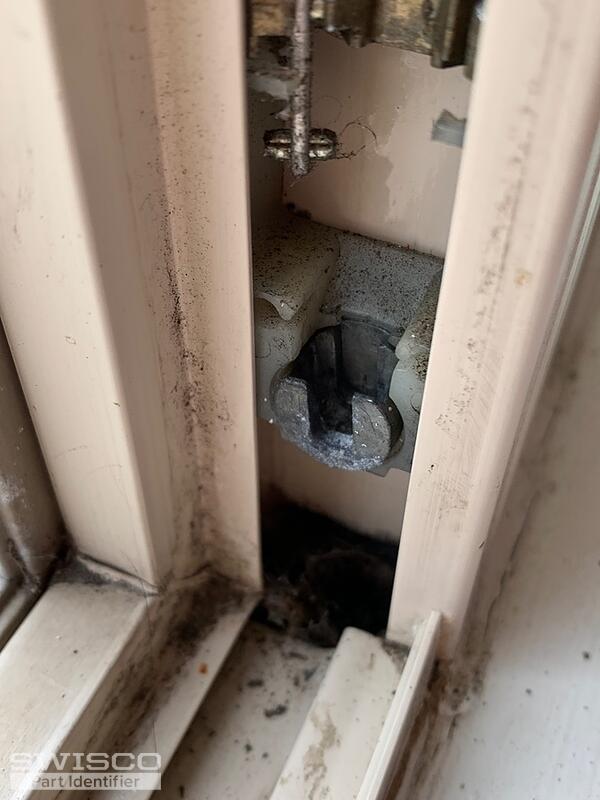

Hi, I have a broken pivot lock shoe on a window. I have no idea the manufacturer of the window. The house was built in 1998. This is an original window. It has a metal spiral balance. Is there anyway you could assist me in figuring out what I can use to replace this broken piece so that my window c ... (cont.)

I have a double hung window that has this part broken. Im completely lost when it comes to what part this would be that needs to be replaced. Any help would be great. Thank you

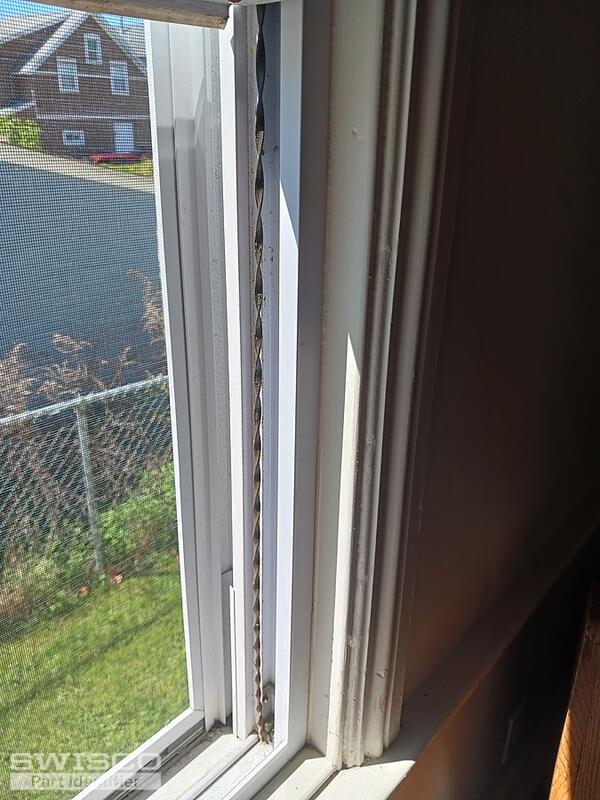

Hi, I think I have found the correct parts for my tilt-in sashes, but would appreciate confirmation. Regarding the spiral balance, mine in 23.5" long and measures around 3/8". Does it matter in selecting a replacement that mine has the coil around the outside (See pic). I believe I should chose Prod ... (cont.)

Of the dozen or so windows at our church, only about four will now stay open. They may be of different types, but can we start with one? I know nothing about these, so will need some guidance on both parts and procedures. Really appreciate your help.

Hi, the windows are UniFrame brand. The pivot bars are 3"long. The pivot lock shoes are 1/2" thick, 1-1/4" wide and 2-1/8" tall. I would also like to replace the tilt latches with external tilt latches. I have 4 windows to repair, but would like to get extra parts. Please let me know what you have a ... (cont.)

I need a 22" balancer spring assembly and the lower travel piece for one of my windows.

Good afternoon, I am working on my windows. I need to get this part for four of my windows. I am not sure which one I need. I have attached a few pictures. Please let me know if you need any other questions. Thanks so much.

This shoe is from a Louisiana-Pacific window and parts are no longer available from that distributor. The windows are from the Astoria Collection, Model 2848. The springs have a red tip and are 33". I have also included a photo of the guide that is attached to the window. It needs to slide in from t ... (cont.)

Hello. I have like 5 windows with channel balance issues and would like to replace them. The inscription on the face of one of them is DB K02 28 B I have also attached some pics. The metal piece in the window is broken and I'll like to have them replaced as well. Please kindly assist ... (cont.)
