Viewing all customer Discussions for:

15-194 1" T-Lock Balance Shoe, Closed Cam

Pic-1 1705 shows the old channel balancer 28" with a groove at the tilt shoe end --- which makes it unsuitable for the 15-194. The S795 28 is the recommended replacement with a 15-194 shoe to be swapped with the shipped shoe. Ordered 2 each However there is a significant difference in the top hoo ... (cont.)

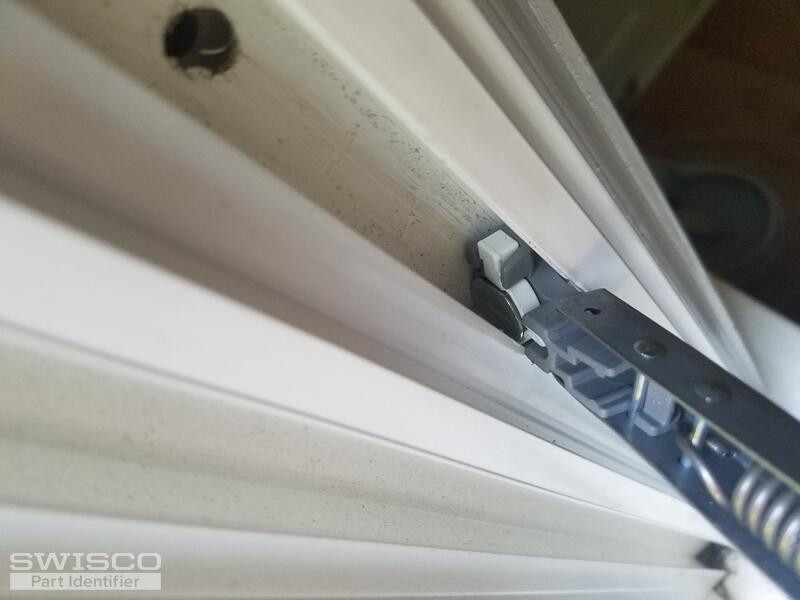

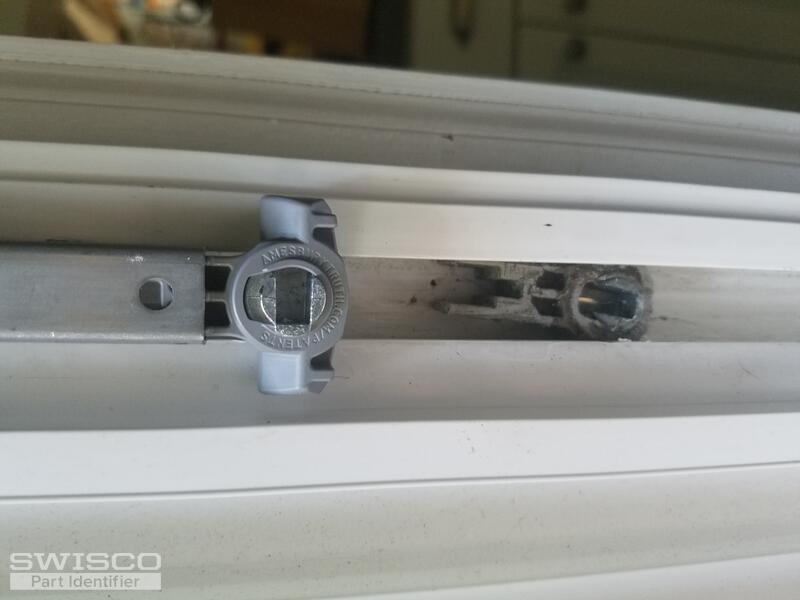

Windows are from Builders First Source in a Del Web home in Houston Texas. Markings 27B see attached photos

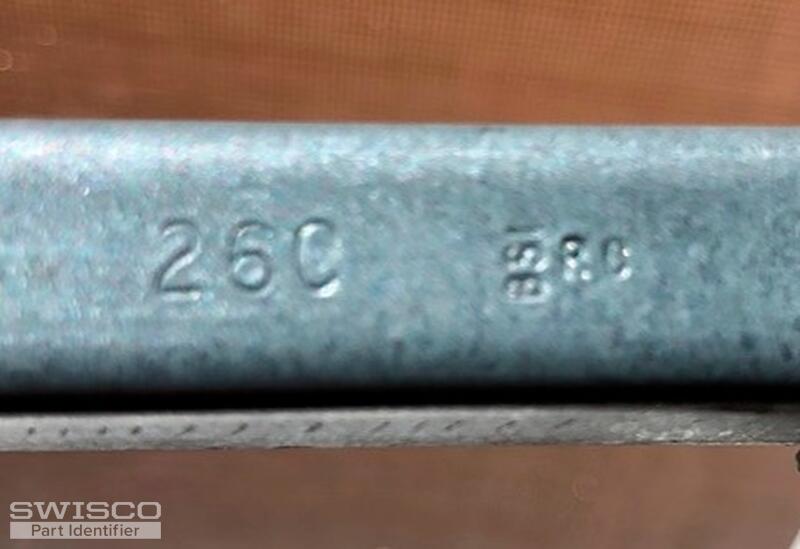

The indentation on the 26C balance stops the ability to attach the new shoes.Last week I purchased 6 balance shoes 15-194 for my channel balance 26C for a MW manufacturing single hung tilt window. I thought that this was the right shoe for these balances. They fit (1 inch) but do not attach because ... (cont.)

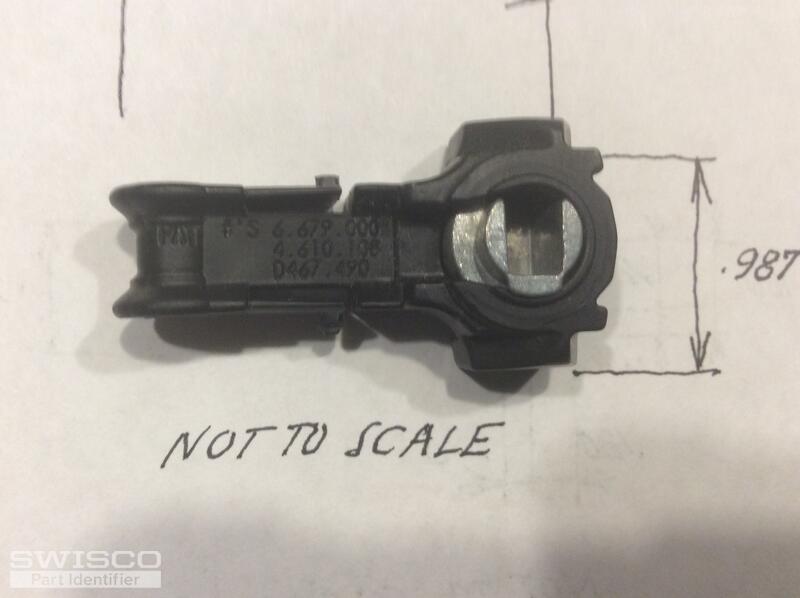

Markings on part needing replacement: PAT #'S 6.679.000 4.610.108 D467.490 IT APPEARS TO BE SIMILAR TO PART 15-194, BUT OPEN CAM. I'M NOT SURE HOW I WILL REINSTALL THE SASH IN A CLOSED CAM SHOE. HELP ME PLEASE!

I have a 26F BSI balance and need to replace some of them. I don't see a listing for these on the website, any ideas?

I am in need of 4 of these or parts to repair. I believe mine are the 34.5 length but they have black shoes on them. They're 15/16 wide. I didn't see that you had that specific one on your website and I didn't want to necessarily purchase the red one that you show in 15/16 since I couldn't find t ... (cont.)

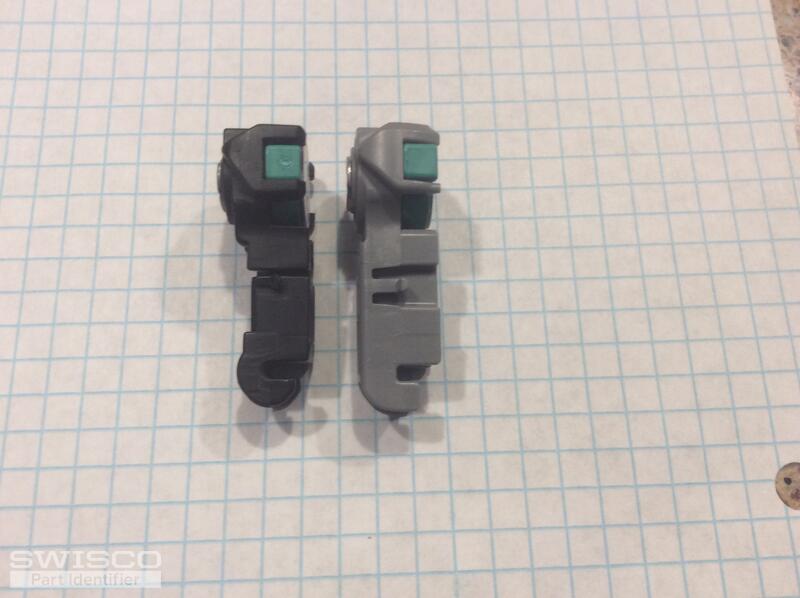

order #1063322 I just ordered 4 shoes to replace the 1" channel shoe from your web site but as you can see from the profile the area above the shoe on the existing black patriot window lock is only 3/8" (approx) and the swisco version is approximately 1/2" so I can't get the hook at the top to seat ... (cont.)

I need to replace the balance shoes on a Patriot vinyl window (and I gather that I also need to replace the balances, due to the replacement shoes not having the same groove/indentation on the shoe-end). However, I believe the shoes I currently have are Open cam, and the 15-194 is closed (see atta ... (cont.)

Hi there, I purchased the 22" Series 795 Channel Balance (Order 1050831) and I am unable to fit the shoe into the window slot. I tried turning the channel balance so that it is horizontal and then tried twisting it but the shoe will not turn. I'm a little worried to apply too much force because I ... (cont.)

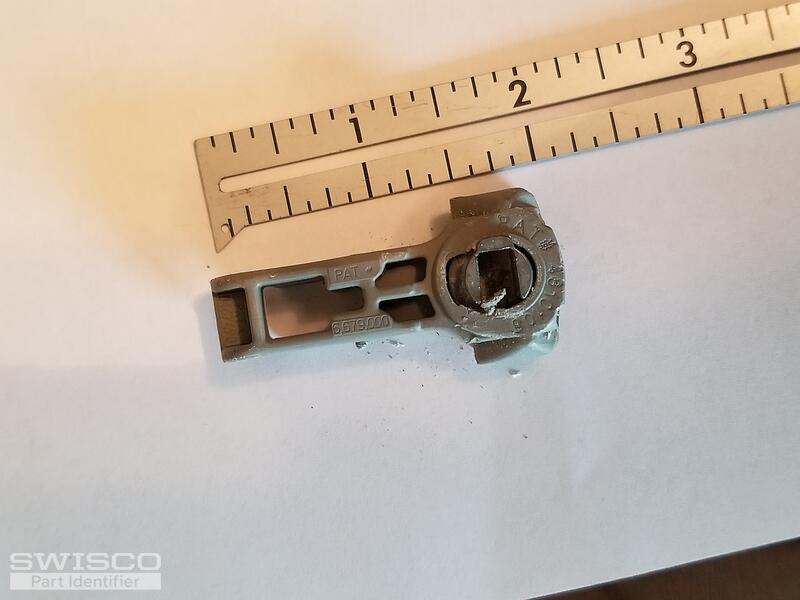

Have 20 double hung Jeld-Wen windows #JW142JAN2008A#1 and about 5 with broken pivot locks as pictured. I'm sure after 10 years I'll probably have more. US Patent D467490, 4810108 and 6,679,000 markings.If you can ID, please let me know price and delivery on standard package size near 20 to 50 pi ... (cont.)

Identification numbers on second photo. Please let me know if you stock these ad kindly quote your price for 10 pcs. I also need one balance spring for MW 2460 DH Vinyl window.Thank you,Les

These are for our Pellla vinyl single hung windows. It looked to us like #15-194...can you help us with a match? Thank you!

How and where do you measure to determine what size shoe to purchase?

To whom it may concern: I need a balancer system - Block & Tackle Rod, ONE-Size 28.3 inches long. If you have a size which would work, that is very near this size, I probably would need two for the window. I have pictures of the product -attached. Please let me know if you can help me in this ... (cont.)

I believe these are your S850 model replacements, the black shoe seems smaller than the 1 1/4 inch option on your website. The white connectors were busted up.

Need to replace 29? long balance. Thanks for your help. Dennis

I have double hung windows with the series 850 type shoe. The lower sash rod measures 28.25" and the upper 24". The plastic blocks on the top of the rods have broken and I assume I need to replace the entire system. There are no markings on the hardware that I can see. I would estimate that the ... (cont.)

I have a window in need of a new channel balance. Turns out the builder (Beazer) hid a repair and glued the top plastic pulley housing piece and fitted a non-riveted pin to hold the spring where it hooks to the bottom of the channel. This window sash promptly broke after we moved in almost 10 years ... (cont.)

The builder of our house can't find the original records, but believes that our windows were manufactured by Alenco (TX) or Silverline (NJ). We need a bunch of balance clips and a handful of sash tilt mechanisms. Can you identify by the attached photos?

I have a 3B Windows & Doors MFG. Inc. tilt window with a 26" x 1/2" x 1/2" balance, Plain Channel the tilt shoe is 1" at its base, 1/2" at top and 1/2" deep I have attached images. Will this replacement balance work for me?
