Viewing all customer Discussions for:

15-199 Pivot Shoe, 17/32" Thick

I am looking for these parts to repair my window. I do not know the window brand. The channel balance part# 801020 is on the last image. Thank you!

In need of the metal post that is screwed in to the bottom of the window (picture shows good side of window. Other side broke off) as well as the slide block, coils (looks like dual coils) and cover. These are Simonton windows that have tension and unlatch and fold out. Any help you can provide with ... (cont.)

Need a coil sash and the T-bar connector for a Simonton single hung window

Greetings, I find no brand name on the windows or parts. The pivot shoe lock is approximately 1 1 1/4 inch wide by 1 3/8 length by 1/2 deep. The coil is 1/2 inch wide x 35 inches marked with possible part number 232208. Pics 1 and 2 are off a functioning window, pic 4 is what's in both sides of the ... (cont.)

springs are marked #4.0 35" track is 1.25 x.50 looking for assembled cartridges need for 4 windows

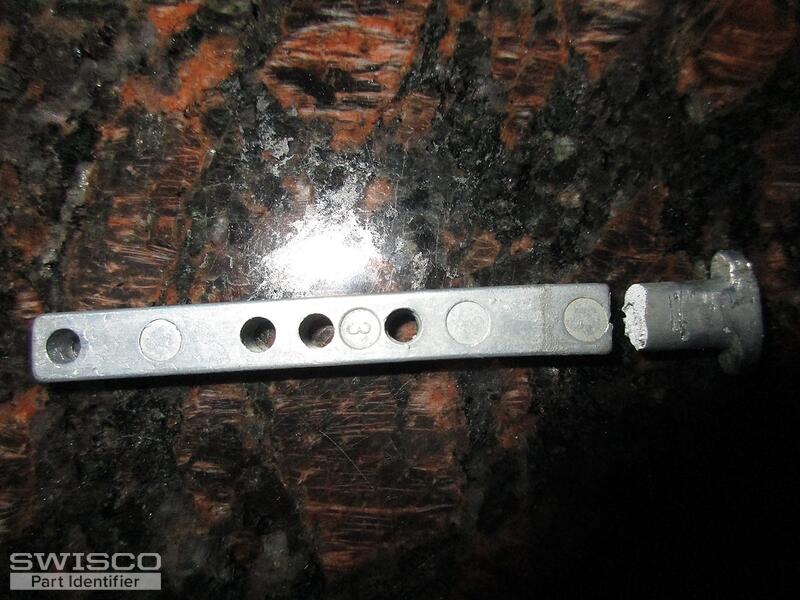

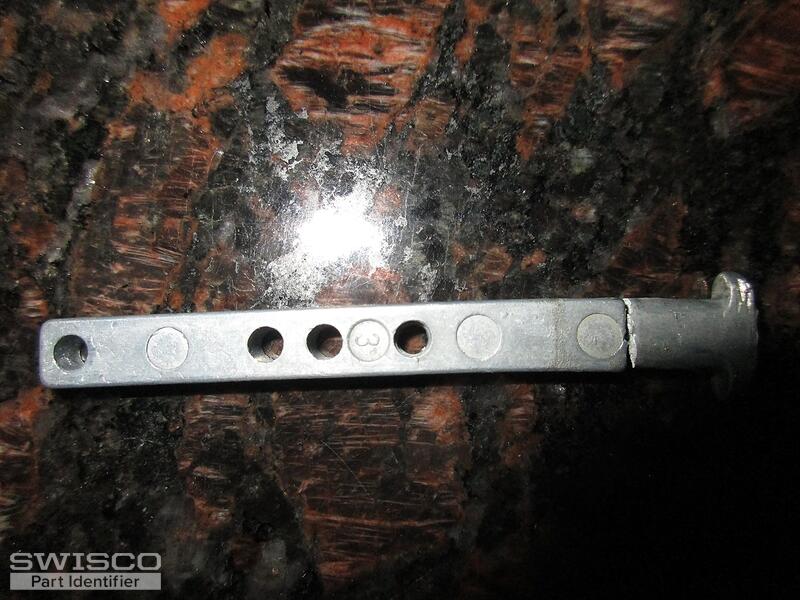

There is a t shaped bar at the bottom of the window that goes into the slid on the frame. I need 4 new ones as 2 of my windows have broken the part. There is one of them on each lower side of the window. Thank you.

Window pro s 16csfr1201ans1z971-1984. The only info I can find on window.

Hi, Please help to identify the window's part in catalog. Window brand - Simonton - Double Hung - house built in 2003 on the tag - H-R30 48-80 Series 40-17 P.L. 063-038 Conforms to AAMA 13020and HUD UM 111 The Balance Coil Shoe was broken - both springs at the bottom now (1st picture ... (cont.)

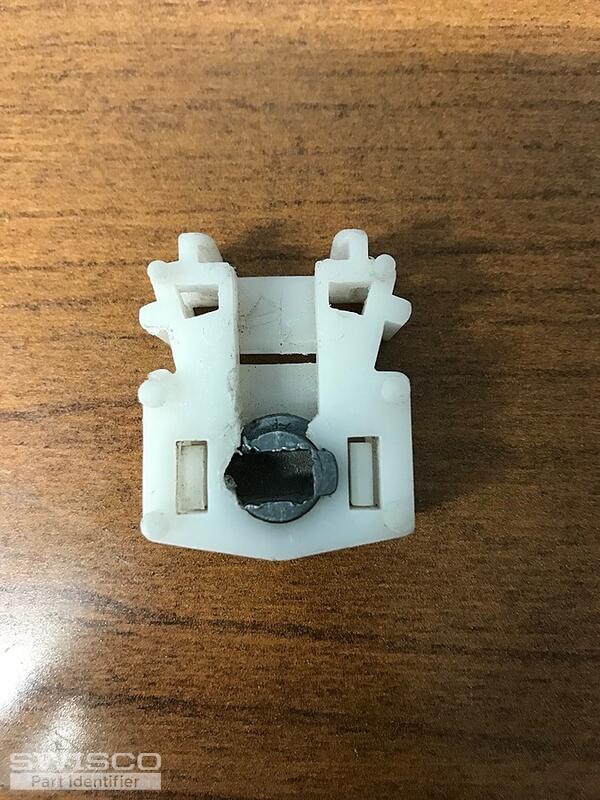

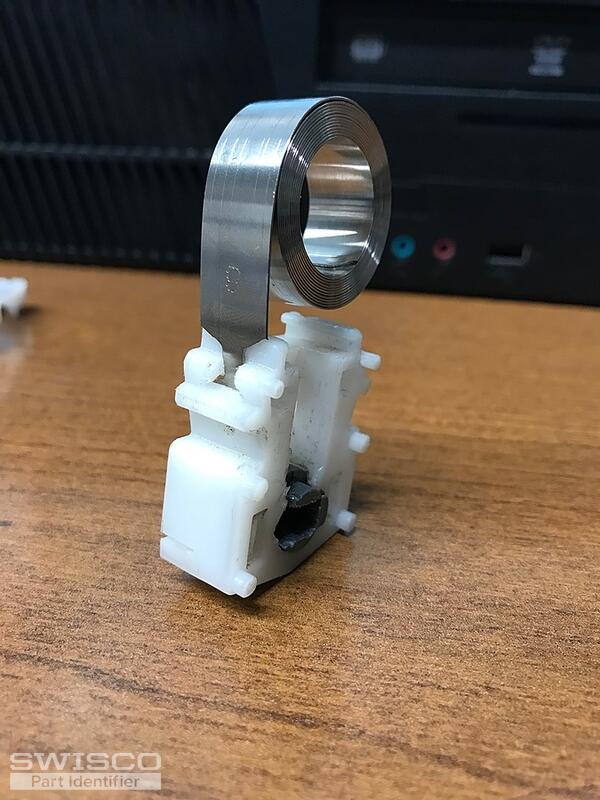

I have a coil balance shoe I'm trying to replace. The shoe receives a coil balance similar to your series 165 coil. Pictures are attached.

I have 2 windows, side by side. I need the same parts for the other window. Please tell me how to order these. Thank you.

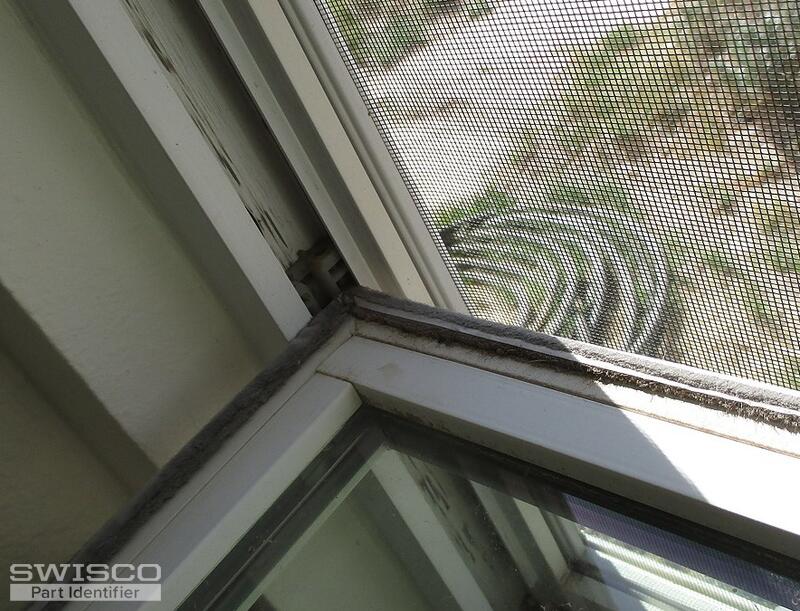

My window does not stay up. When I hinge my window out ,I see that on the right side the white piece is broken. I was told this Covers the balance and needs to be replace. On the window the sticker says Moncton Wintons 0608171400 8/17/06 A10 other numbers listed are 8308705/03 unit: 47 5000 59 5000 ... (cont.)

Please see attached for parts I am looking for. Thanks

I need 6 coil balances for Simonton double hung windows

I am needing these replacement parts. Is this enough information to be able to determine what parts that are need? I have a customer needing a coil spring (5232208) that is 3/8" wide. One for a 4 lb x 35" window. And one for a 5lb x 35" window.

The coils and the part that goes into window say 4 on all. The parts that go into the window both broke. The pat no on the shoe says 5.704.165.

Need both balancing spring

My mother in law broke my window and need to know the parts for this type of window. Any help would be great. Thanks

Hello. I think I found what I need but just want to get a second opinion. The window only weighs 18lbs but it has a double coil. The lowest double coil you sell is for 22 lbs. S140-11. This looks like the right part. Minus the screws. Mine has two screws to hold it in. The t bar. 26-378 ... (cont.)

I need help determining a replacement for the broken part shown. I've included pictures of the label on the window along with pictures of the broken coil and the coil that is still intact. Thanks for the help.

Single hung GA vinyl windows. Double coil springs, pivot shoe, and coil support. Spring is 5#, 35", and is 3/8" inch wide. Other marking on spring appears to be the number 5232. Shoe is 1 1/4" wide and 9/16" thick. And a coil support.
