Viewing all customer Discussions for:

16-031 Mounting Bracket

I need to replace the coil balance on a replacement window it will not stay open. I want to replace both left and right. What do I need? ~~~~~~~~~~~~~~

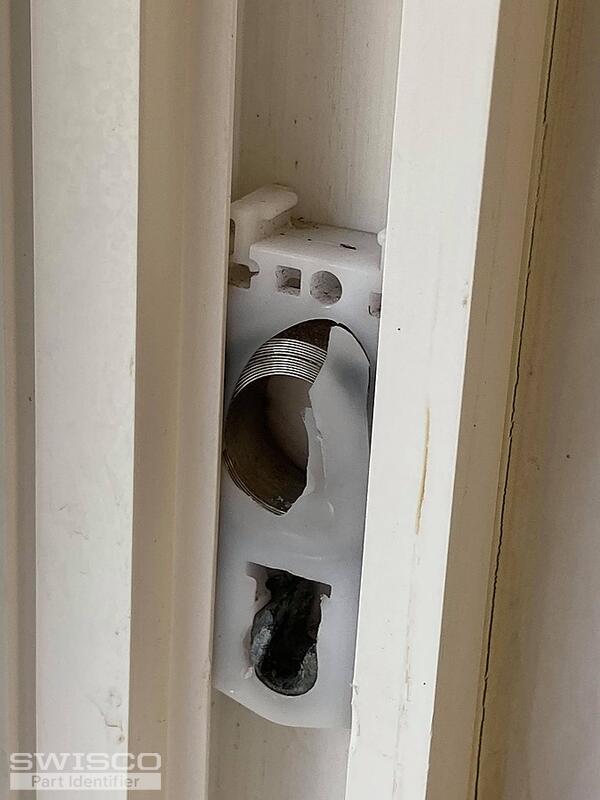

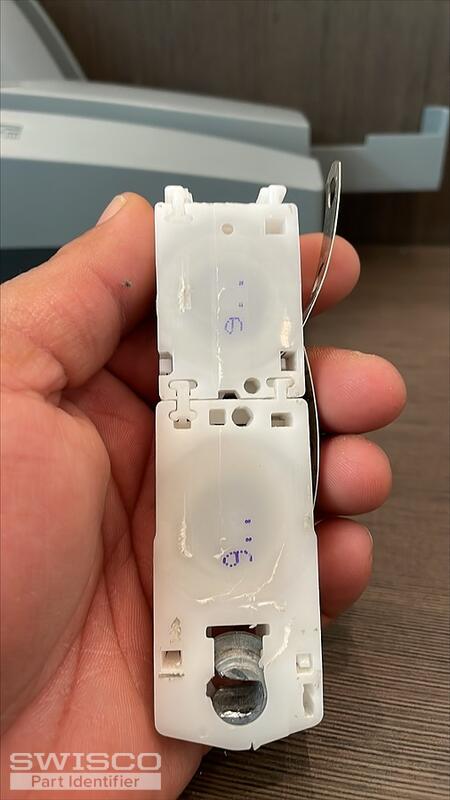

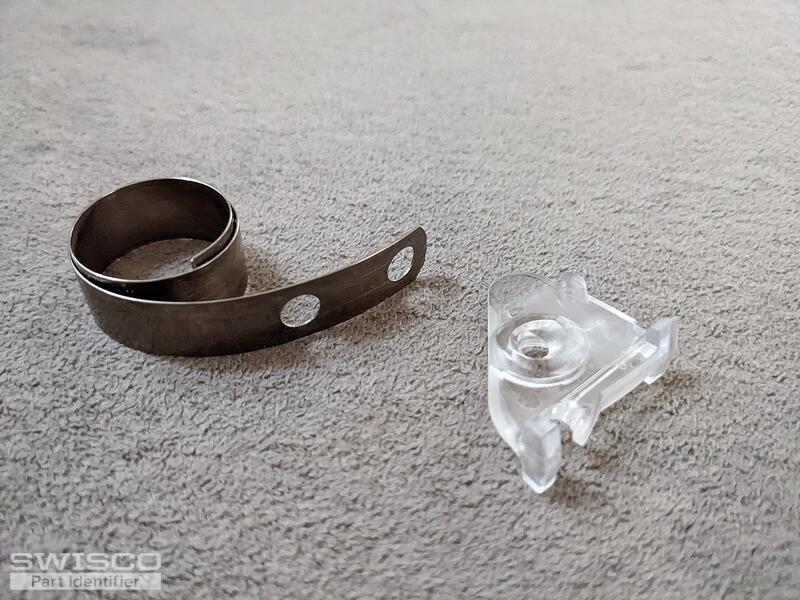

I need to replace the coil balance and tilt latch in my vinyl window. The coil snapped. The coil has 6kg imprinted on it and the coil housing has a 6. I probably should get the clear plastic mounting bracket too. Also the tilt latch broke. It looks like it's a corner latch, maybe? I'm sending photos ... (cont.)

I have windows that are missing the 10 series roller tilt.Are there installation instructions available as to height that they need to fastened to the frame?

The only number I could find was the #10 on the white housing. This part is for a Silverline window. I need to know what to order

I have 2 windows I pur in new in 2014 American Craftsman 8500 series pats are 37/8" long an 11/8" wide enclosed are piCtures it looks like a 6 or 9 on the Plastic and the same on the sprayers I can't tell how many springs are really are because they were all apart when I open the window and close f ... (cont.)

looking for these window springs for American craftsmen 8500 series windows.

Hi there, I'm looking for the coil spring mechanism for a bottom double hung vinyl sash. Thank you

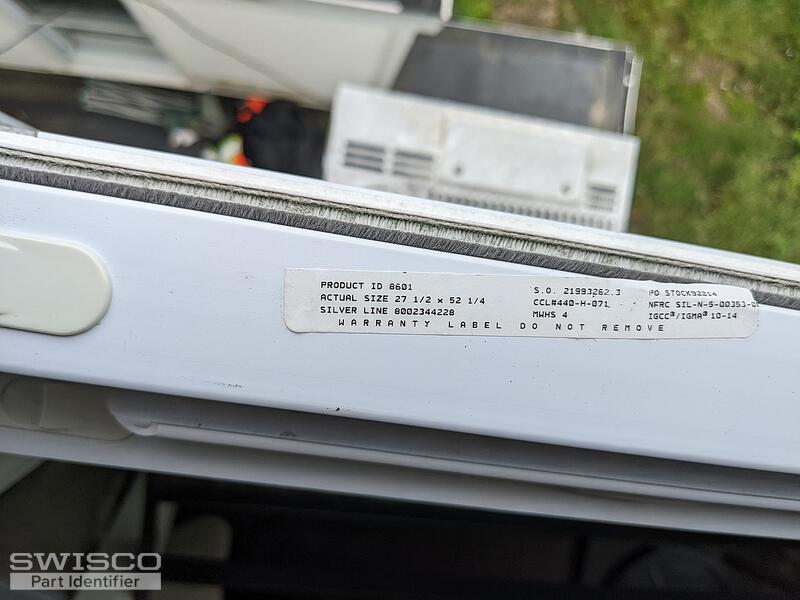

All 4 of the window balances snapped (2 on upper, 2 on lower). Attached are the part photos and the window warranty label. The coil is stamped "71J"

Have a newer pella window about 4 years old my shoe spring clip broke need help in finding the part.

Hi I need replacement for my window as it does not stay up when it is open.I believe it is an 8 lb show need because I see a little 8 stamped on the coilHow soon could this be view for advise on which piece to purchase for inspection, as I have an inspection coming up very soonThank you in advance f ... (cont.)

Hello, I'd like to replace both left and right balance springs as one side is broken. A contractor installed this tilt-out window about 8 years ago.There is a Lowes sticker on the bottom but no other manufacturer information. Can you identify the type of spring mechanism from the parts in the photo ... (cont.)

Looking for parts for silverline window balance. Pics and subject have all info. Tandem constant force balance #6 with cam; and #7 for vinyl double hung window. Left side from inside. Top housing marked with a 7 and coil inside marked with 7DK (pretty sure housing 15-086). Bottom housing has blue c ... (cont.)

Trying to identify correct replacement for my windows.

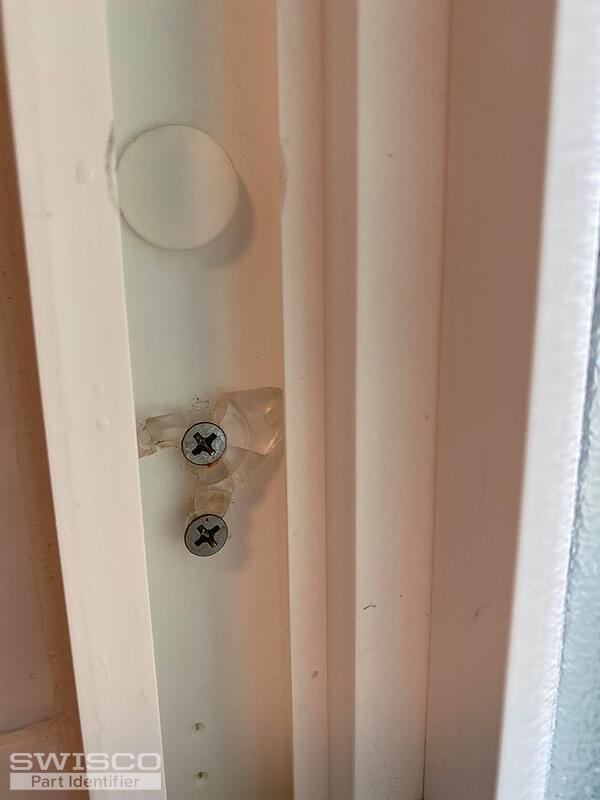

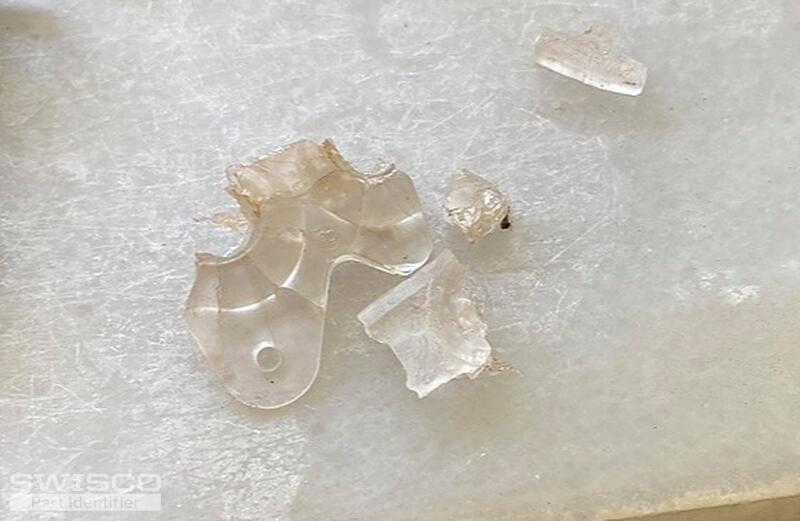

I need the Mounting Bracket(clear plastic part). Do you have it or a direct placement, Three pieces have failed on different windows on the same side of the house that receives the most sun.ThanksRay

My niece has a sash that does not stay up. The windows are about 5 years old. The coil spring appears to have 'escaped' from the 9lb Quick Tilt Balance. Unsure what "series" (i.e 140 series) is needed.

Hello we ordered the wrong part and need to return and replace with the right part. the pictures attached are of the correct part we need its skinnier than the one received, is there a way to get a fast turnaround on this maybe even over night. the order number is 1771773 the brackets are correct it ... (cont.)

Hello , I need these parts for back sash for American Craftsman 50 series please....2 sets to change both on back sash...Thanks You

I need a new set of balance coils for an older window. The picture is the only identification indicator on the unit.

M 6 lb. on boots Plastic clips just broke apart and pieces caused jamming issues and the boys just forced window up and down, breaking the shoes. I need 2 of each. There are no bars alongside, thinking the shoes are part S161-06 but don't take my word for it.

Can you help me identify replacement parts for this double coil balance and pivot shoe? This was from a Kohler window S/N 314747002. Measures about 1 1/4" wide and 1/2" thick. About 4 1/2" top-to-bottom (both coils and pivot shoe). Thanks so much!
