Viewing all customer Discussions for:

15-230 T-Lock Shoe

Part needed: Ribbed channel balance for bottom sash of a Ply Gem 4810F/4812F series aluminum window- 2012 vintageChannel balance dimensions:Width: 1/2", Depth: 1/2" Length: 32"Window dimensions:Height: 35", Width" 35", Thickness: 7/8"Bruce

I have a few of item in the above pictures that are failing. They are designed to allow windows to tilt. The only number that saw on the part was PAT# 4810108. Is there a replacement?

Vinyl window channel balance.. The "top" is mounted to window frmae via screw and the "bottom" connection is the plastic hook assembly with the drop in metal piece shown. The frame of the unit is a ridged channel and the length is 30" for the metal frame. The width of the unit is: 7/16" inside, 1/2 ... (cont.)

Do you recognize this part and have any available?

I placed an order on 4/24/20 for Item#S795-28 and it seems to be slightly bigger than the channel balance I need to fit in window. the following pictures are the new one I ordered and the old balance I need to replace. The old balance does have 28C - BSI RA stamped on it. Please advise on correct pa ... (cont.)

I ordered the S795-28 option 28C and the 26-021 pivot bars. The balance shoes don't go far enough into the jamb to be able to turn it. Any suggestions?

They have a grooved channel and are 33a d 15/16 inches long and 7/16 wide.

Looking to replace a balance channel for an American Window BR250 tilting window. It seems the bottom faster broke.

Looking to identify these for replacement measuring 34 inches long, and window frame marked arrow space 2006.

PAT AB10108 Or PAT 4810108 Very tiny writing 0006199 only one has this number

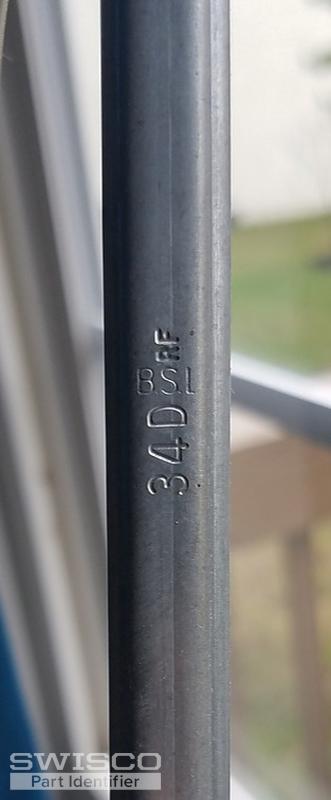

Looking for replacement for a sash balance. Length is 34" and has the markings 34D on the old part

Hello I'm looking for a channel balance and the codename is 34 BSI and I'm also looking for the part that is in the pictures down below I was wondering if you guys can help me find them I want 10 of the channel balances there size is 35.

We're looking for window balances. We ordered the S795-34 but it was too wide! It didn't go in Attached are the pictures of the one we're looking for 34 long 15/16 wide

Need to identify the balance type

I think the pivot bar is 26-448 and the shoe is 15-230. The metal springs is smaller than S-795. Thank you,James

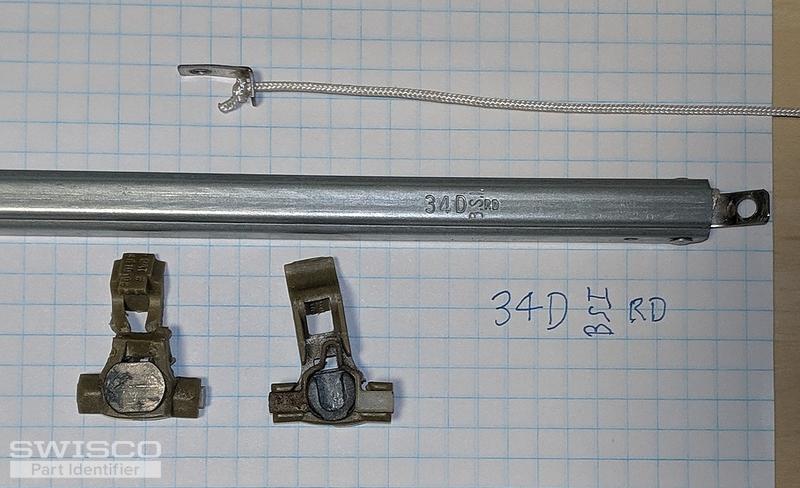

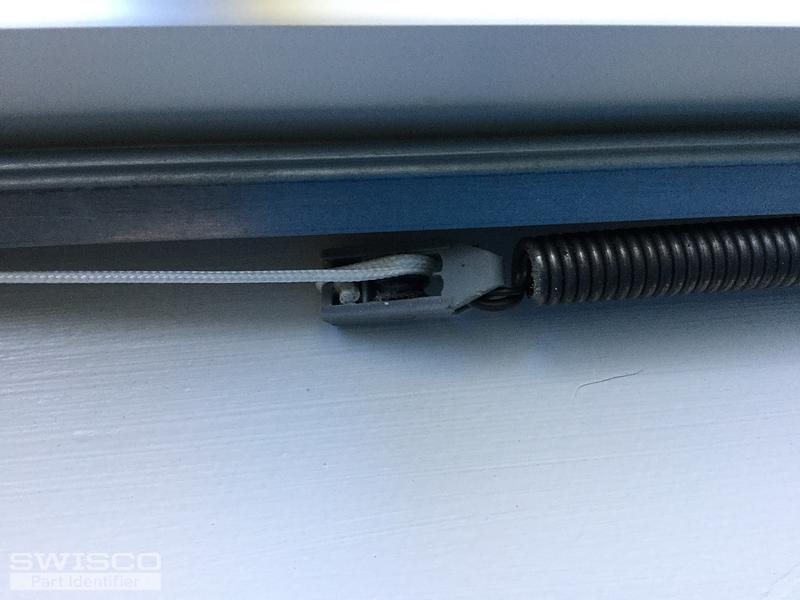

Hello, I am looking to put together an order to replace a window balance as an assembly. This is a BSI 34D ribbed channel inverted block-and-tackle balance with the 15-230 T-lock shoe and the top anchor to the window jamb is shown on the cord above the balance in this photo; just a small right ang ... (cont.)

#5569 the bottom of the window #5562 Numbered parts that slides window up & down #5563 Numbered parts that slides window up & down #5572 pull on the opposite side of the window. 6 windows in our home that will not stay up in the open position.We need to determine if we will be able to repair these ... (cont.)

26 x 1/2 balance part

Good morning, I ordered 8 channel balances and was completely wrong. My old balance is a ribbed shape. The one I selected is square The foot piece is also much smaller than what I selected. Thanks for your help.

28" x 7/16" x 7/16" ribbed metal balancer. Stamped 28b. Thought the windows were from jeld-wen but balancer from them has shoe and channel that is too wide to fit as channel in window frame is only 7/16" wide and they sent parts that are 9/16" wide. Any help is greatly appreciated as windows are n ... (cont.)
