Viewing all customer Discussions for:

15-259 Coil Balance Pivot Shoe

All the dimensions are edge to edge:single coil support: 1 1/4" W by 1 9/16 Hcoil balance pivot shoe: 1 1/4" W by 1 1/2" Hthe sash is: 20 3/4" W by 17 1/2" HUnfortunately there are no markings on any of the parts. The coils on both sides broke, the end that was intact had no markings.Anything ... (cont.)

I need a closed cam shoe for a tilt window that accommodates a similar T-shaped pivot bar. Can you identify this? Thanks. -Christopher

I ordered and received part 15-192 (x14) - order # 2355538 -, but it does not fit in the grove as it is too thick.I dismantled a pivot shoe that come with the "spring". Do I need other parts?Can I sent you back the 14 pivot shoes?Thank you for your answer,Anne

Please can you order me Two (2) replacement coil spring balance assemblies and two (2) pivot bars for PRISM window. Photo info attached. Thank you.

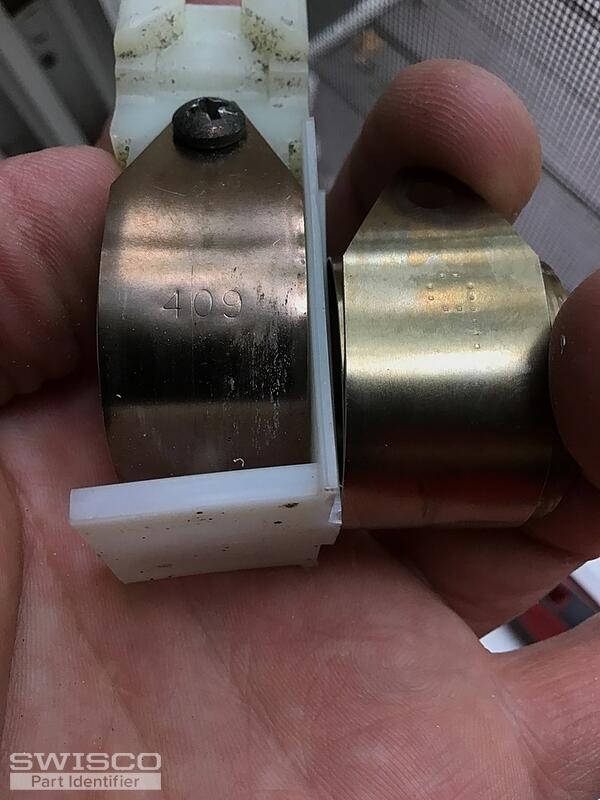

I am looking to replace the right side window 11 lbs coil spring . I am not sure which part number to use from your website.

Do you sell a replacement for this part?

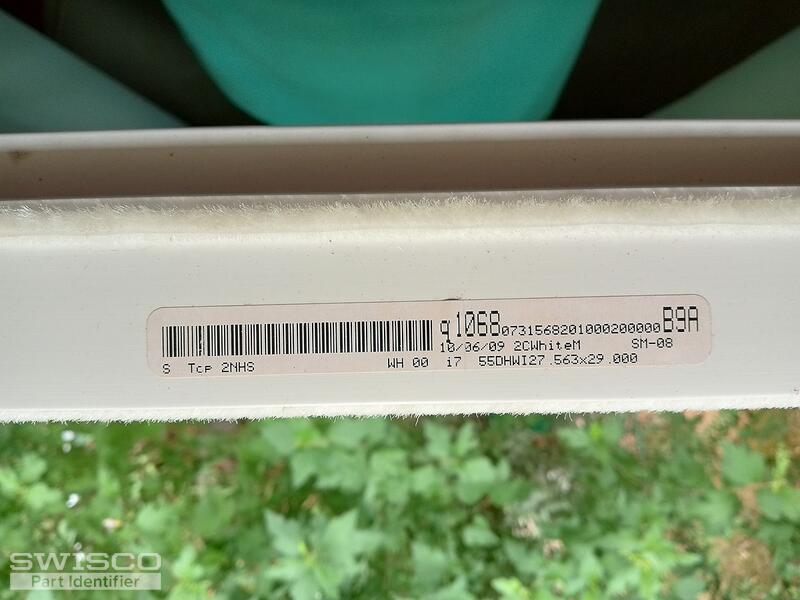

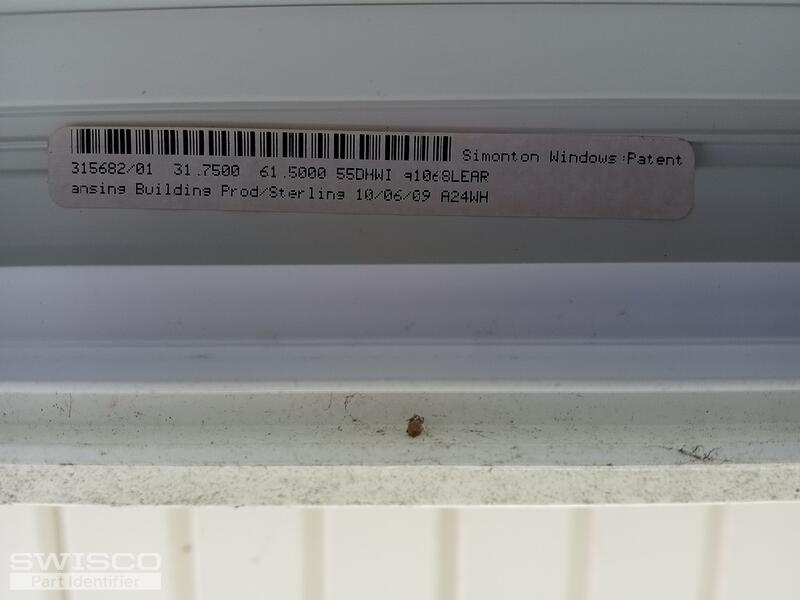

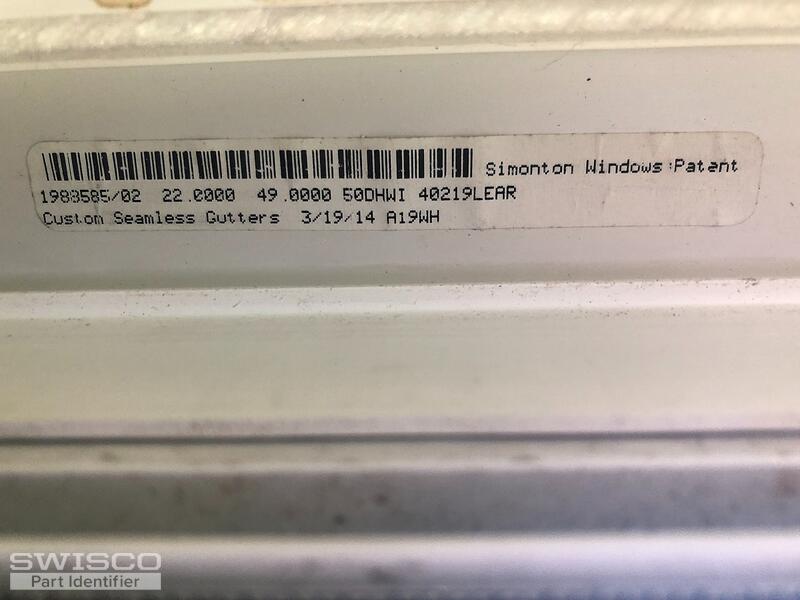

I have a Simonton double-hung replacement window with broken coil balances on the top and bottom sashes. The windows are approx 25 X 50 and each sash weighs about 15 pounds. I have included a picture of one of the broken units, and a picture of the window nametag. Can you recommend some replaceme ... (cont.)

This is for a tilt out window.

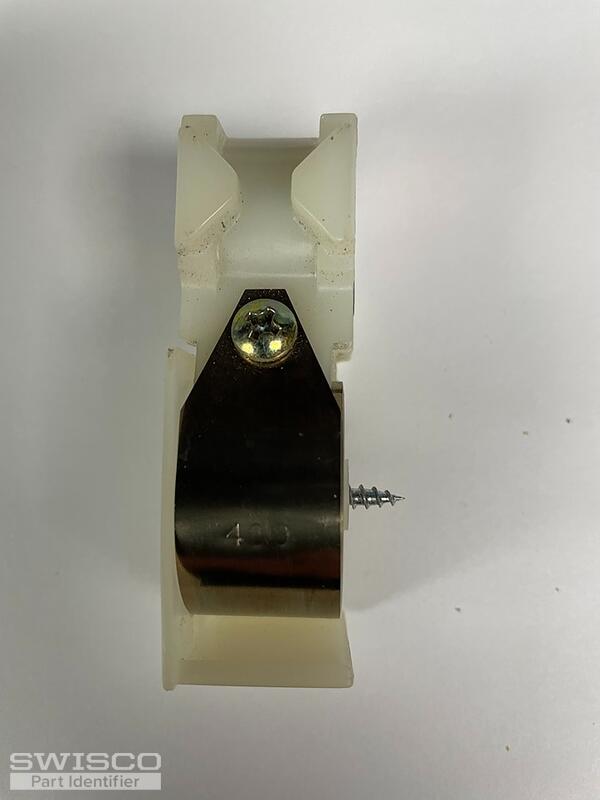

Constant cam pivot tensioner from an older DH replacement window possibly installed by Sears.Only markings are "China" Size is approximately 3/4"

I need 4 of these. 2 for an upper window and 2 for a lower window or the exact replacement.

I recently ordered replacement parts, but they do not work for this window. Can you help me identify the correct coil balance and the shoe for this window project? Thank you. -Christopher.

coil balances

There were a lot of broken plastic bits.

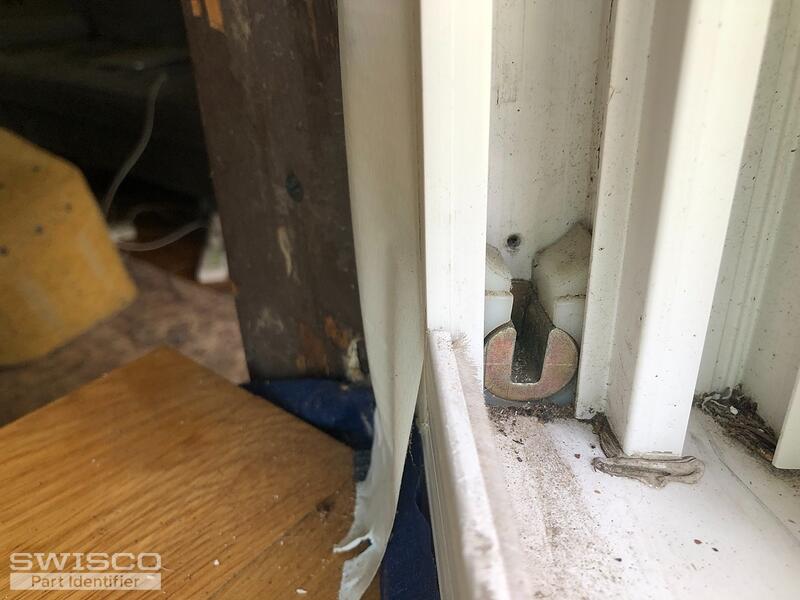

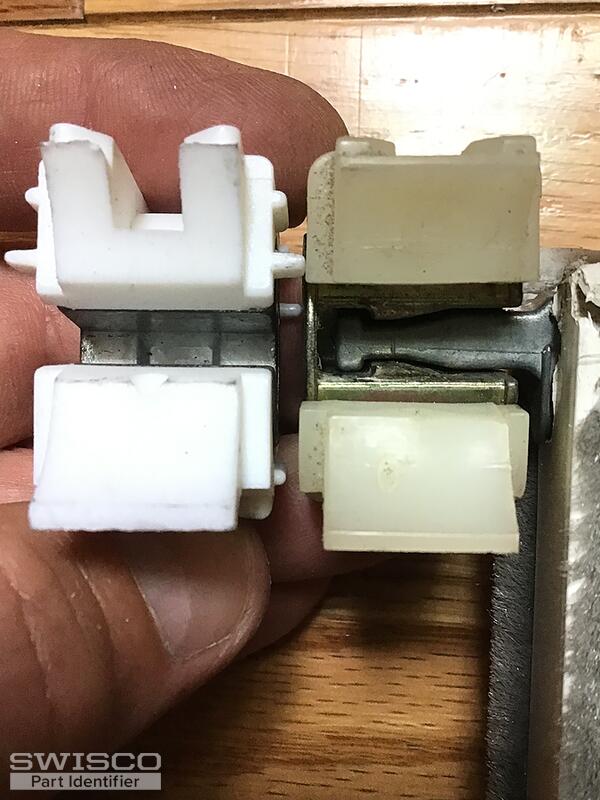

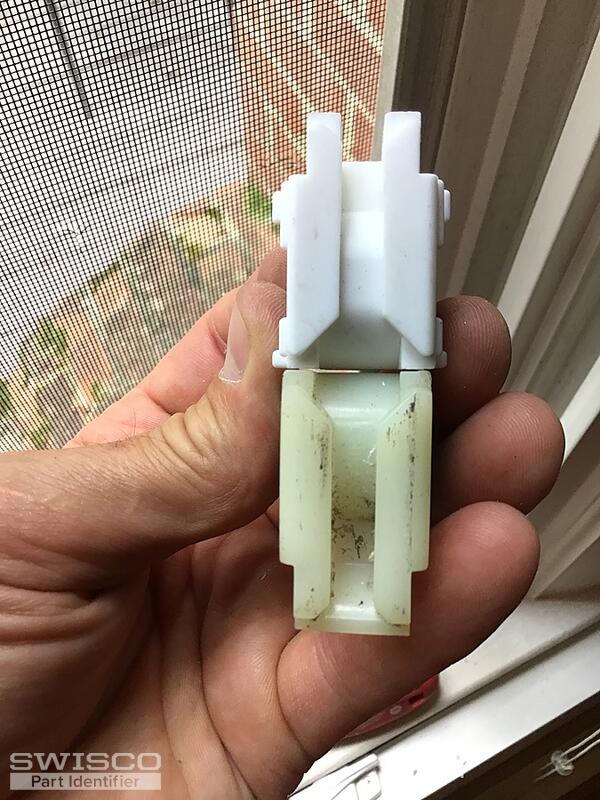

I returned Pivot Shoe 15-192 because it has extended rails/guides either side, making it not a suitable fit for my 2007 Simonton brand windows. Please image indicating dimensions of my intact pivot shoe along with image of the ill-fitting pivot shoe. Please recommend a shoe that fits. Thank you ... (cont.)

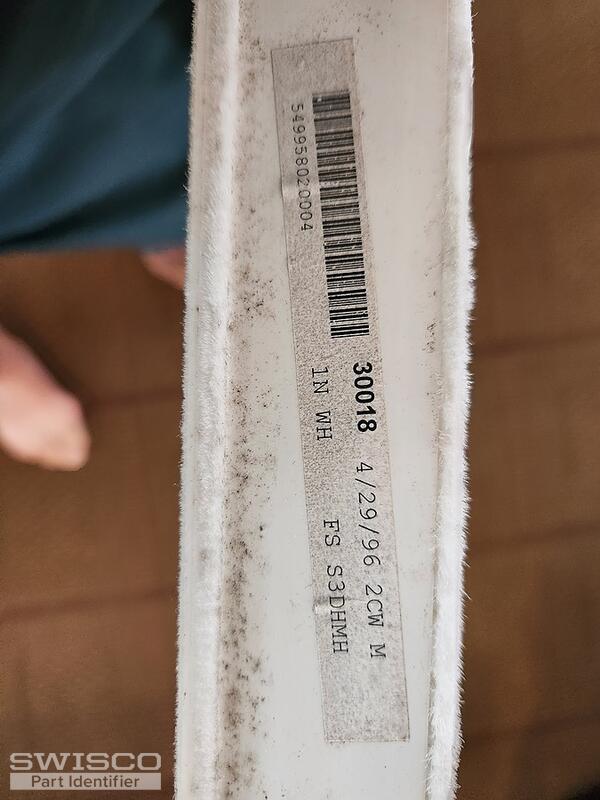

Need to determine parts needed to replace a couple tilt latch and spring balance assemblies for Simonton windows manufactured in 1996. Also guidance in replacing them, ie do the side jambs need to be cut in order to remove and replace the parts. If so, suggested location for the cut. Already replace ... (cont.)

Looking for these parts any help would be apricate it.

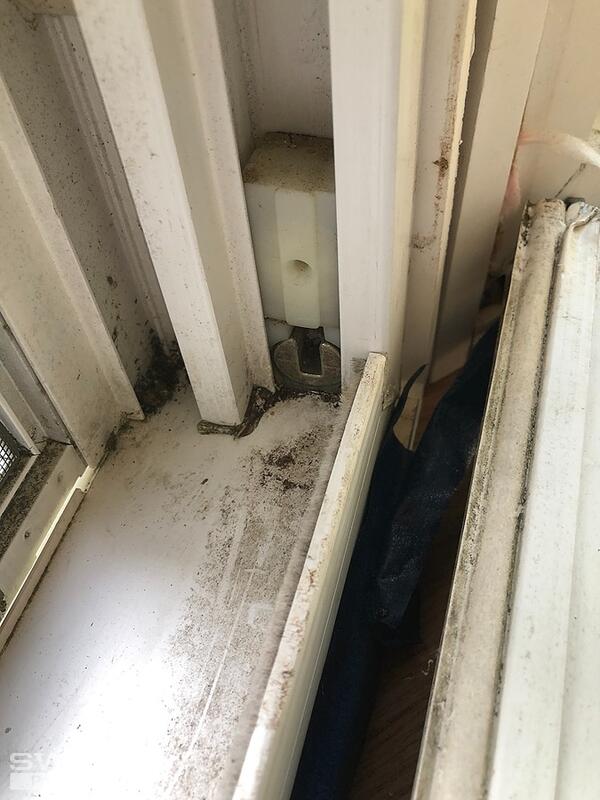

The pivot shoes in three lower sashes have broken. Do you have a suitable replacement like that shown in the photos and is 7/8" x 1 1/4" x 1 3/8" ? I believe a taller item would work, but the width and length need to fit in the track. Window frame and sash labels also attached in case they are helpf ... (cont.)

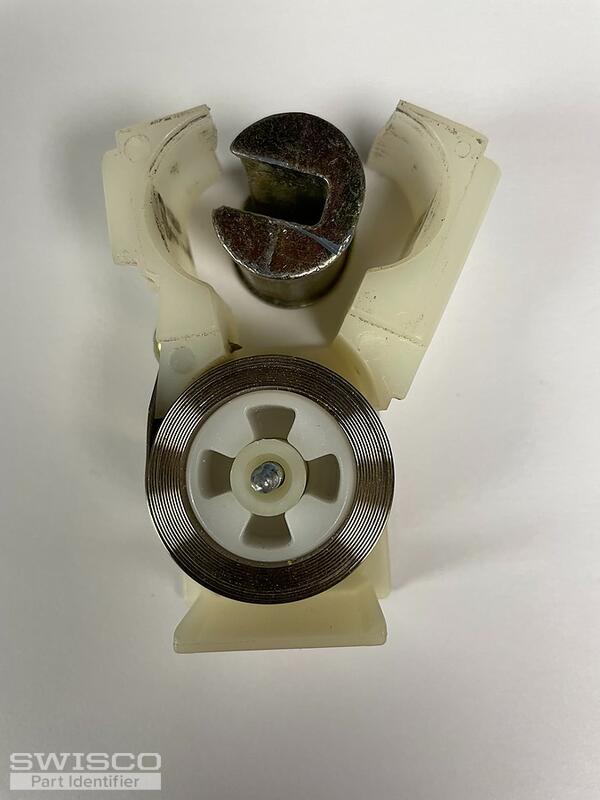

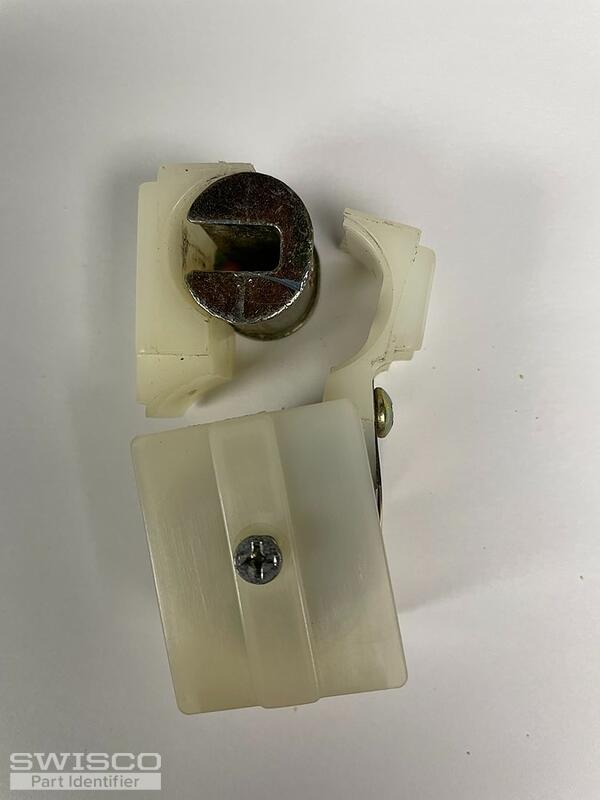

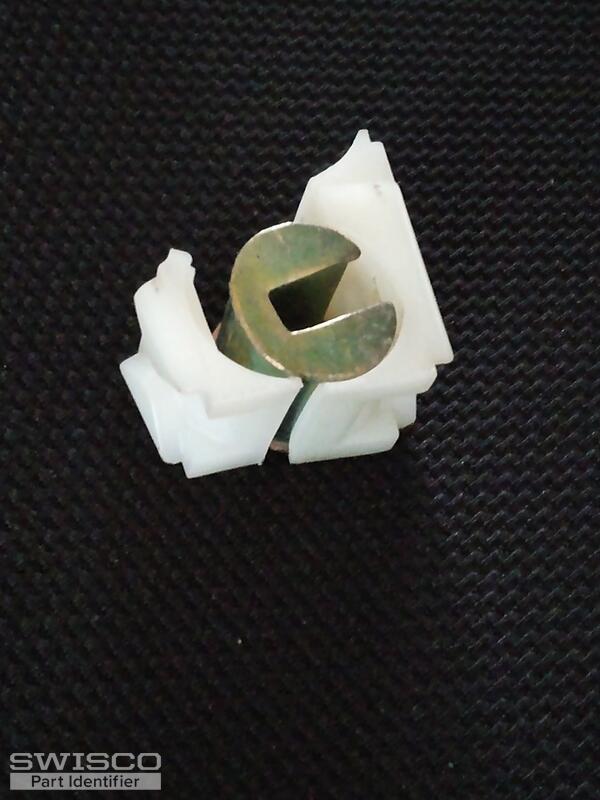

Window coil does not work. Plastic part on bottom attatched to coil holding metal window shoe broke. Need parts and instructions to replace please. Thanks.

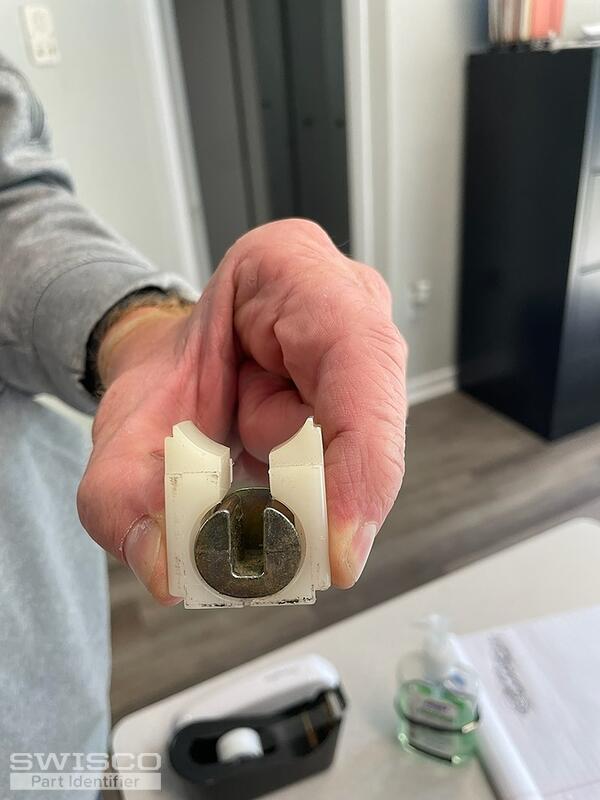

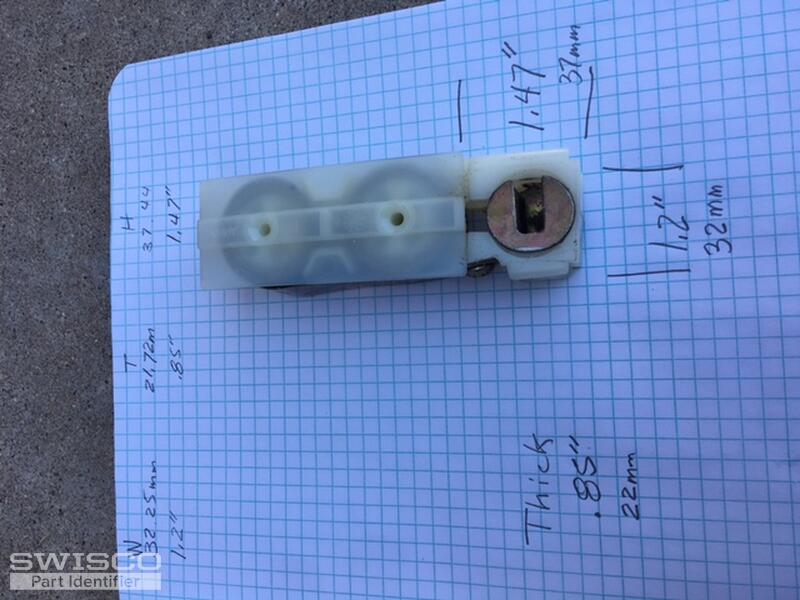

I see that pivot shoes fit right or left. I need 12 to replace in my three Simonton Windows brand double-hung windows. My photo includes dimensions of the pivot shoe. Please advise which of your pivot shoes might fit my application. thank you

These windows are Simonton company, about 20 yrs old. Need new balance parts, as shown in photos. Thank you
